High-quality glass door hinges for inset glass doors, chrome-plated. Two high-quality SQUARE II glass door hinges (1 upper and 1 lower glass hinge) from SISO / Denmark

Two high-quality SQUARE II glass door hinges (1 upper and 1 lower glass hinge)

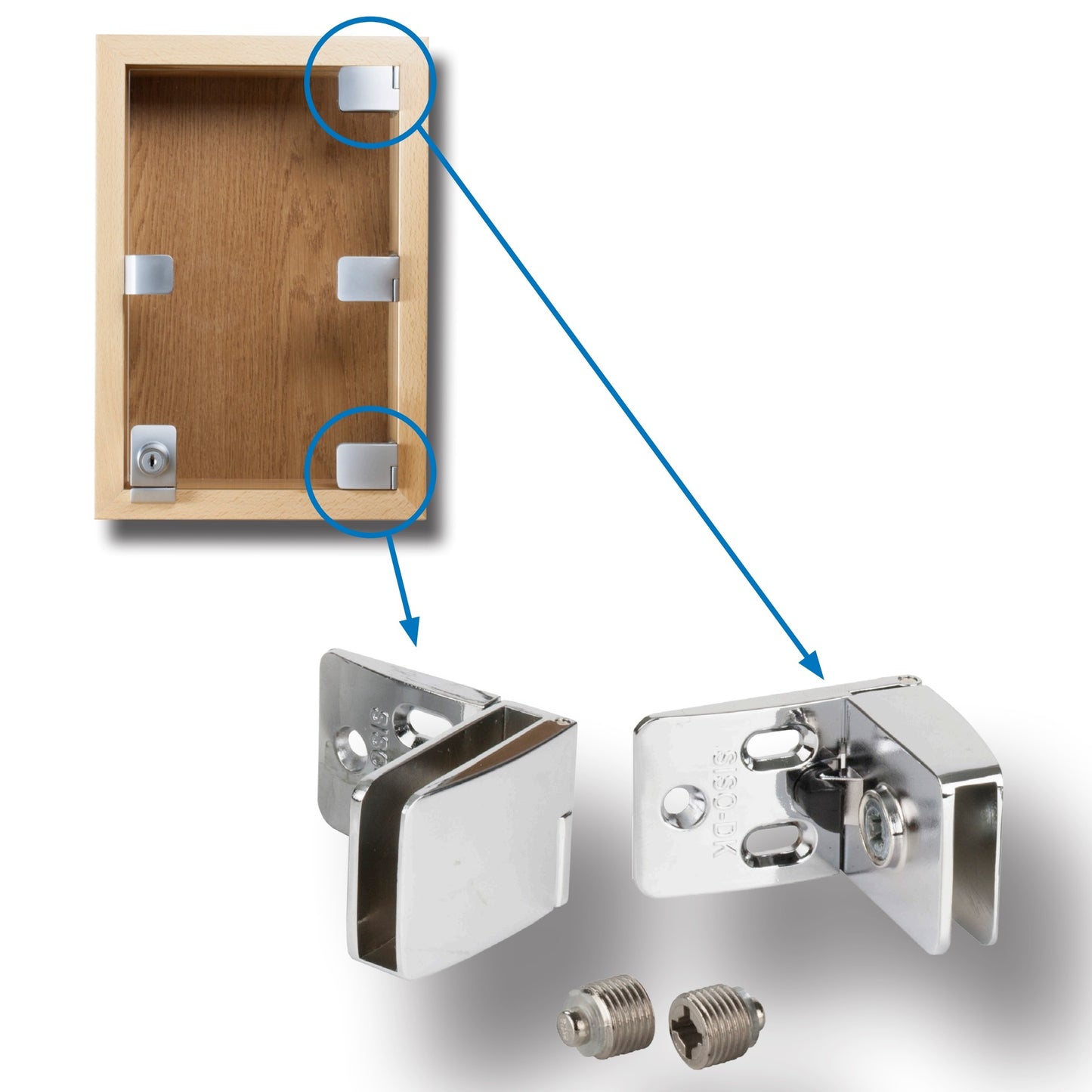

Application: The SQUARE II glass door hinges can be used to install inset glass doors in wooden cabinets. Thanks to the locking function, the glass doors are kept closed. Assembly: For mounting glass hinges in wooden cabinets, we recommend either Euro screws ϕ 6.3 mm or countersunk screws ϕ 4.5 mm (not included). The glass is attached with the screw included in delivery. Characteristics:

• For wood and glass
• For inset doors
• With locking
• For glass thickness from 4 to 6 mm
• Maximum glass door height: 1000 mm
• Maximum glass door width: 400 mm
• Opening angle: 90 or 180 degrees

Included in delivery:

• 2 pieces of glass hinge
• 2 pieces screw for glass

Material:

• Glass band: Zamak
• Glass screw: Zamak

Surface:

• Chrome-plated

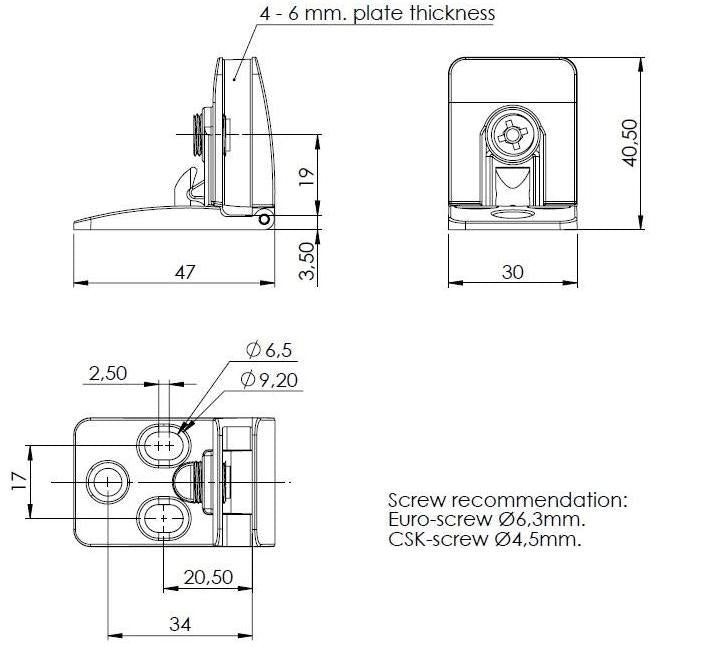

Dimensions: See drawing (mm)

• Depth: 47 mm
• Height: 30 mm
• Length: 40 mm

[caption id="attachment_27651" align="alignnone" width="404"] SQUARE II glass door hinge (1 upper and 1 lower glass hinge). Drawing[/caption] Download:

• Reach Declaration
• Test result test report

Manufacturer reference number:

• 15.06.210-5

Manufacturer: SISO (Denmark)
