Lever lock, finger catch made of polyamide with a steel counter plate, LL-66 by SUGATSUNE / Lamp (Japan)

Lever lock, finger catch made of polyamide with a counter plate made of steel, LL-66

Application: The finger catch fits all doors to keep them closed, especially strong holding due to the non-magnetic catch. The lever lock is ideal for applications where doors must remain closed, e.g. while driving or as a child safety lock, as well as for vehicles, boats, aircraft, mobile homes, caravans, etc. This finger snap is available in black (LL-66BL), white (LL-66WT), gray (LL-66GR), brown (LL-66BR) and chrome (LL-66CR). A stainless steel version of this closure (LL-66S) is also available for higher quality and corrosion-resistant applications. Features:

• Lock is designed for doors without knobs and handles
• Installation position can be adjusted (locking body: vertical ±1.5 mm, counter plate: horizontal ±1.5 mm)
• Holding force: 196 N (20 kp)
• Weight: 25 g

Assembly: The lock is mounted on the door using the screws included in delivery and the counterpart is mounted on the body ( see picture ). [caption id="attachment_14553" align="alignnone" width="420"] Finger latch LL-66 from SUGATSUNE / Lamp, assembly of the lever latch and the counterpart[/caption] The following image shows the installation dimensions in the case where no sealing rubber is mounted on the furniture body: [caption id="attachment_14558" align="alignnone" width="420"] Finger catch LL-66 from SUGATSUNE / Lamp, mounting without sealing rubber[/caption] If a sealing rubber is installed between the furniture body, please use the installation dimensions as shown in the following picture : [caption id="attachment_14563" align="alignnone" width="420"] Finger catch LL-66 from SUGATSUNE / Lamp, mounting with sealing rubber[/caption] Scope of delivery:

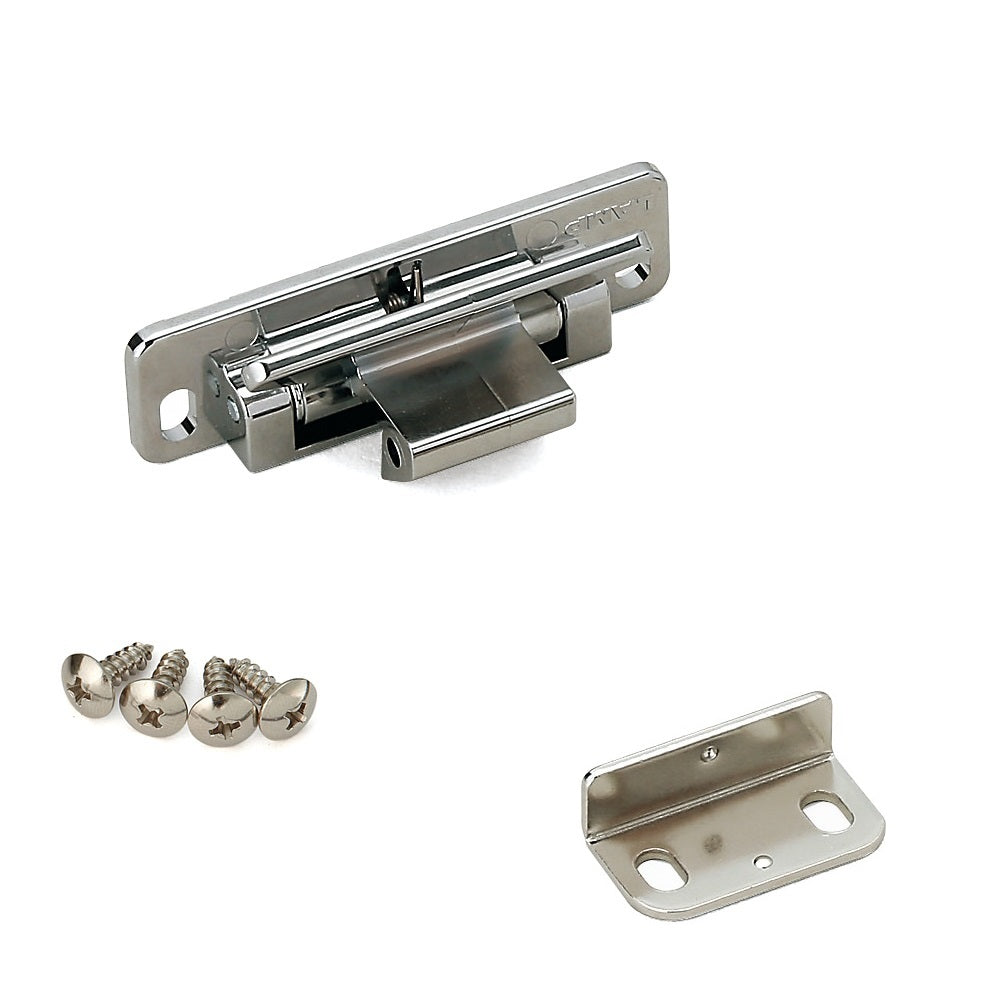

• 1 piece lever lock
• Four truss head screws, self-tapping, 4 x 12 mm

Material:

• Closure body: polyamide (PA)
• Lever: Polyamide (PA)
• Shaft: steel (color: zinc chromate, yellow)
• Spring: stainless steel (SUS304)
• Counterpart: Steel (Color: Nickel)

Dimensions: For detailed dimensions see technical drawing : [caption id="attachment_14568" align="alignnone" width="420"] Finger snap LL-66 by SUGATSUNE / Lamp, technical drawing[/caption] Manufacturer reference number:

Color	Article number	Article name
Brown	140-051-028	LL-66BR
White	140-051-027	LL-66WT
Gray	140-051-029	LL-66GR
chrome	140-036-236	LL-66CR

Watch product video : [video width="1920" height="1080" mp4="https://furniton.com/wp-content/uploads/Hebelriegel-Fingerschnaepper-Lever-latch-sugatsune-lamp-LL-66-video.mp4"][/video] Manufacturer: Sugatsune / LAMP® (Japan)
