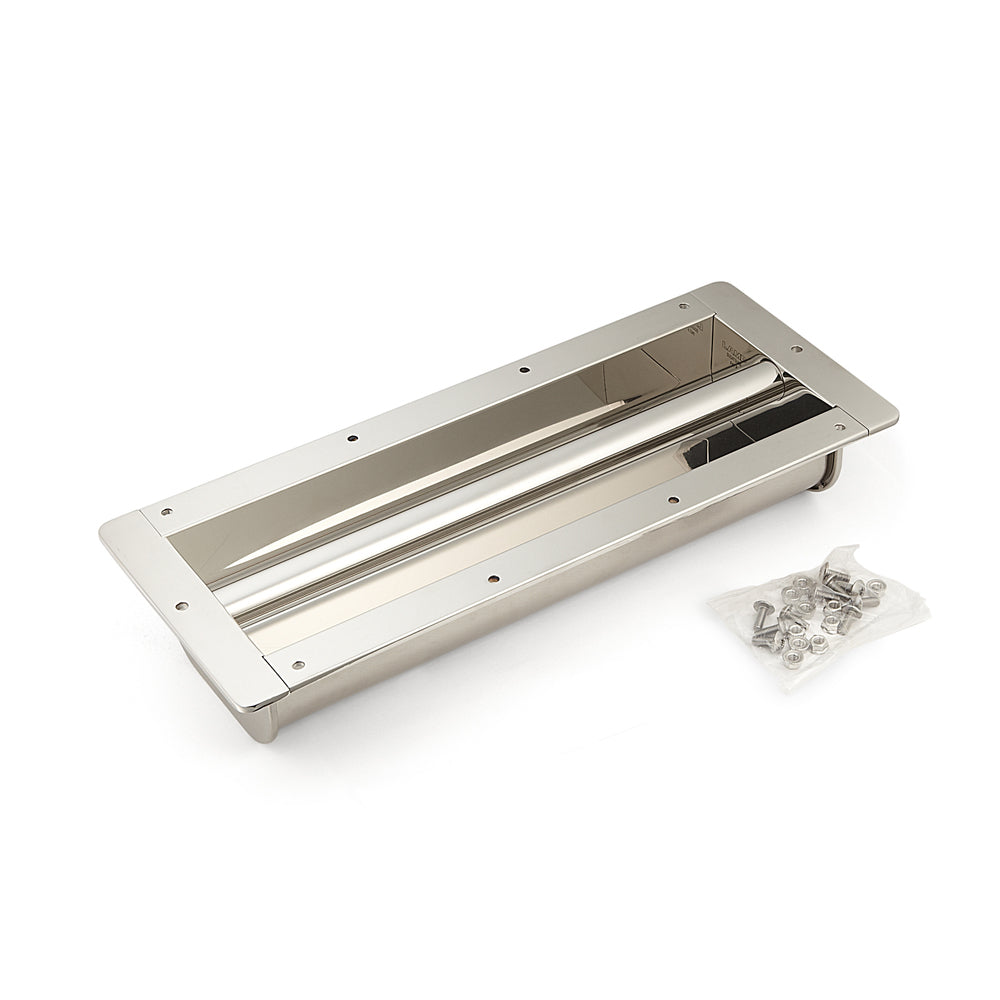

Large stainless steel pull handle V2A (SUS304), 460 mm (18.2") HH-M400. High-quality, solid and robust stainless steel pull handle made of V2A (SUS304) with a glossy finish, for large doors, ships, and special vehicles from Sugatsune / LAMP® (Japan).

Large, robust stainless steel handle shell made of V2A (SUS304) stainless steel HH-M400

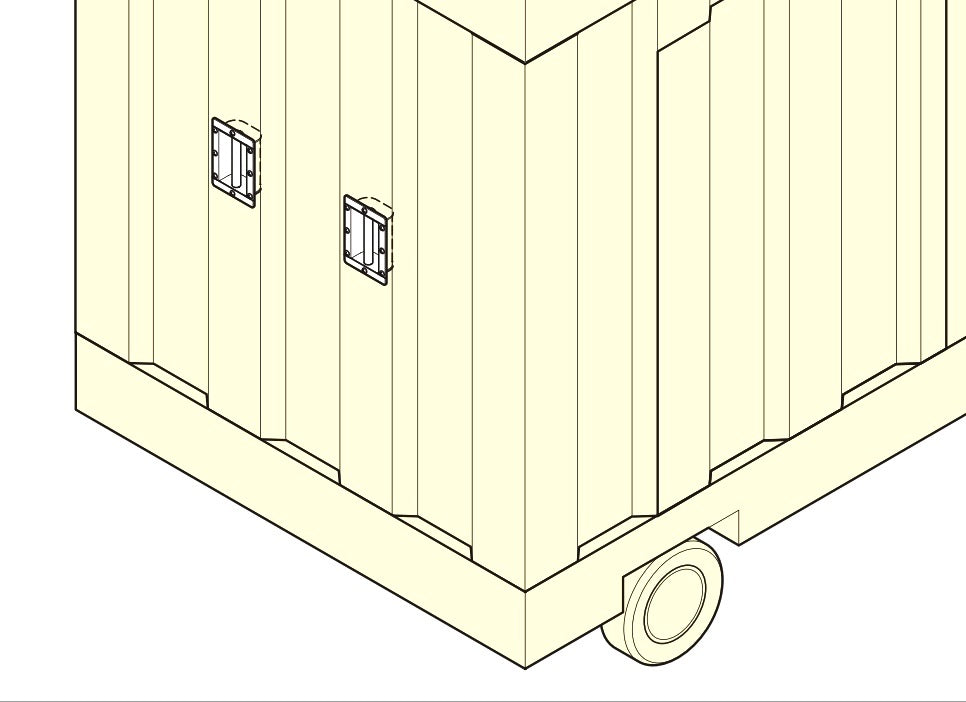

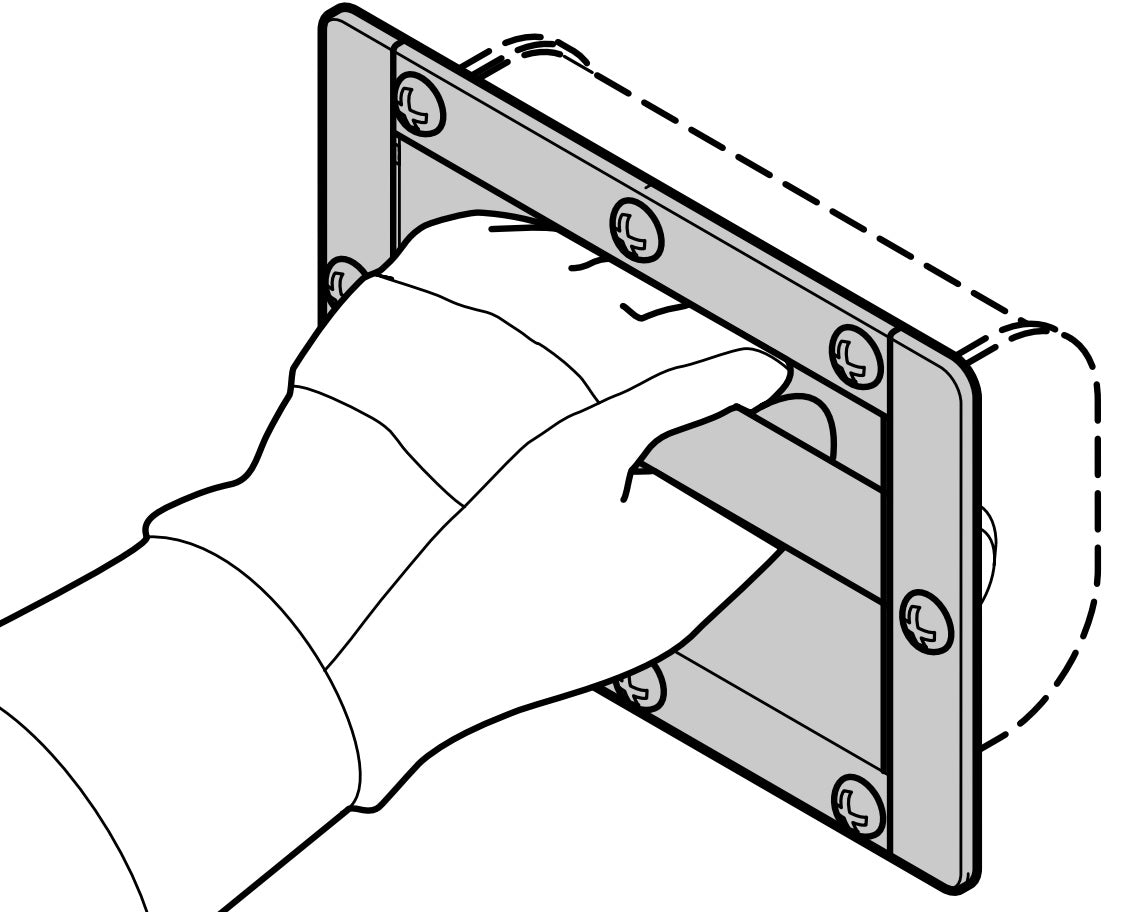

Application: [caption id="attachment_43749" align="alignnone" width="420"] Large stainless steel handle V2A (SUS304) from Sugatsune, HH-M400 (460 mm), glossy polished. Use with gloves.[/caption] High-quality, solid and robust stainless steel handle shell made of V2A (SUS304) stainless steel, glossy polished, for large doors, ships, special vehicles. Made entirely of stainless steel. Large grip area allows easy grip even with gloves. The handle does not protrude above the surface of the door. The stainless steel handle shells HH-M400 can be used both horizontally and vertically. [caption id="attachment_43762" align="alignnone" width="420"] Large stainless steel V2A (SUS304) pull handle from Sugatsune, HH-M400 (460 mm), glossy polished. Application[/caption] The load-bearing capacity specifications refer to the pull handle. The door must also have a correspondingly high load-bearing capacity. The high-quality HH-M400 stainless steel handle shells are ideal for:

• Large doors
• ships
• Special vehicles
• humid environments
• container
• Cruise ships

Material: The stainless steel handle shells HH-M400 are made of high-quality stainless steel SUS304. They are corrosion-resistant and rust-proof. Surface:

• Shiny polished
• The stainless steel handle shells HH-M400 appear high-quality and robust

Assembly:

• The mounting is done using the screws included in delivery (M6 × 16 mm)
• The fastening screws are also made of stainless steel
• For installation, a 418 mm (16-15/32″) x 140 mm (5-16/32″) cutout must be made in the door (for further details see installation drawing )

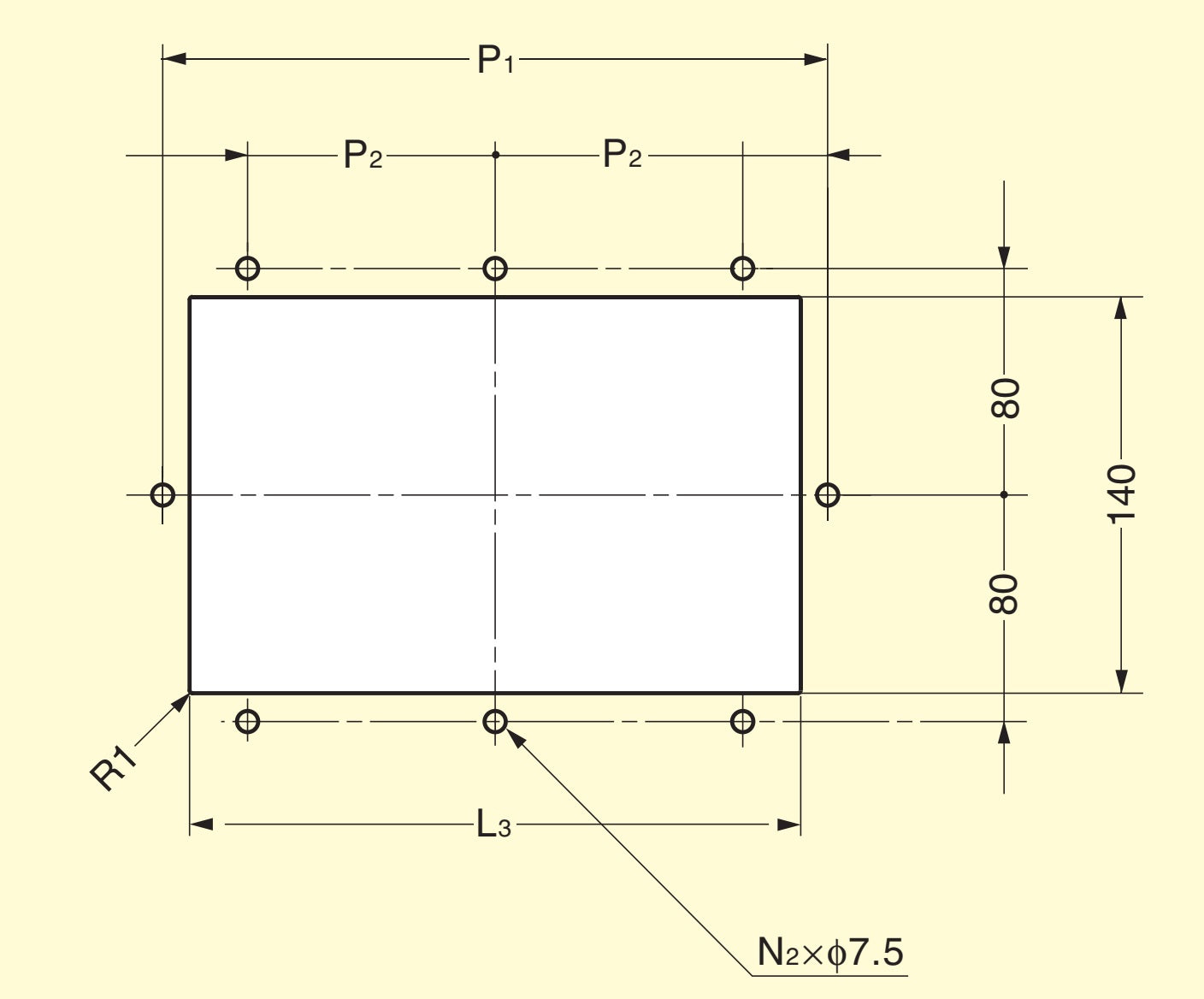

[caption id="attachment_43775" align="alignnone" width="420"] Large stainless steel V2A (SUS304) pull handle from Sugatsune, HH-M400 (460 mm), glossy polished. Assembly drawing[/caption] Characteristics:

• Weight: 3700 g
• Load capacity: 4500 N (459.2 kp)
• Size: 460 mm (18.2″)
• Made entirely of stainless steel
• Large grip area
• Suitable for use with gloves
• Housing and handle area: rectangular
• Available in two sizes
• Stable
• Solid
• Robust
• Stainless steel
• Corrosion-resistant
• High quality

Dimensions: For further dimensions and details see technical drawing .

• Width of the stainless steel handle shell: 460 mm (18-4/32″)
• Height: 186.3 mm (7-11/32″)
• Handlebar diameter: Φ27.2 mm (1-2/32″)
• Distance between holes (P1): 435 mm (17-4/32″)
• Distance between holes (P2): 125 mm (4-29/32″)

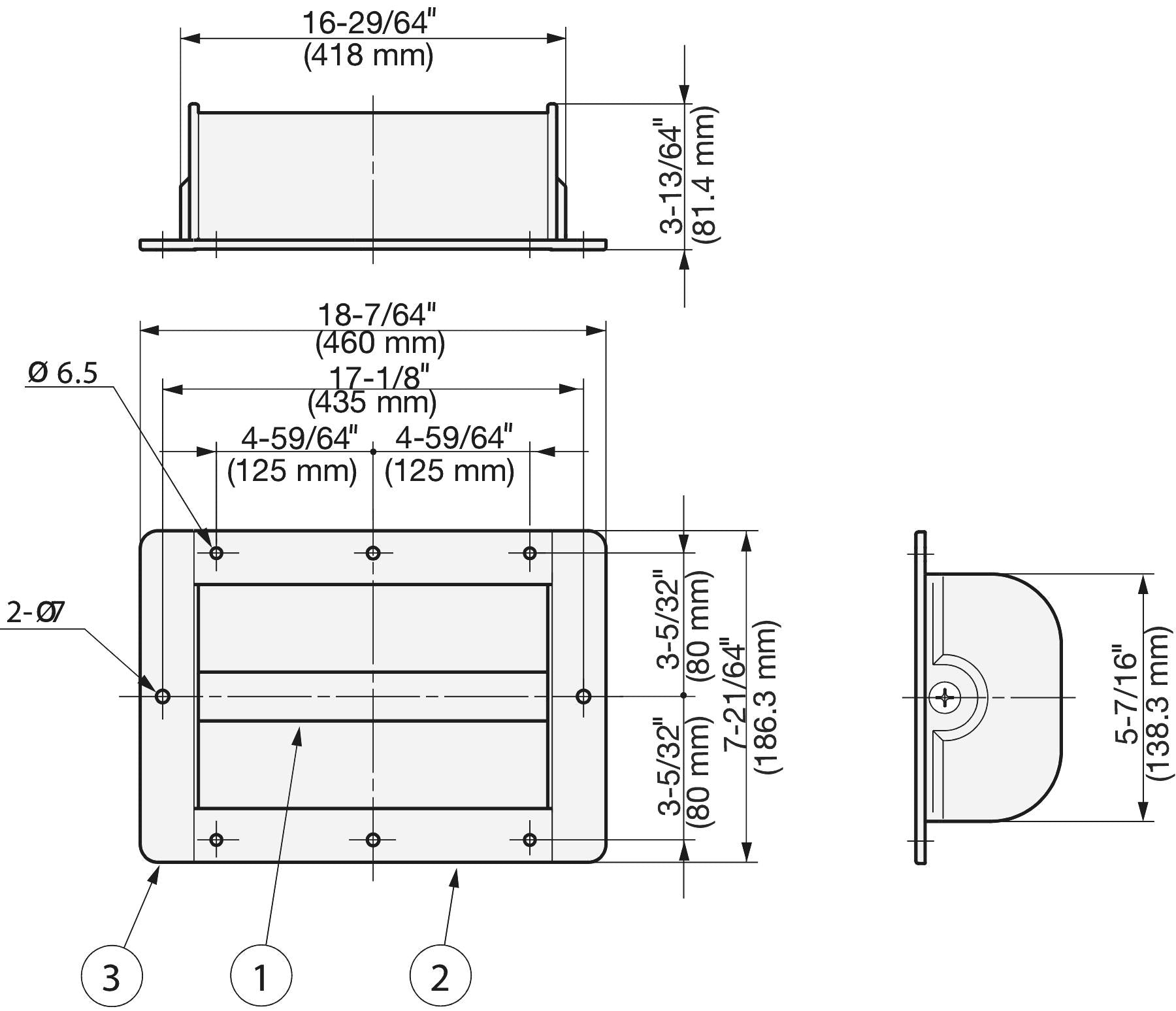

[caption id="attachment_43788" align="alignnone" width="420"] Large stainless steel V2A (SUS304) pull handle from Sugatsune, HH-M400 (460 mm), glossy polished. Technical drawing[/caption] Included in delivery:

• 1 piece stainless steel handle shell HH-M400 made of stainless steel SUS304 (V2A)
• 10 pieces of stainless steel M6 × 16 mm fastening screws
• 10 pieces M6 stainless steel screw nuts

Manufacturer reference number:

• Article number: 100-012-305
• Article name: HH-M400
• EAN number: 4510932010054

Manufacturer: SUGATSUNE / LAMP® (Japan)
