GRASS Tiomos 110° furniture hinge with damping, including straight mounting plate, four drilling patterns to choose from

Application: To replace an existing hinge, please measure the distance between the holes (see photo) and select the appropriate hinge. There are four hole spacing options:

• 42 mm / 11 mm (6065 G)

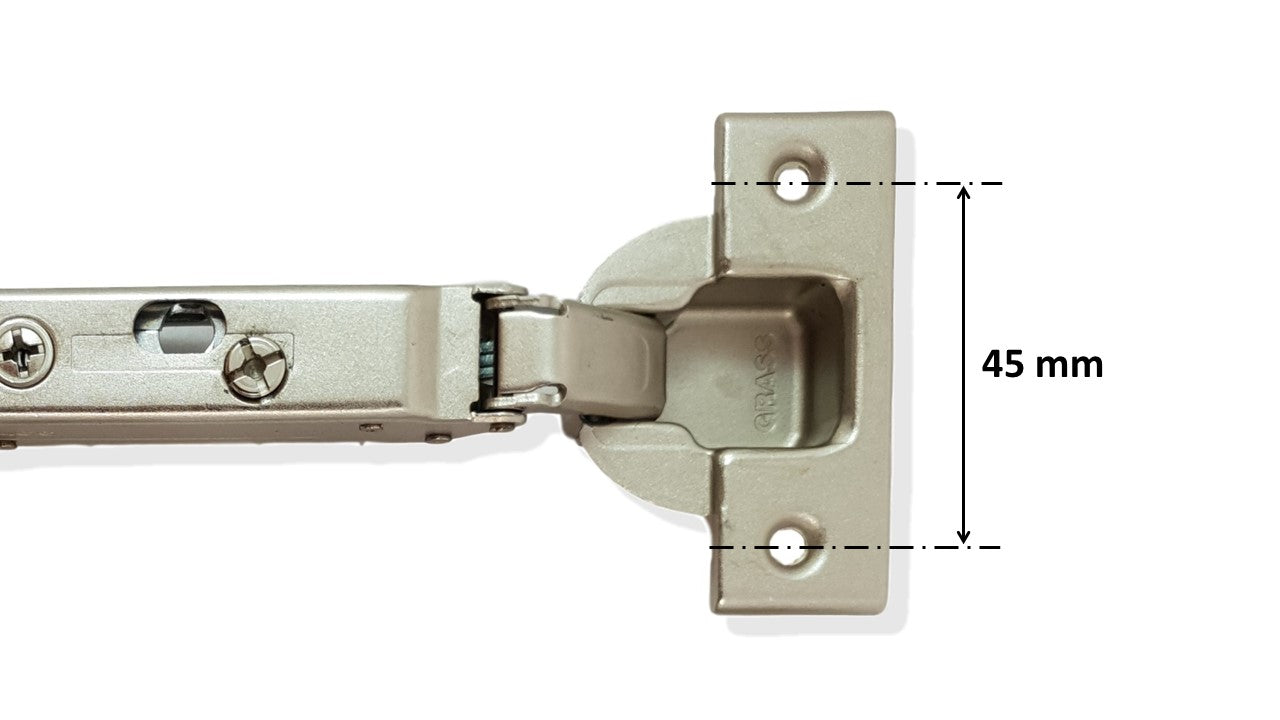

• 45 mm / 9.5 mm (6064 B)

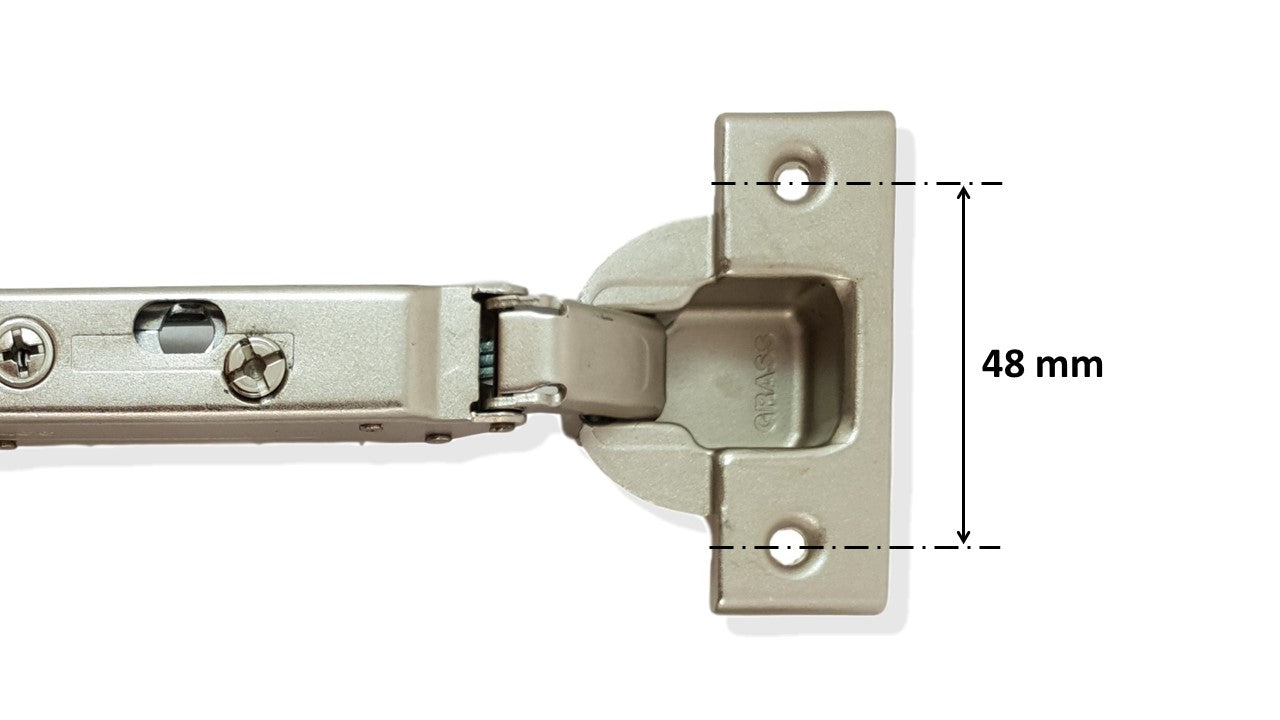

• 48 mm / 9 mm (6067 S)

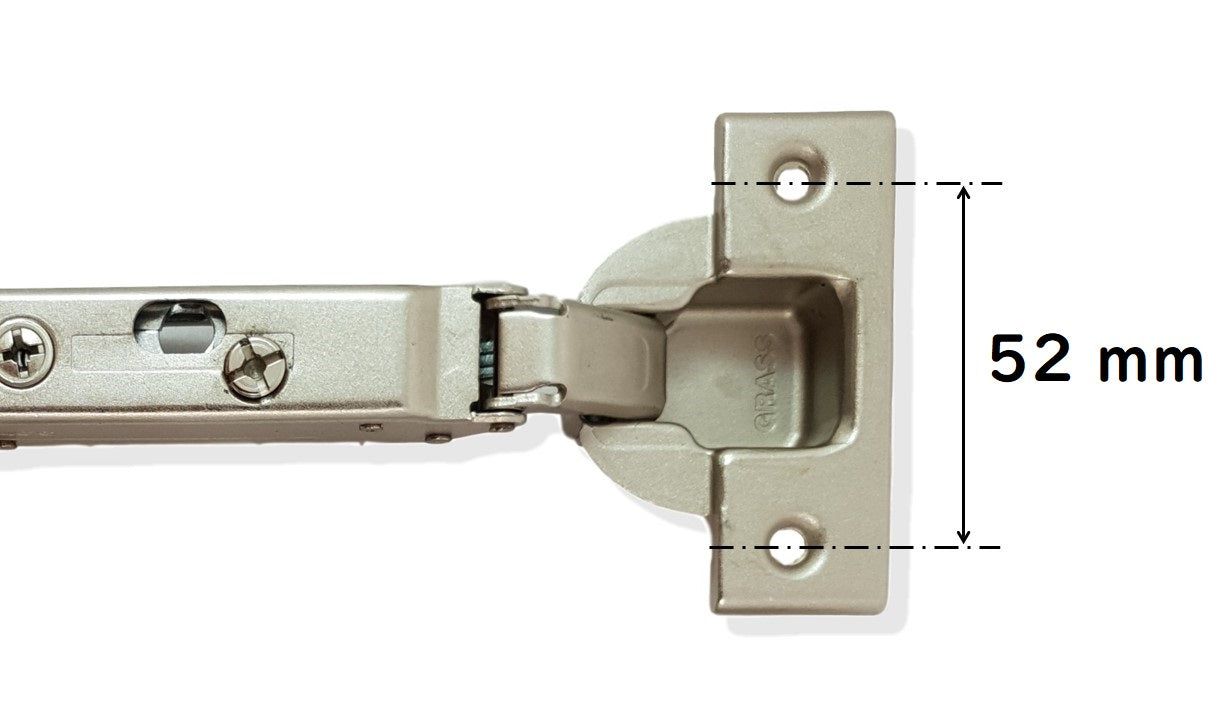

• 52 mm / 5.5 mm (6066 H)

Adjustments:

• The furniture hinge has four adjustment options: support adjustment, depth adjustment, height adjustment and an adjustable damper integrated into the hinge arm: Height adjustment: ±2 mm
• Lateral adjustment: ±2 mm
• Depth adjustment: +3/-2 mm
• Damper: 3 levels

Characteristics:

• Click-On: tool-free installation of the door on the body

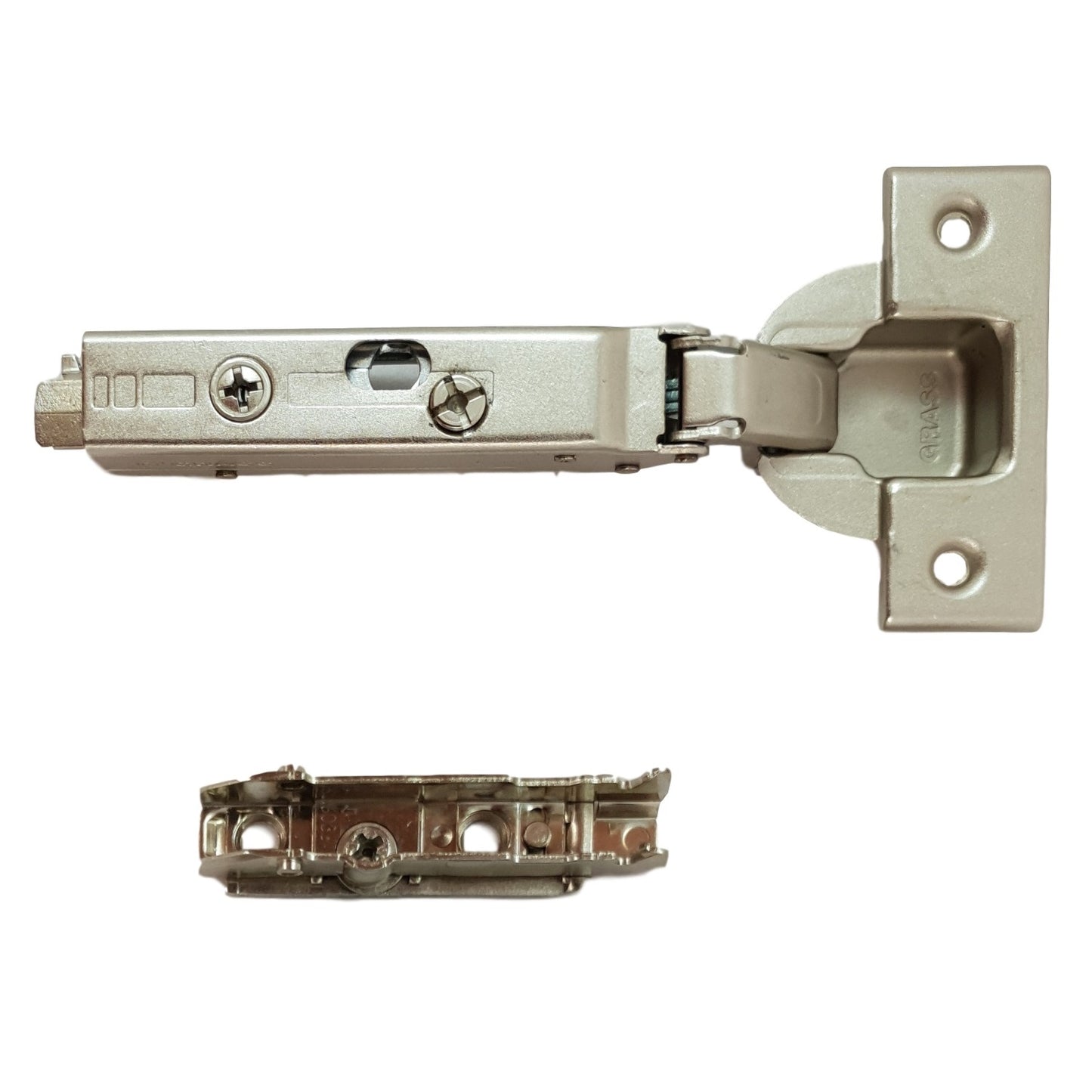

• Incl. straight mounting plate
• 110° opening angle
• Corner stop (surface-mounted, overlay)
• High-quality brand quality

Included in delivery:

• 1 hinge with integrated damping
• 1 piece straight mounting plate
• This product does not include any fixing screws

Watch assembly video: Additional product information:

• Download assembly instructions for GRASS Tiomos furniture hinges!

Manufactured by GRASS in Germany
