GRASS Hetal Kinvaro F-20 Type 6C folding flap fitting (left side ONLY) with opening assistance and closing damper. Flap fitting, including cover cap.

GRASS Hetal Kinvaro F-20 Type 6C folding flap fitting (ONLY the left side) with opening support and closing damper, including cover cap

Application: For replacing or repairing an already installed GRASS Hetal Kinvaro F-20 Type 6C flap fitting in a kitchen (e.g. for some models from the manufacturer Nobilia Küchen). An economical and environmentally friendly solution if only one side of the flap fitting is defective and the other side is functional. Characteristics:

• Flap is held securely in any position
• Particularly easy movement
• Adjustable spring force
• Integrated adjustable closing damper
• Pre-assembled Euro screws and positioning pins for easy installation of the fitting on the side wall
• Integrated opening limit can be adjusted up to 90°
• Fast, tool-free clip front mounting

3-dimensional adjustment of the flap through direct adjustment:

• Height adjustment: ±1.5 mm
• Lateral adjustment: ±1.5 mm
• Tilt adjustment: ±1.5 mm
• Joint can also be adjusted 3-dimensionally by direct adjustment

The scope of delivery includes:

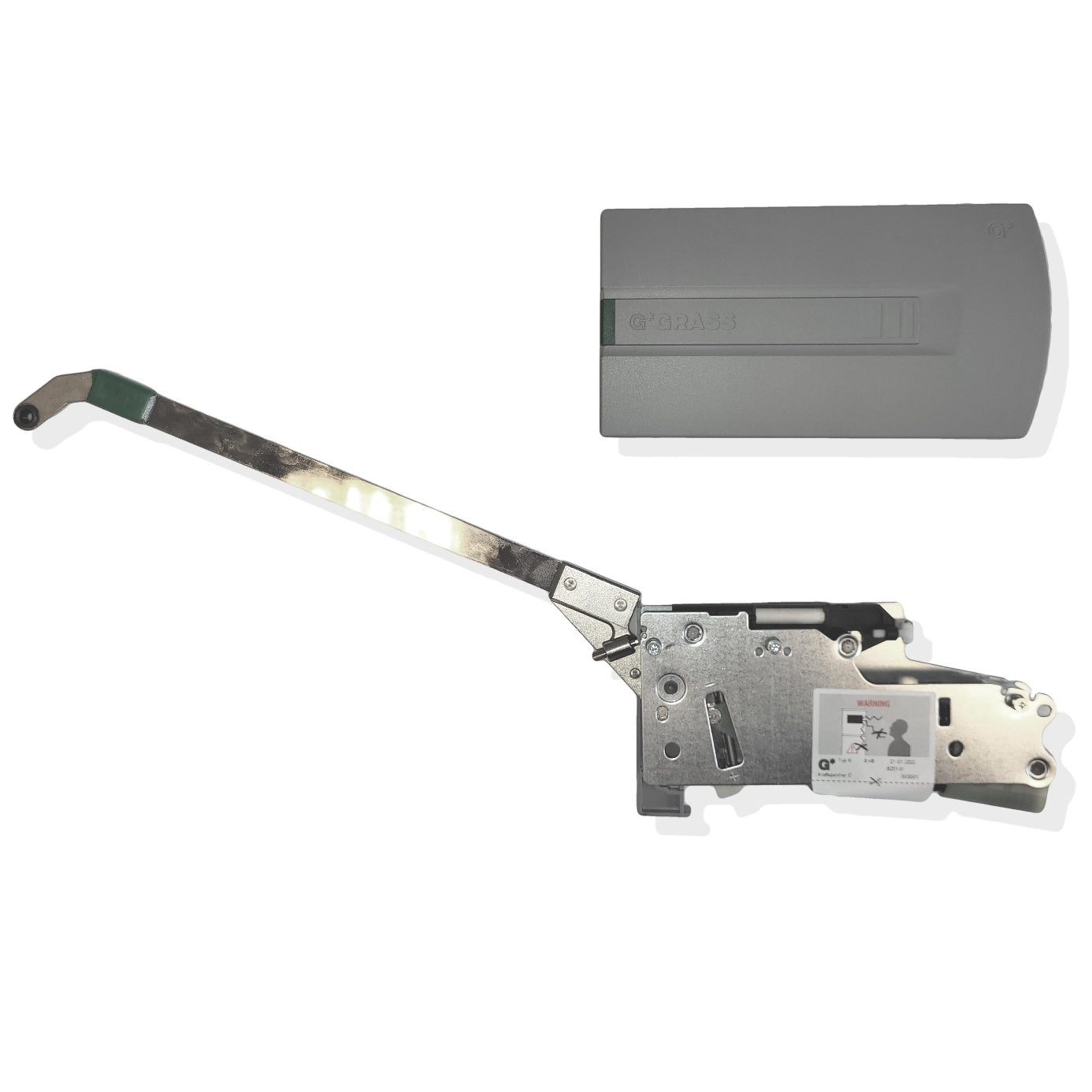

• 1 piece flap fitting (left side)

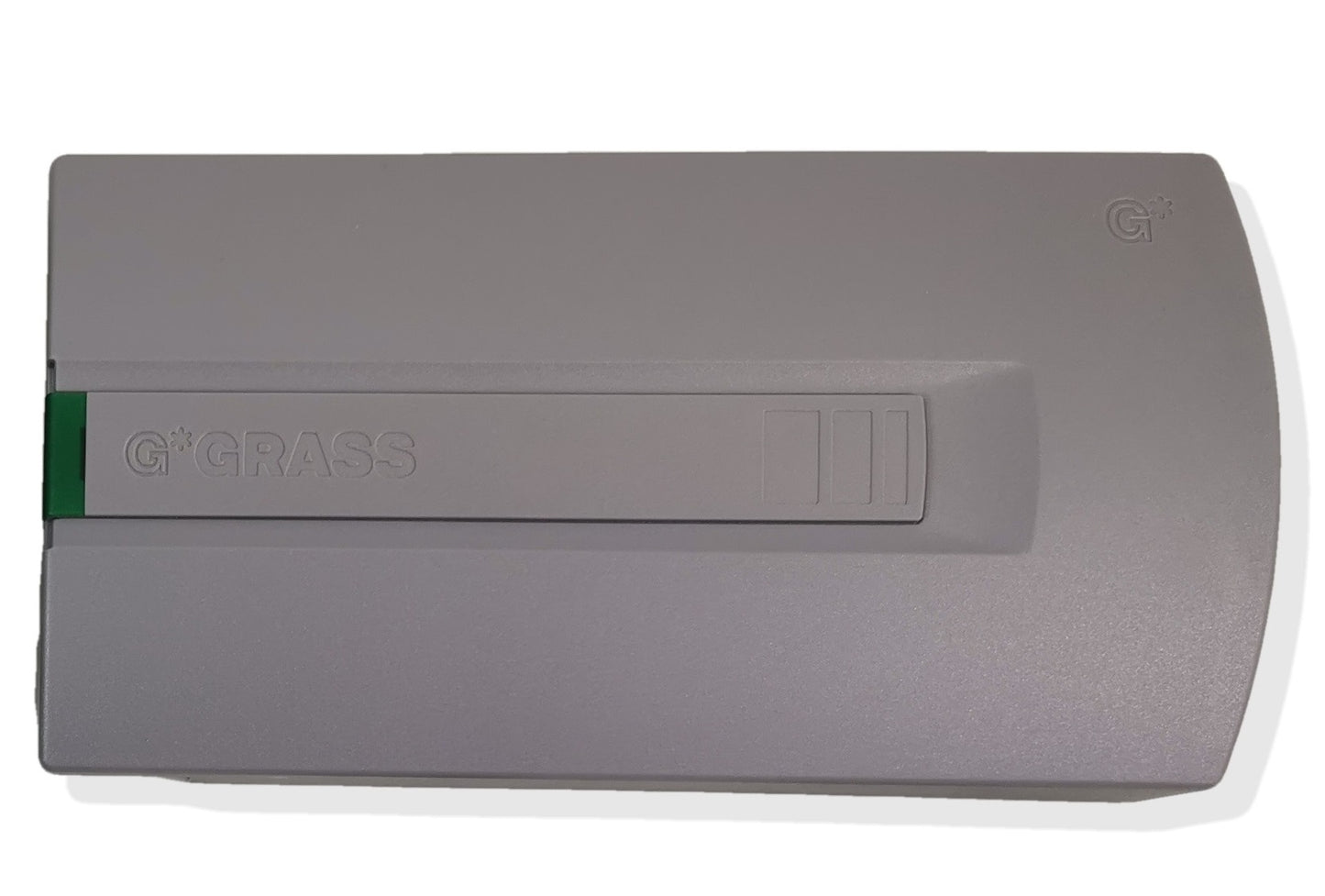

• 1 piece grey cover cap (for left side)

We will be happy to help you choose Manufactured by GRASS in Germany Download the assembly instructions (installation instructions) for the GRASS Kinvaro F-20 flap fitting! Download adjustment instructions for GRASS Kinvaro F-20 flap fitting! Watch installation videos for GRASS Kinvaro F-20 flap fitting! Download the GRASS Kinvaro flap fittings information brochure! Download the GRASS Kinvaro flap fittings product catalog! Download CAD data for GRASS Kinvaro F-20 flap fitting!
