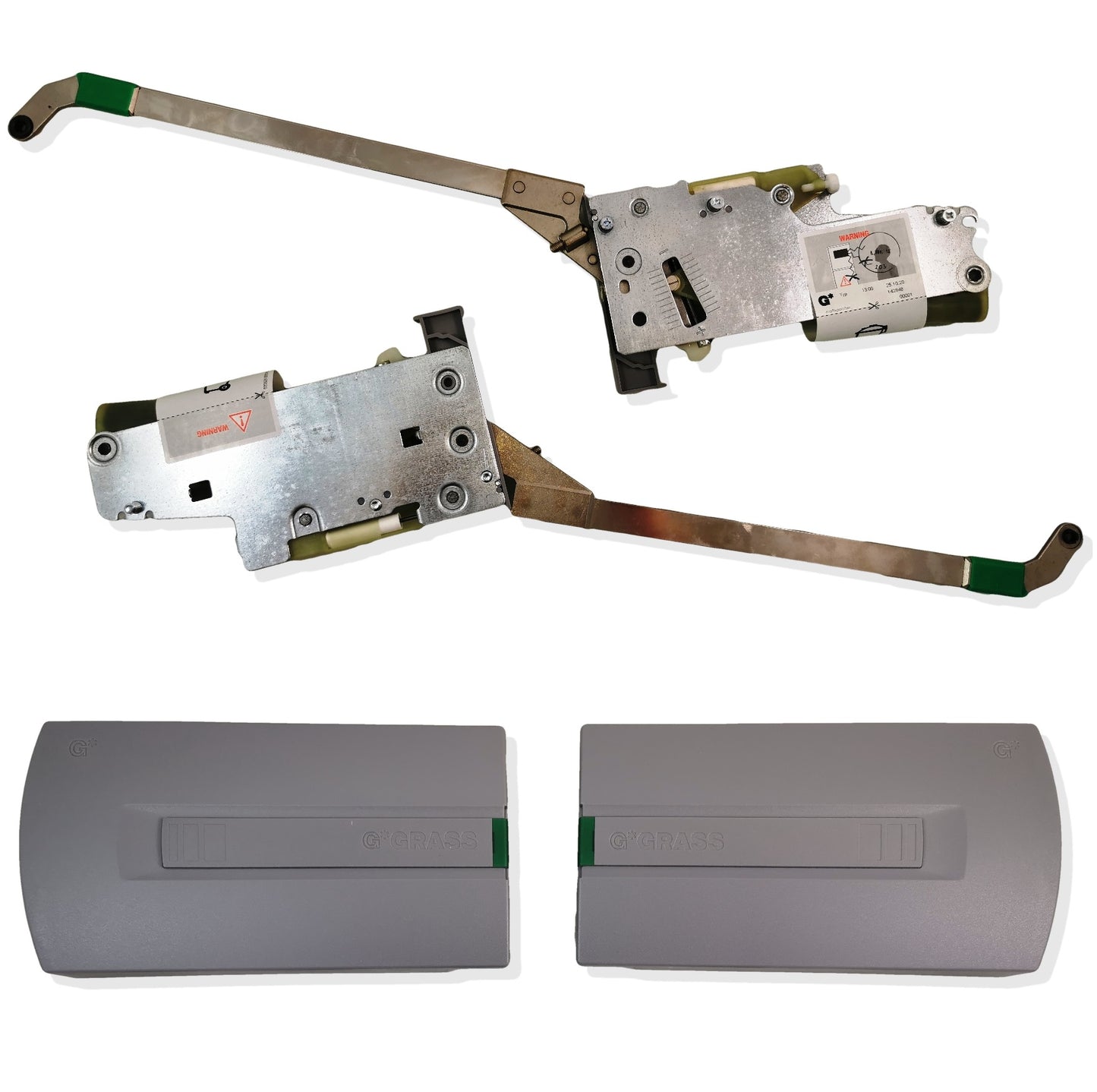

GRASS Hetal Kinvaro F-20 Type 6C folding flap fitting with opening assistance and closing damper. Flap fitting with gray cover caps.

GRASS Hetal Kinvaro F-20 Type 6C folding flap fitting with opening support and closing damping. With grey cover caps.

Characteristics:

• The flap is securely held in any position.
• Particularly easy movement sequence
• Adjustable spring tension
• Integrated adjustable closing damping
• Pre-assembled Euro screws and positioning pins for easy mounting of the fitting on the side wall
• Integrated opening limiter can be set up to 90°
• Quick, tool-free clip-on front mounting

3-dimensional adjustment of the flap via direct adjustment:

• Height adjustment: ±1.5 mm
• Lateral adjustment: ±1.5 mm
• Tilt adjustment: ±1.5 mm
• The joint can also be adjusted 3-dimensionally via direct adjustment.

Included in the delivery are:

• 2 fittings (1 right and 1 left)
• 2 cover caps, grey (1 piece right and 1 piece left)

We're happy to help you with your selection!

Made by GRASS in Germany

Additional Information:

• Download the installation instructions for the GRASS Kinvaro F-20 flap fitting!
• Download the adjustment instructions for the GRASS Kinvaro F-20 flap fitting!
• Watch the installation videos for GRASS Kinvaro F-20 flap fittings!
• Download the GRASS Kinvaro flap fittings information brochure!
• Download the GRASS Kinvaro flap fittings product catalog!
• Download CAD data for GRASS Kinvaro F-20 flap fitting!
