Counter plate for glass thickness 5 mm (1 3/64″), with handle function, surface: chrome-plated, 40 mm (1 37/64″), K-150CR for glass cabinet door, magnetic catch

Counter plate for glass thickness 5 mm (1 3/64"), with handle function, made of robust steel, surface: chrome-plated, K-150CR, size: 40 mm (1 37/64")

Application:

Counterpart for glass cabinet doors, magnetic catches and much more.

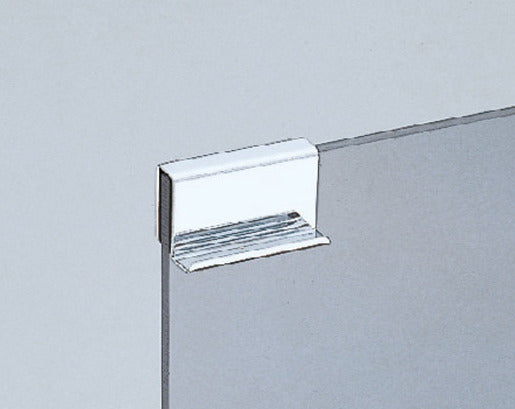

The K-150CR steel counter plate was specially developed for furniture glass doors and serves as a counterpart to push-to-open magnetic locks.

The counterpart has a handle function that makes a separate door handle for the glass door unnecessary.

The counterpart K-150CR is suitable for all common push-magnet closures.

The included chloroprene rubber mounting pad allows the counterpart to be securely mounted on cabinet glass doors with a glass thickness of 5 mm (13/64").

The mounting base also ensures that no scratches occur on the glass door.

The K-150CR counter plate ensures safe closing and opening without additional furniture handles.

The high-quality counter plates 140-014-048 are ideal for, among other things:

• glass door
• Magnetic snap fastener
• Push-to-open door opener
• glass cabinet door
• Magnetic catch

Material:

• The counter plates 140-014-048 are made of robust steel
• Mounting base: made of chloroprene rubber (CR)
• Steel is ideal for furniture fittings as it is both robust and durable, ensuring high load-bearing capacity and a long service life of the fittings

Surface:

• Chrome-plated
• Chrome-plated surfaces give rooms an elegant and modern look that appears timeless
• They are extremely easy to maintain, as chrome is resistant to corrosion and scratches and therefore remains durable
• In addition, chrome-plated surfaces reflect light, making rooms appear brighter and visually larger

Assembly:

• The counter plate K-150CR is placed on the cabinet glass door
• Before fitting, the included mounting template must be placed on the glass door so that the K-150CR counterpart can be placed on it

Characteristics:

• Weight: 19.1 g
• Size: 40 mm (1-37/64″)

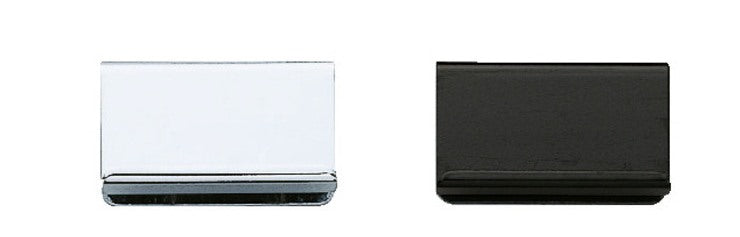

• Available in 2 surface colors: chrome and black
• easy to assemble
• practical
• stable
• For furniture glass doors with glass thickness of 5 mm (13/64″)
• With handle function
• Incl. mounting base
• Material thickness: 1 mm (3/64″)
• chrome-plated
• Steel
• robust
• high brand quality from Sugatsune / LAMP®

The dimensions:

• Length of the stop plate: 40 mm (1-37/64″)
• Width: 23 mm (29/32″)
• Material thickness: 1 mm (3/64″)
• Depth of grip area: 10 mm (25/64″)

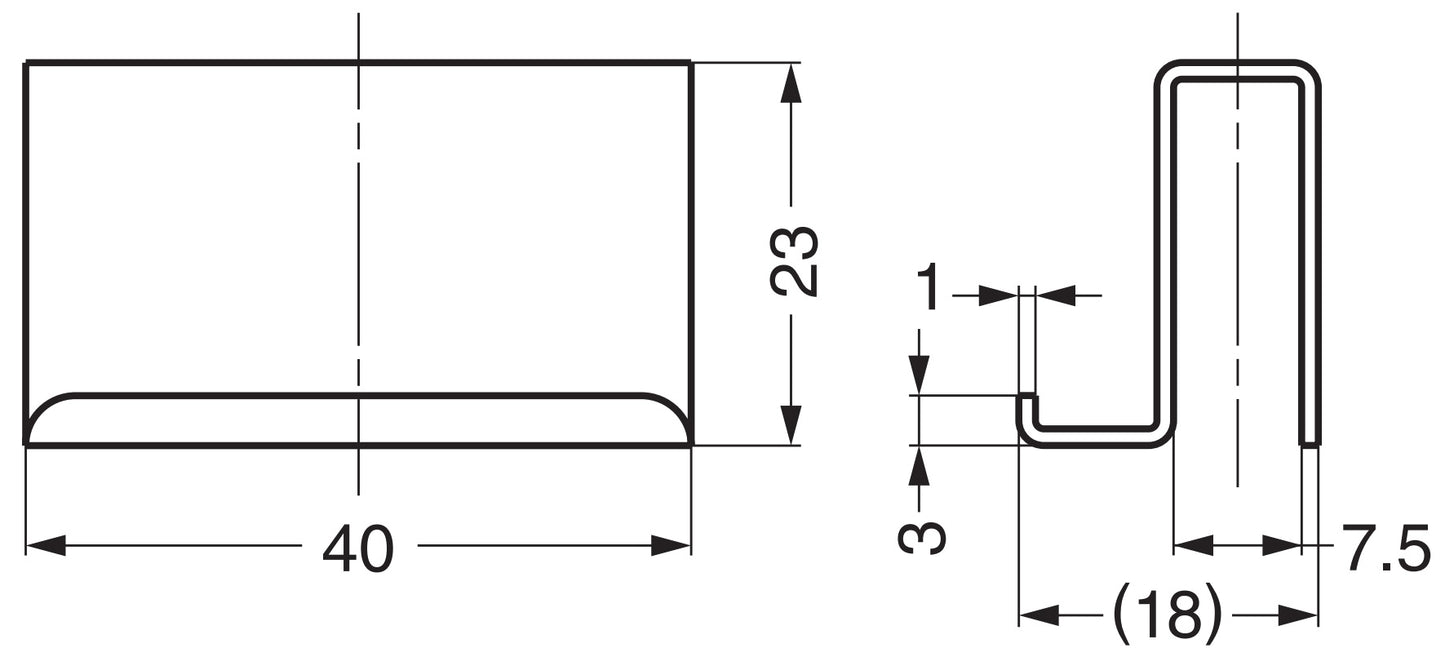

For further dimensions and details see technical drawing .

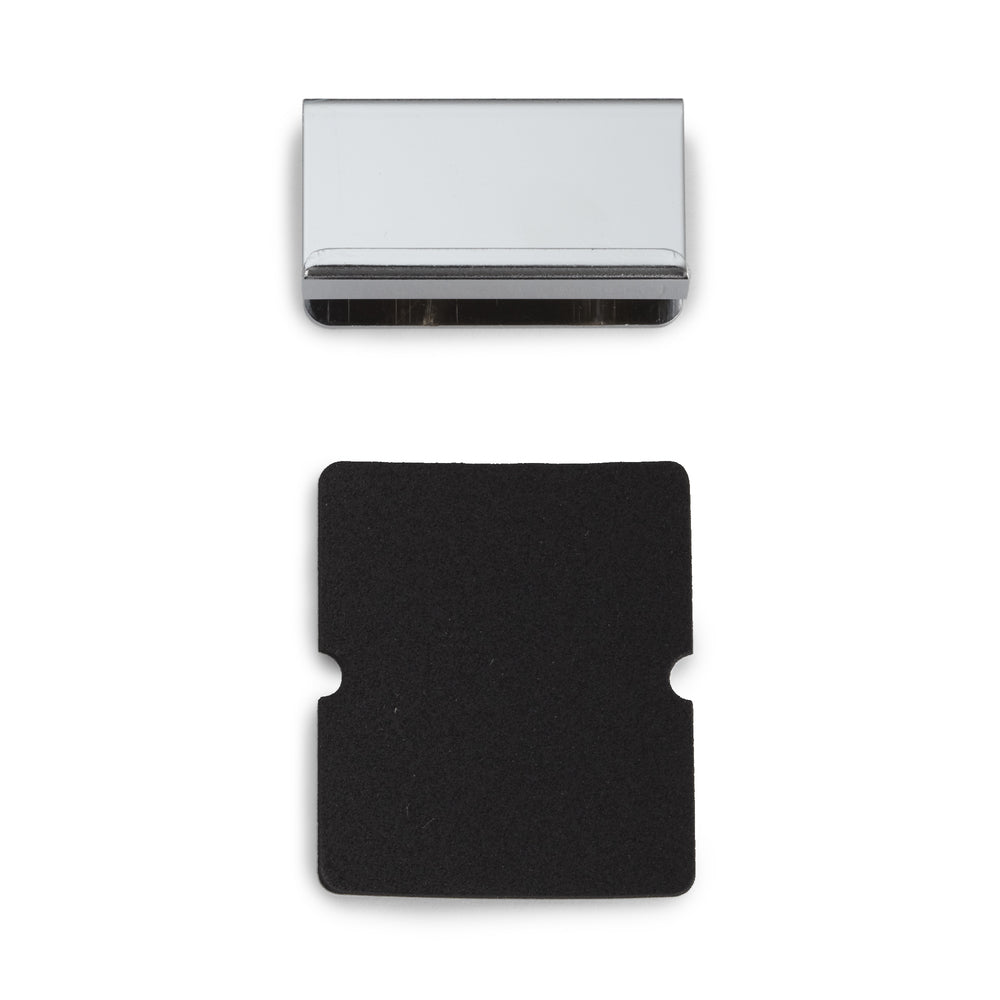

Included in delivery:

• 1 piece counter plate 140-014-048 made of robust steel, chrome-plated
• 1 piece mounting base
• Please note that the mounting screws are not included in delivery

Manufacturer reference number:

• Article number: 140-014-048
• Item number: K-150CR
• EAN number: 4510932017046

Manufacturer:Sugatsune / LAMP® (Japan)
