Counter plate for glass thickness 5 mm (13/64″), made of steel, surface: black, 40 mm (1-37/64″), K-130B for glass cabinet door, magnetic catch

Counter plate for glass thickness 5 mm (1 3/64"), made of robust steel, surface: black, K-130B (140-014-047), size: 40 mm (1-37/64")

Application:

Counterpart for glass cabinet doors, magnetic catches and much more.

The K-130B counter plate made of steel was specially developed for furniture glass doors and serves as a counterpart to magnetic catches or push-to-open magnetic closures.

The counterpart K-130B is suitable for all common magnetic catches and push-magnet closures.

The included chloroprene rubber mounting pad allows the counterpart to be securely mounted on cabinet glass doors with a glass thickness of 5 mm (13/64").

The mounting base also ensures that no scratches occur on the glass door.

The K-130B counter plate ensures safe closing and opening without furniture handles.

The high-quality counter plates K-130B (140-014-047) are ideal for, among other things:

• glass door
• Magnetic snap fastener
• Push-to-open door opener
• glass cabinet door
• Magnetic catch

Material:

• The counter plates 140-014-047 are made of robust steel
• Mounting base: made of chloroprene rubber (CR)
• Steel is ideal for furniture fittings as it is both robust and durable, ensuring high load-bearing capacity and a long service life of the fittings

Surface:

• Black
• Black surfaces exude a timeless elegance and can help make a room appear more luxurious and stylish
• While interior design styles can change, black always remains a safe choice that can easily be adapted to new trends
• Black surfaces can be used in different rooms, be it the kitchen, living room or office

Assembly:

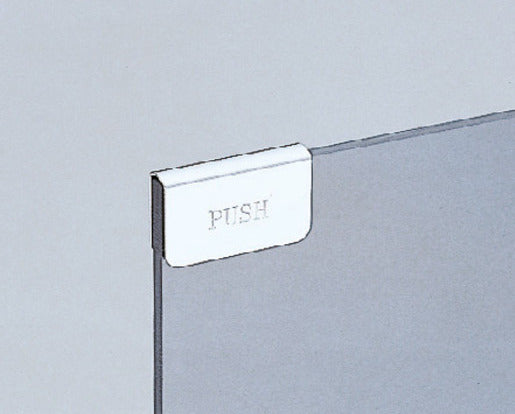

• The counter plate K-130B is placed on the cabinet glass door
• Before fitting, the included mounting template must be placed on the glass door so that the K-130B counterpart can be placed on it

Characteristics:

• Weight: 13 g
• Size: 40 mm (1-37/64″)

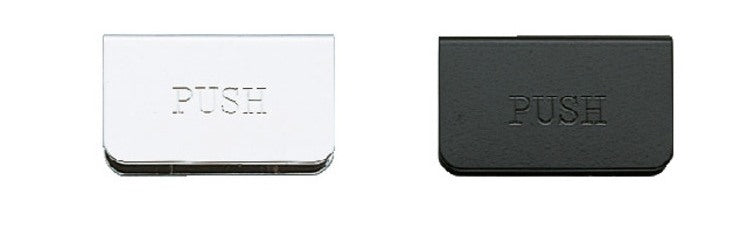

• Available in 2 surface colors: chrome and black
• Available for 2 glass thicknesses: 5 mm and 6 mm
• easy to assemble
• practical
• stable
• For furniture glass doors with glass thickness of 5 mm (13/64″)
• Incl. mounting base
• Material thickness: 0.8 mm (1/32″)
• black
• Steel
• robust
• high brand quality from Sugatsune / LAMP®

The dimensions:

• Length of the stop plate: 40 mm (1-37/64″)
• Depth: 7.3 mm (9/32″)
• Width: 24 mm (15/16″)
• Material thickness: 0.8 mm (1/32″)

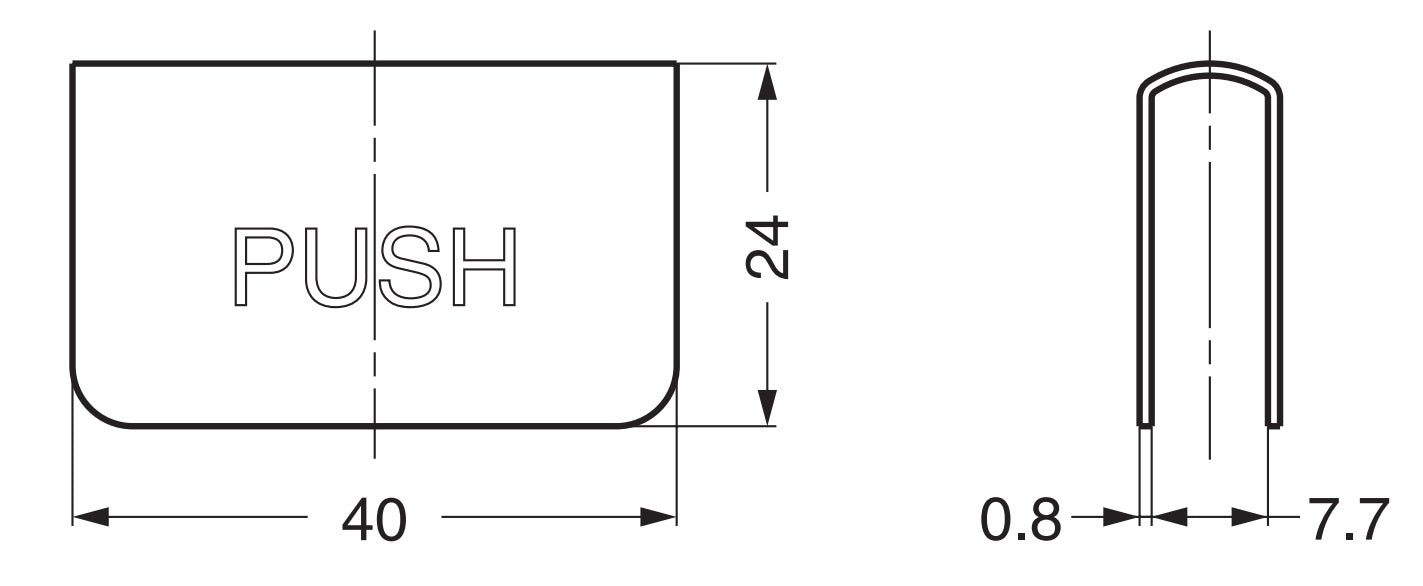

For further dimensions and details see technical drawing .

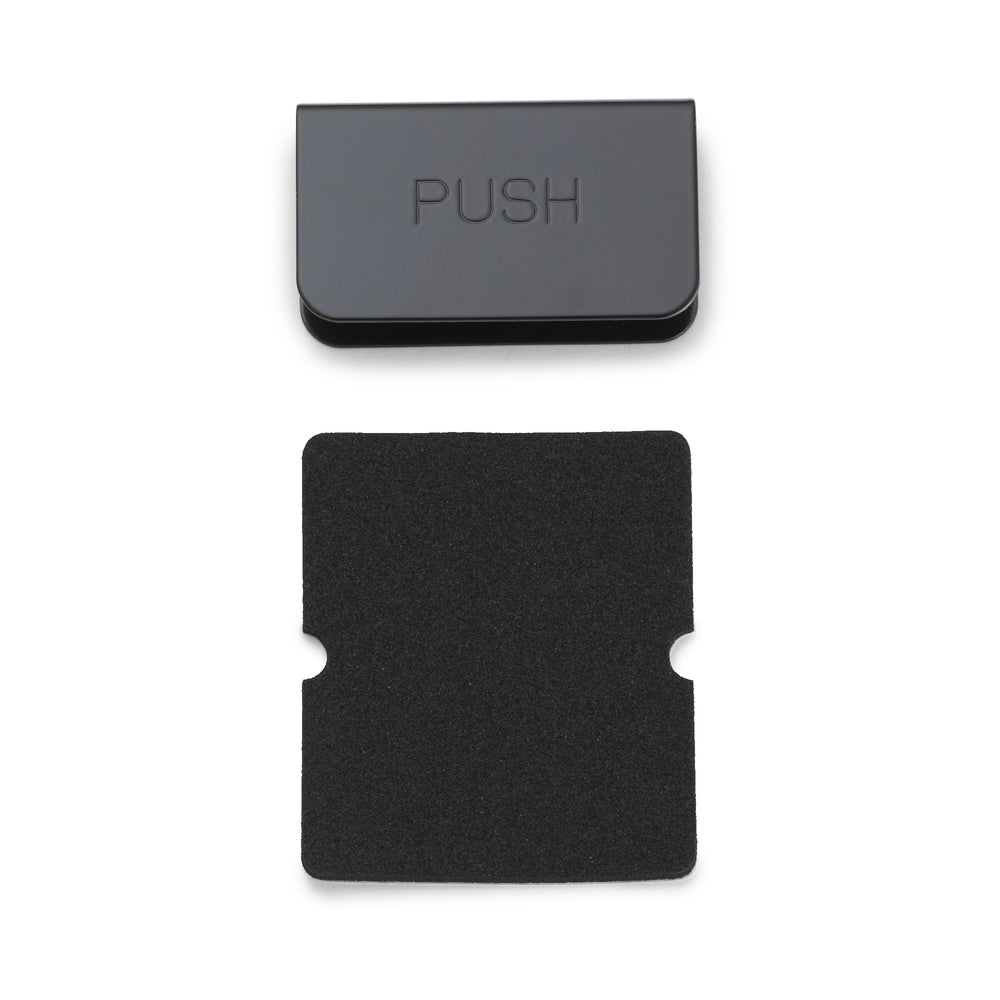

Included in delivery:

• 1 piece counter plate 140-014-047 made of robust steel, black
• 1 piece mounting base
• Please note that the mounting screws are not included in delivery

Manufacturer reference number:

• Article number: 140-014-047
• Item number: K-130B
• EAN number: 4510932017039

Manufacturer:Sugatsune / LAMP® (Japan)
