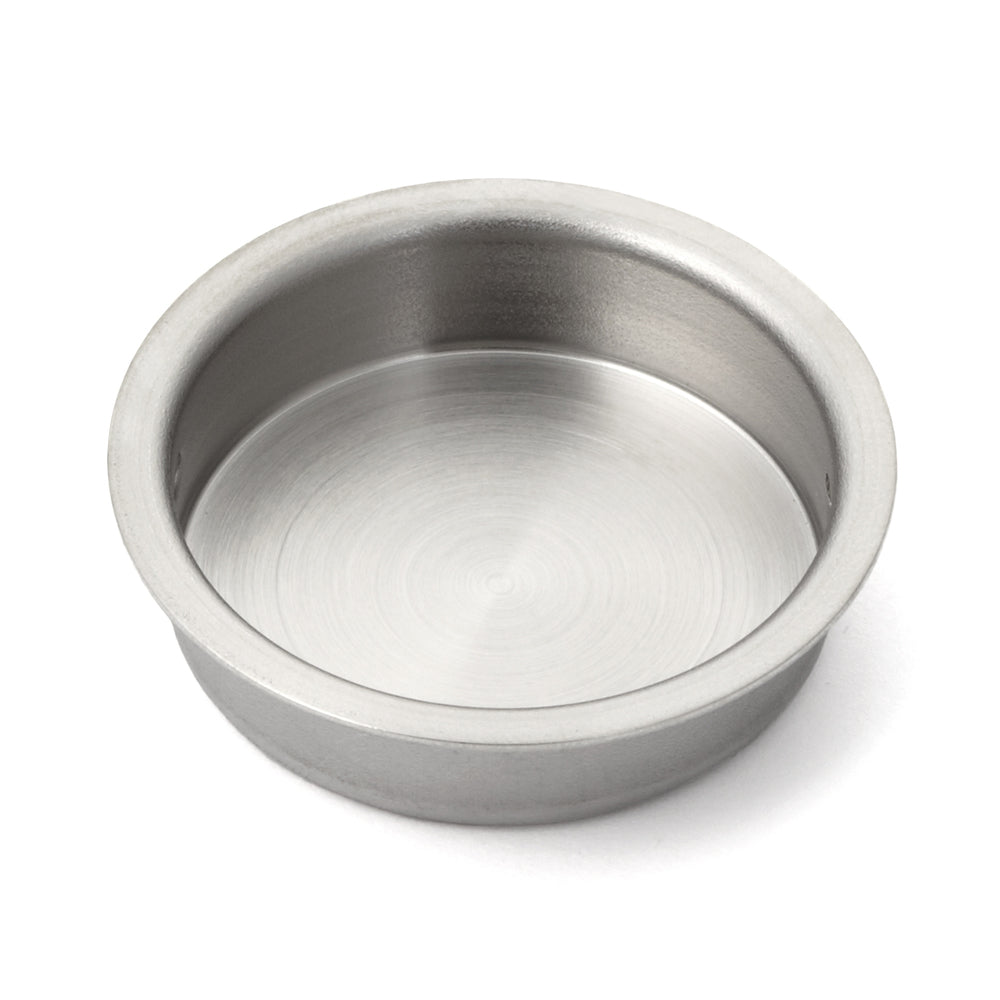

Exclusive round stainless steel SUS304 handle, 36 mm (1.5") SMH-37. Round stainless steel V2A handle, satin matte, for drawers, cabinets, humid environments, ships, yachts, and caravans from Sugatsune / LAMP® (Japan)

Round stainless steel handle shell made of stainless steel V2A (SUS304) SMH-37

Application: Round stainless steel handle shell made of V2A stainless steel, satin matt, for drawers, cabinets, damp environments, ships, yachts, caravans. The round stainless steel handles SMH-37 have a simple and elegant design and can be used in a variety of ways. The high-quality SMH-37 round stainless steel handle shells are ideal for:

• drawers
• Cabinets
• humid environments
• ships
• yachts
• Caravans
• beach hotel
• Medical field
• doctor's office
• Laboratory equipment

Material: The round stainless steel handles SMH-37 are made of high-quality SUS304 stainless steel. They are corrosion-resistant and rust-proof. Surface:

• Satin matt

Assembly:

• The round stainless steel handles SMH-37 have two side mounting holes (Φ2 mm) that are not visible to the user
• The assembly is carried out using the two needles included in the delivery
• For installation, a hole with a diameter of Φ32 mm (1-8/32″) and a depth of (at least) 9 mm (11/32″) must be drilled on the front (for further details see installation drawing ).

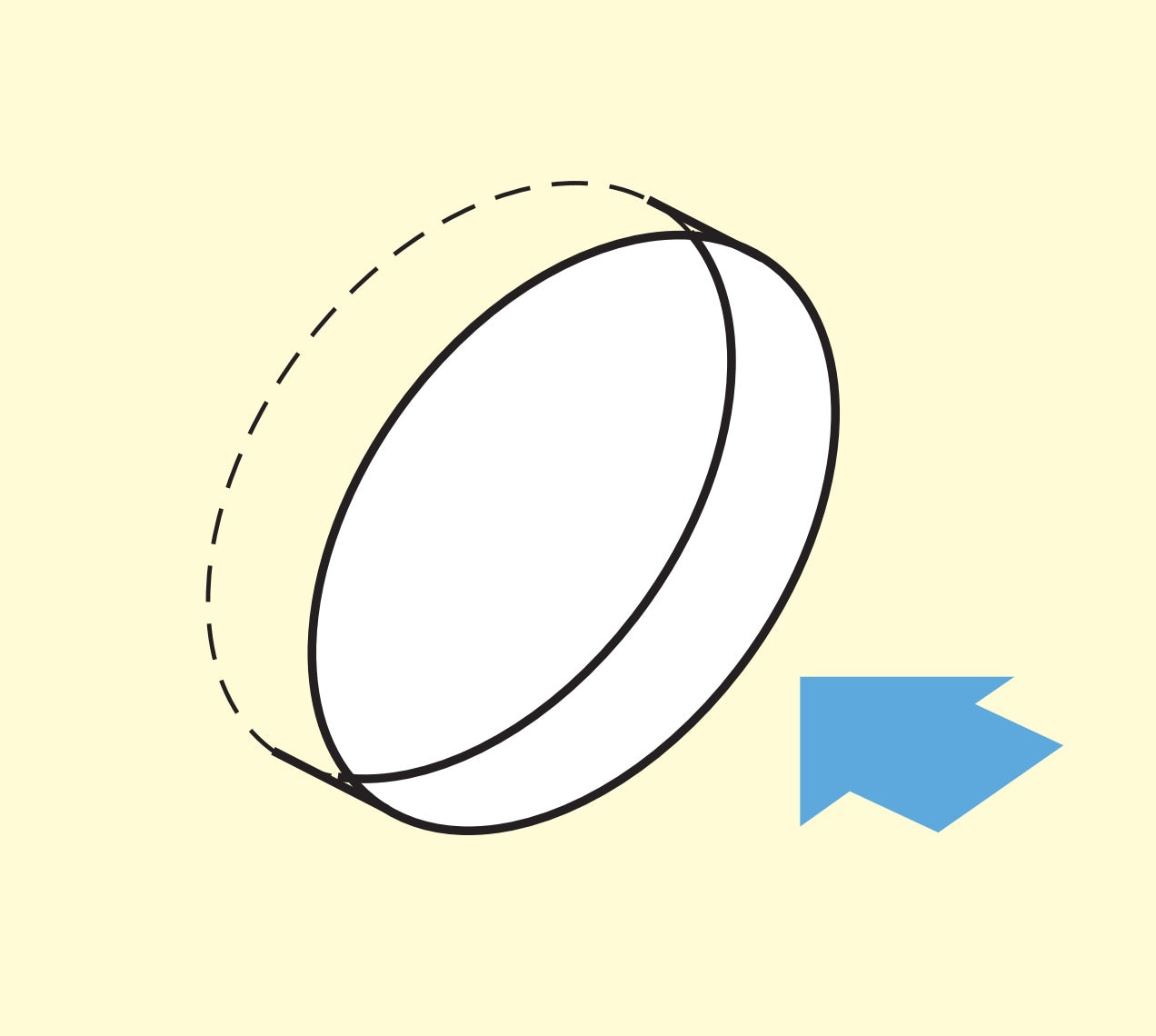

[caption id="attachment_45147" align="alignnone" width="420"] Exclusive round SUS304 stainless steel pull handle from Sugatsune, SMH-37 (36 mm), satin finish. Assembly drawing[/caption] Characteristics:

• Weight: 6 g
• Size: 36 mm (1.5″)
• Round shape
• Exclusive design
• Made of stainless steel
• Stainless steel
• Corrosion-resistant
• High quality
• Material thickness 0.5 mm

Dimensions: For further dimensions and details see technical drawing .

• Diameter of the round stainless steel handle (L): Φ36 mm (1-13/32″)
• Diameter of the grip area (D): Φ31.5 mm (1-8/32″)
• Depth (H): 8.5 mm (11/32″)

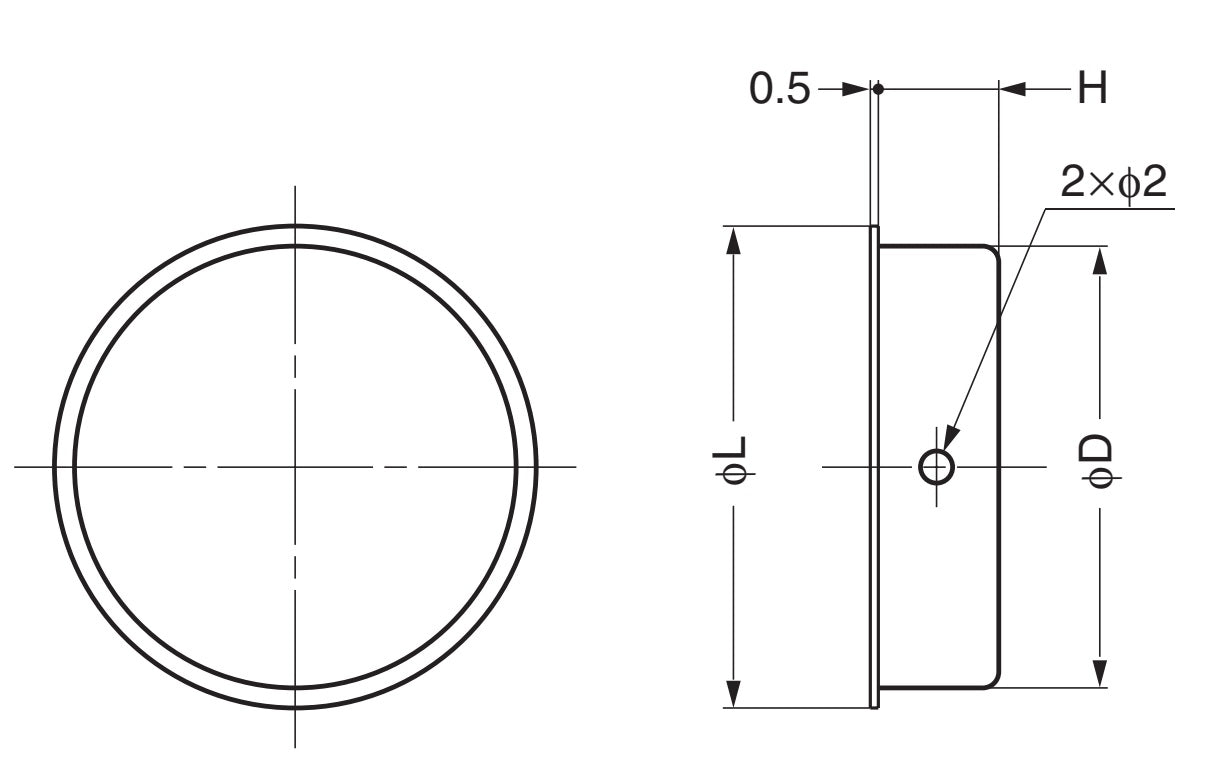

[caption id="attachment_45160" align="alignnone" width="420"] Exclusive round SUS304 stainless steel handle from Sugatsune, SMH-37 (36 mm), satin finish. Technical drawing[/caption] Included in delivery:

• 1 piece round stainless steel handle shell SMH-37 made of stainless steel SUS304 (V2A)
• 2 nails for fastening

Manufacturer reference number:

• Article number: 100-010-185
• Item name: SMH-37
• EAN number: 4510932010269

Manufacturer: SUGATSUNE / LAMP® (Japan)
