Exclusive SUS304 stainless steel flush pull, 94 mm (3.8") HH-FB-3. Stainless steel flush pull made of V2A stainless steel, satin finish, for drawers, cabinets, humid environments, ships, machinery, and appliances from Sugatsune / LAMP® (Japan).

Stainless steel handle shell made of stainless steel V2A (SUS304) HH-FB-3

Application: Stainless steel handle shell made of V2A stainless steel, satin matt, for drawers, cabinets, damp environments, ships, machines, devices. HH-FB-3 stainless steel handle shells have a simple and elegant design and can be used in a variety of ways. The high-quality HH-FB-3 stainless steel handle shells are ideal for:

• drawers
• Cabinets
• humid environments
• ships
• machines
• Devices
• beach hotel
• Medical field
• Laboratory equipment

Material: The stainless steel handle shells HH-FB-3 are made of high-quality stainless steel SUS304. They are corrosion-resistant and rust-proof. Surface:

• Satin matt
• The stainless steel handles HH-FB-3 are available with the surfaces "satin matt" and "gloss polished"

Assembly:

• The HH-FB-3 stainless steel handles have integrated threaded bolts
• The assembly is carried out using the hexagon nuts, washers and spring washers included in the delivery
• For installation, a cutout (L x H) 63 mm (2-15/32″) x 45 mm (1-25/32″) must be made on the front
• Furthermore, four holes must be pre-drilled with the distance P1=76 mm (3 ″) and P2=32 mm (1-8/32″) (for further details see assembly drawing )

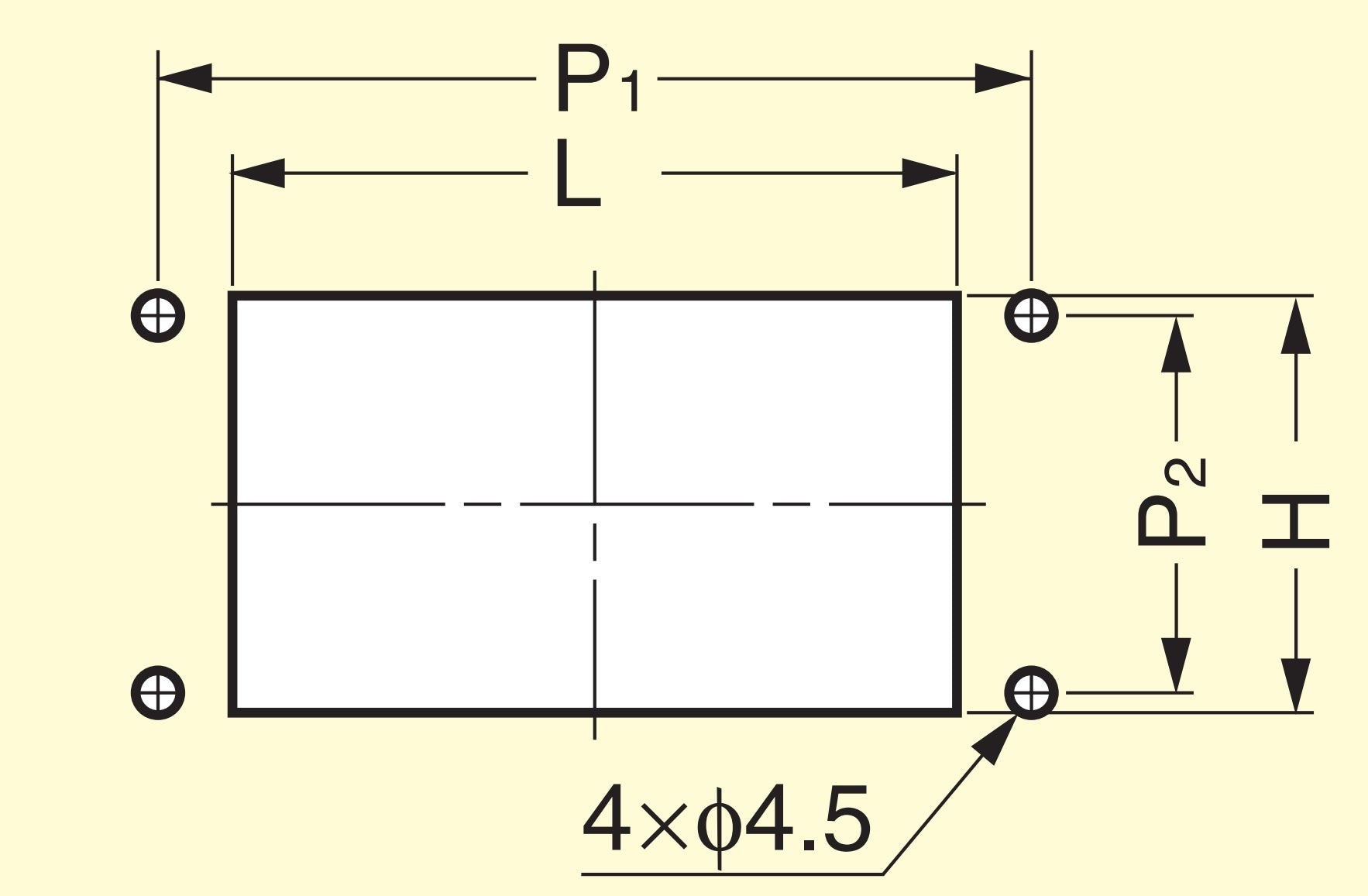

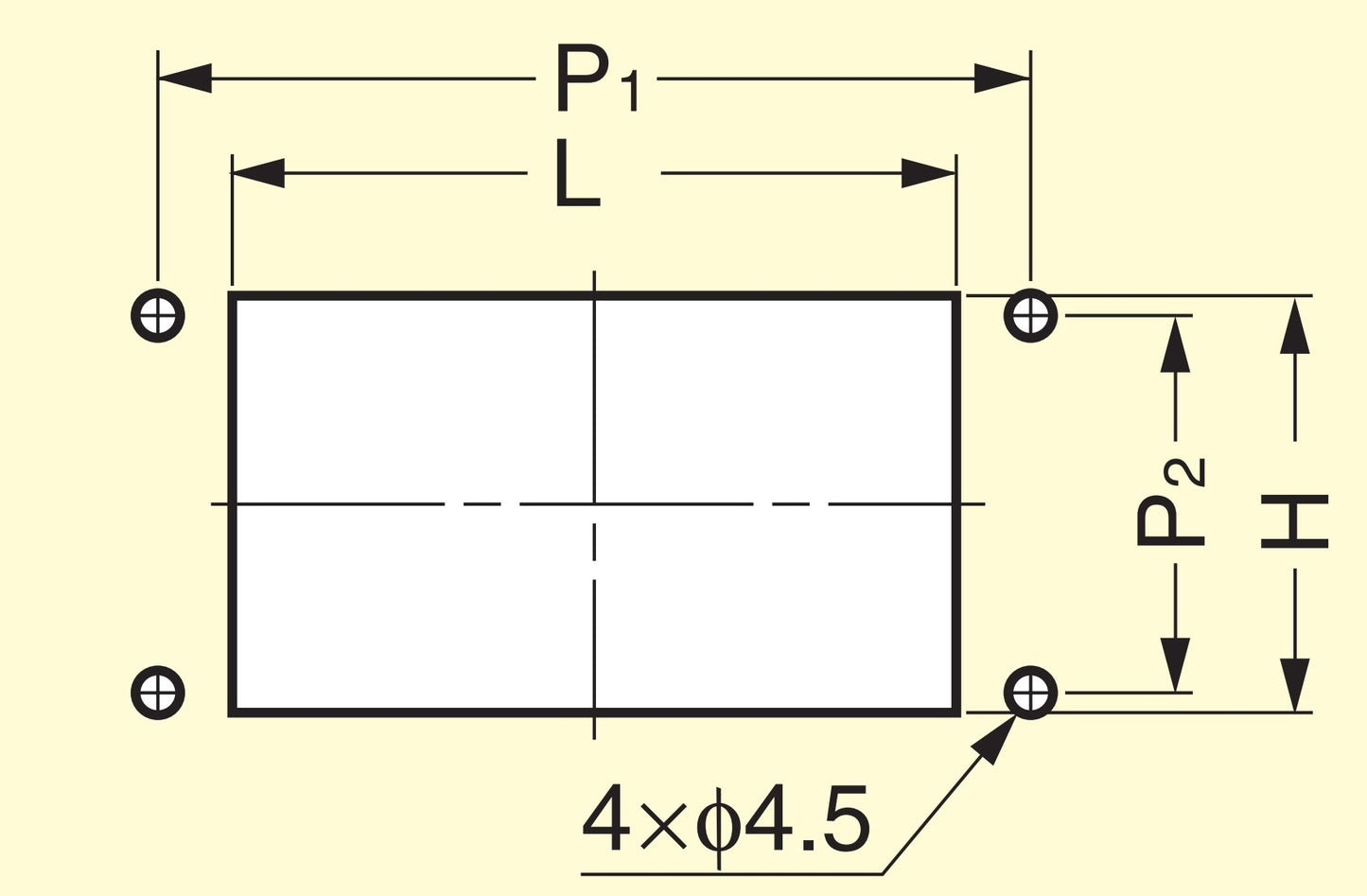

[caption id="attachment_44808" align="alignnone" width="420"] Exclusive SUS304 stainless steel pull handle from Sugatsune, HH-FB-3 (94 mm), satin finish. Assembly drawing[/caption] Characteristics:

• Weight: 80 g
• Size: 94 mm (3.8″)
• Exclusive design
• Made of stainless steel
• Stainless steel
• Corrosion-resistant
• High quality

Dimensions: For further dimensions and details see technical drawing .

• Width of the stainless steel handle shell: 94 mm (3-22/32″)
• Height: 60 mm (2-12/32″)
• Grip area width: 60 mm (2-12/32″)

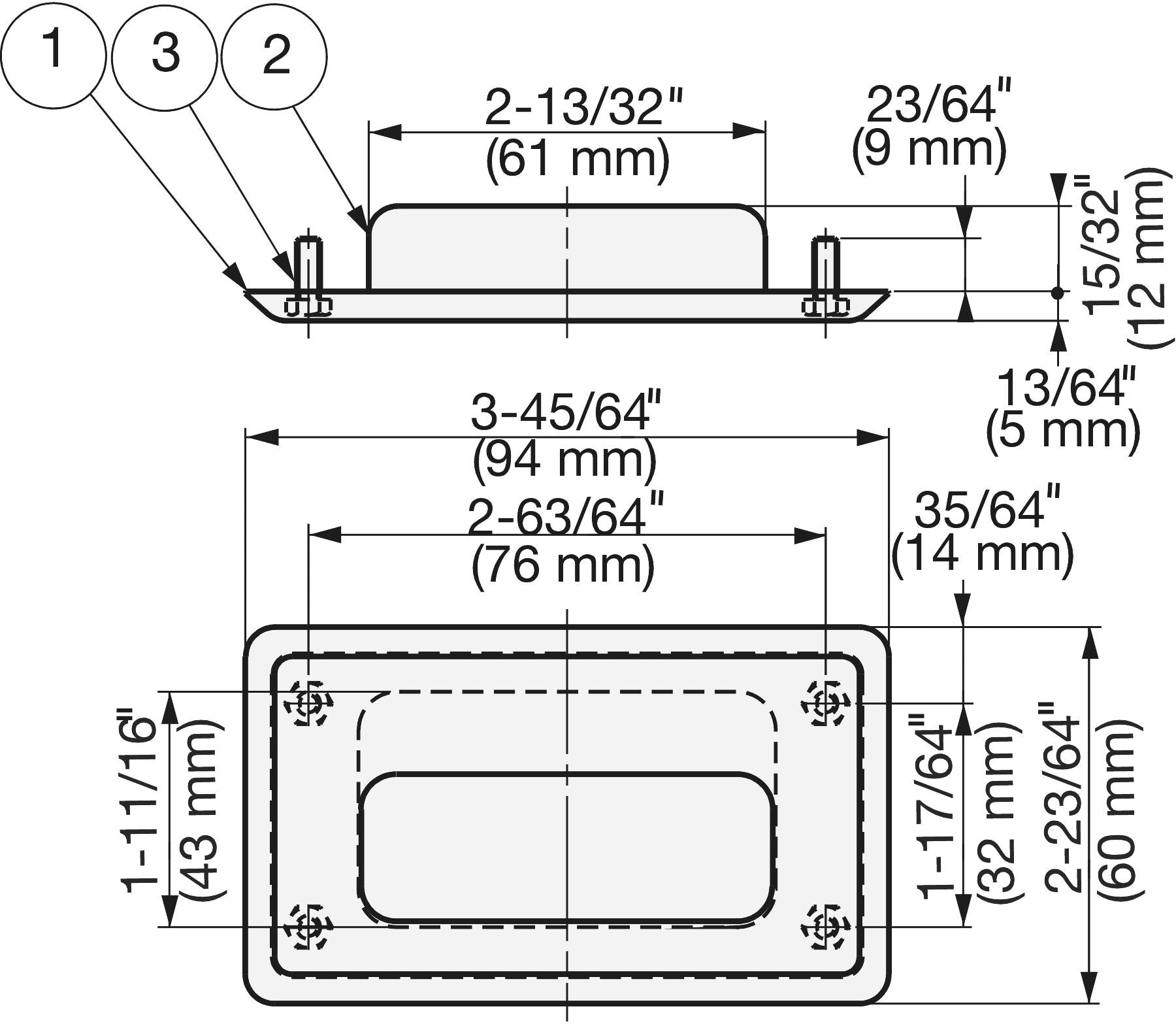

[caption id="attachment_44821" align="alignnone" width="420"] Exclusive SUS304 stainless steel pull handle from Sugatsune, HH-FB-3 (94 mm), satin finish. Technical drawing[/caption] Included in delivery:

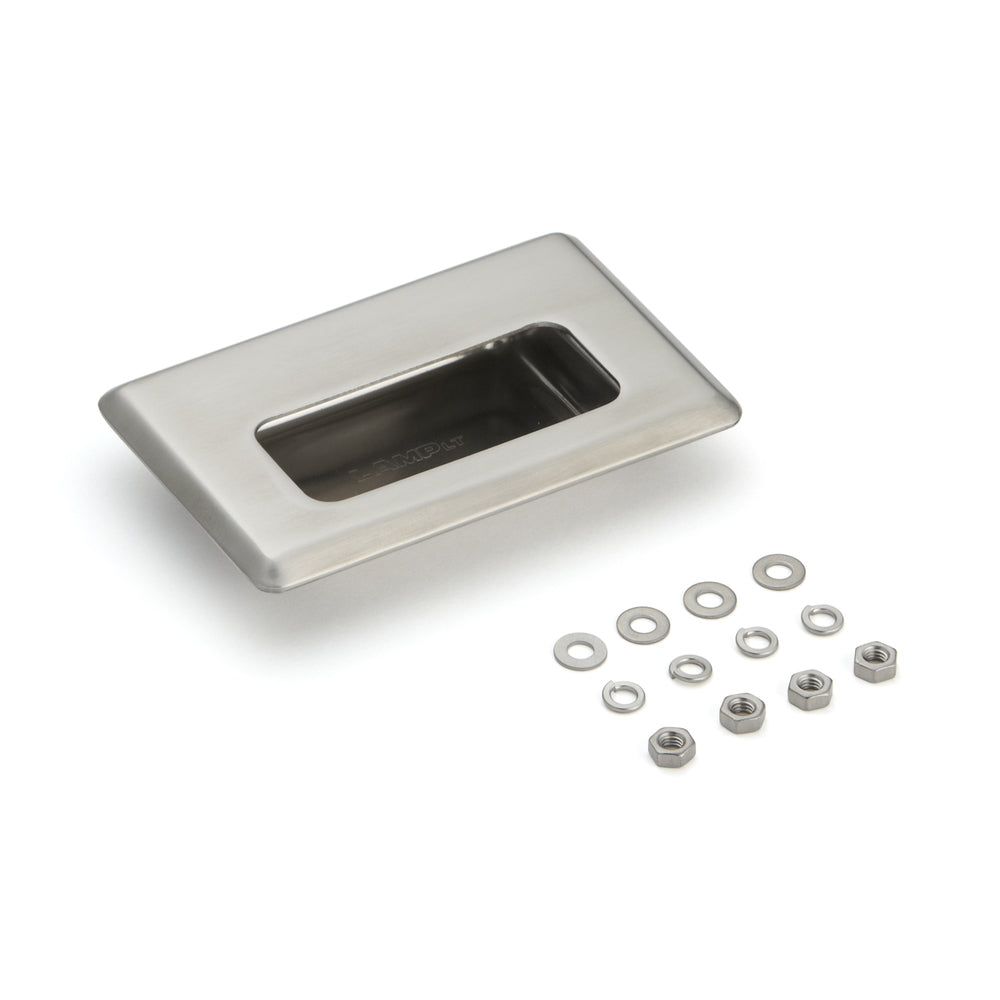

• 1 piece stainless steel handle shell HH-FB-3 made of stainless steel SUS304 (V2A)
• 4 pieces M4 hexagon nuts made of stainless steel
• 4 washers
• 4 spring washers

Manufacturer reference number:

• Article number: 100-010-094
• Article name: HH-FB-3
• EAN number: 4510932009959

Manufacturer: SUGATSUNE / LAMP® (Japan)
