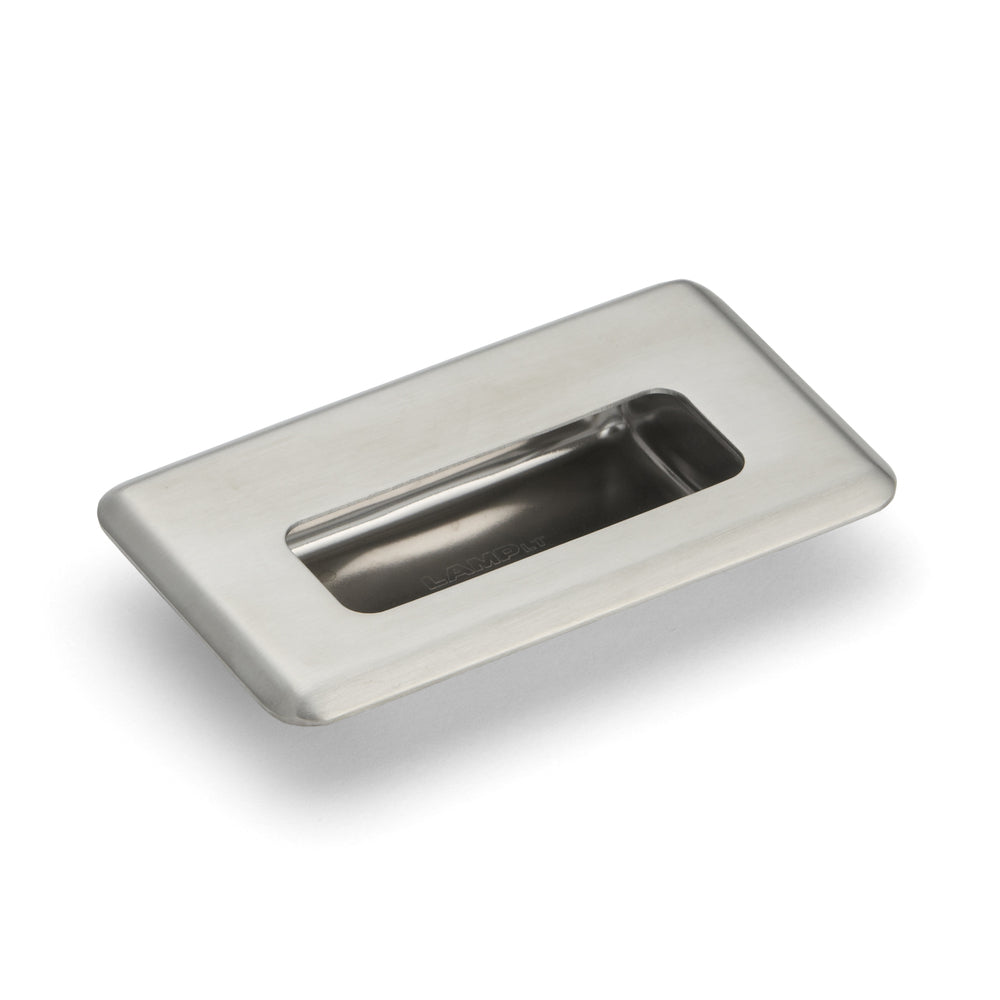

Exclusive SUS304 stainless steel flush pull, 109.5 mm (4.4") HH-FC-2. Stainless steel flush pull made of V2A stainless steel, satin finish, for drawers, cabinets, humid environments, ships, machinery, and appliances from Sugatsune / LAMP® (Japan).

Stainless steel handle shell made of stainless steel V2A (SUS304) HH-FC-2

Application: Stainless steel handle shell made of V2A stainless steel, satin matt, for drawers, cabinets, damp environments, ships, machines, devices. HH-FC-2 stainless steel handle shells have a simple and elegant design and can be used in a variety of ways. The high-quality HH-FC-2 stainless steel handle shells are ideal for:

• drawers
• Cabinets
• humid environments
• ships
• machines
• Devices
• beach hotel
• Medical field
• Laboratory equipment

Material: The stainless steel handle shells HH-FC-2 are made of high-quality stainless steel SUS304. They are corrosion-resistant and rust-proof. Surface:

• Satin matt
• The stainless steel handles HH-FC-2 are available with the surfaces "satin matt" and "gloss polished"

Assembly:

• The fastening is done with M4 screws (not included)
• The HH-FC-2 stainless steel handles have integrated threaded nuts
• For installation, a cutout (L x H) 73 mm (2-28/32″) x 42 mm (1-21/32″) must be made on the front
• Furthermore, four holes must be pre-drilled with the distance P1=88 mm (3-15/32″) and P2=38 mm (1-16/32″) (for further details see assembly drawing )

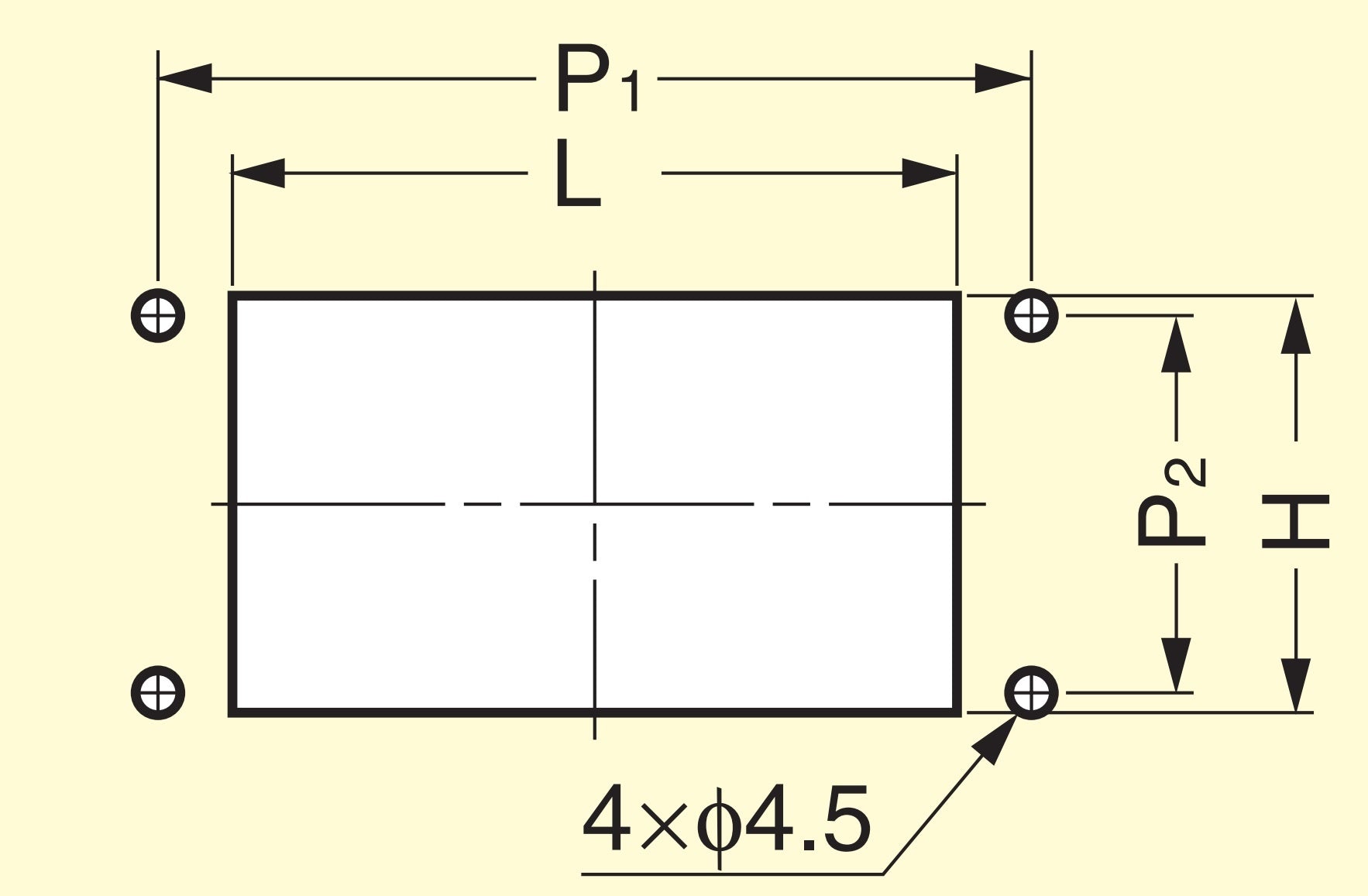

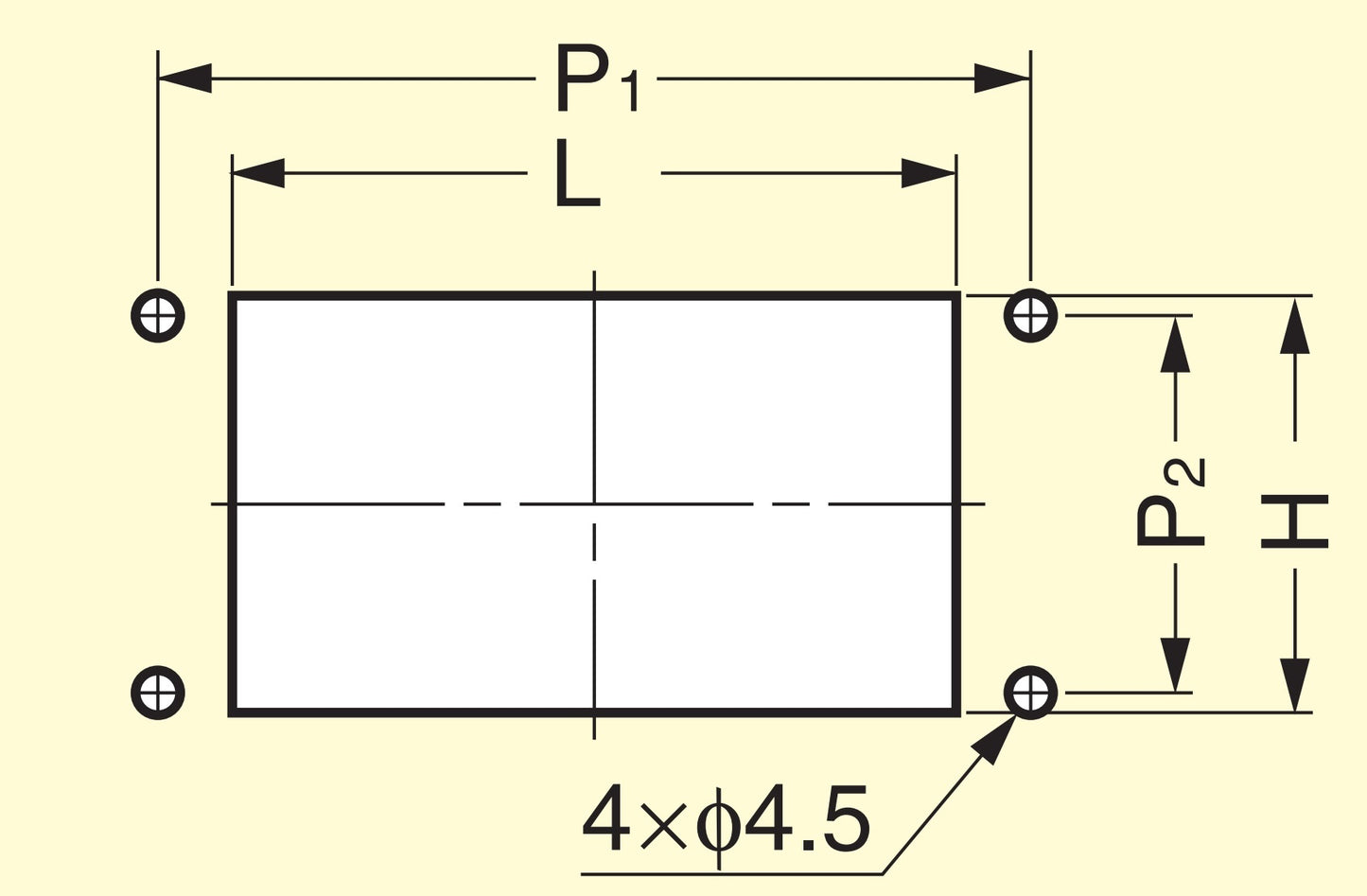

[caption id="attachment_44703" align="alignnone" width="420"] Exclusive SUS304 stainless steel pull handle from Sugatsune, HH-FC-2 (109.5 mm), satin finish. Assembly drawing[/caption] Characteristics:

• Weight: 100 g
• Size: 109.5 mm (4.4″)
• Exclusive design
• Made of stainless steel
• Stainless steel
• Corrosion-resistant
• High quality

Dimensions: For further dimensions and details see technical drawing .

• Width of the stainless steel grip shell: 109.5 mm (4-10/32″)
• Height: 64 mm (2-17/32″)
• Grip area width: 70 mm (2-24/32″)

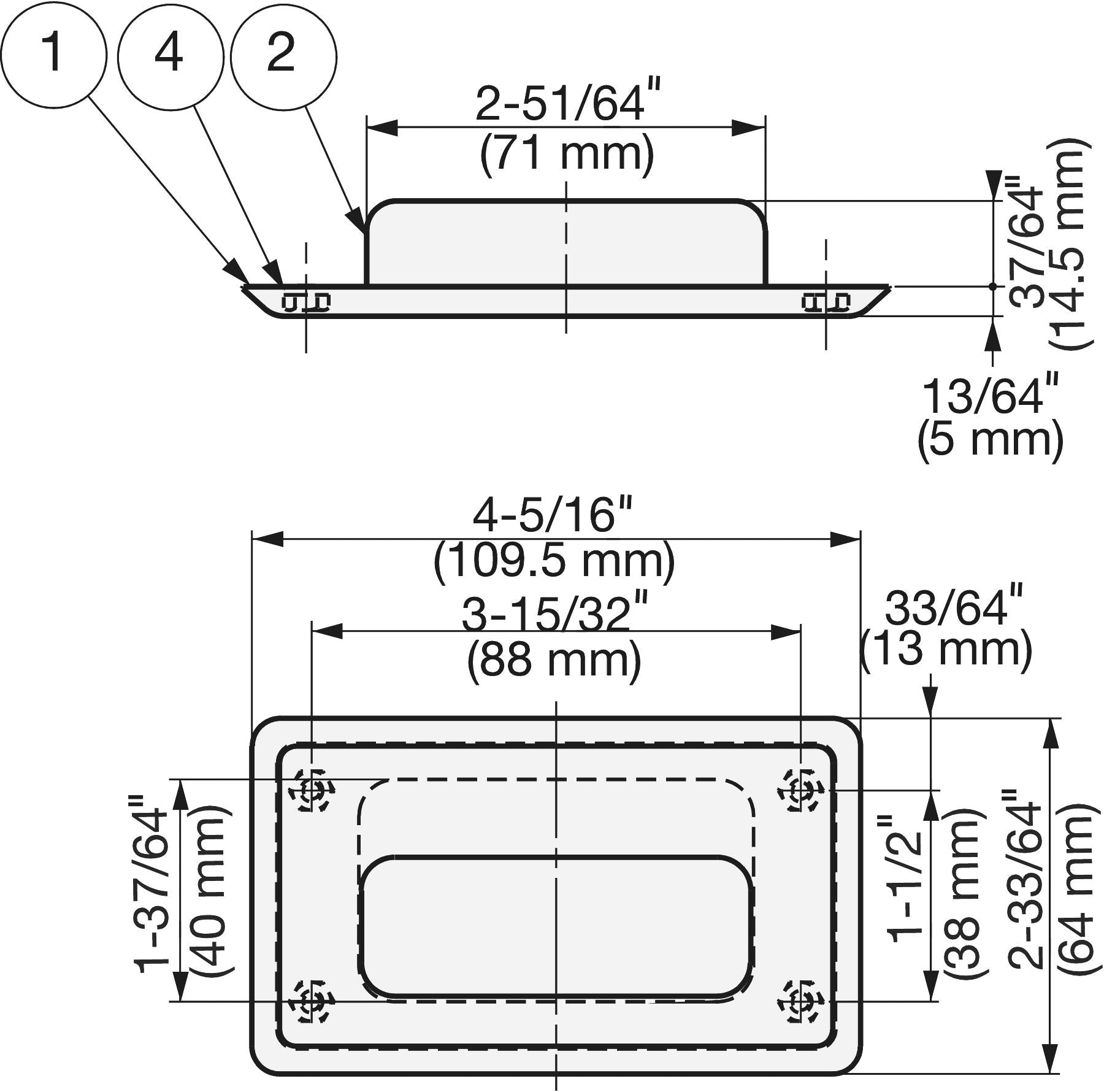

[caption id="attachment_44716" align="alignnone" width="420"] Exclusive SUS304 stainless steel handle from Sugatsune, HH-FC-2 (109.5 mm), satin finish. Technical drawing[/caption] Included in delivery:

• 1 piece stainless steel handle shell HH-FC-2 made of stainless steel SUS304 (V2A)

Manufacturer reference number:

• Article number: 100-010-093
• Article name: HH-FC-2
• EAN number: 4510932009942

Manufacturer: SUGATSUNE / LAMP® (Japan)
