Ergonomischer Edelstahl-Türgriff V2A (SUS304), 66 mm (2,6″) H-75-C-66. Hochwertiger ergonomischer Edelstahl-Türgriff aus rostfreiem Edelstahl V2A (SUS304), glänzend poliert, für feuchte Umgebungen, Schiffe, Maschinenbau von Sugatsune / LAMP® (Japan)

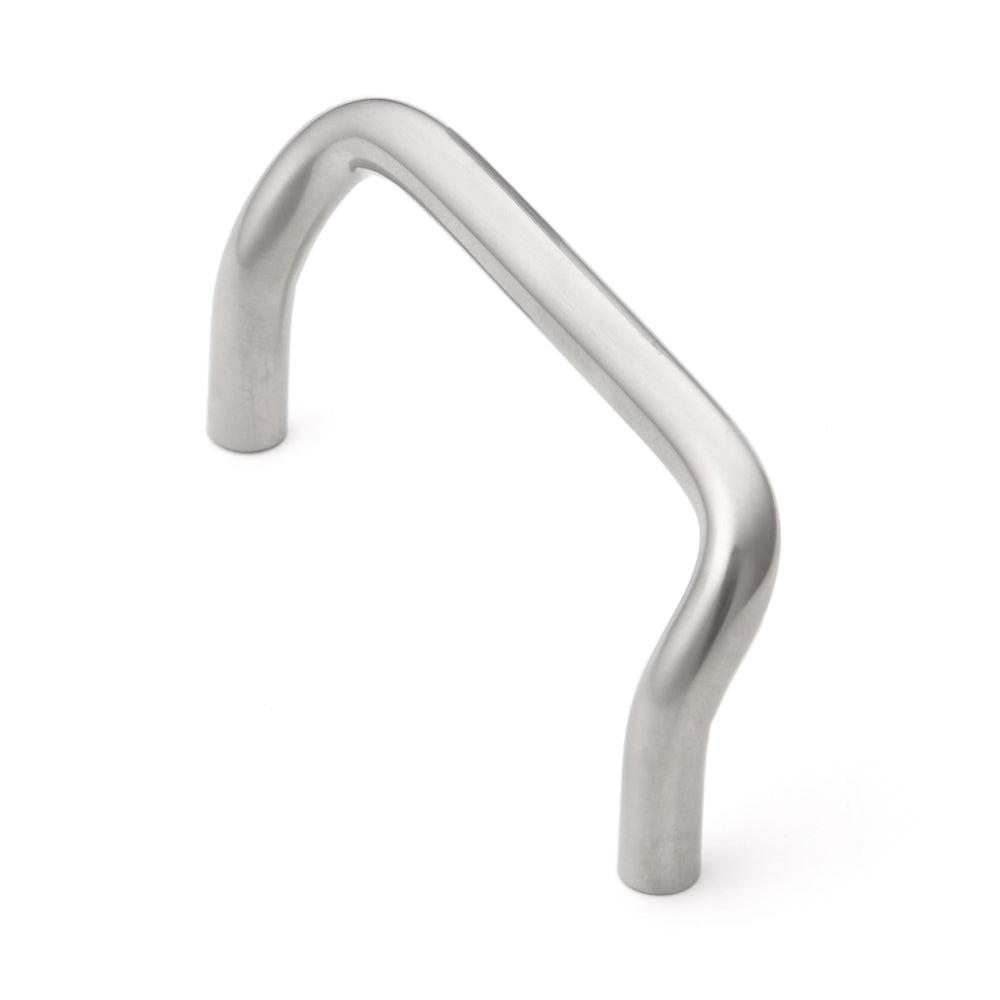

Stainless steel door handle made of stainless steel V2A (SUS304), ergonomic H-75-C-66

Application: High-quality ergonomic stainless steel door handle made of V2A (SUS304) stainless steel, glossy polished, for humid environments, ships, mechanical engineering. The H-75-C-66 stainless steel door handles are ideal for:

• ships
• yachts
• boats
• bathroom
• public bath
• beach hotel
• Medical field
• Laboratory equipment
• Food sector
• Equipment construction
• Mechanical engineering

Material: The stainless steel door handles H-75-C-66 are made of solid high-quality SUS304 stainless steel. They are corrosion-resistant and rust-proof. The stainless steel door handles H-75-C-66 made of SUS304 stainless steel are also ideal for use in swimming pools, shipbuilding (interior design), etc. Surface:

• Shiny polished
• The stainless steel door handles H-75-C-66 appear high-quality and robust

Assembly:

• The fastening is done with M4 screws (not included)
• The depth of the holes for fastening is 7 mm (9/32″)

Characteristics:

• Weight: 23 g
• Size: 66 mm (2.6″)
• Ergonomic shape
• Comfortable to grip
• The handle has an angle
• Particularly stable and robust
• Stainless steel
• Corrosion-resistant

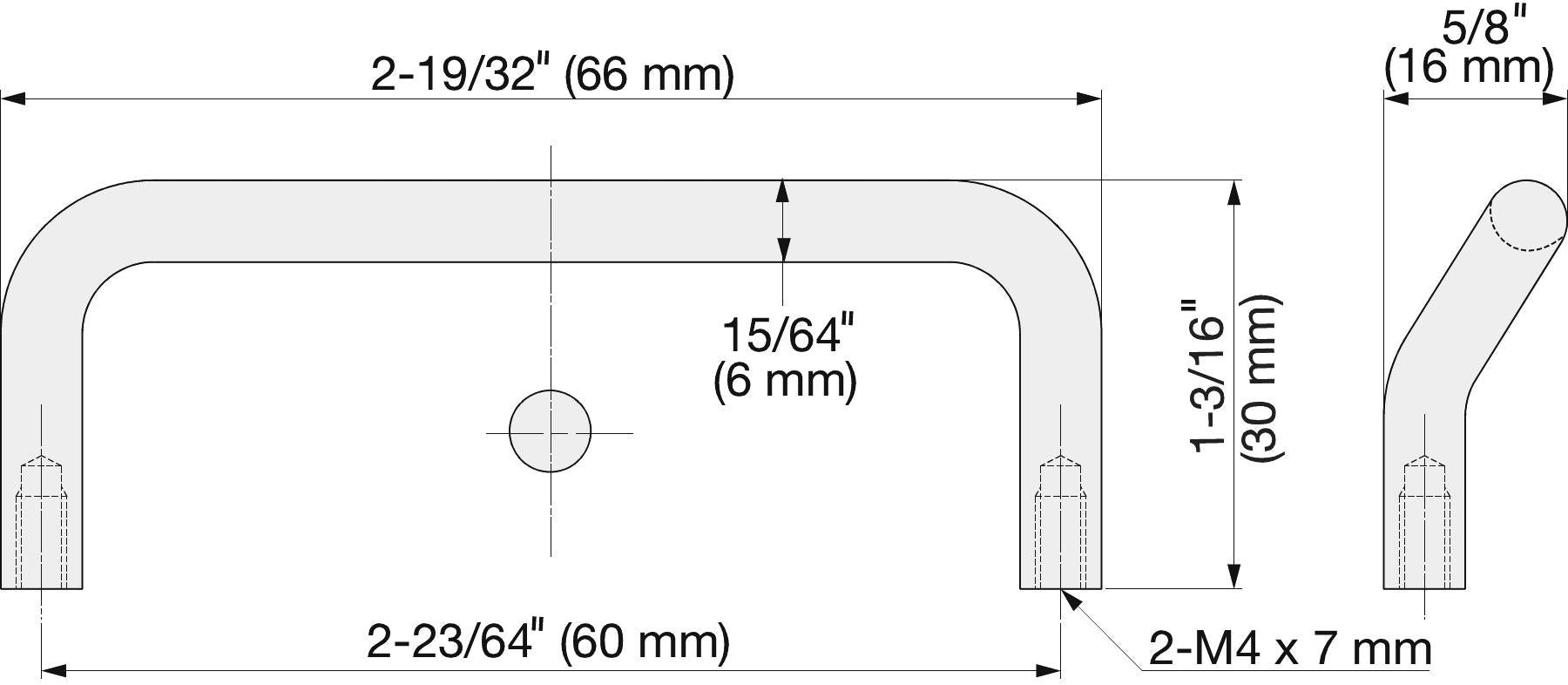

Dimensions: For further dimensions and details see technical drawing .

• Width of the stainless steel door handle: 66 mm (2-19/32″)
• Distance between mounting holes: 60 mm (2-12/32″)
• Handle height: 30 mm (1-6/32″)
• Grip depth: 16 mm (20/32″)
• Inner handle height: 24 mm (30/32″)
• Material thickness: Φ6 mm (8/32″)

[caption id="attachment_42522" align="alignnone" width="420"] Ergonomic stainless steel door handle V2A (SUS304) from Sugatsune, H-75-C-66 (66 mm). Technical drawing[/caption] Included in delivery:

• 1 piece stainless steel door handle H-75-C-66 made of stainless steel SUS304 (V2A)

Manufacturer reference number:

• Article number: 100-010-605
• Article name: H-75-C-66
• EAN number: 4510932007160

Manufacturer: SUGATSUNE / LAMP® (Japan)
