Ergonomic stainless steel door handle V2A (SUS304), 172 mm (6.8") LF-12-160. High-quality stainless steel door handle made of V2A (SUS304), satin finish, for humid environments, ships, and mechanical engineering from Sugatsune / LAMP® (Japan).

Stainless steel door handle made of stainless steel V2A (SUS304), ergonomic LF-12-160

Application: High-quality stainless steel door handle made of V2A (SUS304) stainless steel, satin matt, for humid environments, ships, mechanical engineering. The LF-12-160 stainless steel door handles are ideal for:

• ships
• yachts
• boats
• bathroom
• public bath
• beach hotel
• Medical field
• Laboratory equipment
• Food sector
• Equipment construction
• Mechanical engineering

Material: The stainless steel door handles LF-12-160 are made of solid high-quality SUS304 stainless steel. They are corrosion-resistant and rust-proof. The stainless steel door handles LF-12-160 made of SUS304 stainless steel are also ideal for use in swimming pools, shipbuilding (interior design), etc. Surface:

• Satin matt
• The stainless steel door handles LF-12-160 appear high-quality and robust

Assembly:

• The mounting is done using the screws included in delivery (M5 x 30 mm)
• The depth of the holes for fastening is 10 mm (13/32″)

Characteristics:

• Weight: 236 g
• Size: 172 mm (6.8″)
• Ergonomic shape
• Comfortable to grip
• The handle has an angle of 115° to the front
• Particularly stable and robust
• Stainless steel
• Corrosion-resistant

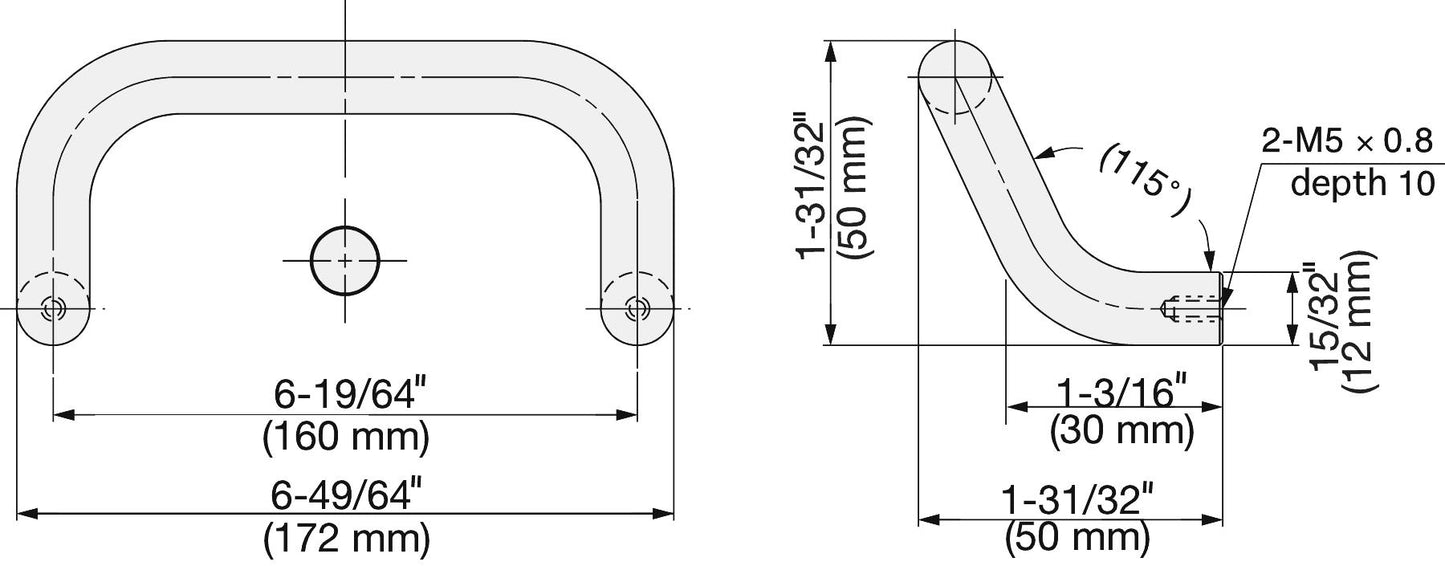

Dimensions: For further dimensions and details see technical drawing .

• Width of the stainless steel door handle: 172 mm (6-25/32″)
• Distance between mounting holes: 160 mm (6-10/32″)
• Handle height: 50 mm (1-31/32″)
• Grip depth: 50 mm (1-31/32″)
• Inner handle height: 38 mm (1-16/32″)
• Material thickness: Φ12 mm (15/32″)

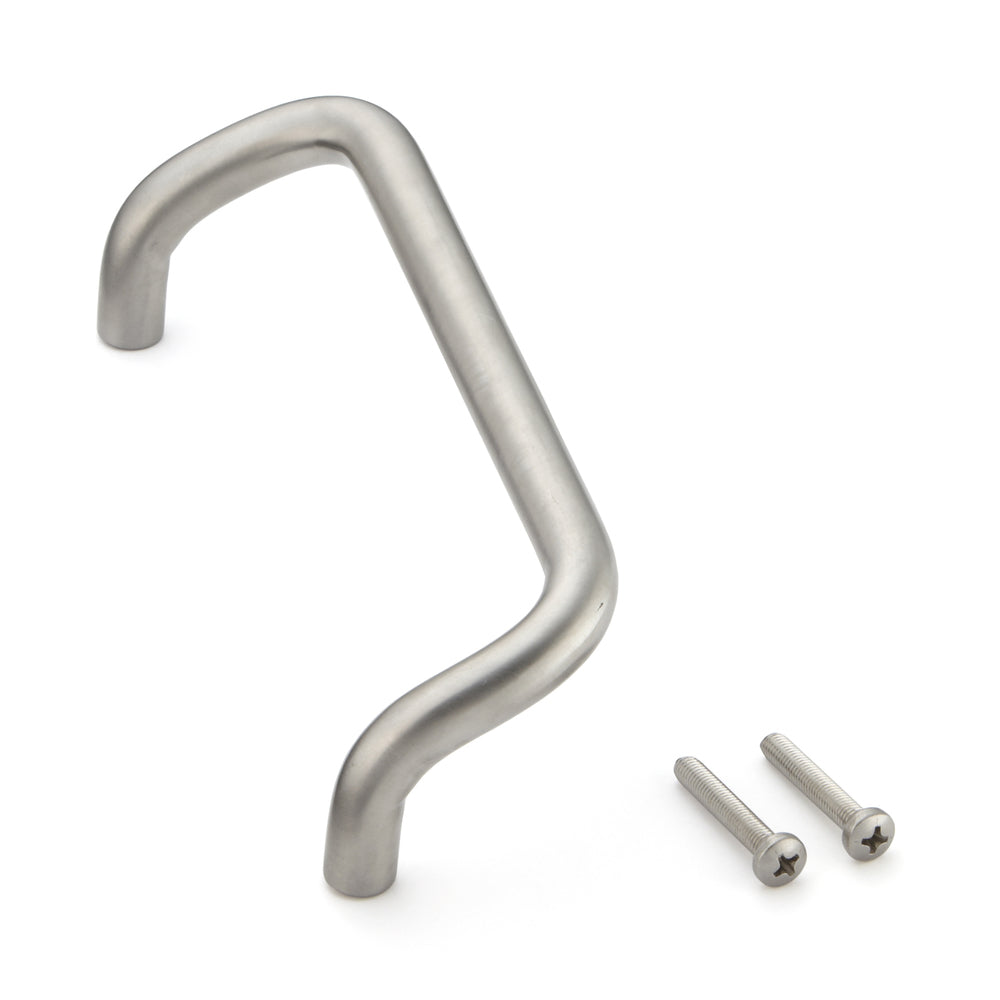

[caption id="attachment_42481" align="alignnone" width="420"] LF-12-160 Ergonomic stainless steel door handle V2A (SUS304) 172 mm[/caption] Included in delivery:

• 1 piece stainless steel door handle LF-12-160 made of stainless steel SUS304 (V2A)
• 2 pieces of truss head screw M5 × 30 mm

Manufacturer reference number:

• Article number: 100-010-522
• Article name: LF-12-160
• EAN number: 4510932002042

Manufacturer: SUGATSUNE / LAMP® (Japan)
