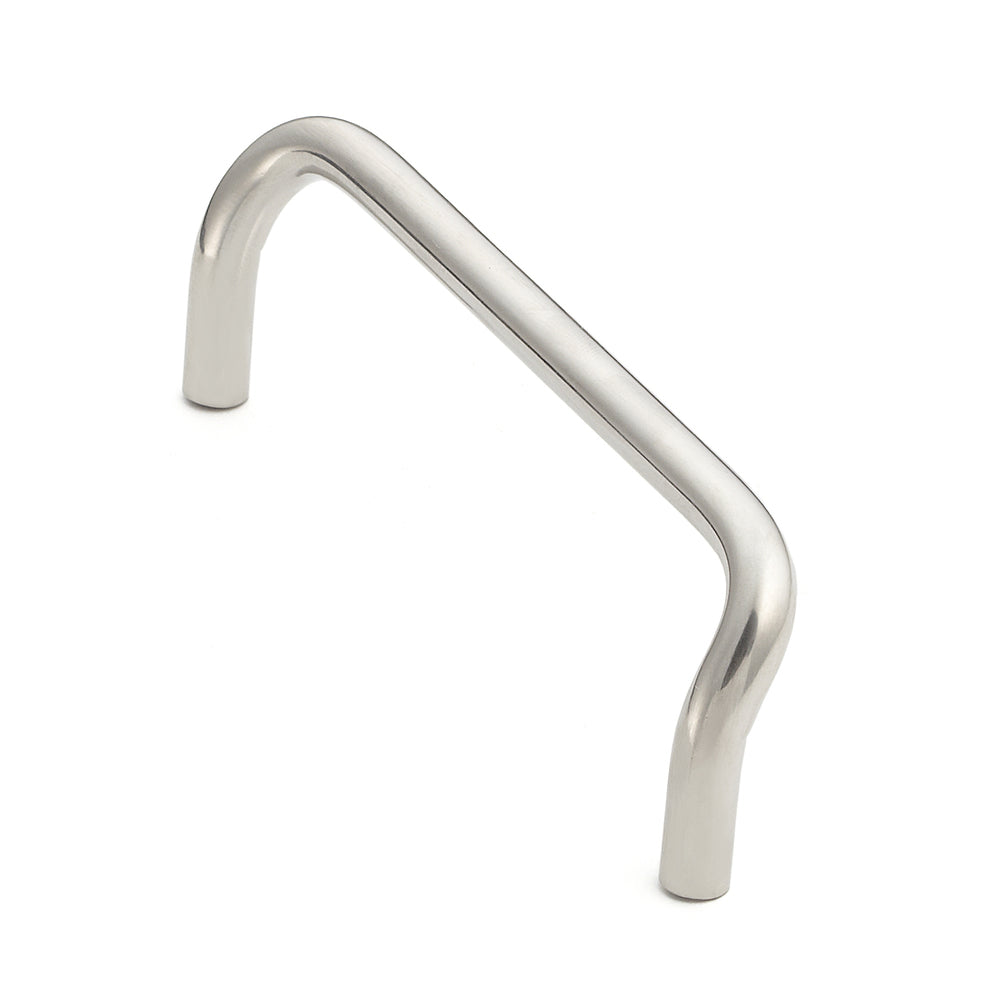

Ergonomischer Edelstahl-Türgriff V2A (SUS304), 128 mm (5,1″) H-75-C-128. Hochwertiger ergonomischer Edelstahl-Türgriff aus rostfreiem Edelstahl V2A (SUS304), glänzend poliert, für feuchte Umgebungen, Schiffe, Maschinenbau von Sugatsune / LAMP® (Japan)

Stainless steel door handle made of stainless steel V2A (SUS304), ergonomic H-75-C-128

Application: High-quality ergonomic stainless steel door handle made of V2A (SUS304) stainless steel, glossy polished, for humid environments, ships, mechanical engineering. The H-75-C-128 stainless steel door handles are ideal for:

• ships
• yachts
• boats
• bathroom
• public bath
• beach hotel
• Medical field
• Laboratory equipment
• Food sector
• Equipment construction
• Mechanical engineering

Material: The stainless steel door handles H-75-C-128 are made of solid high-quality SUS304 stainless steel. They are corrosion-resistant and rust-proof. The stainless steel door handles H-75-C-128 made of SUS304 stainless steel are also ideal for use in swimming pools, shipbuilding (interior design), etc. Surface:

• Shiny polished
• The stainless steel door handles H-75-C-128 appear high-quality and robust

Assembly:

• The fastening is done with M5 screws (not included)
• The depth of the holes for fastening is 10 mm (13/32″)

Characteristics:

• Weight: 70 g
• Size: 128 mm (5.1″)
• Ergonomic shape
• Comfortable to grip
• The handle has an angle
• Particularly stable and robust
• Stainless steel
• Corrosion-resistant

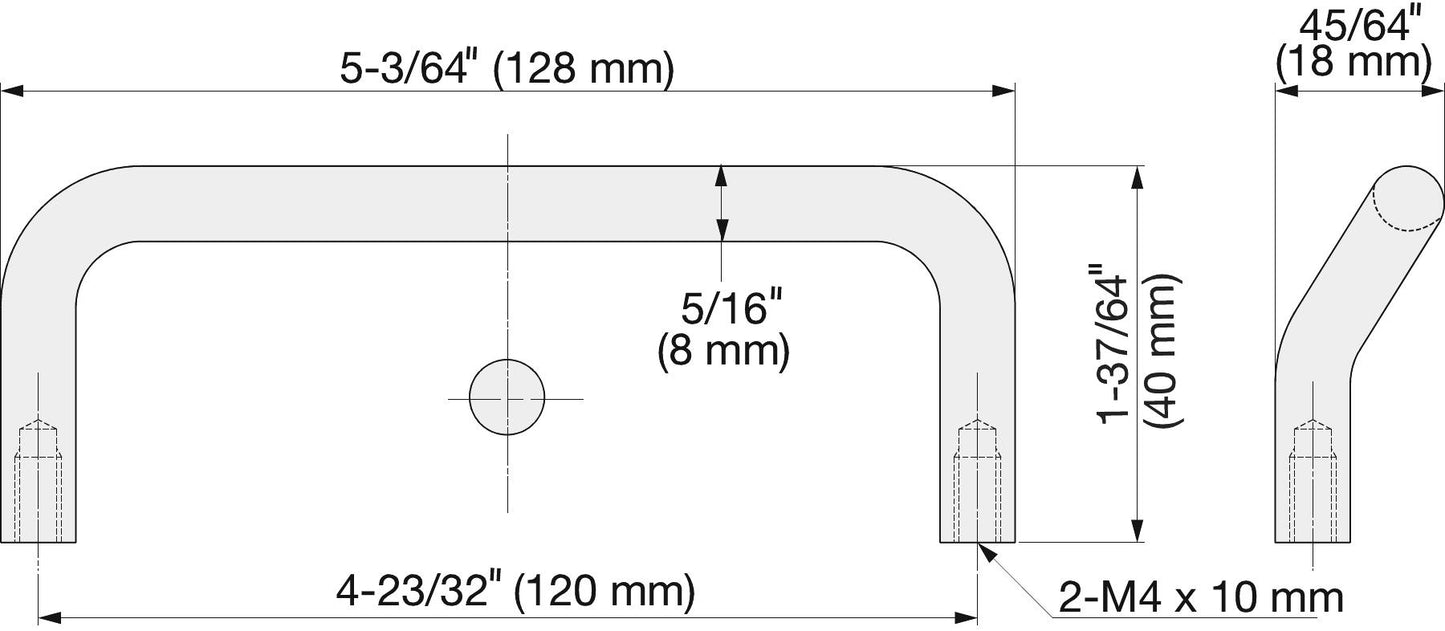

Dimensions: For further dimensions and details see technical drawing .

• Width of the stainless steel door handle: 128 mm (5-1/32″)
• Distance between mounting holes: 120 mm (4-23/32″)
• Handle height: 40 mm (1-18/32″)
• Grip depth: 18 mm (23/32″)
• Inner handle height: 32 mm (1-8/32″)
• Material thickness: Φ8 mm (10/32″)

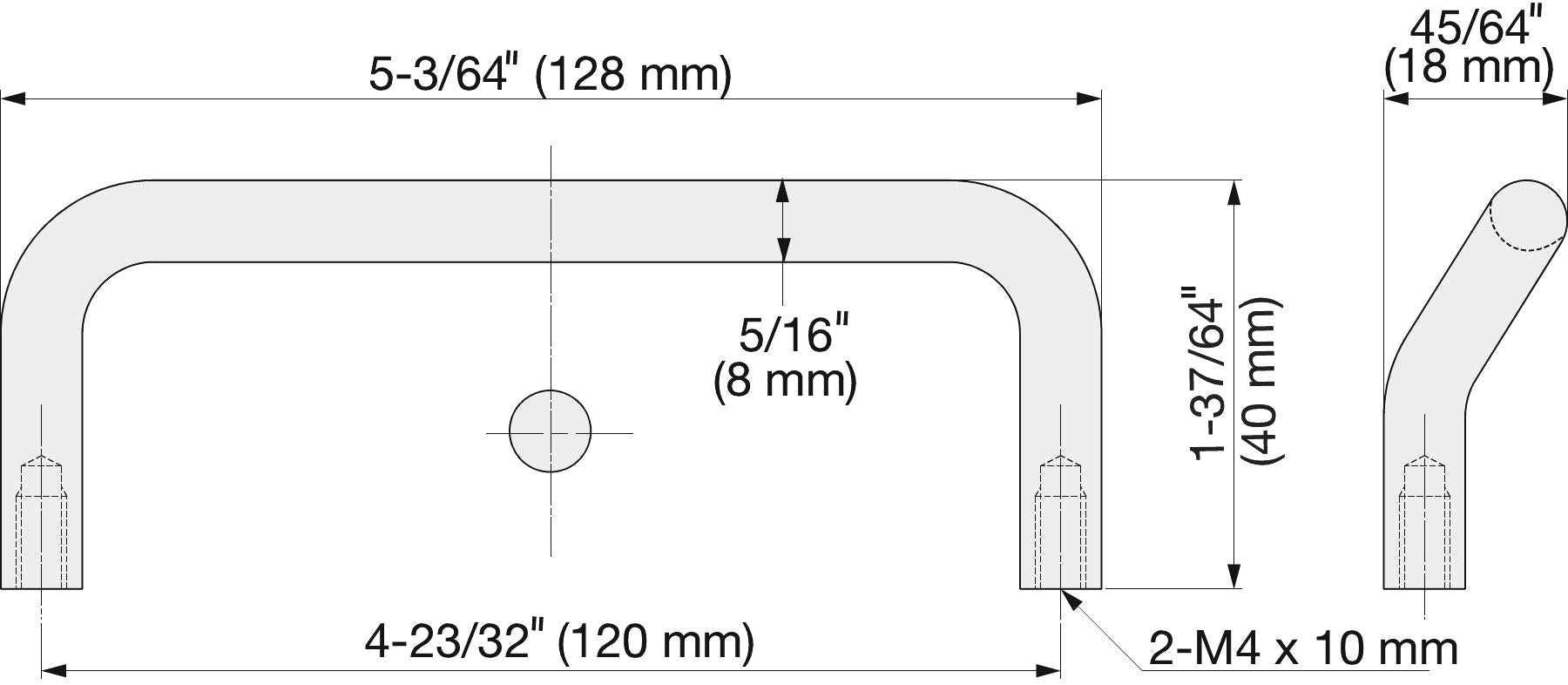

[caption id="attachment_42653" align="alignnone" width="420"] Ergonomic stainless steel door handle V2A (SUS304) from Sugatsune, H-75-C-128 (128 mm). Technical drawing[/caption] Included in delivery:

• 1 piece stainless steel door handle H-75-C-128 made of stainless steel SUS304 (V2A)

Manufacturer reference number:

• Article number: 100-010-608
• Article name: H-75-C-128
• EAN number: 4510932007191

Manufacturer: SUGATSUNE / LAMP® (Japan)
