20 Stück hochwertige Einschraubmuffe mit M6 Innengewinde, Senkkopf mit Innensechskant und Abdeckrand, aus massivem Zinkdruckguss, 10 mm (0,4″), 8028001. Einschraubmutter für Möbel, Holzplatte, Spanplatte, Tisch und viel mehr, von EMUCA

20 pieces screw-in socket, with countersunk head, with hexagon socket, cover edge and M6 internal thread, made of solid die-cast zinc, surface: natural (untreated), 8028001, size: 10 mm (0.4")

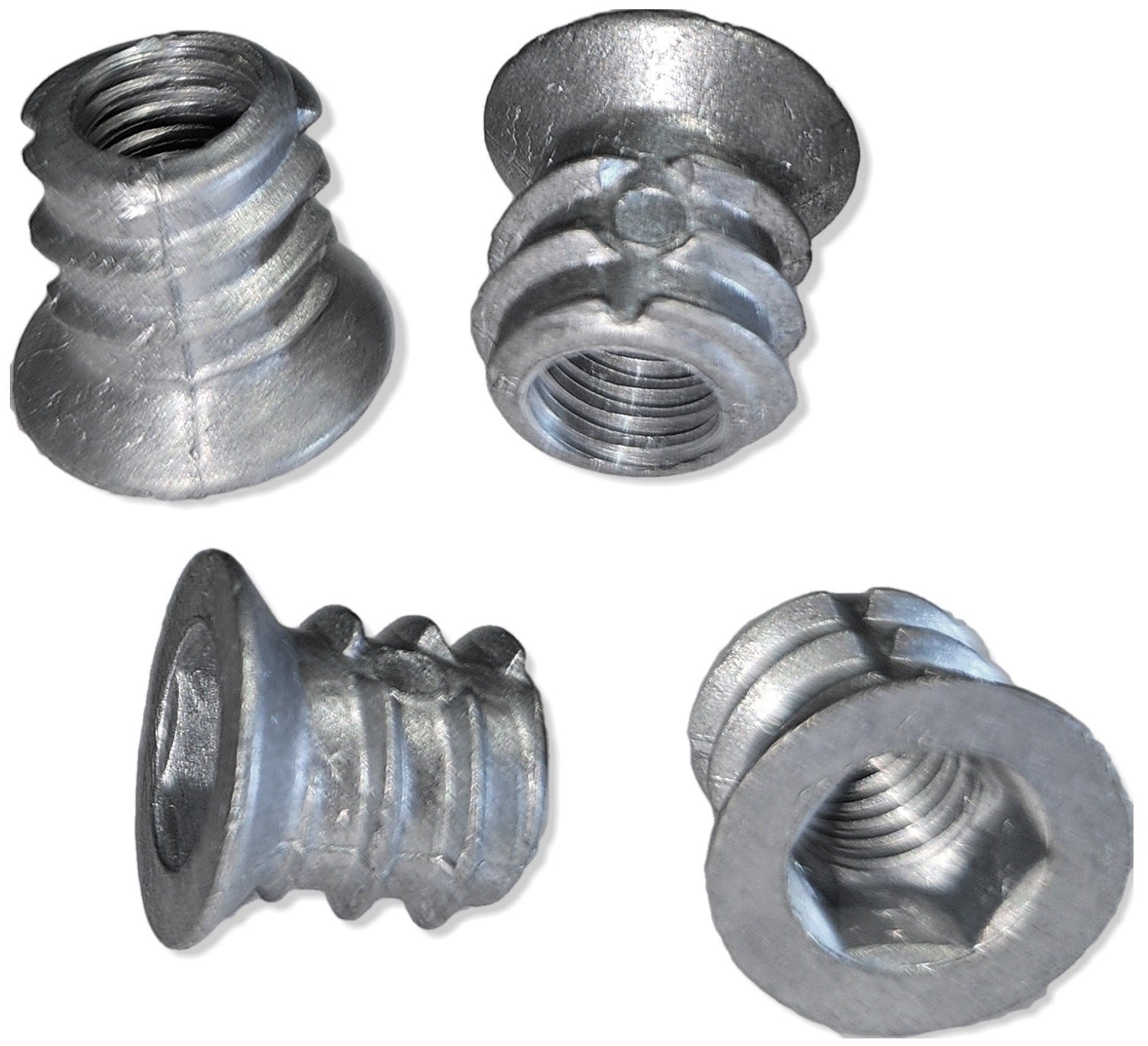

Application: Screw-in nut for furniture, wooden board, chipboard, table and much more. The screw-in sleeves 8028001 M6 x 10 mm serve as thread adapters to install metric thread M6 in wooden panels, furniture, chipboard, tables, worktops. [caption id="attachment_140882" align="alignnone" width="420"] High-quality screw-in socket with M6 internal thread, countersunk head with hexagon socket, and cover rim, 10 mm, from EMUCA. Application example[/caption] The robust hex threaded bushing 8028001 is perfect for concealed screwing and particularly stable fastening of furniture, benches, and wooden components. The screw-in nut 8028001 features a cover rim for flush countersinking into the wood without a gap. The screw-in sleeve 8028001 has a self-tapping external thread ⌀8 mm for wood and an internal metric thread M6 into which metric screws or a threaded rod can be screwed, which enables a perfect, multiple, stable wood connection. The advantage of the screw-in nut 8028001 compared to a direct connection is that when using the screw-in nut you can disassemble and reassemble the piece of furniture several times without the connection becoming less stable. Especially with soft wood, the 8028001 screw-in nuts have a great advantage over wood connections with wood screws. This is achieved by screwing the 8028001 screw-in sleeve with its 8 mm diameter external thread into the wooden panel of the piece of furniture only once, where it remains permanently in place. The furniture parts are then connected using standard M6 screws, which are screwed directly into the screw-in sleeve. The high-quality screw-in sleeves 8028001 have a simple and robust design and are ideal for, among other things:

• Chair
• worktop
• wooden bench
• wooden cabinet
• Furniture
• wooden board
• chipboard
• Table

Material:

• The screw-in sleeves 8028001 are made of solid die-cast zinc

Surface:

• Natural (untreated)

Assembly:

• The screw-in sleeves 8028001 must be screwed in at right angles to the wooden panel
• The screw-in nut is screwed in with an Allen key

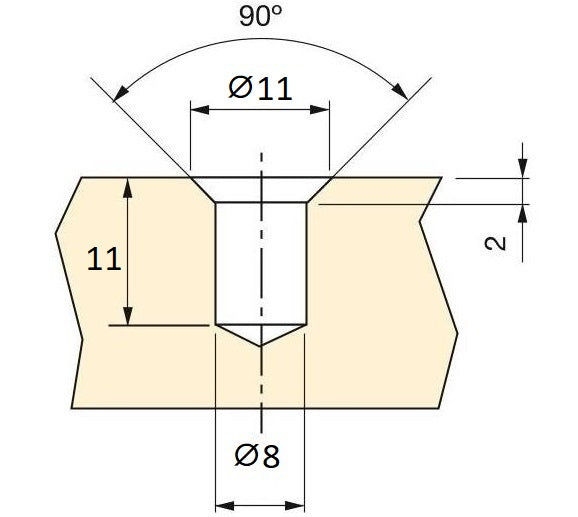

• For the screw-in nut, a hole with a diameter of ⌀8 mm (5/16″) and a depth of 11 mm (7/16″) must be drilled in the wooden wall (for further details see assembly drawing ).

[caption id="attachment_140892" align="alignnone" width="420"] High-quality screw-in socket with M6 internal thread, countersunk head with hexagon socket, and cover rim, 10 mm, from EMUCA. Assembly drawing[/caption] Characteristics:

• Weight: 1.95 g
• Size: 10 mm (0.4″)
• Internal thread: 6 mm (15/64″)
• External thread: 9.5 mm (3/8″)
• Hexagon socket: 6 mm (15/64″)
• with lowering edge for flush countersinking into the wood
• natural (untreated)
• Zamac
• zinc die-casting
• high brand quality from UMAXO®

For further dimensions and details see technical drawing . The dimensions:

• Length of the screw nut: 10 mm (25/64″)
• Internal thread diameter: ⌀6 mm (15/64″)
• External thread diameter: ⌀9.5 mm (3/8″)
• Depth of the lowering edge: 2 mm (5/64″)

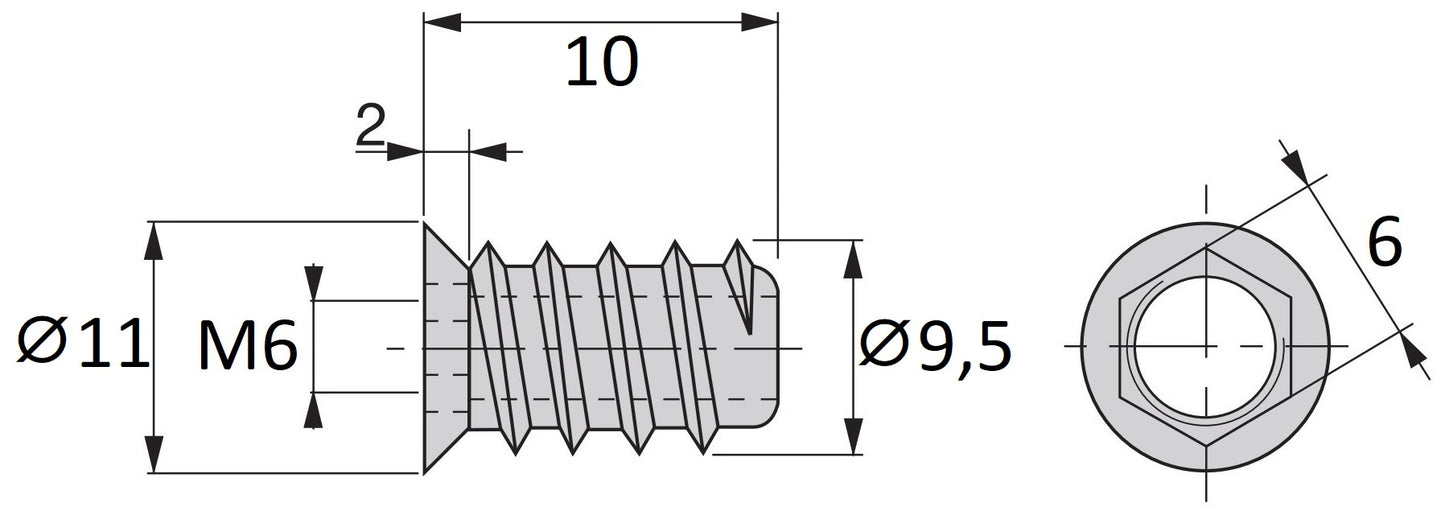

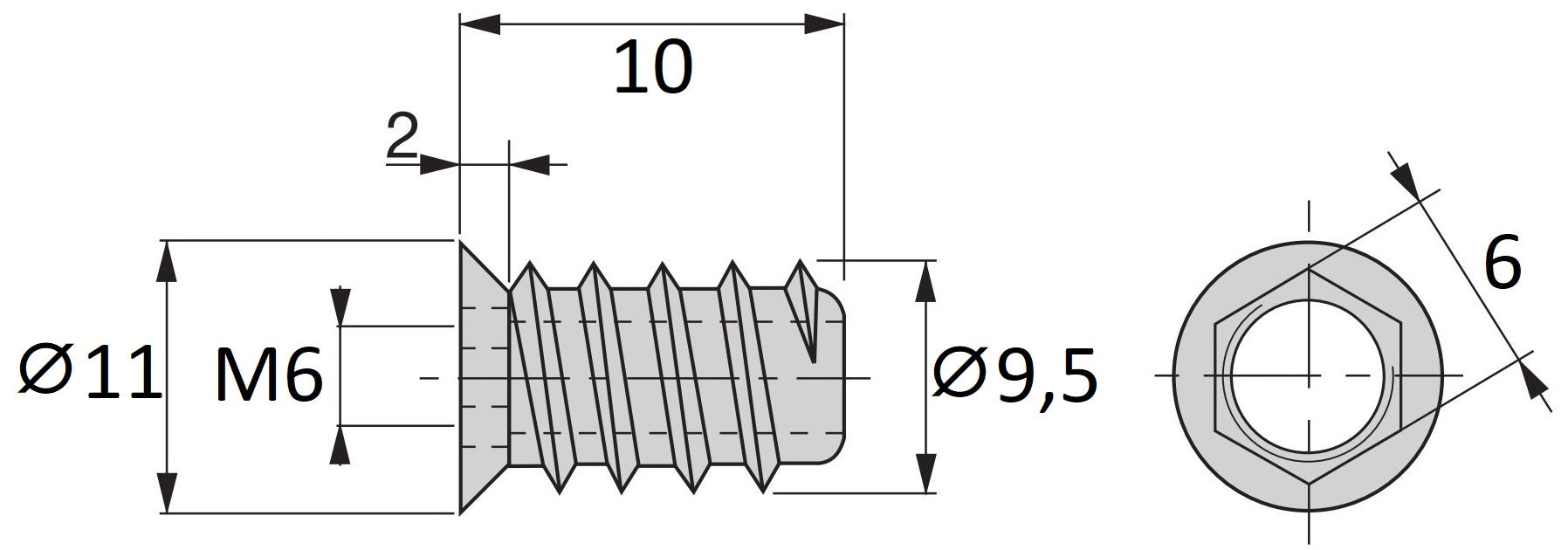

[caption id="attachment_140902" align="alignnone" width="420"] High-quality screw-in socket with M6 internal thread, countersunk head with hexagon socket, and cover rim, 10 mm, from EMUCA. Technical drawing[/caption] Included in delivery:

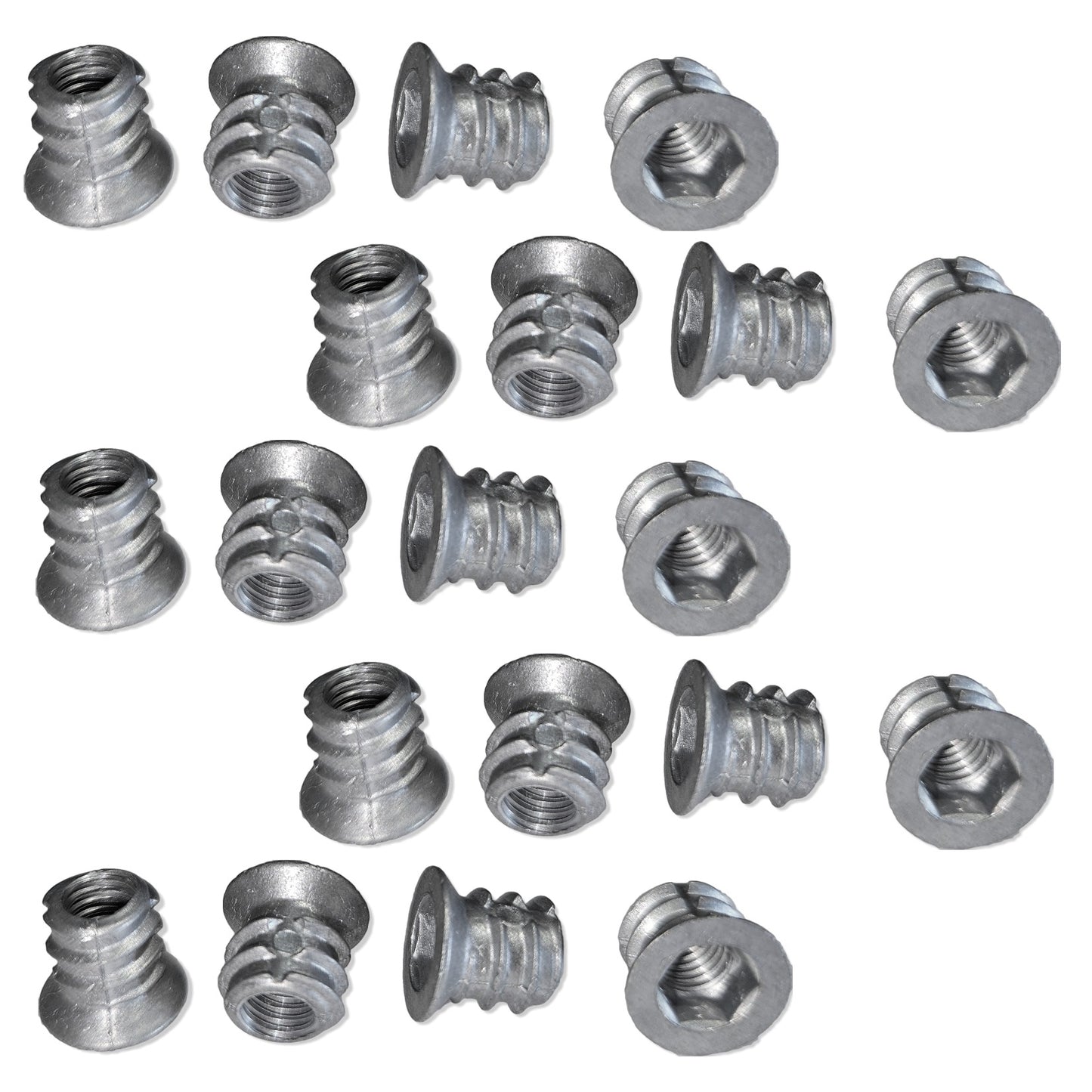

• 20 pieces screw-in sleeve 8028001 made of solid die-cast zinc, natural (untreated)

Manufacturer reference number:

• Article number: 8028001
• EAN number: 8432393119755

Manufacturer: EMUCA
