Zinc alloy recessed pull handle, finish: nickel-plated, satin matte, 100 mm (4") FH-100AK-00. Recessed pull handle FH-100AK-00 for office furniture, home furniture, and kitchen cabinets, by Sugatsune / LAMP® (Japan)

High-quality recessed folding handle made of solid zinc alloy, surface: nickel-plated, satin matt, FH-100AK-00

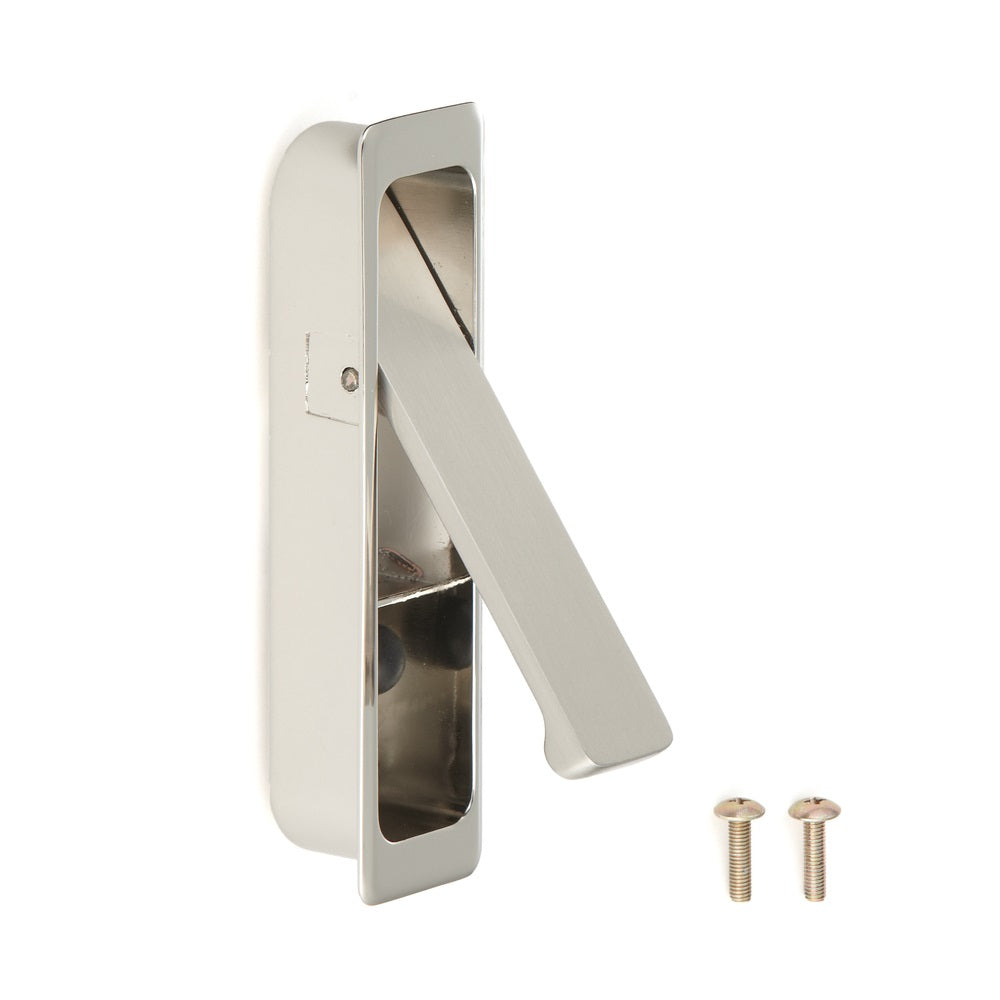

Application: Recessed handle FH-100AK-00 for office furniture, home furniture, kitchen cabinets. The high-quality inlet folding handles FH-100AK-00 have a fold-out handle. This remains in the open position after unfolding and can be folded back in if necessary. The FH-100AK-00 recessed handle can be installed in doors with a minimum thickness of 25 mm (63/64″). Installation in sheet metal furniture is also possible. The inlet handle FH-100AK-00 is ideal for, among others:

• Office furniture
• Home furniture
• kitchen cabinets

Material:

• The high-quality inlet folding handles FH-100AK-00 are made of zinc alloy (ZDC)

Surface:

• Nickel-plated, satin matt

Assembly:

• The fastening is carried out using the screws included in delivery (truss head screw M3 x 12)

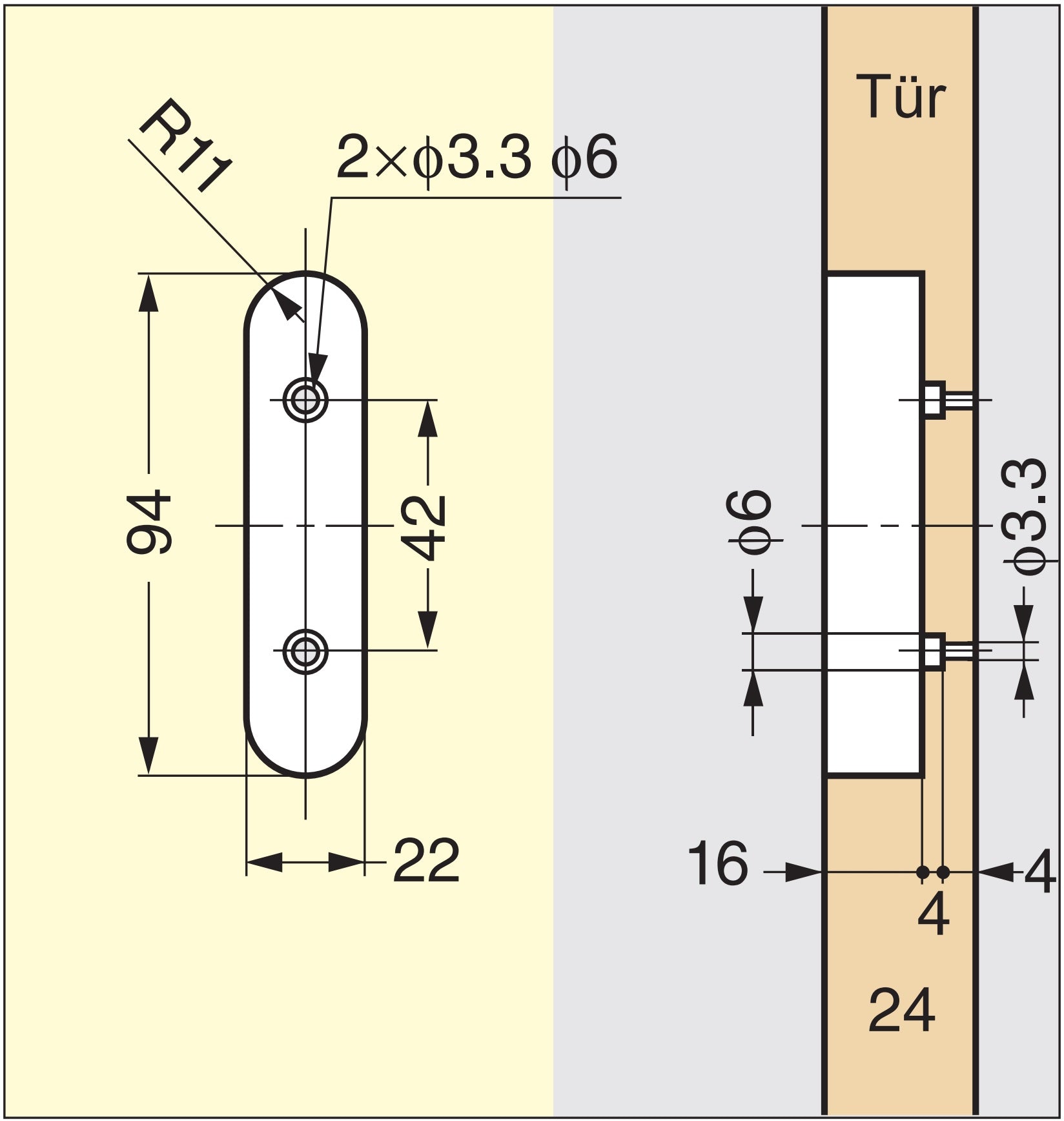

• For installation, a cutout in the front with a length of 94 mm (3-45/64″) and a width of 22 mm (55/64″) must be made

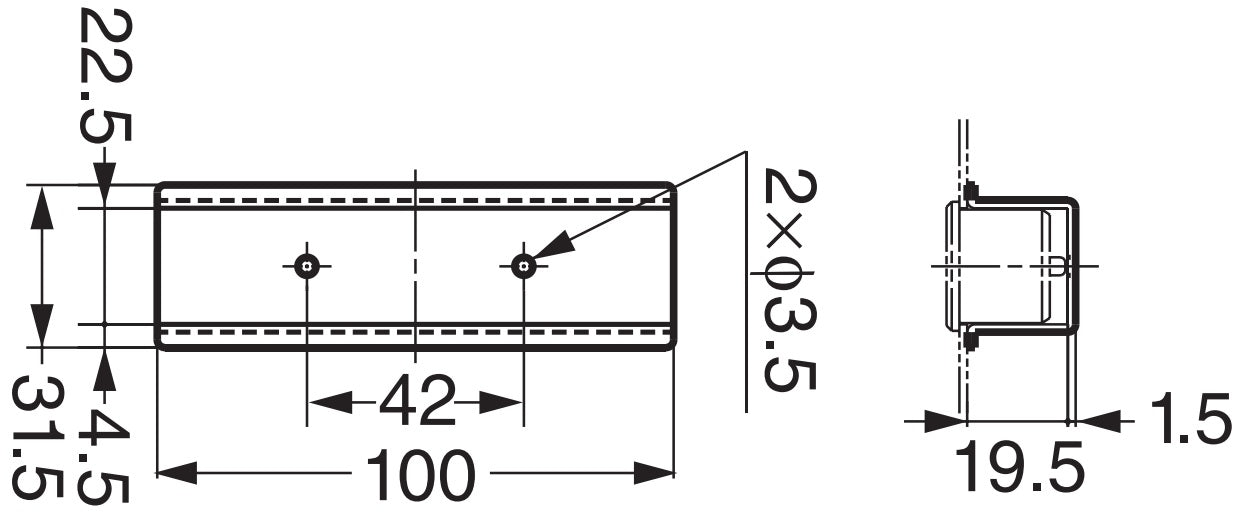

• For installation in a metal door, a spacer is required (see example drawing below). This is not included in the scope of delivery (for further details, see assembly drawing ).

[caption id="attachment_113073" align="alignnone" width="399"] Recessed folding handle made of zinc alloy, surface: nickel-plated, satin matte, FH-100AK-00, 100 mm, from Sugatsune. Assembly drawing[/caption] [caption id="attachment_113087" align="alignnone" width="420"] Sugatsune FH-100AK-00 100 mm recessed folding handle. Spacer for mounting in sheet metal (example)[/caption] Characteristics:

• Weight: 105 g
• Size: 100 mm (4″)
• Elaborately processed
• Ergonomic
• Stable
• Robust
• Nickel-plated, satin matt
• High brand quality from Sugatsune / LAMP®

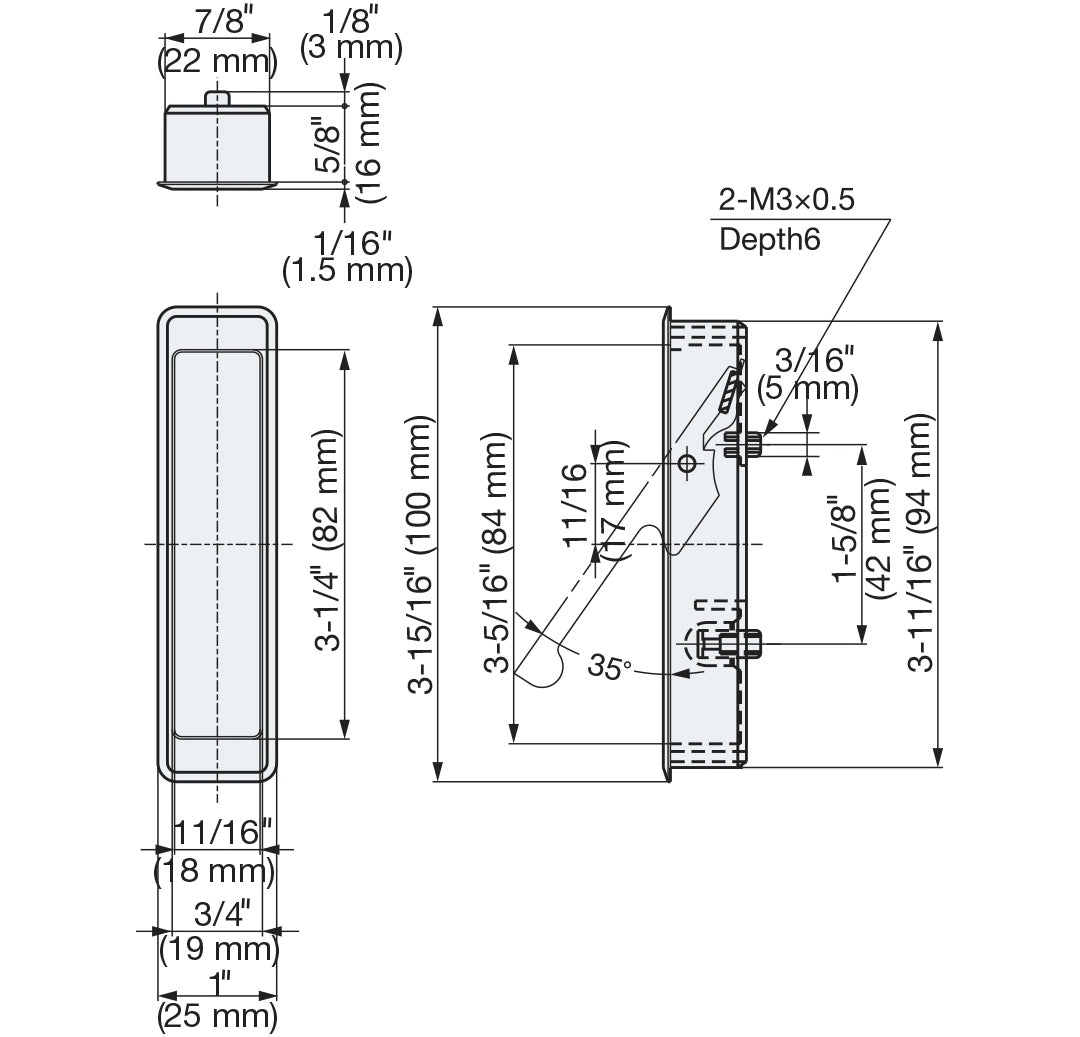

For further dimensions and details see technical drawing . The dimensions:

• Length of the inlet folding handle: 100 mm (3-15/16″)
• Width: 25 mm (63/64″)
• Depth: 16 mm (5/8″)
• Distance between mounting holes is 42 mm (1-21/32″)

[caption id="attachment_113101" align="alignnone" width="420"] Recessed folding handle made of zinc alloy, surface: nickel-plated, satin matte, FH-100AK-00, 100 mm, by Sugatsune. Technical drawing[/caption] Included in delivery:

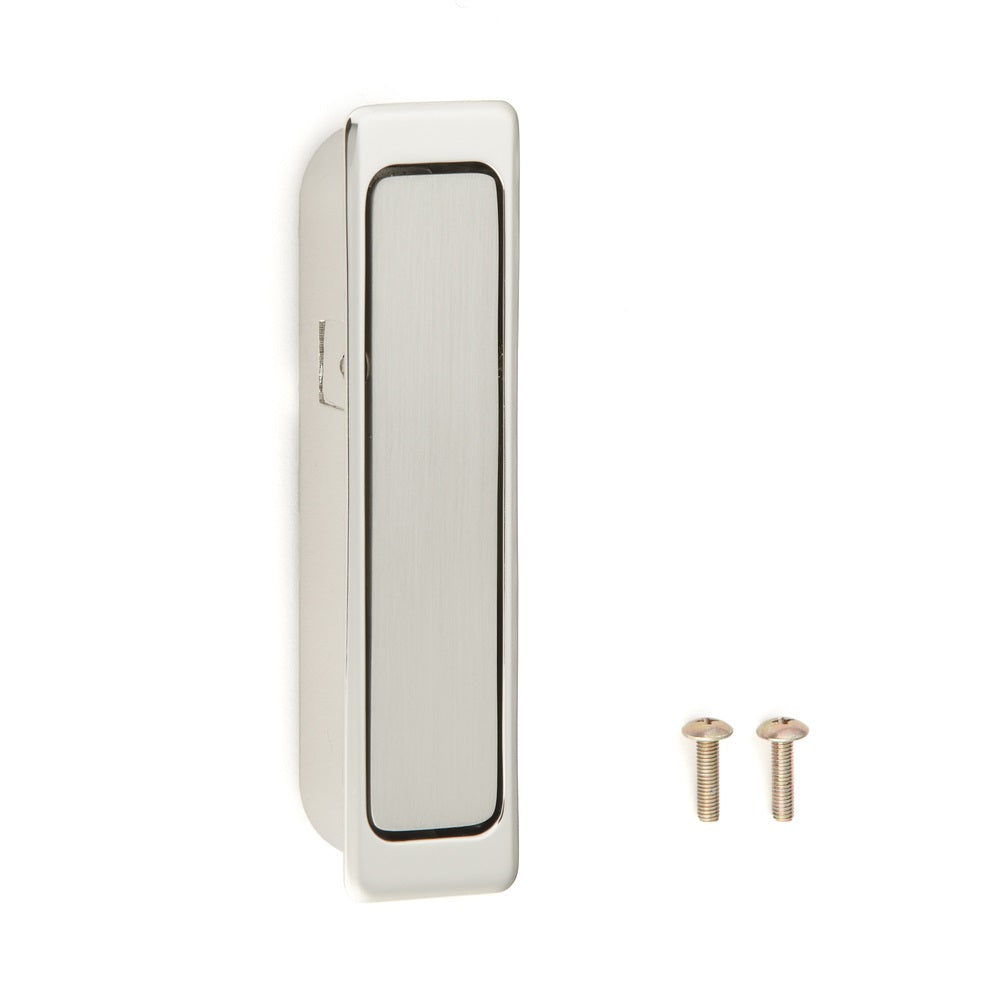

• 1 piece inset folding handle FH-100AK-00 made of solid zinc alloy, nickel-plated, satin matt
• 2 pieces of truss head screw M3 x 12 made of steel

Manufacturer reference number:

• Article number: 100-010-251
• Item number: FH-100AK-00
• EAN number: 4510932010689

Manufacturer: Sugatsune / LAMP® (Japan)
