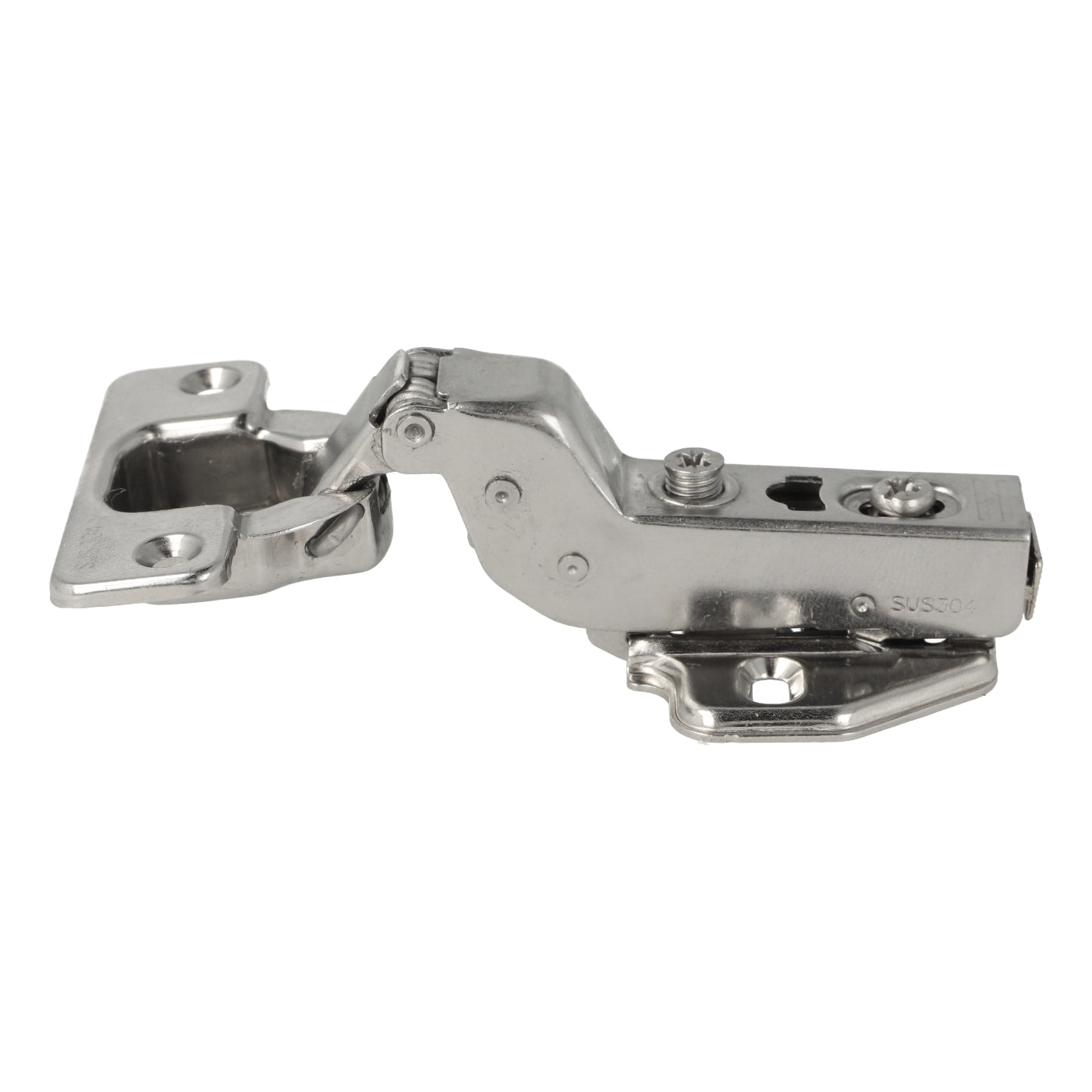

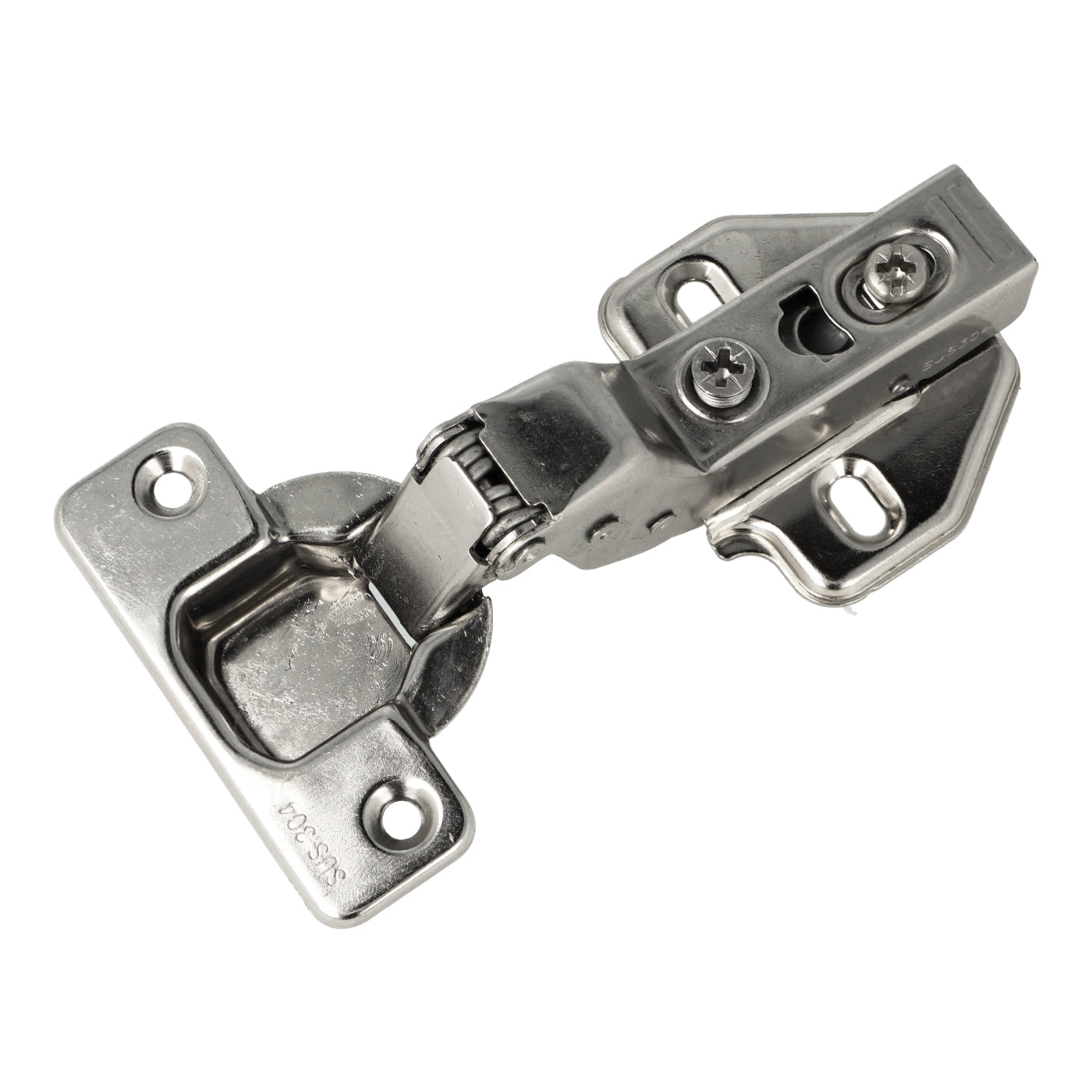

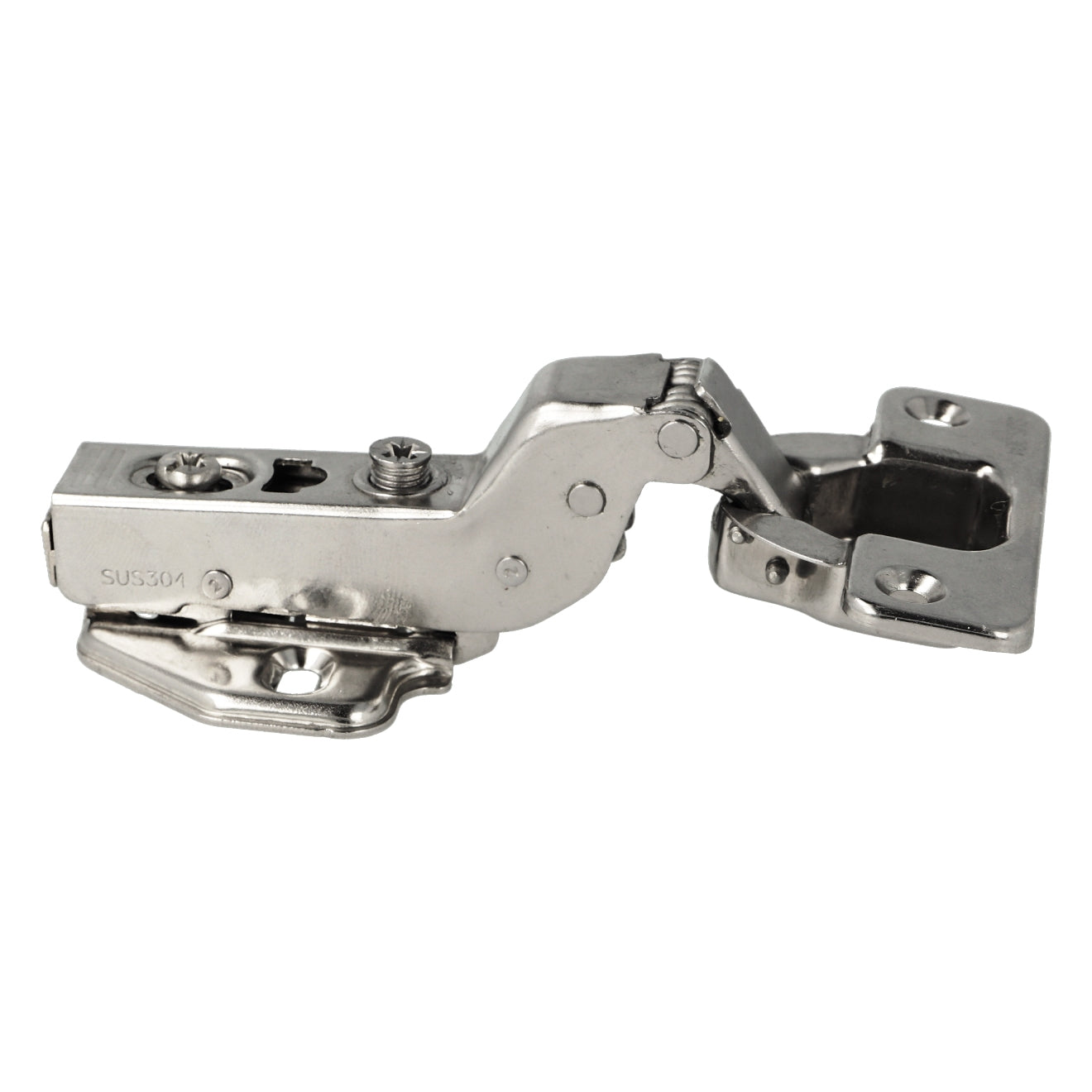

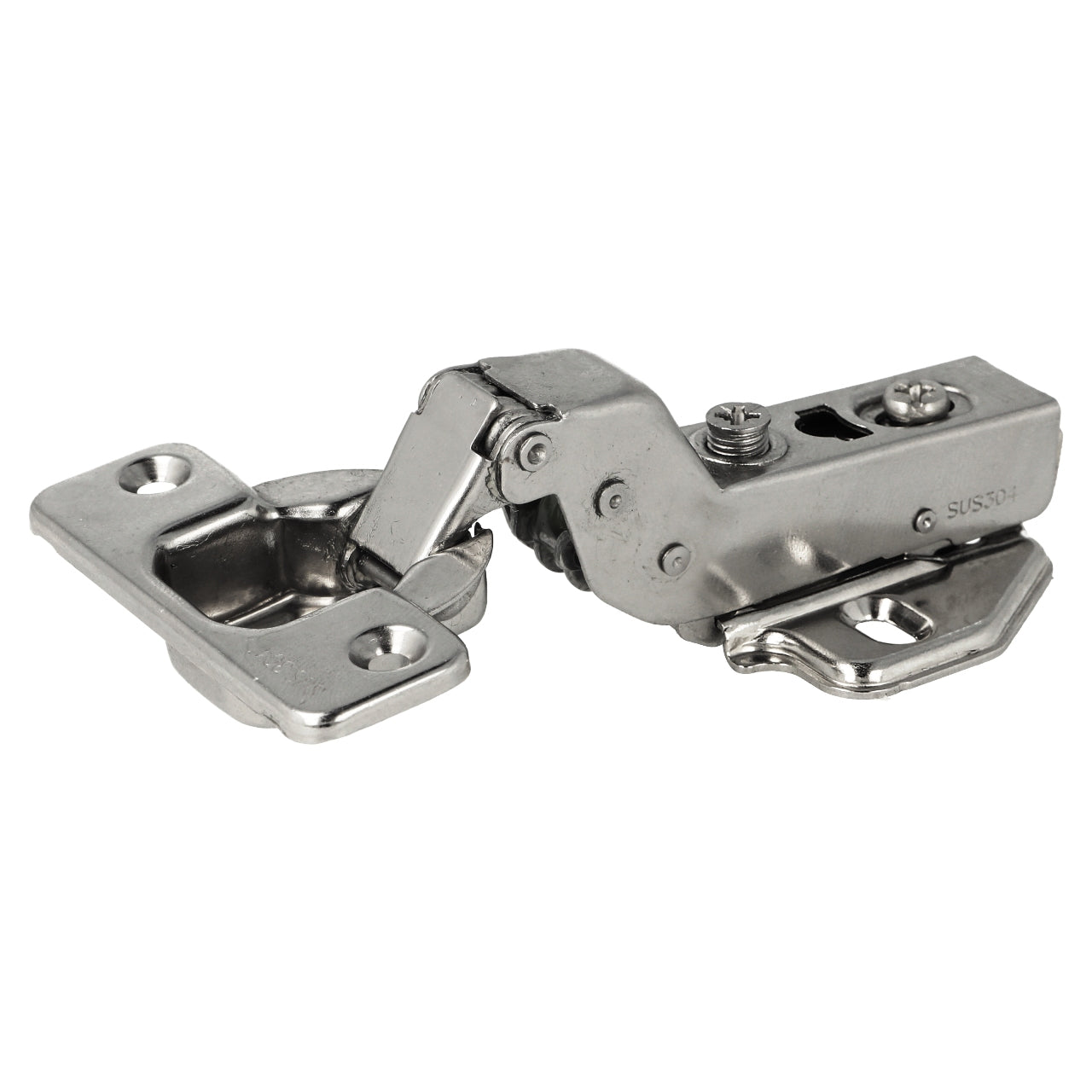

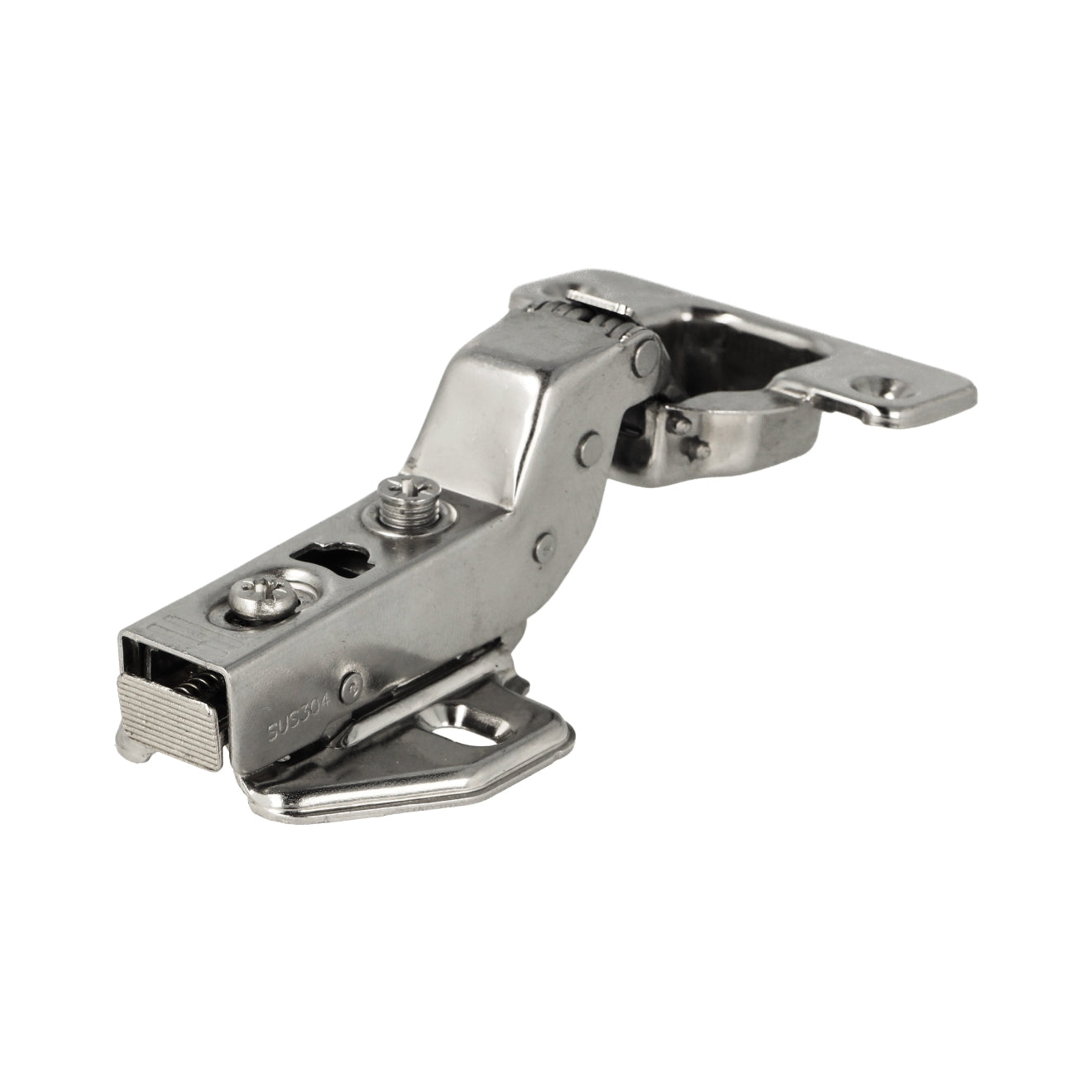

Edelstahlmöbelscharnier aus SUS304 (V2A) mit integrierter Soft-Close Dämpfung, innenliegend, inkl. Montageplatte 15.03.770-0. Edelstahlmöbelband mit Dämpfer, aus SUS304 (V2A) für Boot, Edelstahlküche, Outdoor-Küche, von SISO Denmark

Damped stainless steel furniture hinge, inset, with base plate, glossy polished, 15.03.770-0

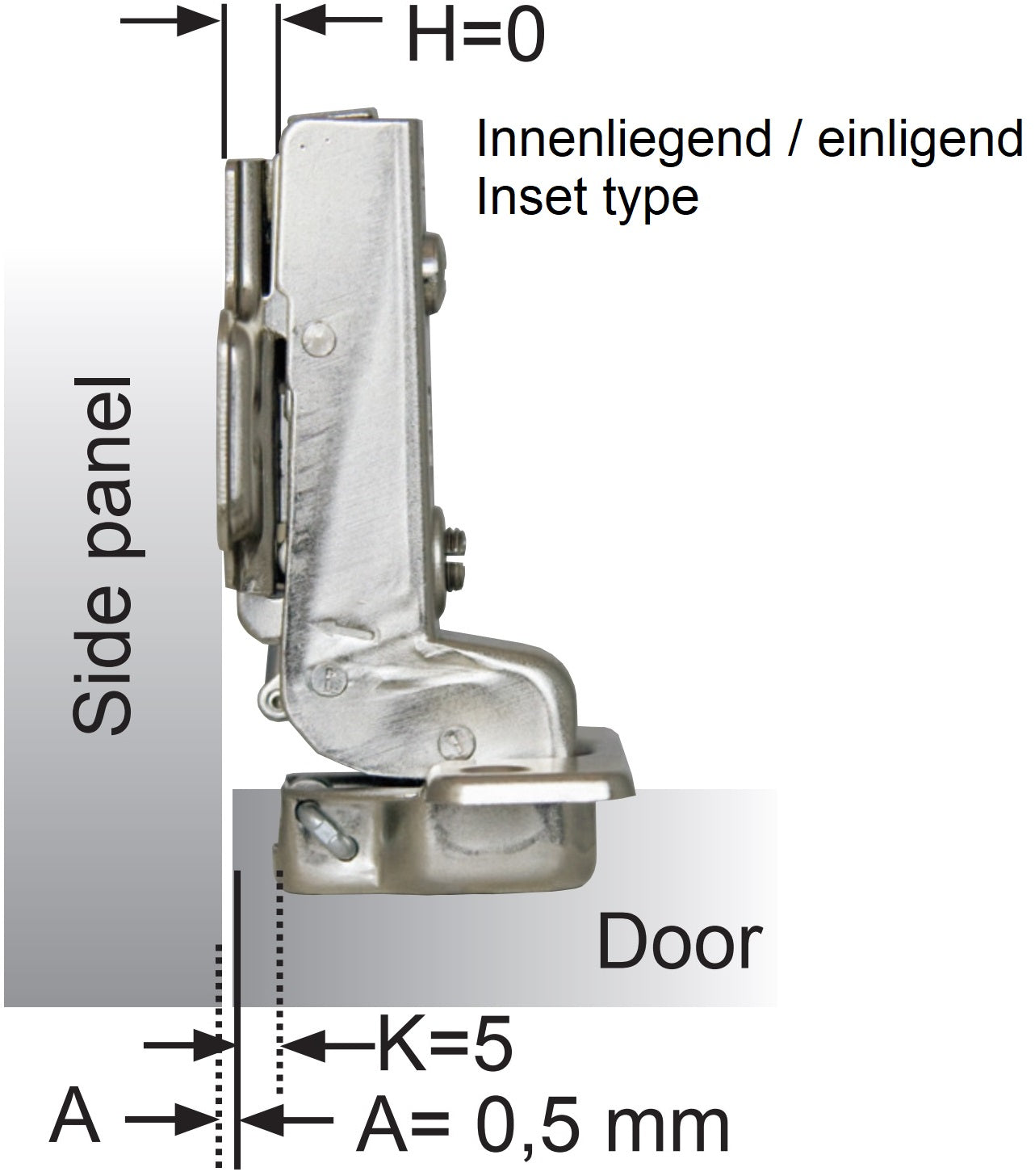

Application: Stainless steel furniture hinge with damper, made of SUS304 (V2A) for boat, stainless steel kitchen, outdoor kitchen. The cup drilling distance is: 48 mm (1-57/64″) [caption id="attachment_115203" align="alignnone" width="370"] Stainless steel furniture hinge made of SUS304 (V2A) with integrated soft-close damping, internal, including mounting plate, from SISO. Application[/caption] The furniture hinge is suitable for door thicknesses of 14 - 24 mm. The high-quality stainless steel furniture hinges 15.03.770-0 are ideal for, among others:

• yacht
• cruise ship
• beach hotel
• Food sector
• Medical field
• Outdoor furniture
• doctor's office
• boat
• stainless steel kitchen
• Outdoor kitchen

Material:

• The high-quality stainless steel furniture hinges 15.03.770-0 are made of stainless steel (V2A)
• Soft-close damper: made of plastic

Surface:

• Shiny polished

Assembly:

• The fastening is done with screws (not included)
• For the hinge cup, a hole with a diameter of Φ35 mm and a depth of 12 mm must be drilled in the furniture door (for further details see assembly drawing ).

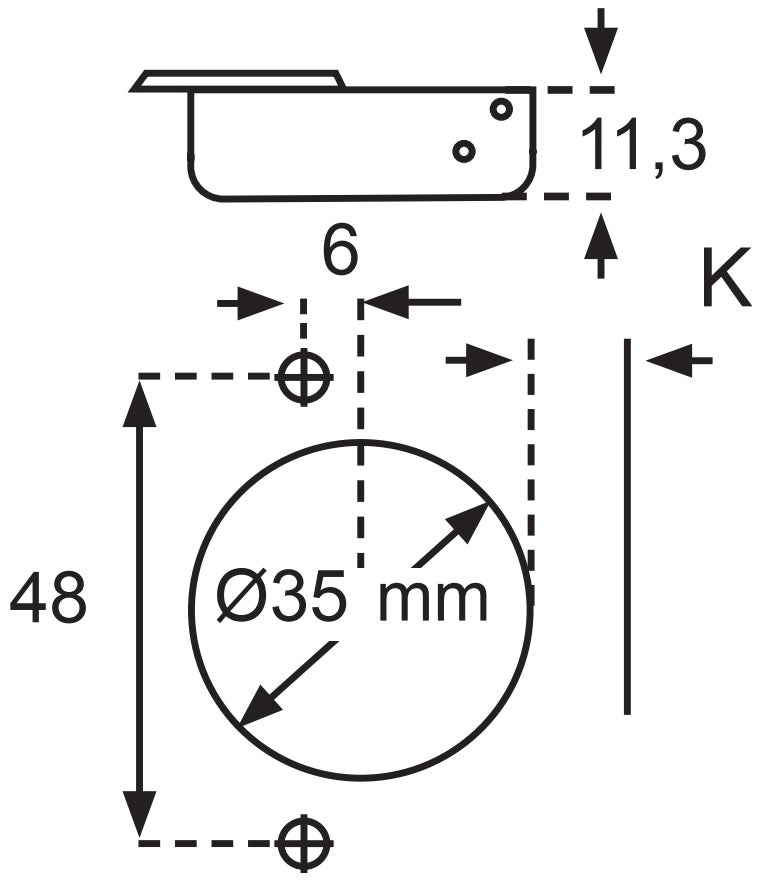

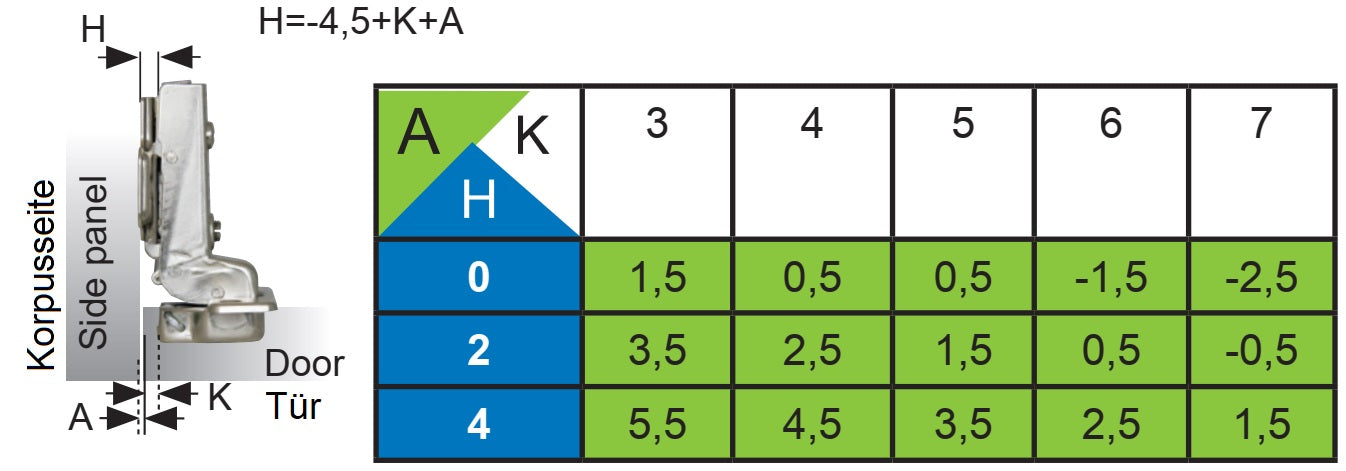

[caption id="attachment_115217" align="alignnone" width="420"] Stainless steel furniture hinge made of SUS304 (V2A) with integrated soft-close damping, internal, including mounting plate, from SISO. Assembly drawing[/caption] [caption id="attachment_115231" align="alignnone" width="361"] Stainless steel furniture hinge made of SUS304 (V2A) with integrated soft-close damping, internal, including mounting plate, from SISO. Drawing: 48 mm cup bore.[/caption] Characteristics:

• Cup drilling distance: 48 mm
• Weight: 93 g
• Size: 114.4 mm (4.6″)
• Internal (inset)
• 3-dimensional adjustment: support adjustment (lateral adjustment), height adjustment (vertical adjustment), tilt adjustment
• Integrated damper (soft-close)
• High quality
• Stainless steel
• Corrosion-free
• Reliable
• Stable
• Robust
• Shiny polished
• High brand quality from UMAXO®

For further dimensions and details see technical drawing . The dimensions:

• Length of stainless steel furniture hinge: 114.4 mm (4-1/2″)
• Width: 62 mm (2-7/16″)
• Depth of hinge cup: 11.5 mm (29/64″)
• Drilling distance between the holes in the hinge cup: 48 mm (1-57/64″)
• Diameter of the hinge cup: Φ35 mm (1-3/8″)
• Distance between the mounting holes of the mounting plate: Φ32 mm (1-17/64″)

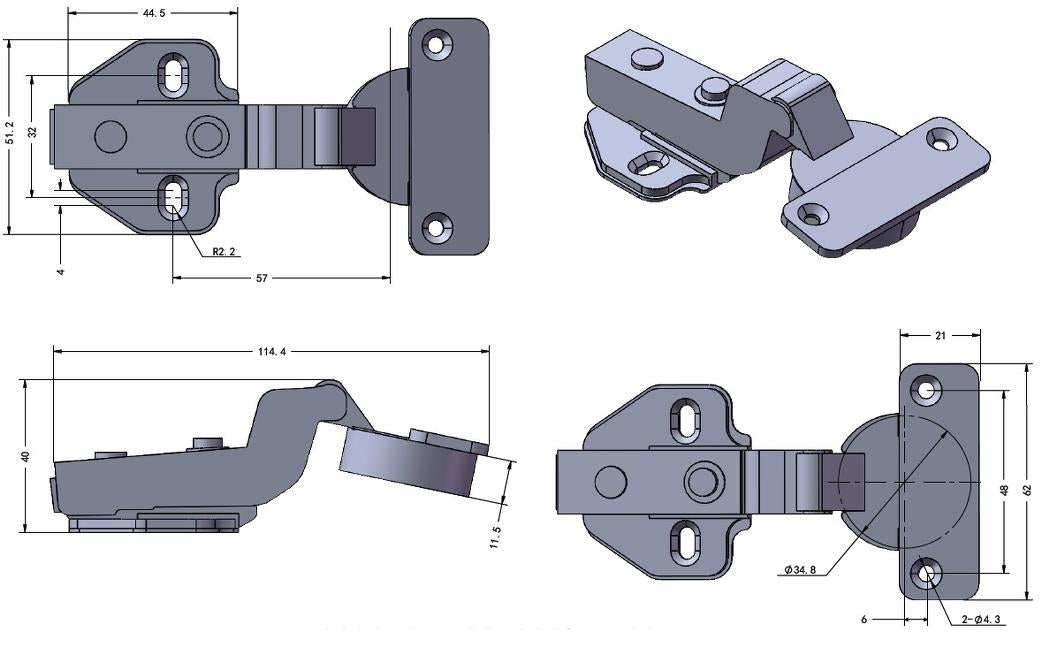

[caption id="attachment_115245" align="alignnone" width="420"] Stainless steel furniture hinge made of SUS304 (V2A) with integrated soft-close damping, internal, including mounting plate, from SISO. Technical drawing[/caption] Included in delivery:

• 1 piece stainless steel furniture hinge 15.03.770-0 made of stainless steel, shiny polished
• 1 piece mounting plate made of stainless steel SUS304 (V2A)

Additional Information:

• Download the Reach Declaration

Manufacturer reference number:

• Article number: 15.03.770-0
• EAN number: 5704866442206

Manufacturer: SISO Denmark
