Edelstahlmöbelgriff SUS316, 84,2 mm (3,4″) SWP-630/S. Bügelgriff, aus feinstem korrosionsfreiem Edelstahl V4A (SUS316) für hochwertige Einrichtungen, sowie für den Außenbereich, feuchte, raue und hochkorrosive Umgebungen von Sugatsune / LAMP® (Japan)

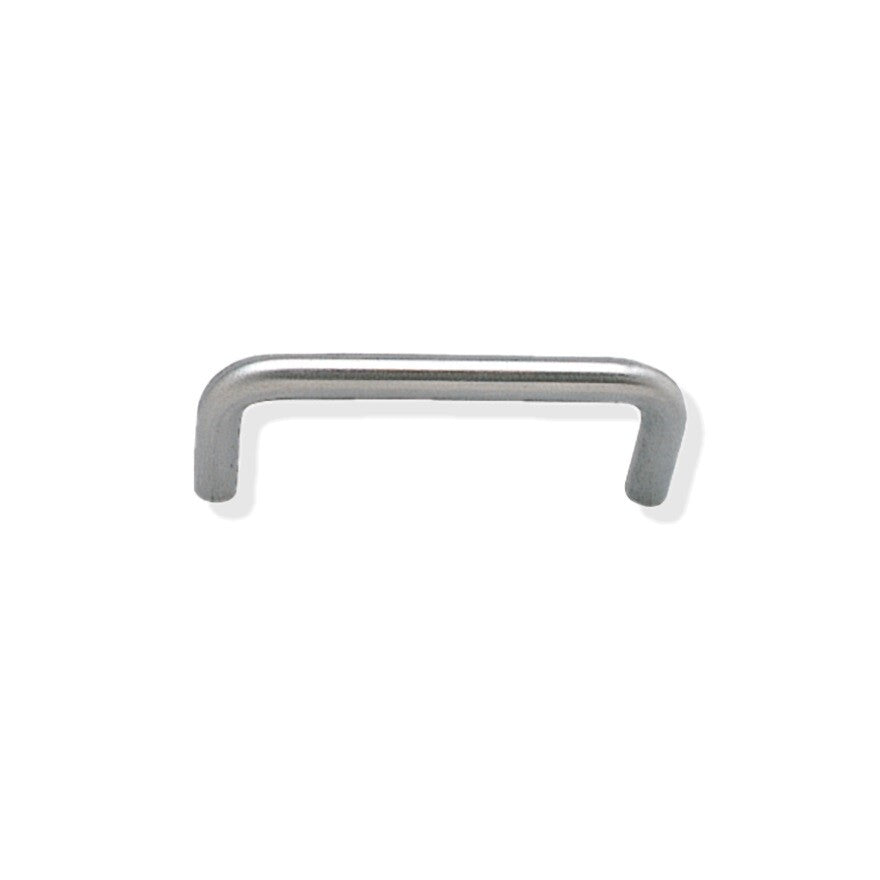

High-quality solid stainless steel handle SUS316, matte surface, height 34 mm SWP-630/S

Application: Bow handle, made of the finest corrosion-free stainless steel V4A (SUS316) for high-quality facilities, as well as for outdoor use in damp, harsh and highly corrosive environments. The stainless steel SUS316 gives the handles unique properties. The furniture handles are ideal for:

• Cruise ships
• yachts
• boats
• ships
• Outdoor area
• coastal facilities
• bathroom
• Swimming pool
• sauna
• Medical field
• Laboratory equipment
• Outdoor furniture
• Restaurant furnishings
• stainless steel kitchen

Material: Made of solid high quality SUS316 stainless steel. SUS316 stainless steel (also known as V4A) is a stainless steel with excellent corrosion resistance. Due to their resistance to chlorine-containing substances, fittings made of SUS316 stainless steel are used and expressly recommended for use near the coast. Bow handles made of SUS316 stainless steel are also ideal for use in swimming pools, shipbuilding, the chemical industry, etc. Surface:

• Satin matt

Assembly:

• The assembly is done using the 6.35 mm screws (not included)

Characteristics:

• Weight: 71 g
• Size: 84.2 mm (3.4″)
• Corrosion-resistant
• Available in sizes: 95.9 mm, 108.6 mm, 134 mm and 159.4 mm

Dimensions: For further dimensions and details see technical drawing .

• Length: 84.2 mm (3.32″)
• Distance between holes: 76.2 mm (3")
• Depth of drill holes: 7.9 mm (0.32″)
• Handle height: 34 mm (1.34″)
• Material thickness: 7 mm x 14 mm

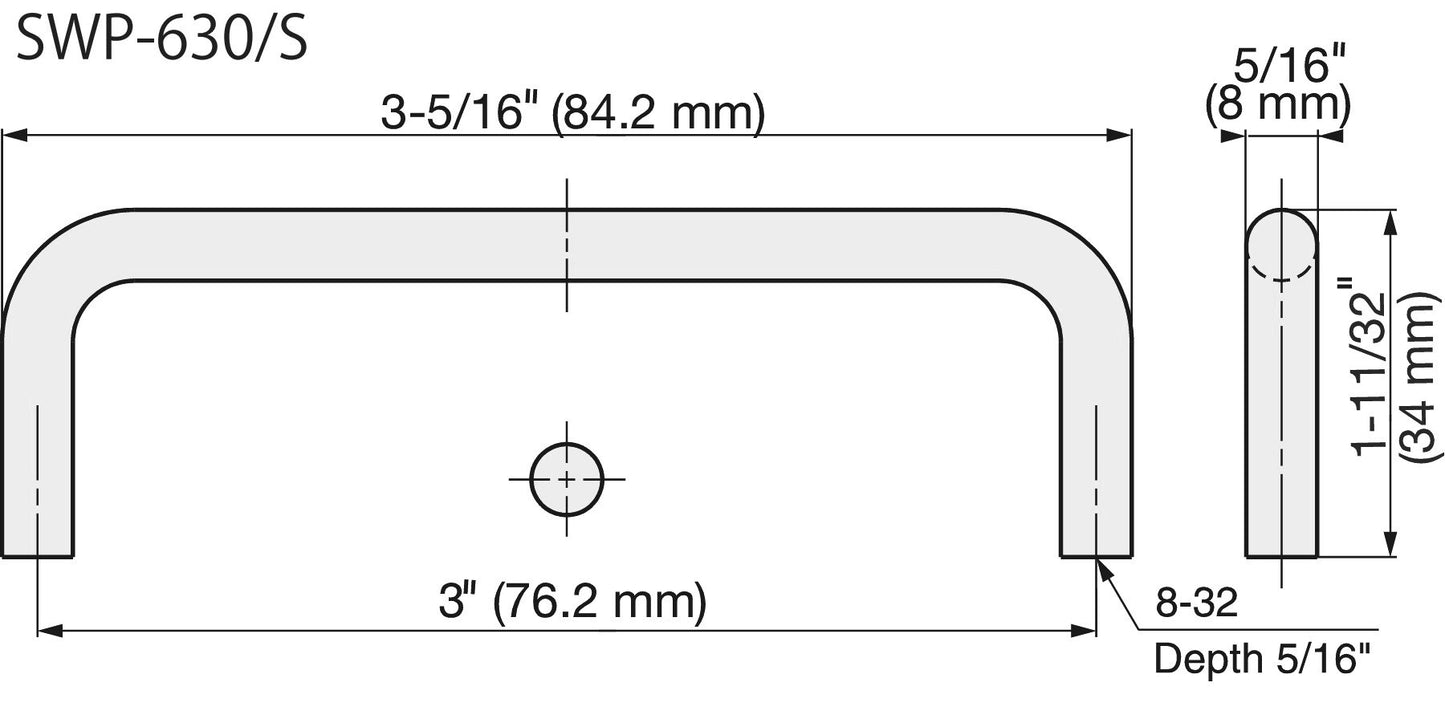

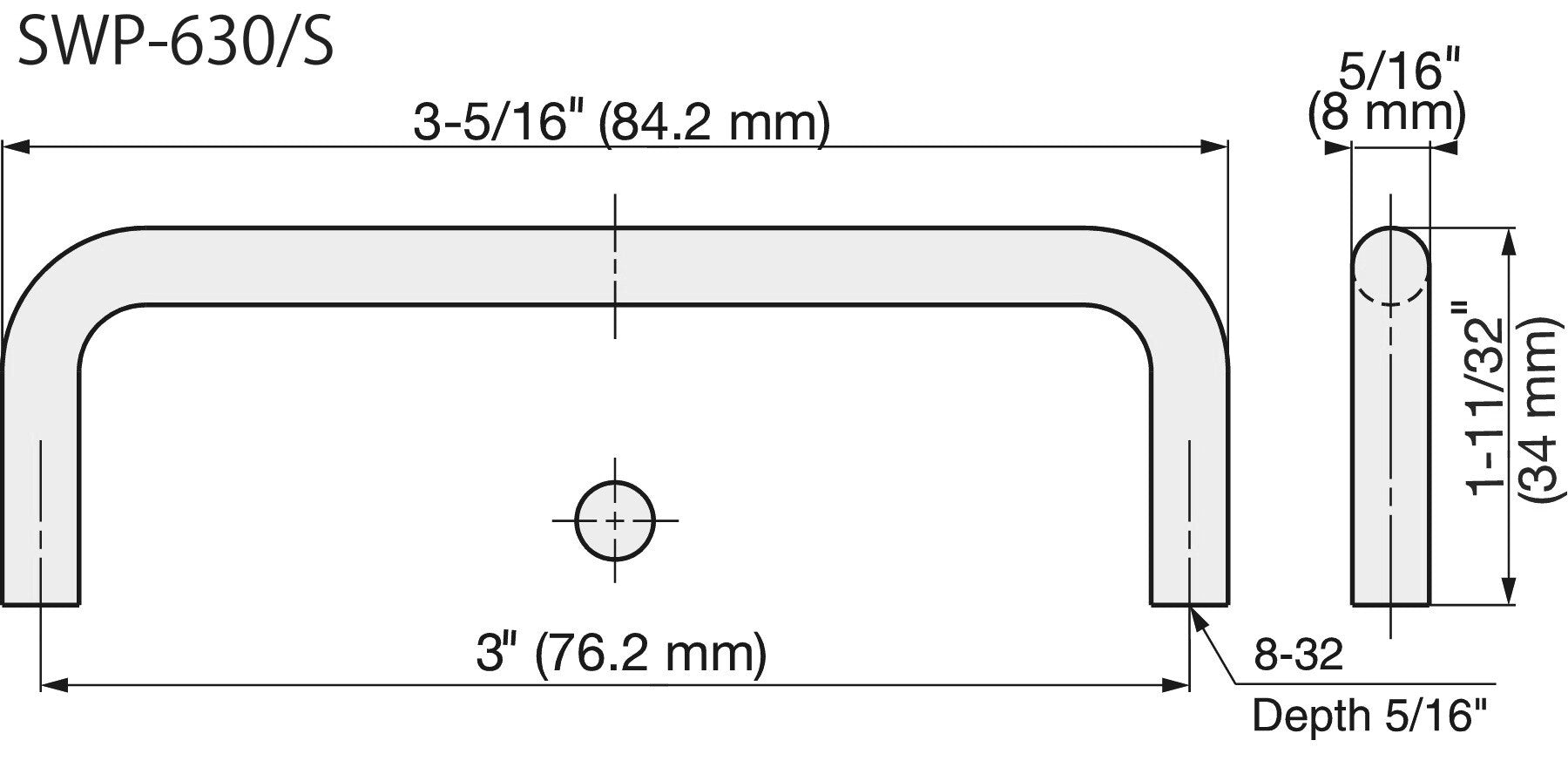

[caption id="attachment_37712" align="alignnone" width="420"] SWP-630S SUS316 stainless steel furniture handle, 84.2 mm. Technical drawing[/caption] Included in delivery:

• 1 piece bow handle made of stainless steel SUS316 (V4A)

Manufacturer reference number:

• Article number: 100-023-434
• Article name: SWP-630/S

Manufacturer: SUGATSUNE / LAMP® (Japan)
