Edelstahlmöbelgriff SUS316, 330 mm (13″) MG-300T. Massiver stabiler Griff aus feinstem korrosionsfreiem Edelstahl V4A (SUS316) für hochwertige Einrichtungen, Außenbereich, feuchte, raue und hochkorrosive Umgebungen von Sugatsune / LAMP® (Japan)

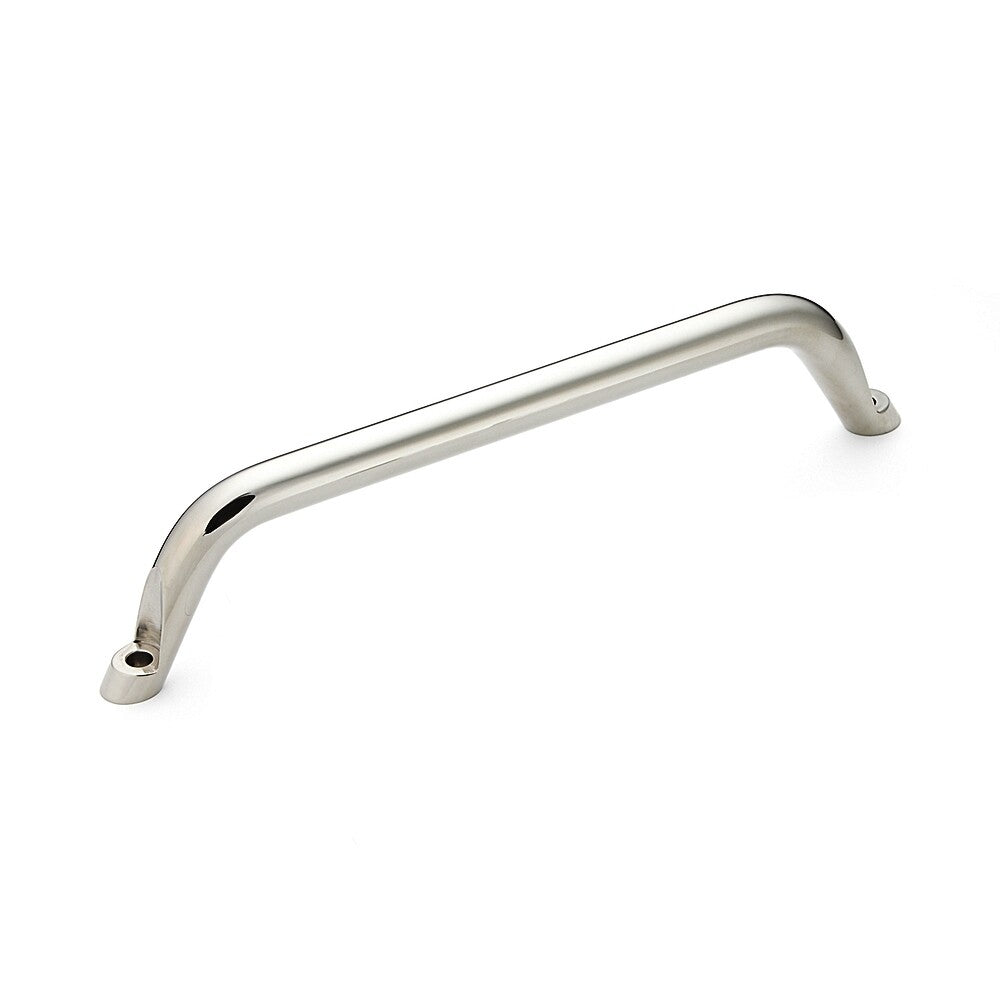

High-quality solid stainless steel handle made of V4 (SUS316) stainless steel, glossy surface, height 70 mm (2.76″) MG-300T

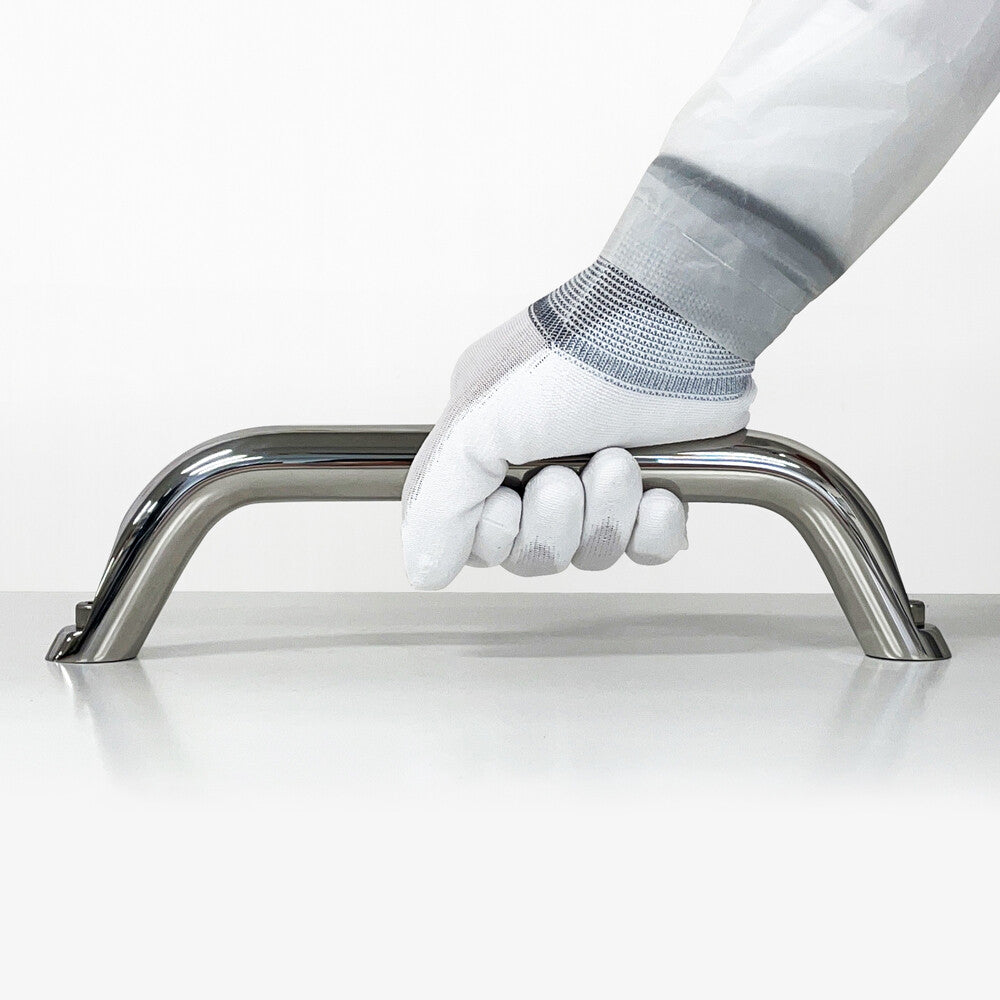

Application: [caption id="attachment_38812" align="alignnone" width="420"] MG-300T SUS316 stainless steel furniture handle, 330 mm. Application (example with MG-270T)[/caption] Solid, sturdy handle made of the finest corrosion-free stainless steel V4A (SUS316) for high-quality facilities, outdoor use, humid, harsh and highly corrosive environments. The stainless steel SUS316 gives the handles unique properties. This corrosion-resistant handle has increased handle height and width to allow for easier gripping, especially when wearing gloves. Thanks to its solid construction, this stainless steel handle can also be used for particularly demanding applications. The corrosion-free MG-300T handles are ideal for:

• Special vehicles
• Production facilities
• Cruise ships
• yachts
• boats
• ships
• Outdoor area
• coastal facilities
• bathroom
• Swimming pool
• sauna
• Medical field
• Laboratory equipment
• Outdoor furniture
• Restaurant furnishings
• stainless steel kitchen

Material: The stainless steel handle MG-300T is made of solid high-quality SUS316 stainless steel. SUS316 stainless steel (also known as V4A) is a stainless steel with excellent corrosion resistance. Due to their resistance to chlorine-containing substances, furniture fittings and industrial fittings made of SUS316 stainless steel are used and expressly recommended for use near the coast. Handles made of SUS316 stainless steel are also ideal for use in swimming pools, shipbuilding, the chemical industry, etc. Surface:

• Shiny polished

Assembly:

• The assembly is done with screws (not included)

Characteristics:

• Weight: 678 g
• Size: 330 mm (13″)
• Ideal for easy gripping with gloves
• Complies with the SEMI standard (SEMI S8-0701)
• Successfully passed load test with 1960N (200kgf)
• Stainless steel
• Particularly corrosion-resistant
• Available in lengths of 173 mm, 217 mm, 260 mm, 276 mm, 302 mm and 330 mm

Dimensions: For further dimensions and details see technical drawing .

• Length: 330 mm (13″)
• Distance between holes: 300 mm (11.82″)
• Handle height: 70 mm (2.76″)
• Inner size: 50 mm (1.97″)
• Material thickness: 20 mm (0.79″)
• Screw hole diameter: Φ9 mm (0.36″)

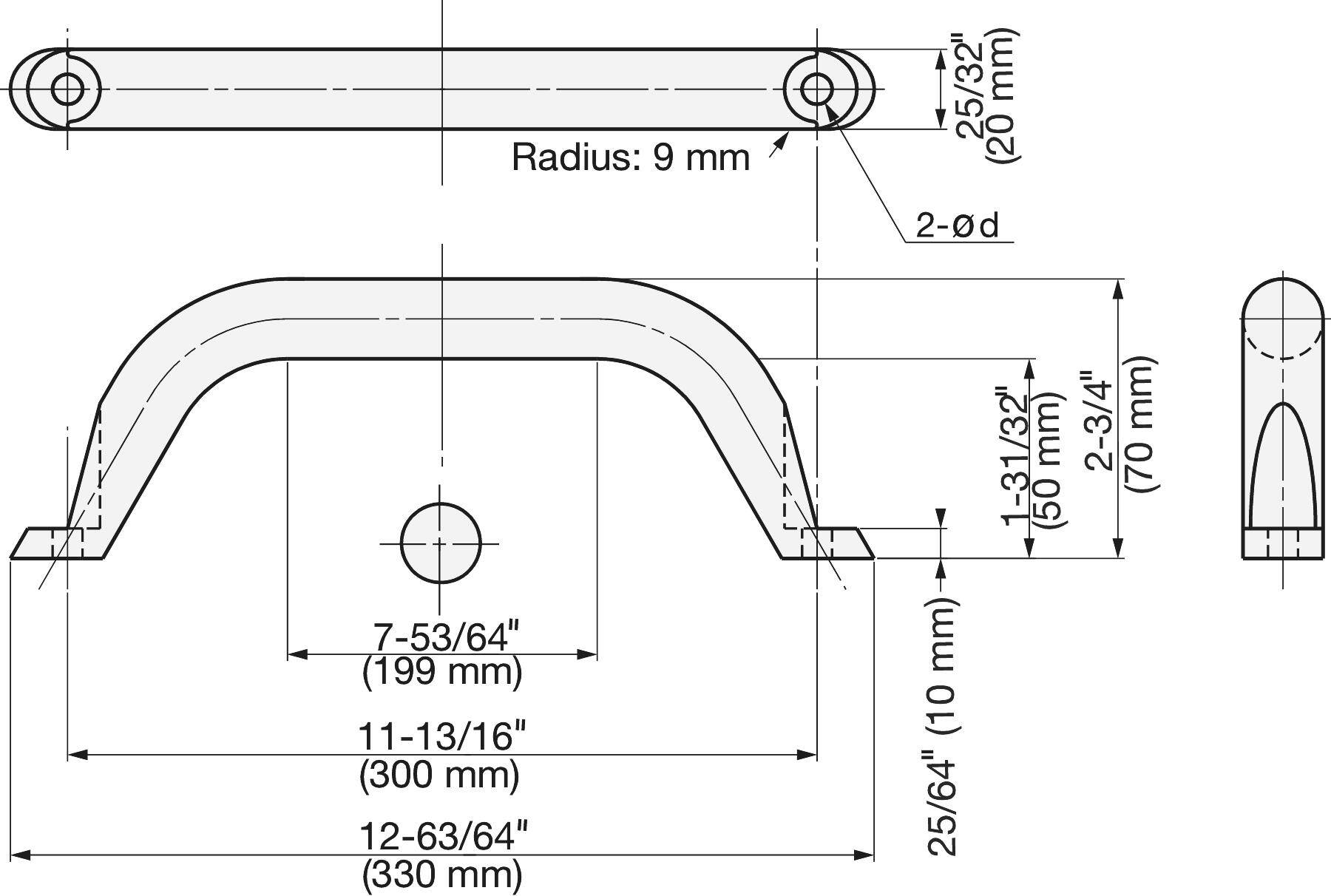

[caption id="attachment_38799" align="alignnone" width="420"] MG-300T SUS316 stainless steel furniture handle, 330 mm. Technical drawing[/caption] Included in delivery:

• 1 piece handle MG-300T made of stainless steel SUS316 (V4A)

Manufacturer reference number:

• Article number: 100-021-953
• Item name: MG-300T
• EAN number: 4510932009287

Manufacturer: SUGATSUNE / LAMP® (Japan)
