Hochwertiger massiver Edelstahlmöbelgriff aus SUS304 (V2A) mit Vierpunktbefestigung, 238 mm (9,4″) XL-CUY240TT. Edelstahltürgriff XL-CUY240TT aus SUS304 (V2A) mit vier Befestigungslöchern für Boot, Yacht, Edelstahlküche, von Sugatsune / LAMP® (Japan)

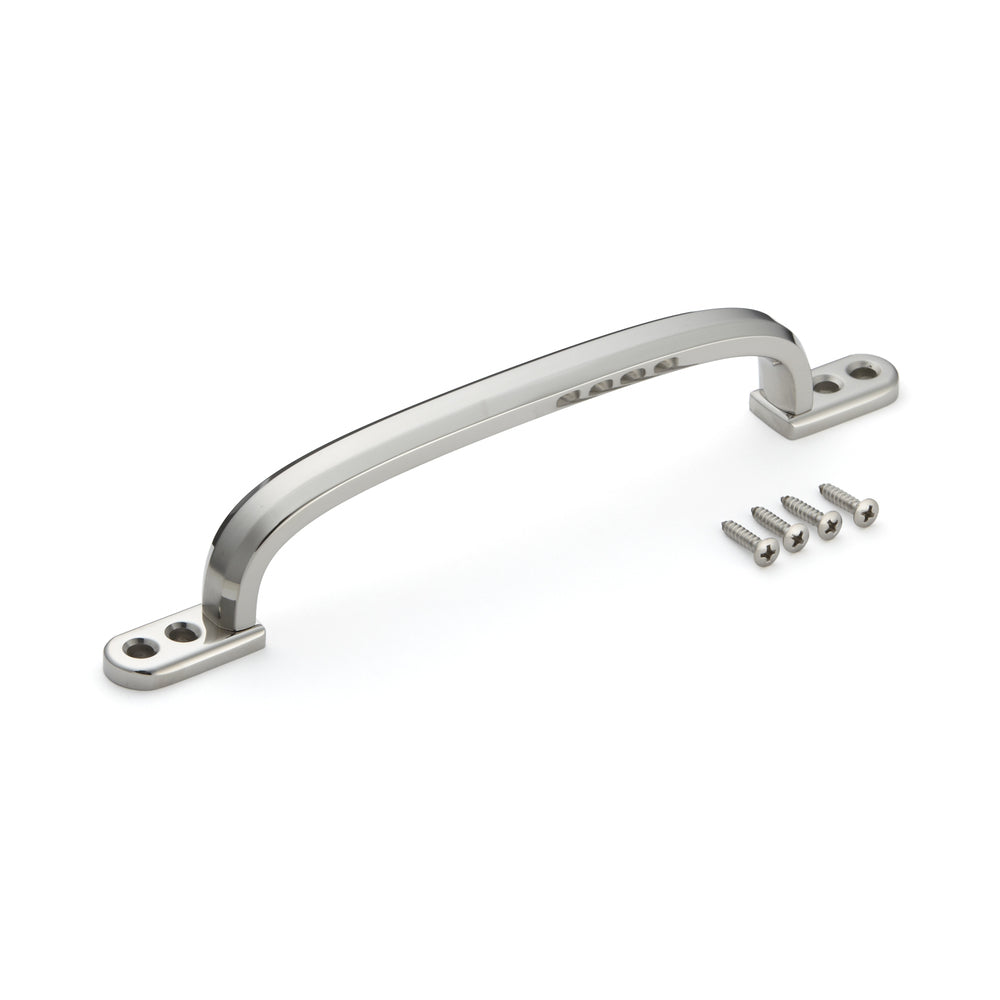

High-quality solid stainless steel furniture handle made of SUS304 (V2A) stainless steel with four mounting holes XL-CUY240TT

Application: Stainless steel door handle XL-CUY240TT made of SUS304 (V2A) with four mounting holes for boat, yacht, stainless steel kitchen. The high-quality stainless steel furniture handles XL-CUY240TT are ideal for:

• boat
• yacht
• stainless steel kitchen
• cruise ship
• beach hotel
• Food sector
• Medical field
• Outdoor furniture
• doctor's office

Material:

• The high-quality stainless steel furniture handles XL-CUY240TT are made of stainless steel SUS304 (V2A)

Surface:

• The surface is partly high-gloss and partly satin matt, creating unique optical and haptic effects

Assembly:

• The fastening is carried out using the screws included in delivery (countersunk head self-tapping screw 4 x 20 mm)
• The fastening screws are also made of stainless steel
• For installation, four holes for the fixing screws must be pre-drilled in the front with a distance of 196 mm (7-23/32″) mm and 12 mm

Characteristics:

• Weight: 290 g
• Size: 238 mm (9.4″)
• Height of the handle area: 34 mm
• Four holes for extra secure fastening
• Ergonomic
• Solid
• Robust
• Made of SUS304 (V2A)
• Matt and polished
• High brand quality from Sugatsune / LAMP®

Dimensions: For further dimensions and details see technical drawing .

• Length of stainless steel furniture handle (L): 238 mm (9-3/8″)
• Height (H): 44 mm (1-47/64″)
• Width of the grip area (L1): 180 mm (7-3/32″)
• Distance between mounting holes (P): 196 mm (7-23/32″)
• Material thickness: 16 mm (5/8″) x 10 mm (25/64″)
• Length of mounting plates: 40 mm (1-37/64″)

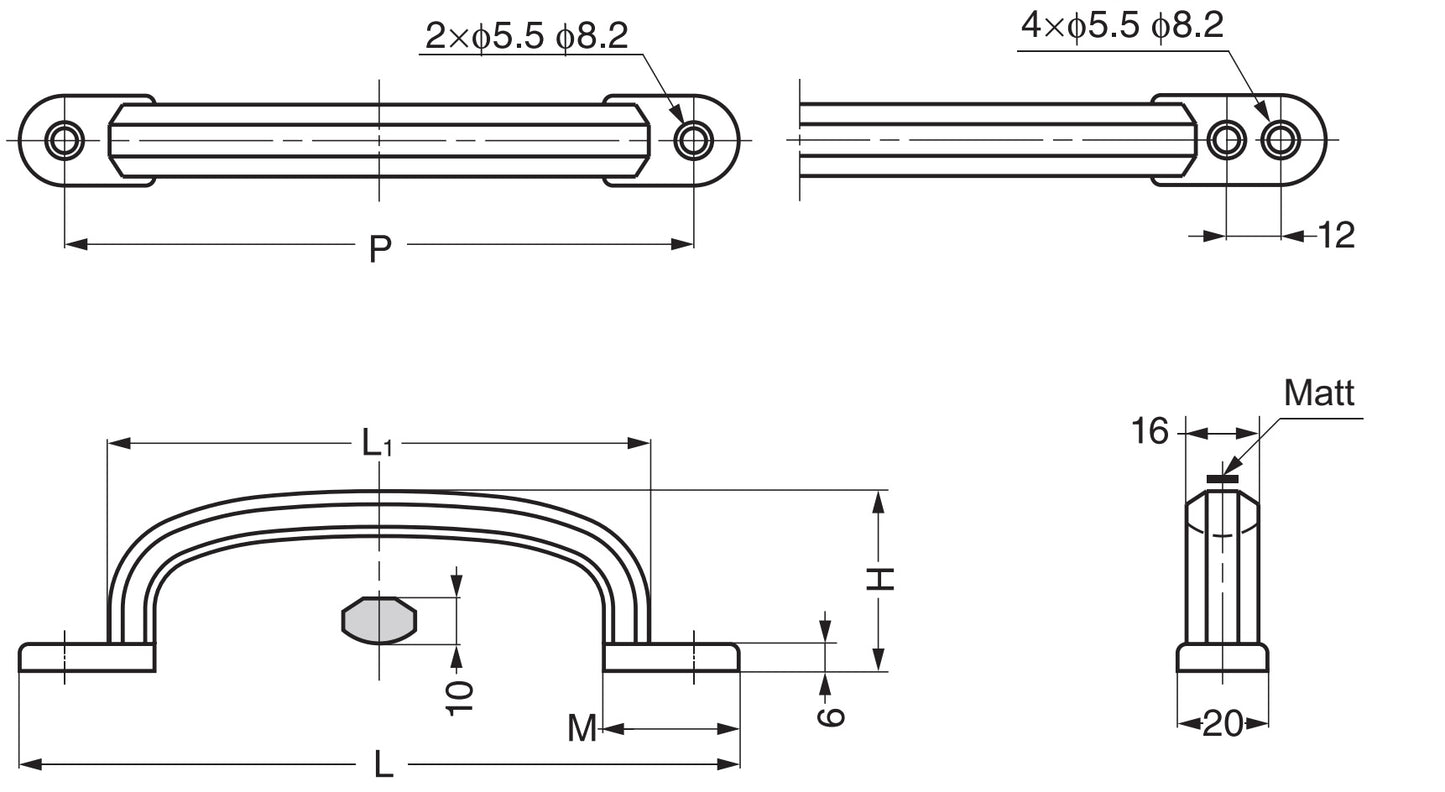

[caption id="attachment_91199" align="alignnone" width="420"] High-quality solid stainless steel furniture handle made of SUS304 (V2A) with four-point fastening, XL-CUY240TT, 238 mm, from Sugatsune, matte and polished. Technical drawing[/caption] Included in delivery:

• 1 piece stainless steel furniture handle XL-CUY240TT made of stainless steel SUS304 (V2A)
• 4 pieces of raised countersunk head self-tapping screw 4 x 20 mm made of stainless steel

Manufacturer reference number:

• Article number: 100-012-838
• Item number: XL-CUY240TT
• EAN number: 4510932009164

Manufacturer: Sugatsune / LAMP® (Japan)
