Hochwertiger massiver Edelstahlmöbelgriff aus SUS304 (V2A) mit Vierpunktbefestigung, 135 mm (5,4″) EC-H-135. Edelstahltürgriff EC-H-135 aus SUS304 (V2A) mit vier Befestigungslöchern für Boot, Yacht, Edelstahlküche, von Sugatsune / LAMP® (Japan)

High-quality solid stainless steel furniture handle made of SUS304 (V2A) stainless steel with four mounting holes EC-H-135

Application: Stainless steel door handle EC-H-135 made of SUS304 (V2A) with four mounting holes for boat, yacht, stainless steel kitchen. The high-quality stainless steel furniture handles EC-H-135 are ideal for:

• boat
• yacht
• stainless steel kitchen
• cruise ship
• beach hotel
• Food sector
• Medical field
• Outdoor furniture
• doctor's office
• beach hotel

Material:

• The high-quality stainless steel furniture handles EC-H-135 are made of stainless steel SUS304 (V2A)

Surface:

• Shiny polished

Assembly:

• The fastening is carried out using the screws included in delivery (countersunk head self-tapping screw 4 x 20 mm)
• The fastening screws are also made of stainless steel
• For installation, four holes for the fixing screws must be pre-drilled in the front with a distance of 115 mm (4-17/32″) and 30 mm

Characteristics:

• Weight: 220 g
• Size: 135 mm (5.4″)
• Height of the handle area: 32 mm
• Four holes for extra secure fastening
• Ergonomic
• Solid
• Robust
• Made of SUS304 (V2A)
• Shiny polished
• High brand quality from Sugatsune / LAMP®

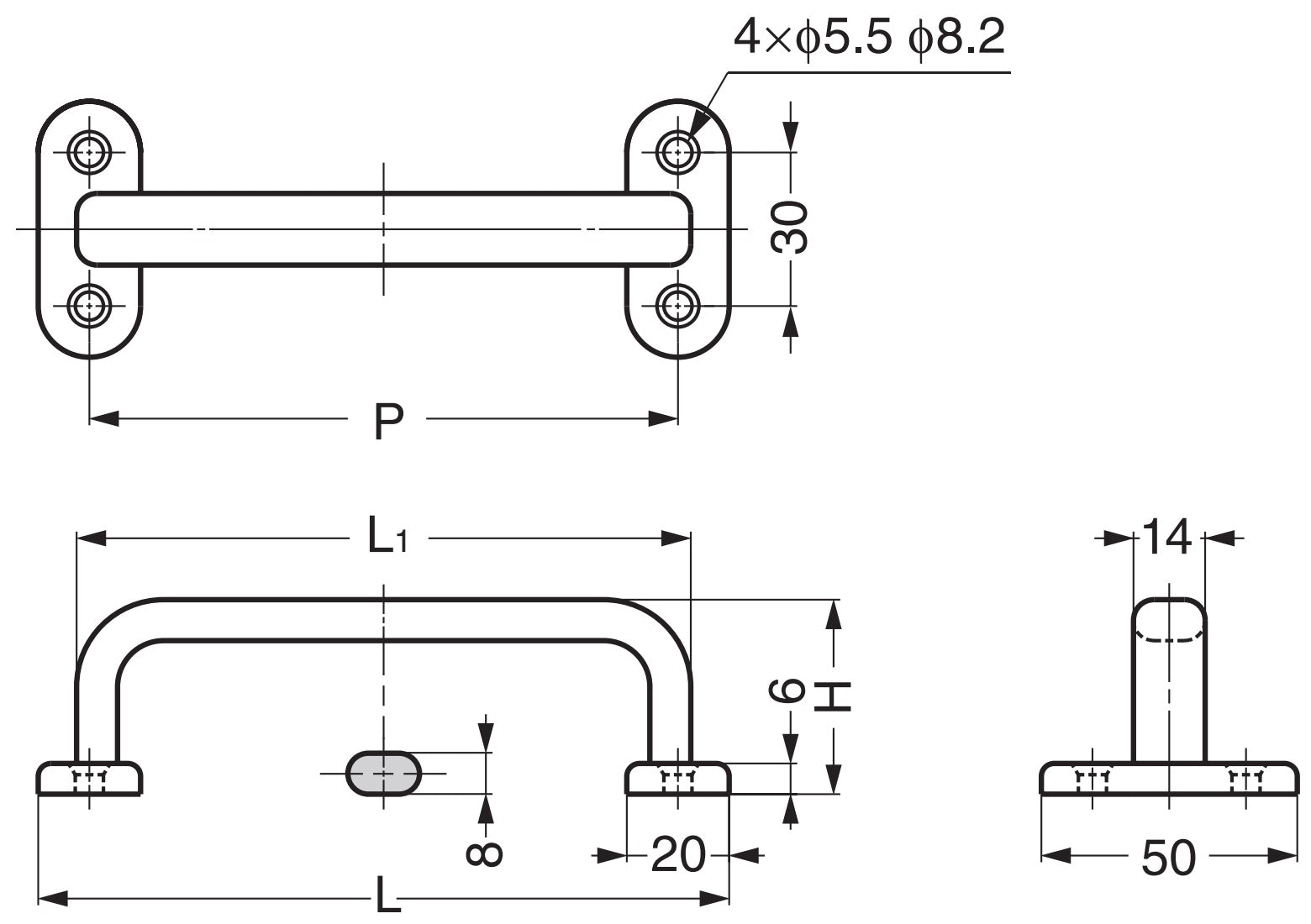

Dimensions: For further dimensions and details see technical drawing .

• Length of the stainless steel furniture handle (L): 135 mm (5-5/16″)
• Height (H): 40 mm (1-37/64″)
• Width of the grip area (L1): 120 mm (4-23/32″)
• Distance between mounting holes (P): 115 mm (4-17/32″)
• Material thickness: 14 mm (35/64″) x 8 mm (5/16″)
• Length of mounting plates: 50 mm (1-31/32″)

[caption id="attachment_91104" align="alignnone" width="420"] High-quality solid stainless steel furniture handle made of SUS304 (V2A) with four-point fastening, EC-H-135, 135 mm, by Sugatsune, glossy polished. Technical drawing[/caption] Included in delivery:

• 1 piece stainless steel furniture handle EC-H-135 made of stainless steel SUS304 (V2A)
• 4 pieces of raised countersunk head self-tapping screw 4 x 20 mm made of stainless steel

Manufacturer reference number:

• Article number: 100-010-056
• Item number: EC-H-135
• EAN number: 4510932009102

Manufacturer: Sugatsune / LAMP® (Japan)
