Hochwertiger massiver Edelstahlmöbelgriff aus SUS304 (V2A), 190 mm (7,5″) EC-Y-190. Edelstahltürgriff EC-Y-190 aus SUS304 (V2A) für Boot, Yacht, Edelstahlküche, Strandhotel, Arztpraxis, Möbel, von Sugatsune / LAMP® (Japan)

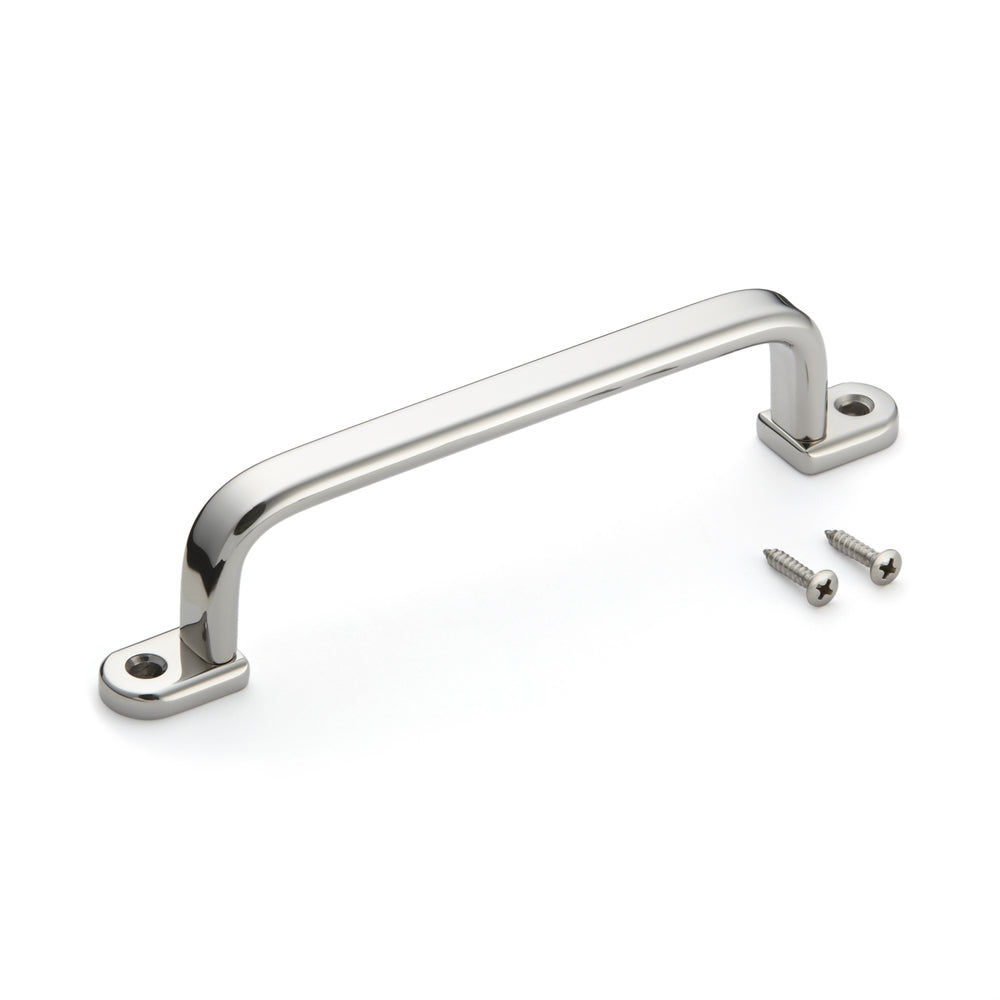

High-quality solid stainless steel furniture handle made of SUS304 (V2A) stainless steel EC-Y-190

Application: Stainless steel door handle EC-Y-190 made of SUS304 (V2A) for boat, yacht, stainless steel kitchen, beach hotel, doctor's office, furniture. The high-quality stainless steel furniture handles EC-Y-190 are ideal for:

• boat
• yacht
• stainless steel kitchen
• beach hotel
• doctor's office
• Furniture
• cruise ship
• beach hotel
• Food sector
• Medical field
• Outdoor furniture

Material:

• The high-quality stainless steel furniture handles EC-Y-190 are made of stainless steel SUS304 (V2A)

Surface:

• Shiny polished

Assembly:

• The fastening is carried out using the screws included in delivery (countersunk head self-tapping screw 4 x 20 mm)
• The fastening screws are also made of stainless steel
• For installation, two holes for the fastening screws must be pre-drilled in the front with a distance of 170 mm (6-11/16″) mm

Characteristics:

• Weight: 216 g
• Size: 190 mm (7.5″)
• Height of the handle area: 34 mm
• Ergonomic
• Solid
• Robust
• Made of SUS304 (V2A)
• Shiny polished
• High brand quality from Sugatsune / LAMP®

Dimensions: For further dimensions and details see technical drawing .

• Length of the stainless steel furniture handle (L): 190 mm (7-31/64″)
• Height (H): 42 mm (1-21/32″)
• Width of the grip area (L1): 150 mm (5-29/32″)
• Distance between mounting holes (P): 170 mm (6-11/16″)
• Material thickness: 14 mm (35/64″) x 8 mm (5/16″)
• Length of mounting plates: 28 mm (1-7/64″)

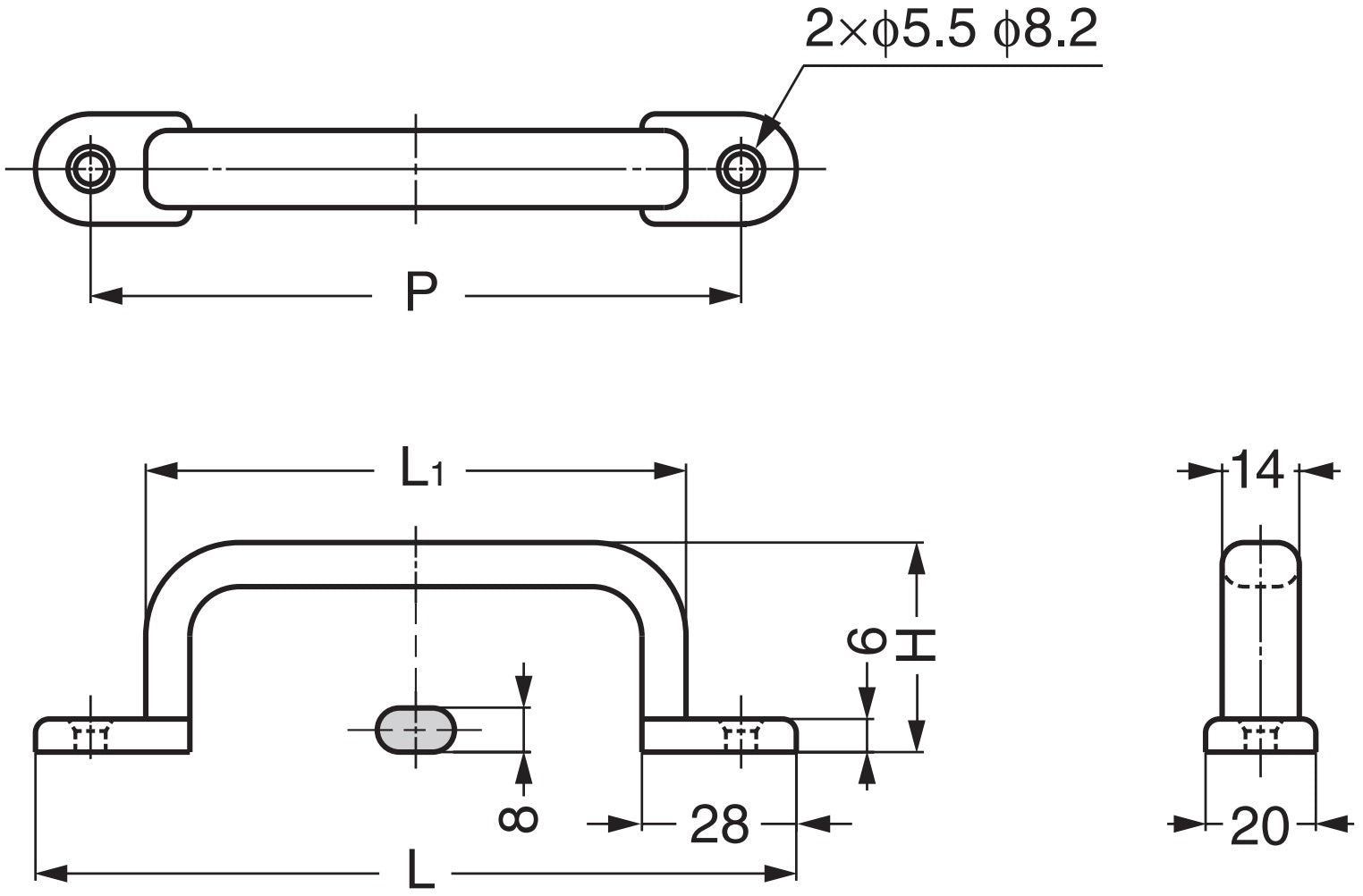

[caption id="attachment_91056" align="alignnone" width="420"] High-quality solid stainless steel furniture handle made of SUS304 (V2A), EC-Y-190, 190 mm, by Sugatsune, glossy polished. Technical drawing[/caption] Included in delivery:

• 1 piece stainless steel furniture handle EC-Y-190 made of stainless steel SUS304 (V2A)
• 2 pieces of raised countersunk head self-tapping screw 4 x 20 mm made of stainless steel

Manufacturer reference number:

• Article number: 100-012-833
• Item number: EC-Y-190
• EAN number: 4510932009096

Manufacturer: Sugatsune / LAMP® (Japan)
