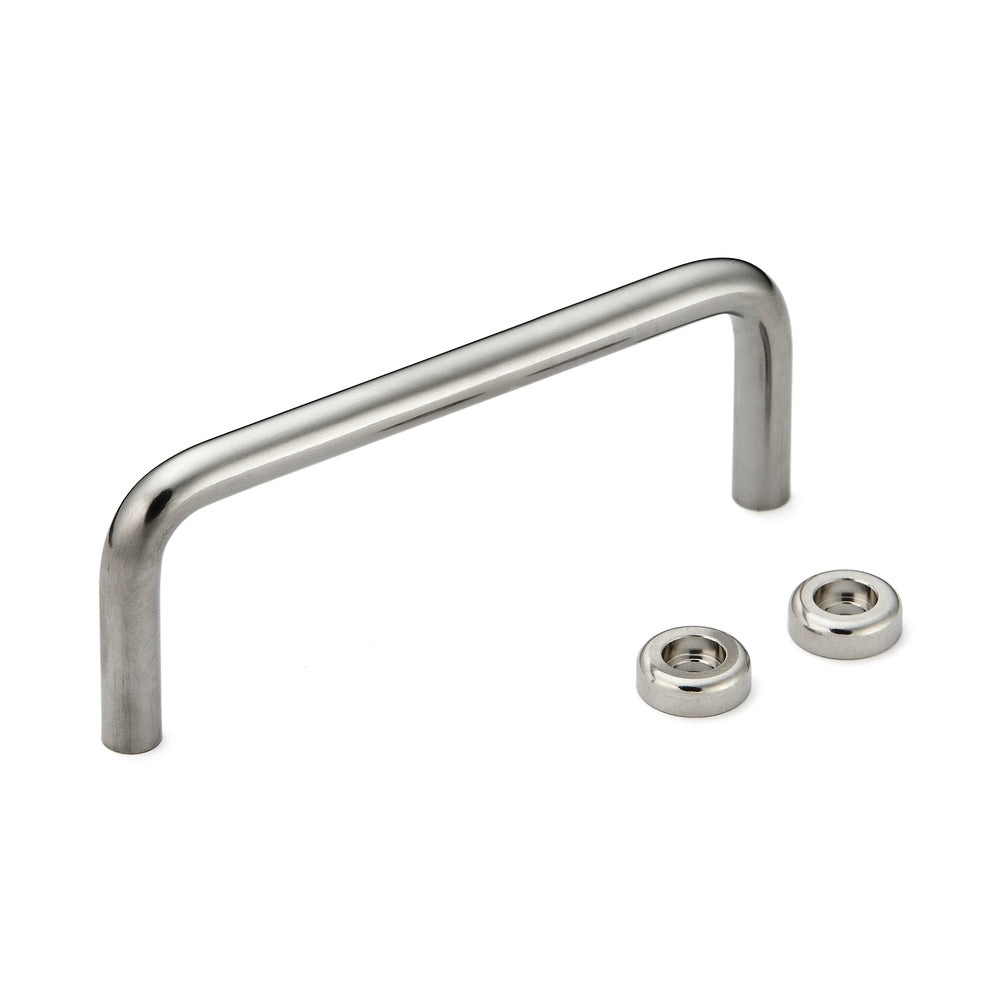

Stainless steel door handle V2A (SUS304) with washer, 108 mm (4.3") T-100-8S. High-quality stainless steel door handle made of V2A (SUS304), polished finish, for humid environments, ships, and medical applications from Sugatsune / LAMP® (Japan).

Stainless steel door handle made of stainless steel V2A (SUS304) with washer T-100-8S

Application: High-quality stainless steel door handle made of V2A (SUS304) stainless steel, glossy polished, for humid environments, ships, medical areas. The T-100-8S stainless steel door handles are ideal for:

• ships
• yachts
• boats
• bathroom
• public bath
• beach hotel
• Medical field
• Laboratory equipment
• Food sector

Material: The stainless steel door handles T-100-8S are made of solid high-quality SUS304 stainless steel. They are corrosion-resistant and rust-proof. The stainless steel door handles T-100-8S made of SUS304 stainless steel are also ideal for use in swimming pools, shipbuilding (interior design), etc. Surface:

• Shiny polished
• The stainless steel door handles T-100-8S appear solid and high-quality

Assembly:

• The fastening is done with screws (not included)
• The recommended screws: M5
• The depth of the holes for fastening is 13 mm (16/32″)

Characteristics:

• Weight: 72 g
• Size: 108 mm (4.3″)
• With washer
• Robust
• Stainless steel
• Corrosion-resistant

Dimensions: For further dimensions and details see technical drawing .

• Width of the stainless steel door handle: 108 mm (4-8/32″)
• Distance between mounting holes (P): 100 mm (3-30/32″)
• Handle height (H): 41 mm (1-20/32″)
• Inner handle height: 33 mm (1-10/32″)
• Material thickness: Φ8 mm (10/32″)

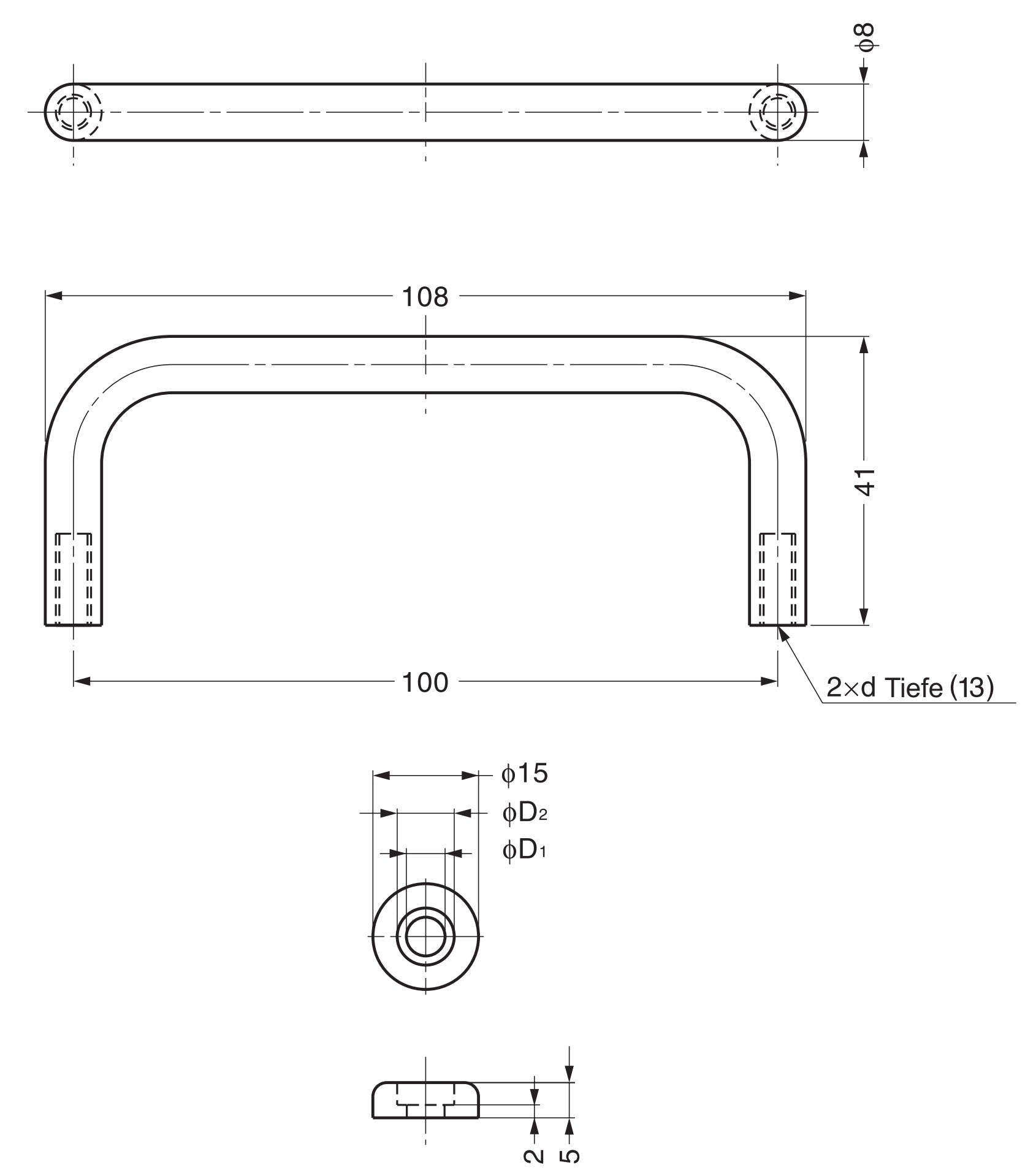

[caption id="attachment_42349" align="alignnone" width="420"] Sugatsune V2A (SUS304) stainless steel door handle with washer, T-100-8S (108 mm). Technical drawing[/caption] Included in delivery:

• 1 piece stainless steel door handle T-100-8S made of stainless steel SUS304 (V2A)
• 2 pieces washer Φ15 mm

Manufacturer reference number:

• Article number: 100-010-224
• Item name: T-100-8S
• EAN number: 4510932007139

Manufacturer: SUGATSUNE / LAMP® (Japan)
