Edelstahl-Türgriff V2A (SUS304), 80 mm (3-3/16″) EC-80S. Hochwertiger massiver Edelstahl-Türgriff aus rostfreiem Edelstahl V2A (SUS304), satiniert matt, für feuchte Umgebungen, Schiffe, Lebensmittelbereich, Medizinbereich von Sugatsune / LAMP® (Japan)

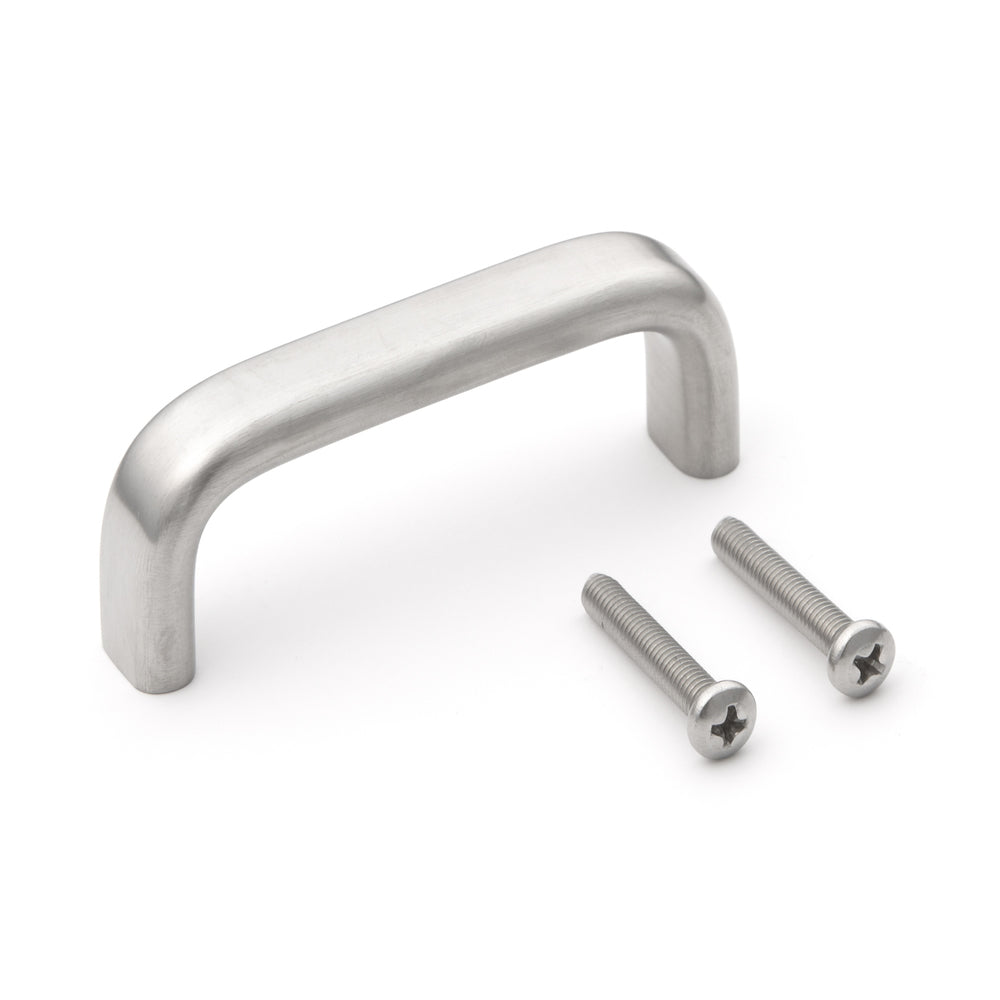

Stainless steel door handle made of stainless steel V2A (SUS304) EC-80S

Application: High-quality solid stainless steel door handle made of V2A (SUS304) stainless steel, satin matt, for humid environments, ships, food industry, medical sector. The EC-80S stainless steel door handles are ideal for:

• ships
• yachts
• boats
• bathroom
• public bath
• beach hotel
• Medical field
• Laboratory equipment
• Food sector

Material: The EC-80S stainless steel door handles are made of solid high-quality SUS304 stainless steel. They are corrosion-resistant and rust-proof. The EC-80S stainless steel door handles made of SUS304 stainless steel are also ideal for use in swimming pools, shipbuilding (interior design), etc. Surface:

• Satin matt
• The stainless steel door handles EC-80S appear solid and high-quality

Assembly:

• The mounting is done using the screws included in delivery (M5 × 28 mm)
• The fastening screws are also made of stainless steel
• The depth of the holes in the handle (S) is 8 mm (10/32″)

Characteristics:

• Weight: 94 g
• Size: 80 mm (3-3/16″)
• Robust
• Stainless steel
• Corrosion-resistant

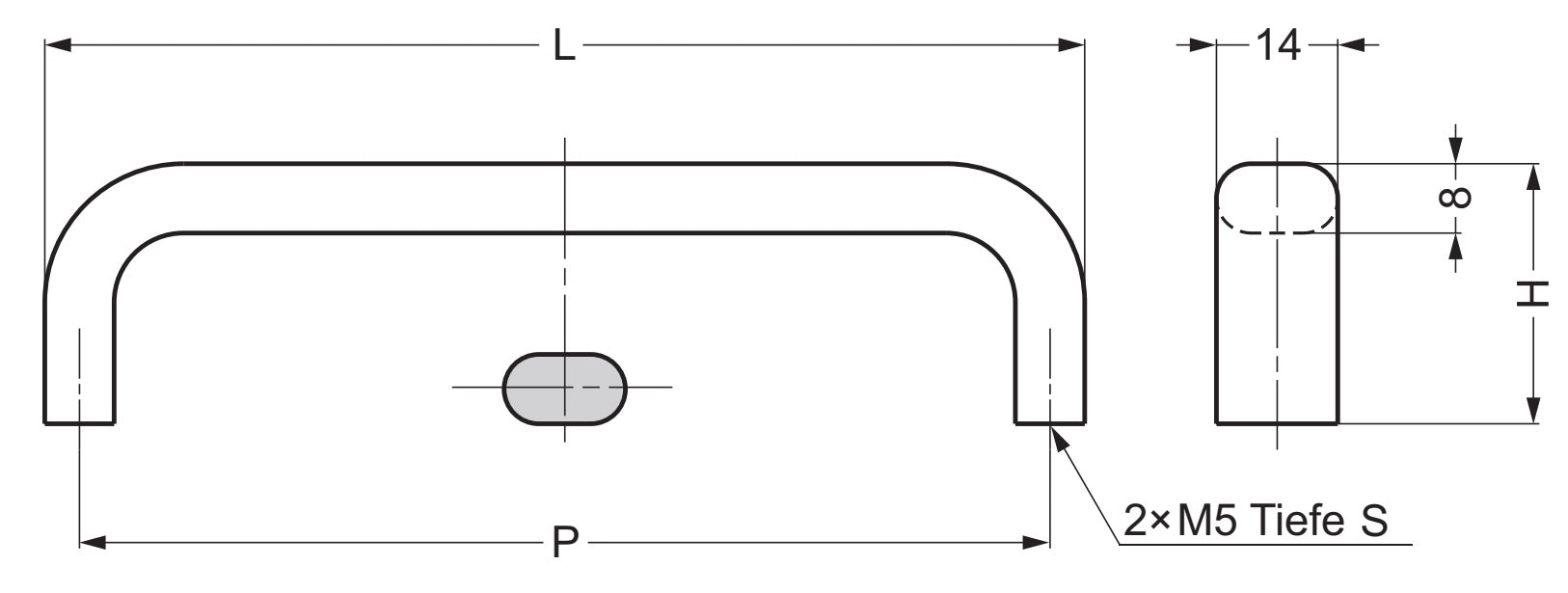

Dimensions: For further dimensions and details see technical drawing .

• Width of the stainless steel door handle (L): 80 mm (3-5/32″)
• Distance between mounting holes (P): 72 mm (2-27/32″)
• Handle height (H): 30 mm (1-6/32″)
• Inner handle height: 22 mm (28/32″)
• Material thickness: 8 mm (10/32″) x 14 mm (18/32″)

[caption id="attachment_41572" align="alignnone" width="420"] Sugatsune's V2A (SUS304) stainless steel door handle, EC-80S (80 mm). Technical drawing[/caption] Included in delivery:

• 1 piece stainless steel door handle EC-80S made of stainless steel SUS304 (V2A)
• 2 x M5 × 28 mounting screws

Manufacturer reference number:

• Article number: 100-017-232
• Article name: EC-80S
• EAN number: 4510932006880

Manufacturer: SUGATSUNE / LAMP® (Japan)
