Stainless steel door handle V2A (SUS304), 120 mm (4-26/32″) EC-120M. High-quality solid stainless steel door handle made of V2A (SUS304) for humid environments, ships, food processing, and medical applications from Sugatsune / LAMP® (Japan)

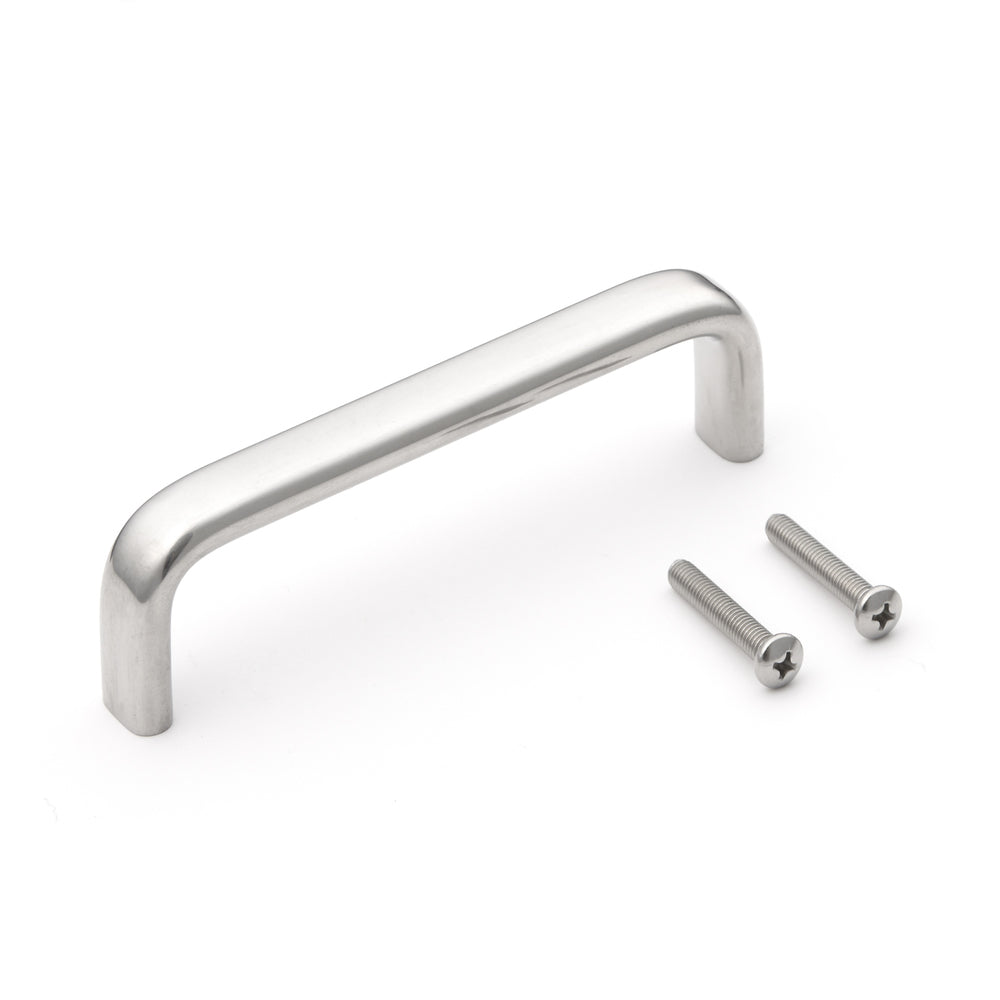

Stainless steel door handle made of stainless steel V2A (SUS304) EC-120M

Application: High-quality solid stainless steel door handle made of V2A (SUS304) stainless steel for humid environments, ships, food industry, medical sector. The EC-120M stainless steel door handles are ideal for:

• ships
• yachts
• boats
• bathroom
• public bath
• beach hotel
• Medical field
• Laboratory equipment
• Food sector

Material: The EC-120M stainless steel door handles are made of solid high-quality SUS304 stainless steel. They are corrosion-resistant and rust-proof. The EC-120M stainless steel door handles made of SUS304 stainless steel are also ideal for use in swimming pools, shipbuilding (interior design), etc. Surface:

• Shiny polished
• The stainless steel door handles EC-120M appear solid and high-quality

Assembly:

• The mounting is done using the screws included in delivery (M5 × 28 mm)
• The fastening screws are also made of stainless steel
• The depth of the holes in the handle (S) is 8 mm (10/32″)

Characteristics:

• Weight: 130 g
• Size: 120 mm (4.8″)
• Robust
• Stainless steel
• Corrosion-resistant

Dimensions: For further dimensions and details see technical drawing .

• Width of the stainless steel door handle (L): 120 mm (4-23/32″)
• Distance between mounting holes (P): 112 mm (4-13/32″)
• Handle height (H): 34 mm (1-11/32″)
• Inner handle height: 26 mm (1-1/32″)
• Material thickness: 8 mm (10/32″) x 14 mm (18/32″)

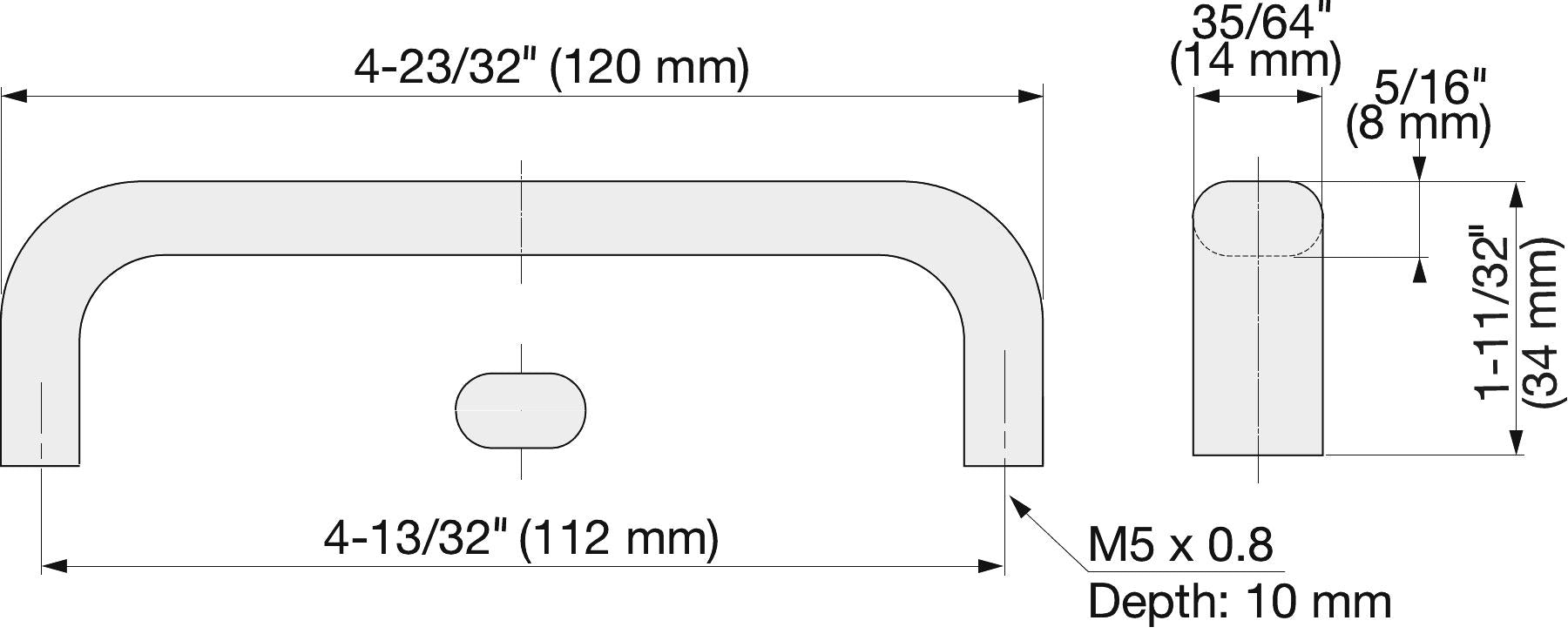

[caption id="attachment_41415" align="alignnone" width="420"] Sugatsune's V2A (SUS304) stainless steel door handle, EC-120M (120 mm). Technical drawing[/caption] Included in delivery:

• 1 piece stainless steel door handle EC-120M made of stainless steel SUS304 (V2A)
• 2 x M5 × 28 mounting screws

Manufacturer reference number:

• Article number: 100-017-228
• Article name: EC-120M
• EAN number: 4510932006934

Manufacturer: SUGATSUNE / LAMP® (Japan)
