Edelstahl-Ringgriff SUS304, 30,5 mm (1,3″) SD-30M. Edelstahl-Ringgriff aus rostfreiem Edelstahl V2A, glänzend poliert, für Edelstahlküche, Badezimmermöbel, Medizinbereich, feuchte Umgebung, Schiff, Wohnmobil, von Sugatsune / LAMP® (Japan)

Stainless steel ring handle made of stainless steel V2A (SUS304) SD-30M

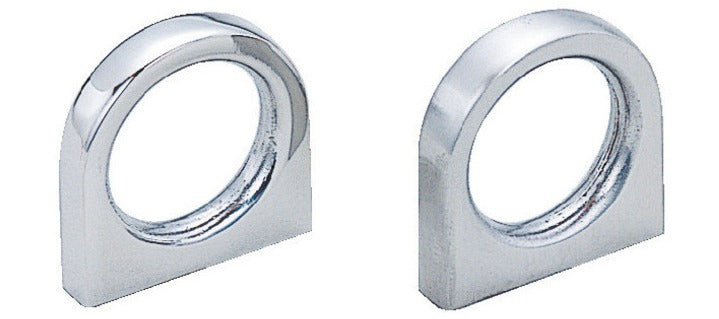

Application: [caption id="attachment_47251" align="alignnone" width="420"] Sugatsune's SUS304 stainless steel ring handle, SD-30M (30.5 mm), glossy polished. Application[/caption] Stainless steel ring handle made of V2A stainless steel, shiny polished, for stainless steel kitchen, bathroom furniture, medical area, humid environment, ship, mobile home. The exclusive SD-30M stainless steel ring handles have a simple and elegant design and can be used in a variety of ways. They can be mounted both horizontally and vertically. The high-quality SD-30M stainless steel ring handles are ideal for:

• stainless steel kitchen
• Bathroom furniture
• Medical field
• humid environment
• Ship
• Motorhome
• cruise ship
• yacht
• Outdoor area
• bathroom
• sauna
• Laboratory equipment
• Outdoor furniture
• Restaurant furnishings

Material: The SD-30M stainless steel ring handles are made of solid high-quality SUS304 stainless steel. The ring handle is also ideal for use in swimming pools, shipbuilding, etc. Surface:

• Shiny polished

Assembly:

• The stainless steel ring handles SD-30M are for screwing
• The mounting is done using the screws included in delivery (M4 × 25 mm)
• The fastening screws are also made of stainless steel
• For installation, two holes for the screws must be drilled with a distance of 21 mm (26/32″)

Characteristics:

• Weight: 22 g
• Size: 30.5 mm (1.3″)
• Shape: round
• Unique design
• Made of stainless steel
• Stainless steel
• Corrosion-resistant
• High quality
• Material thickness: 6.5 mm

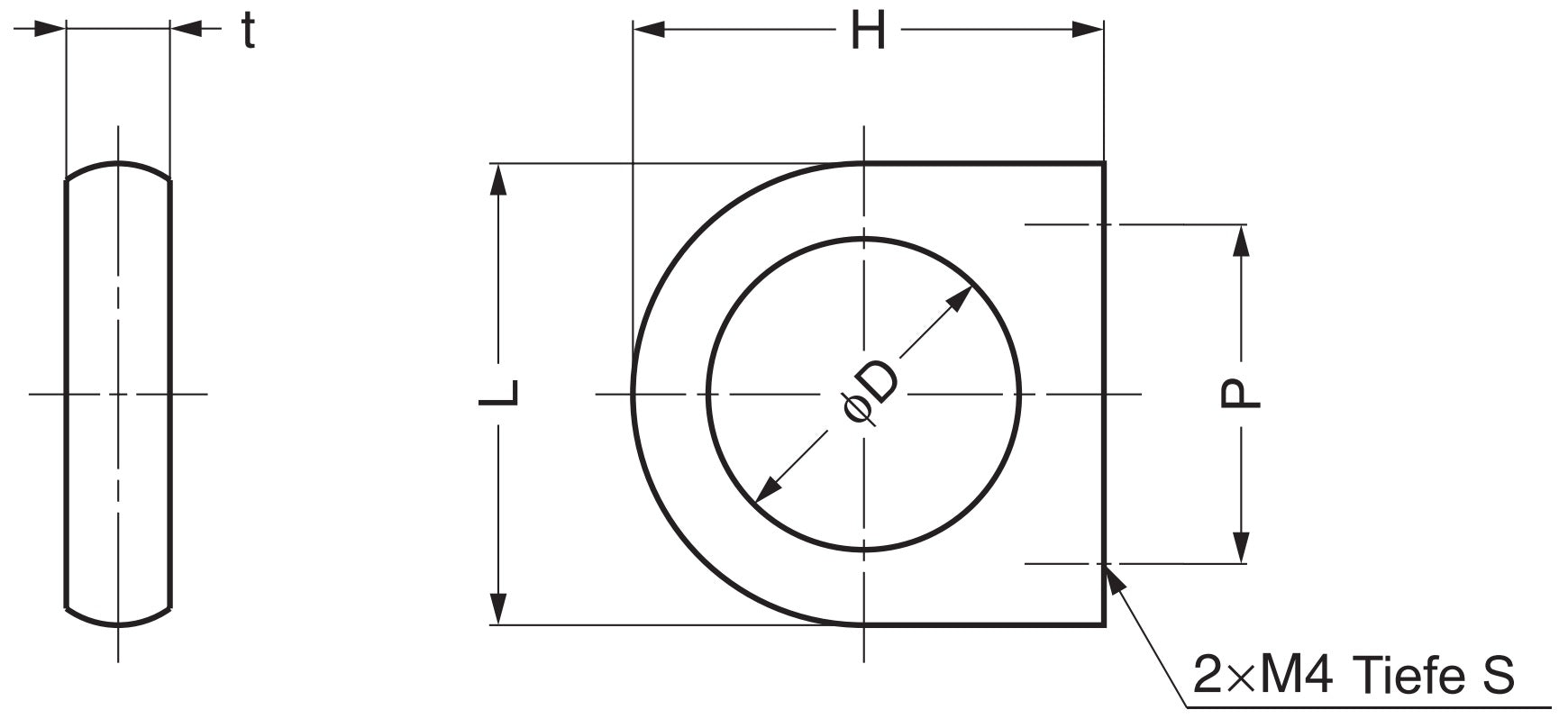

Dimensions: For further dimensions and details see technical drawing .

• Size of the stainless steel ring handle (L): 30.5 mm (1-6/32″)
• Width (H): 31.5 mm (1-8/32″)
• Material thickness (t): 6.5 mm (8/32″)
• Diameter of the grip area (D): Φ20.5 mm (26/32″)
• Distance between mounting holes (P): 21 mm (26/32″)
• Depth of mounting holes (S): 6 mm (8/32″)

[caption id="attachment_47264" align="alignnone" width="420"] Sugatsune SUS304 stainless steel ring handle, SD-30M (30.5 mm), glossy polished. Technical drawing[/caption] Included in delivery:

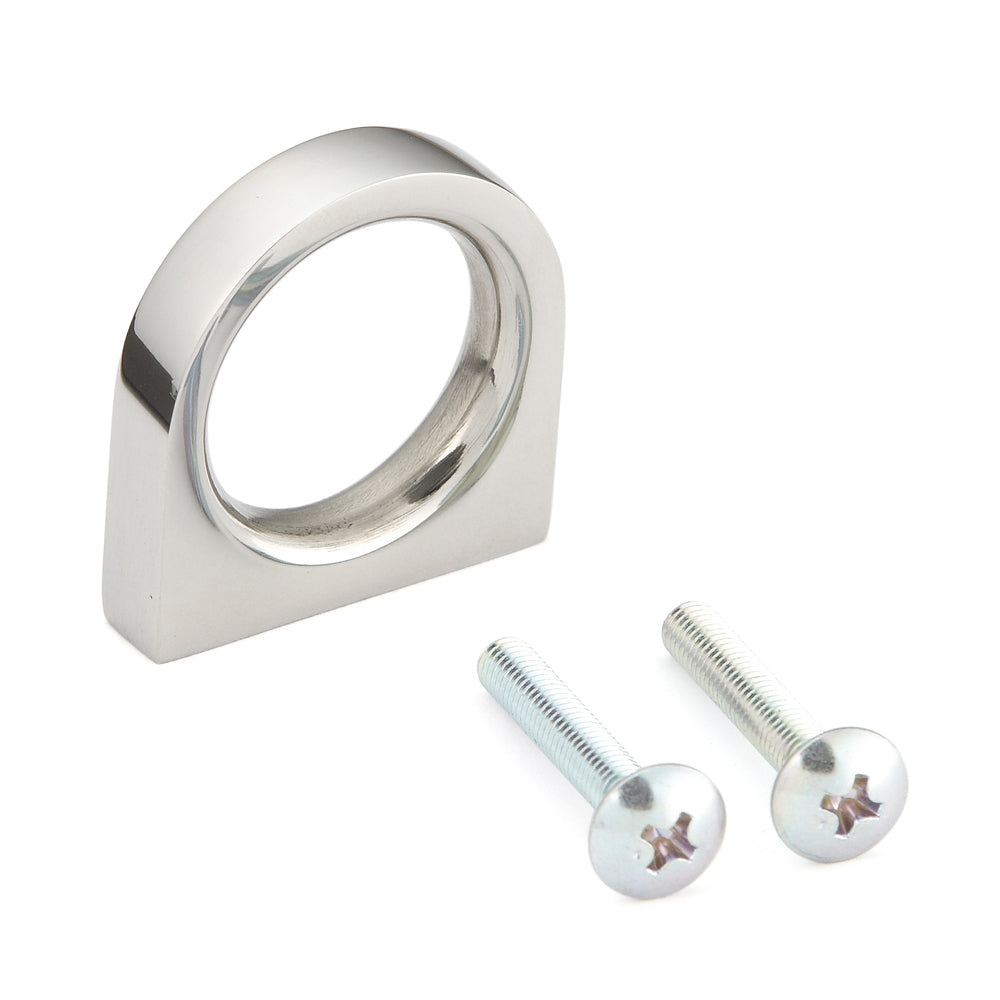

• 1 piece stainless steel ring handle SD-30M made of stainless steel SUS304 (V2A)
• 2 x M4 × 25 mm stainless steel fastening screws

Manufacturer reference number:

• Article number: 100-015-021
• Item name: SD-30M
• EAN number: 4510932011297

Manufacturer: SUGATSUNE / LAMP® (Japan)
