Edelstahl-Klappgriff SUS304, 80 mm (3,2″) ST-80. Edelstahl-Klappgriff aus rostfreiem Edelstahl V2A, satiniert matt, für Revisionsklappe, Revisionstür, Wartungstür, Wartungsöffnung, feuchte Umgebung, Schiff, Caravan von Sugatsune / LAMP® (Japan)

Stainless steel folding handle made of stainless steel V2A (SUS304) ST-80

Application: [caption id="attachment_45790" align="alignnone" width="420"] Sugatsune's SUS304 stainless steel folding handle, ST-80 (80 mm), satin finish. Application[/caption] Stainless steel folding handle made of V2A stainless steel, satin matt, for inspection flap, inspection door, maintenance door, maintenance opening, damp environment, ship, caravan. The ST-80 stainless steel folding handles have a simple and elegant design and can be used in a variety of ways. The stainless steel folding handles can only be mounted vertically. They are not suitable for use with floor hatches or ceiling flaps. The high-quality ST-80 stainless steel folding handles are ideal for:

• Inspection hatch
• inspection door
• Maintenance door
• Maintenance opening
• humid environment
• Ship
• Caravan
• Cleaning flap

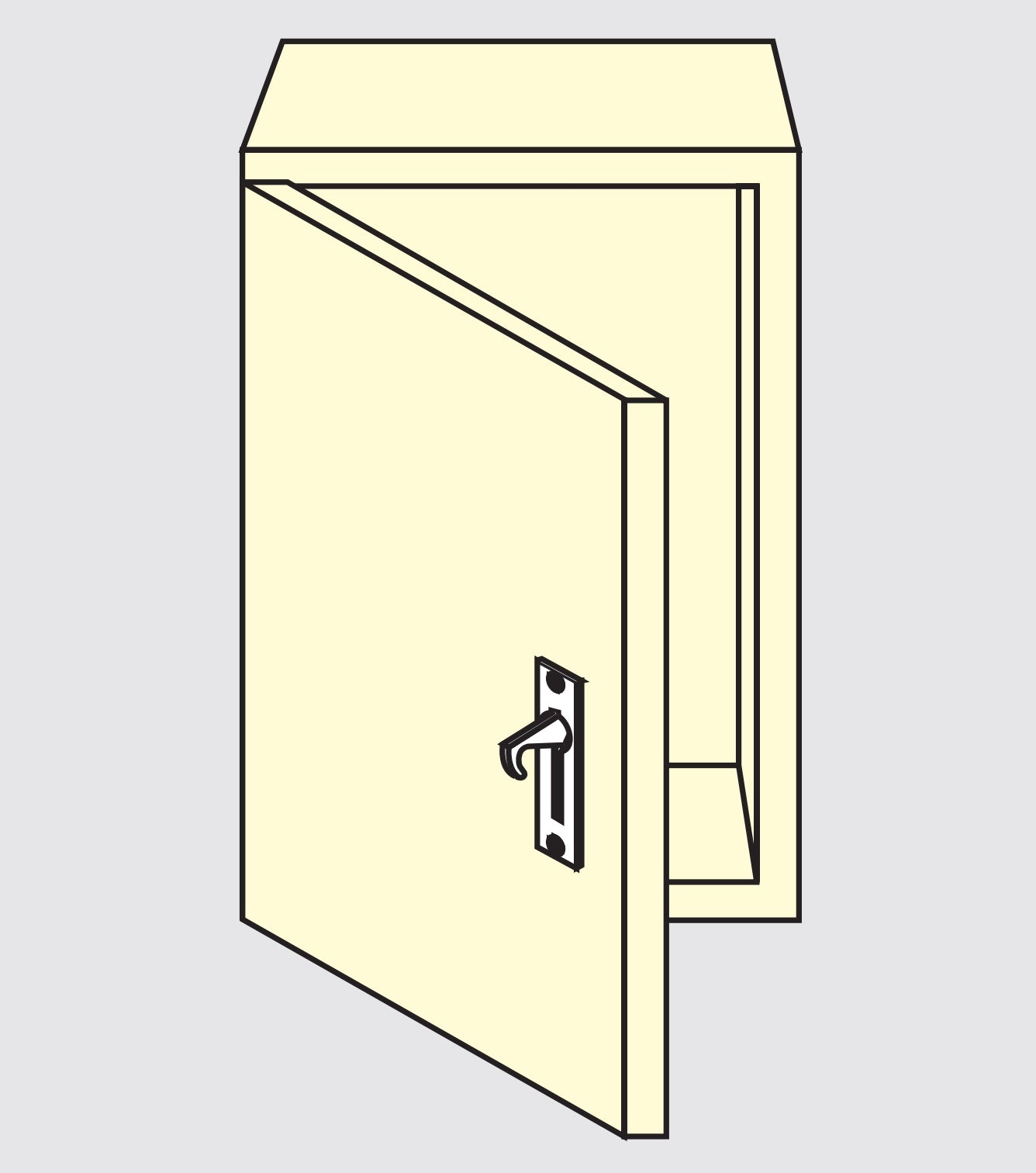

[caption id="attachment_45803" align="alignnone" width="420"] Sugatsune ST-80 (80 mm) SUS304 stainless steel folding handle, satin finish. Mounted in a door.[/caption] Material: The ST-80 stainless steel folding handles are made of high-quality SUS304 stainless steel. They are corrosion-resistant and rust-proof. Surface:

• Satin matt

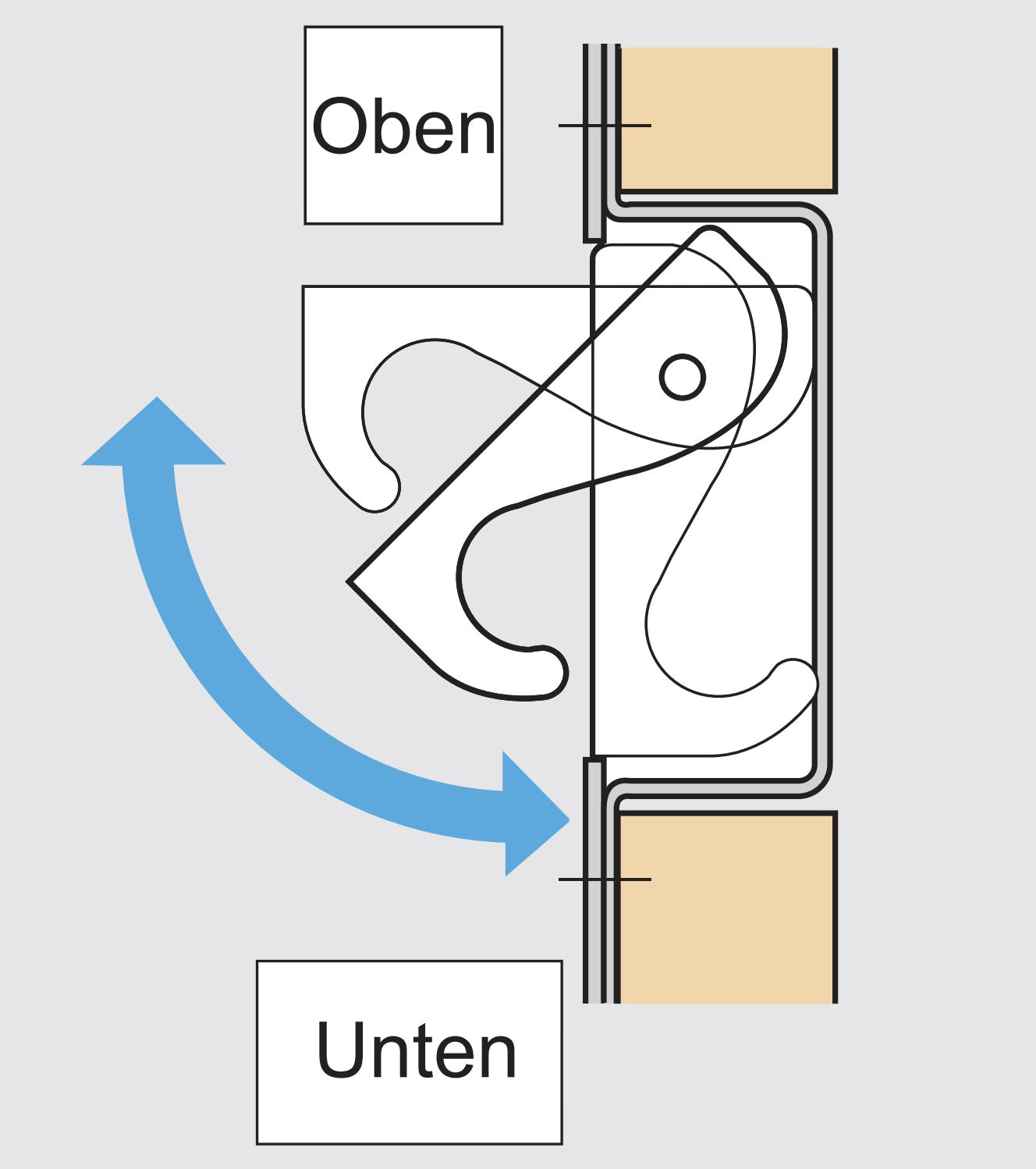

Assembly: [caption id="attachment_45855" align="alignnone" width="420"] Sugatsune ST-80 (80 mm) SUS304 stainless steel folding handle, satin finish. Assembly[/caption]

• The stainless steel folding handles ST-80 are designed for
• The mounting is done using the screws included in delivery (3.5 × 16 mm)
• The fastening screws are also made of stainless steel
• For installation, a cutout measuring 50.5 x 18.5 mm and a depth of at least 15.5 mm must be made on the door
• Please ensure that the upper and lower sides are correctly positioned during assembly (for further details see assembly drawing ).

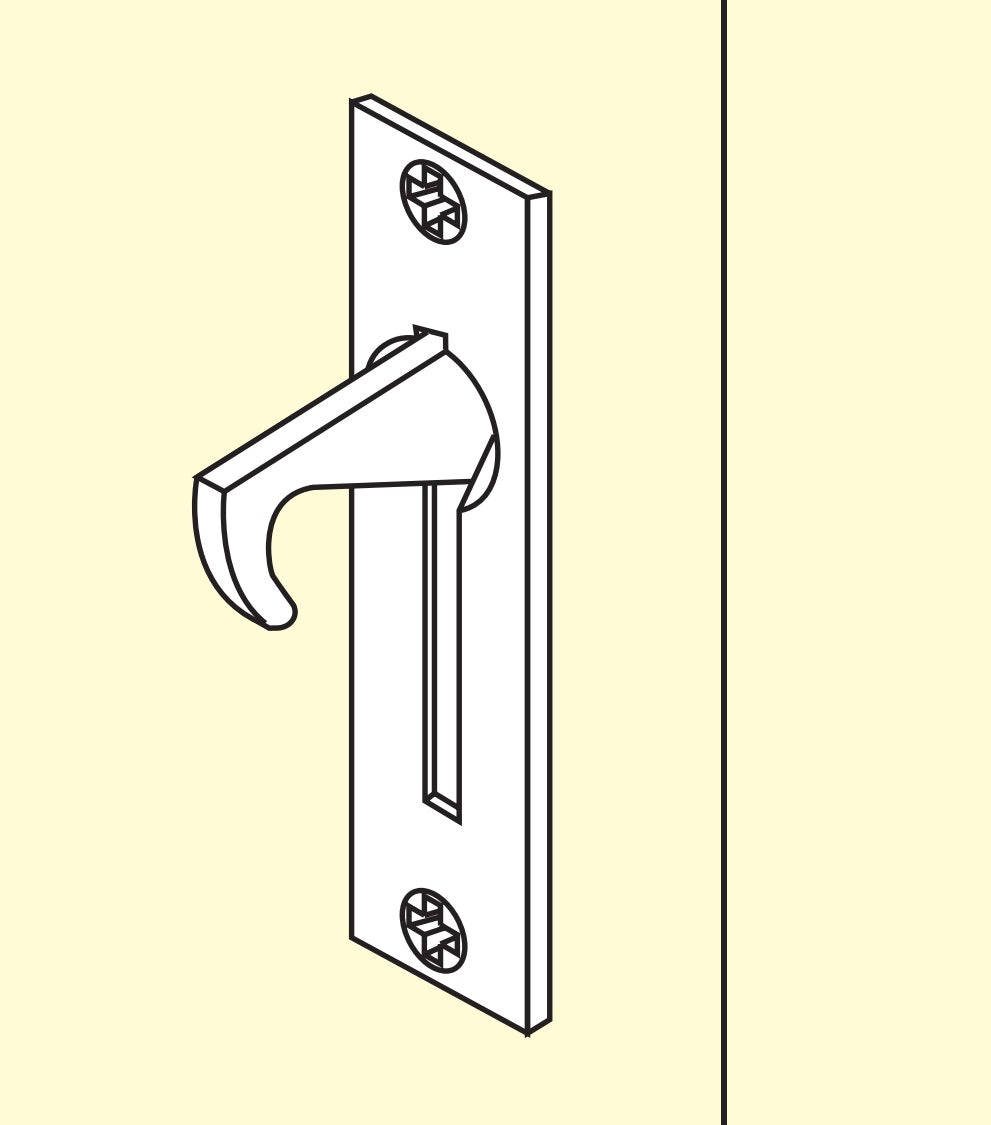

[caption id="attachment_45816" align="alignnone" width="420"] Sugatsune's SUS304 stainless steel folding handle, ST-80 (80 mm), satin finish. Assembly drawing[/caption] Characteristics:

• Weight: 48 g
• Size: 80 mm (3.2″)
• Shape: rectangular
• Unique design
• Made of stainless steel
• Stainless steel
• Corrosion-resistant
• High quality
• Handle material thickness: 5 mm
• Case material thickness: 2 mm

Dimensions: For further dimensions and details see technical drawing .

• Height of the stainless steel folding handle: 80 mm (3-5/32″)
• Width: 18 mm (23/32″)
• Distance between mounting holes: 68 mm (2-22/32″)
• Grip area size: 25 mm (31/32″)

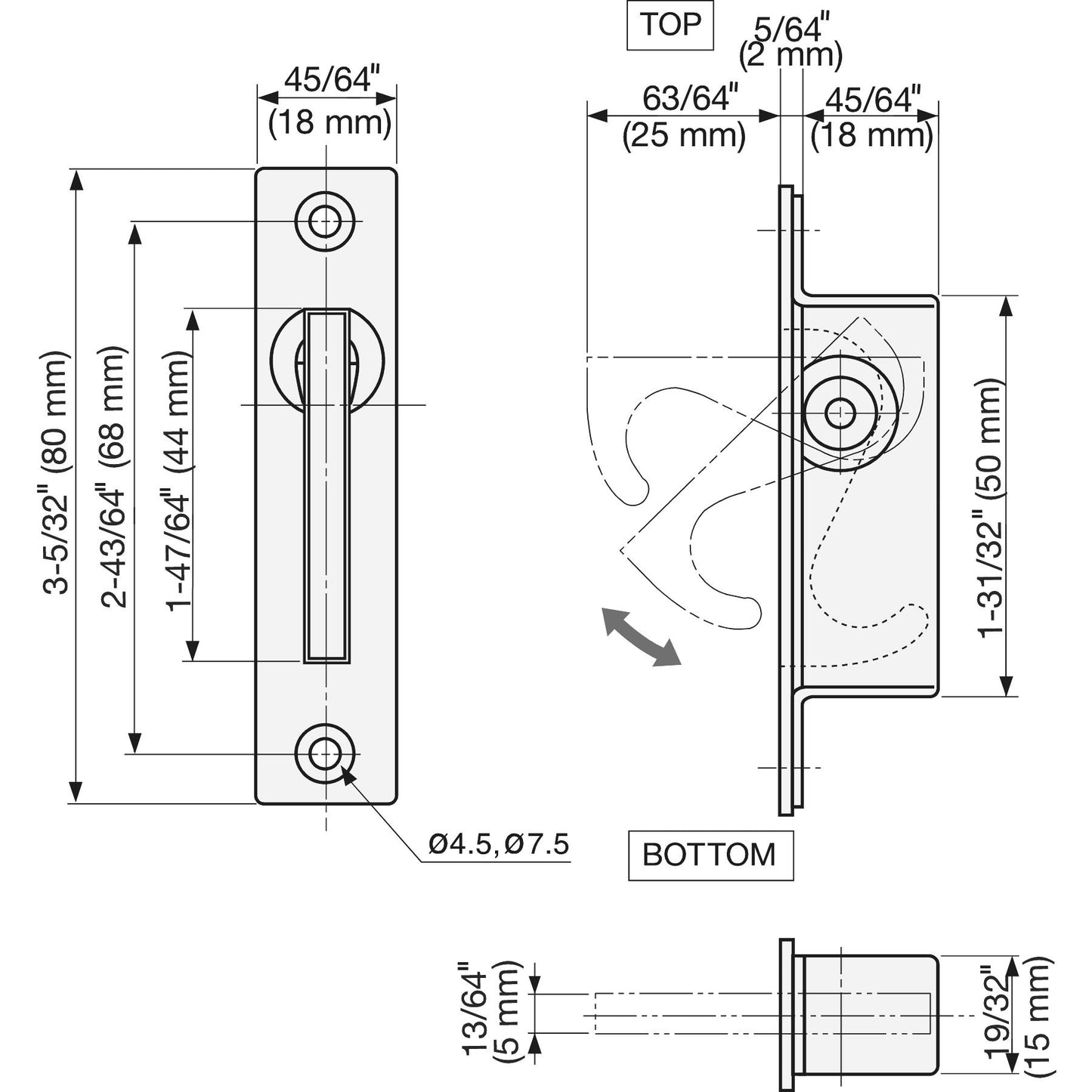

[caption id="attachment_45829" align="alignnone" width="420"] Sugatsune's SUS304 stainless steel folding handle, ST-80 (80 mm), satin finish. Technical drawing[/caption] Included in delivery:

• 1 piece stainless steel folding handle ST-80 made of stainless steel SUS304 (V2A)
• 2 x 3.5 × 16 mm stainless steel fastening screws

Manufacturer reference number:

• Article number: 100-010-244
• Article name: ST-80
• EAN number: 4510932000031

Manufacturer: SUGATSUNE / LAMP® (Japan)
