Stainless steel folding handle SUS304, 115 mm (4.6") ST-115. Stainless steel folding handle made of V2A stainless steel, satin finish, for ceiling doors, inspection hatches, damp environments, ships, and caravans from Sugatsune / LAMP® (Japan)

Stainless steel folding handle made of stainless steel V2A (SUS304) ST-115

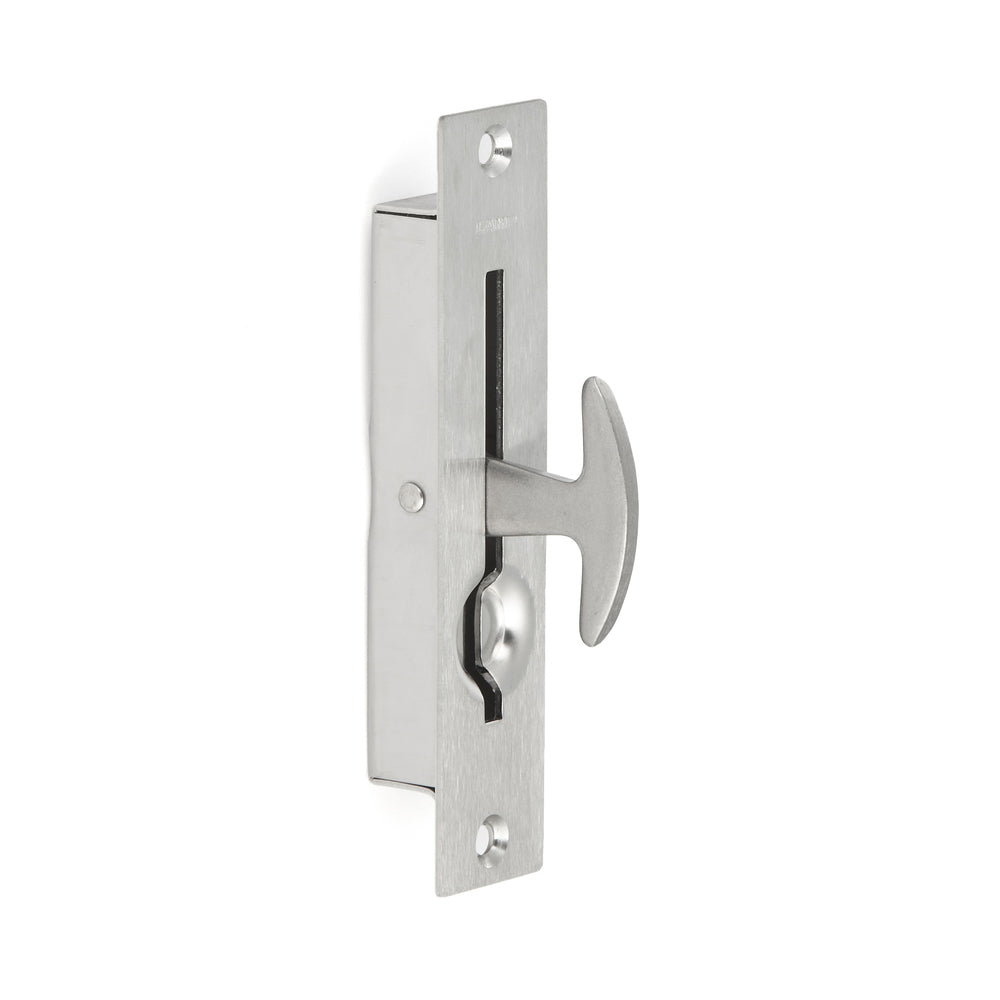

Application: [caption id="attachment_45693" align="alignnone" width="420"] Sugatsune's SUS304 stainless steel folding handle, ST-115 (115 mm), satin finish. Application[/caption] Stainless steel folding handle made of V2A stainless steel, satin matt, for ceiling door, inspection hatch, damp environment, ship, caravan. The ST-115 stainless steel folding handles have a simple and elegant design and can be used in a variety of ways. The high-quality ST-115 stainless steel folding handles are ideal for:

• Ceiling door
• Inspection hatch
• humid environment
• Ship
• Caravan
• Ceiling hatch
• Ceiling flap
• Ceiling opening
• attic hatch
• inspection door
• Maintenance door
• Cleaning flap
• Maintenance opening

Material: The stainless steel folding handles ST-115 are made of high-quality SUS304 stainless steel. They are corrosion-resistant and rust-proof. Surface:

• Satin matt

Assembly:

• The stainless steel folding handles ST-115 are designed for
• The mounting is done using the screws included in delivery (3.5 × 25 mm)
• The fastening screws are also made of stainless steel
• For installation, a cutout measuring 86.7 x 20.5 mm and a depth of at least 42.5 mm must be made in the door (for further details see installation drawing ).

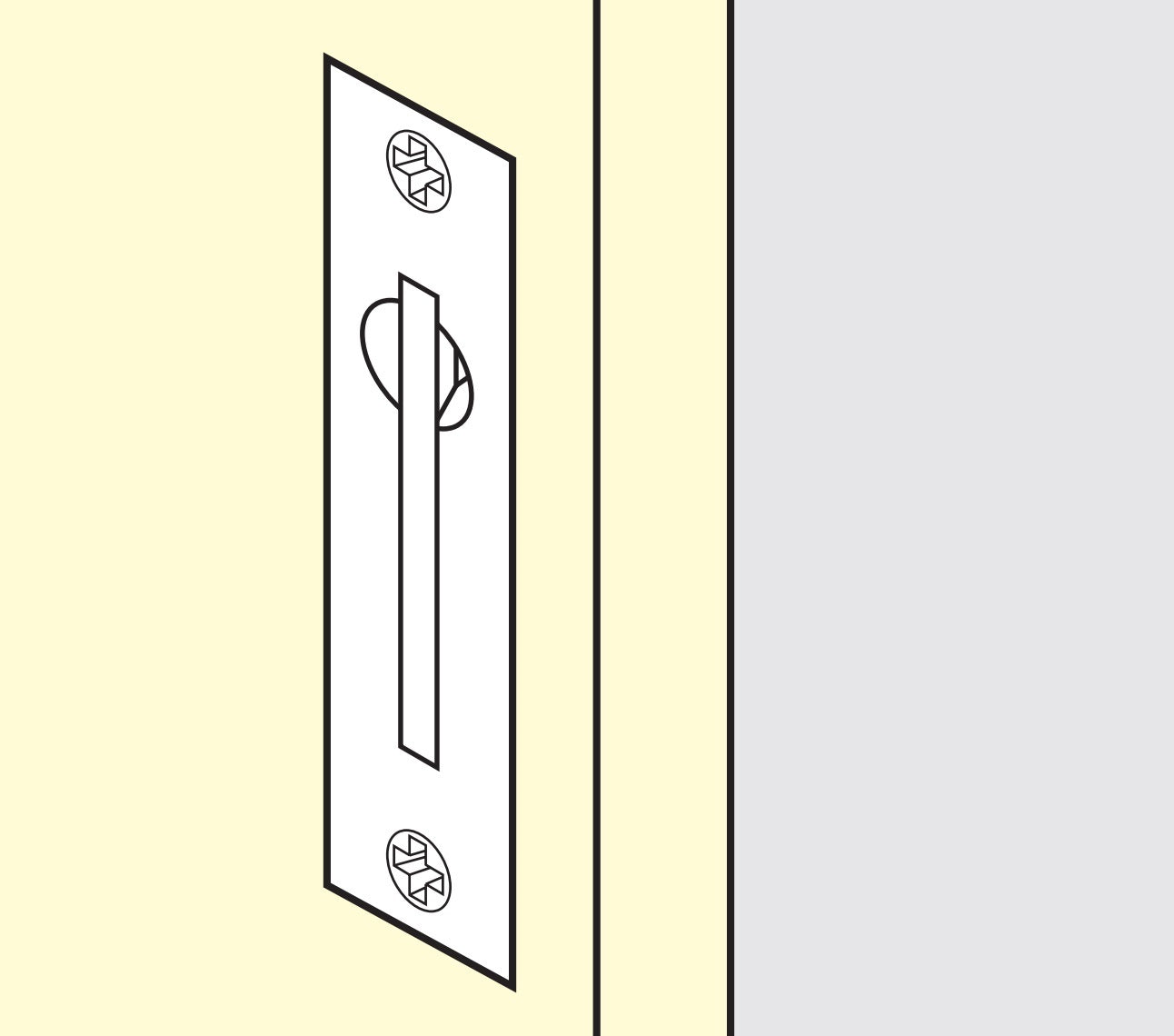

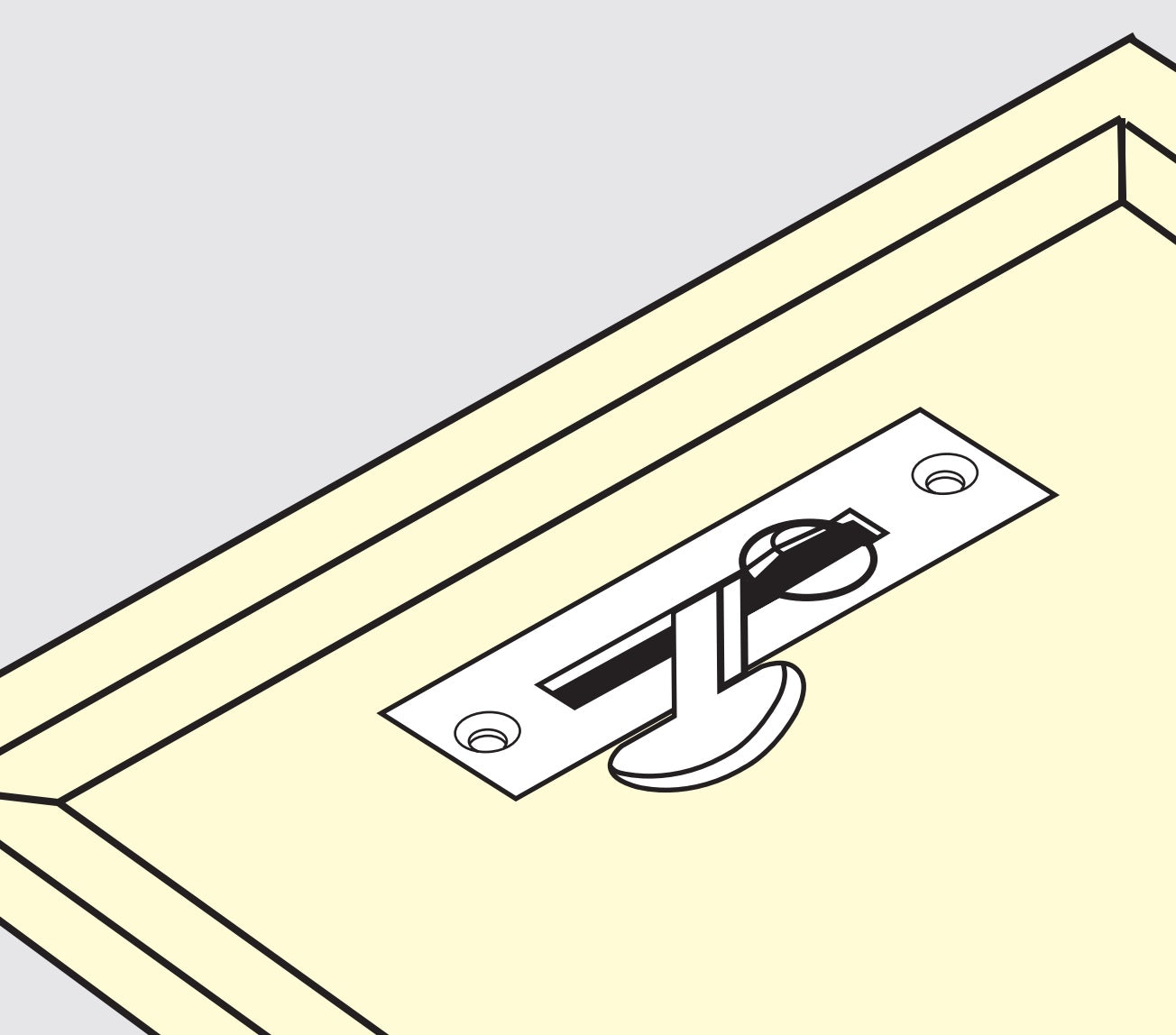

[caption id="attachment_45708" align="alignnone" width="420"] Sugatsune ST-115 (115 mm) SUS304 stainless steel folding handle, satin finish. For installation in a door.[/caption] [caption id="attachment_45721" align="alignnone" width="420"] Sugatsune's SUS304 stainless steel folding handle, ST-115 (115 mm), satin finish. Mounted in a ceiling hatch.[/caption] Characteristics:

• Weight: 102 g
• Size: 115 mm (4.6″)
• Shape: rectangular
• Unique design
• Made of stainless steel
• Stainless steel
• Corrosion-resistant
• High quality
• Material thickness: 4 mm (5/32″)

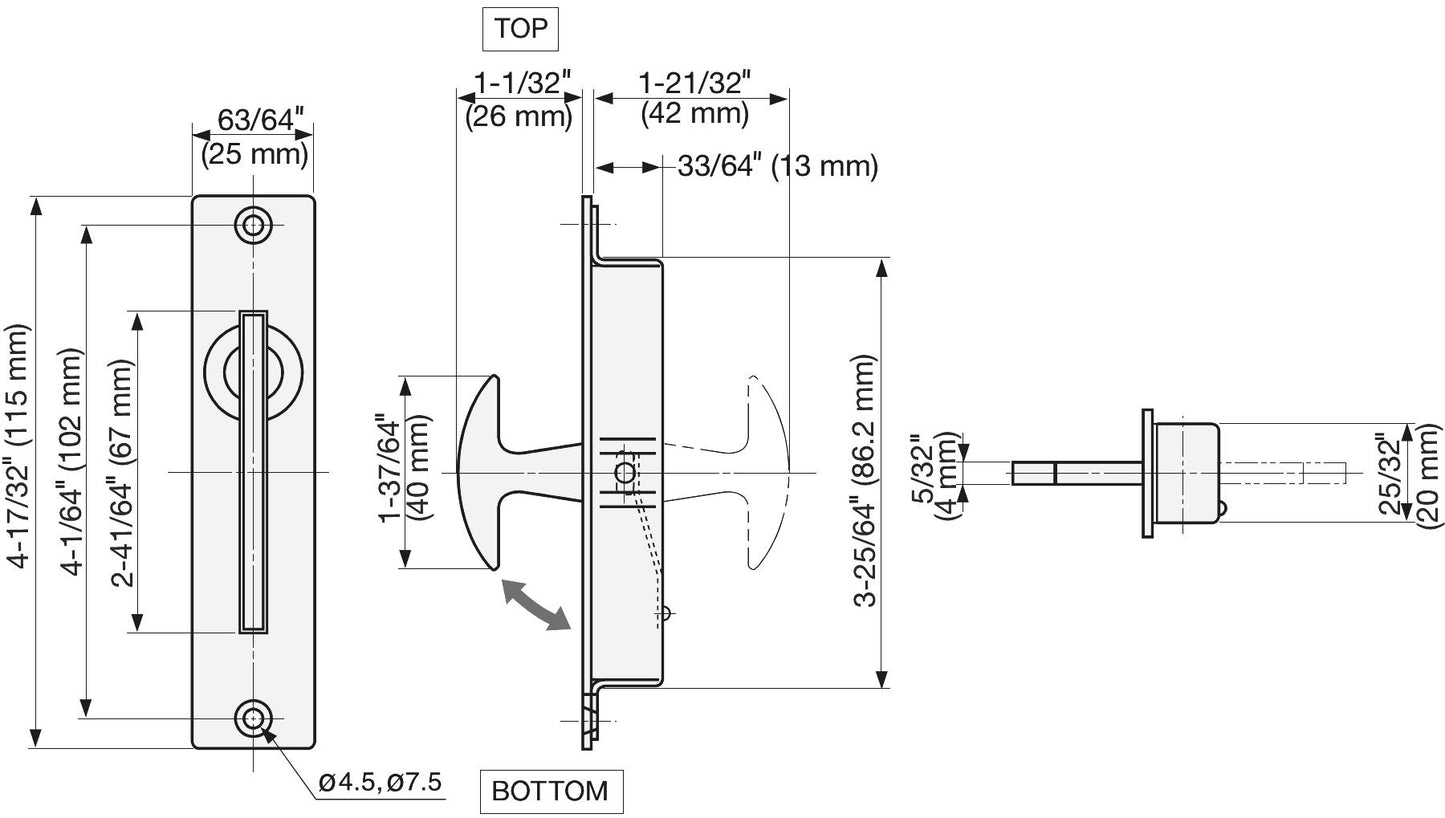

Dimensions: For further dimensions and details see technical drawing .

• Height of the stainless steel folding handle: 115 mm (4-17/32″)
• Width: 25 mm (31/32″)
• Distance between mounting holes: 102 mm (4-1/32″)

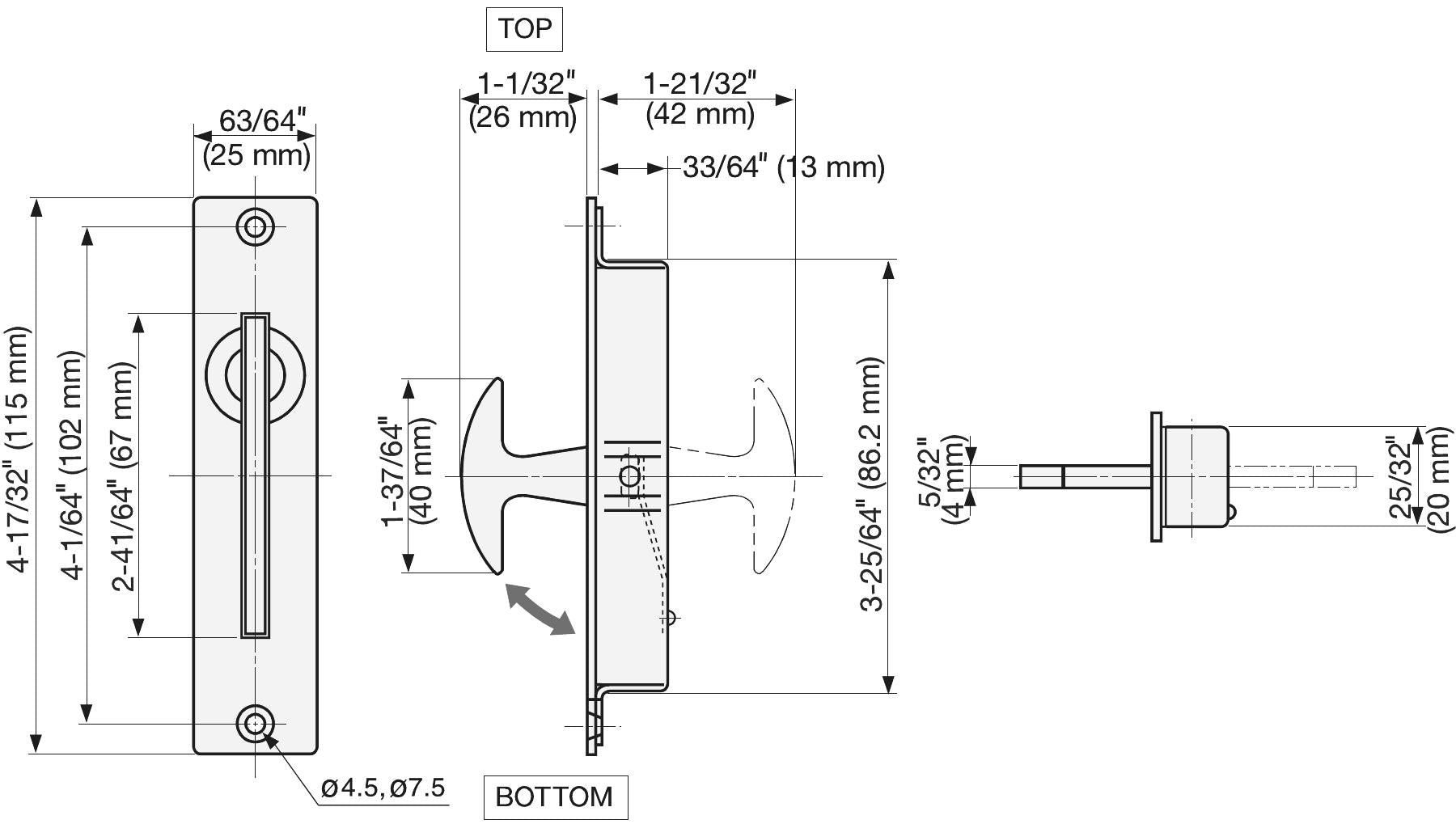

[caption id="attachment_45734" align="alignnone" width="420"] Sugatsune's SUS304 stainless steel folding handle, ST-115 (115 mm), satin finish. Technical drawing[/caption] Included in delivery:

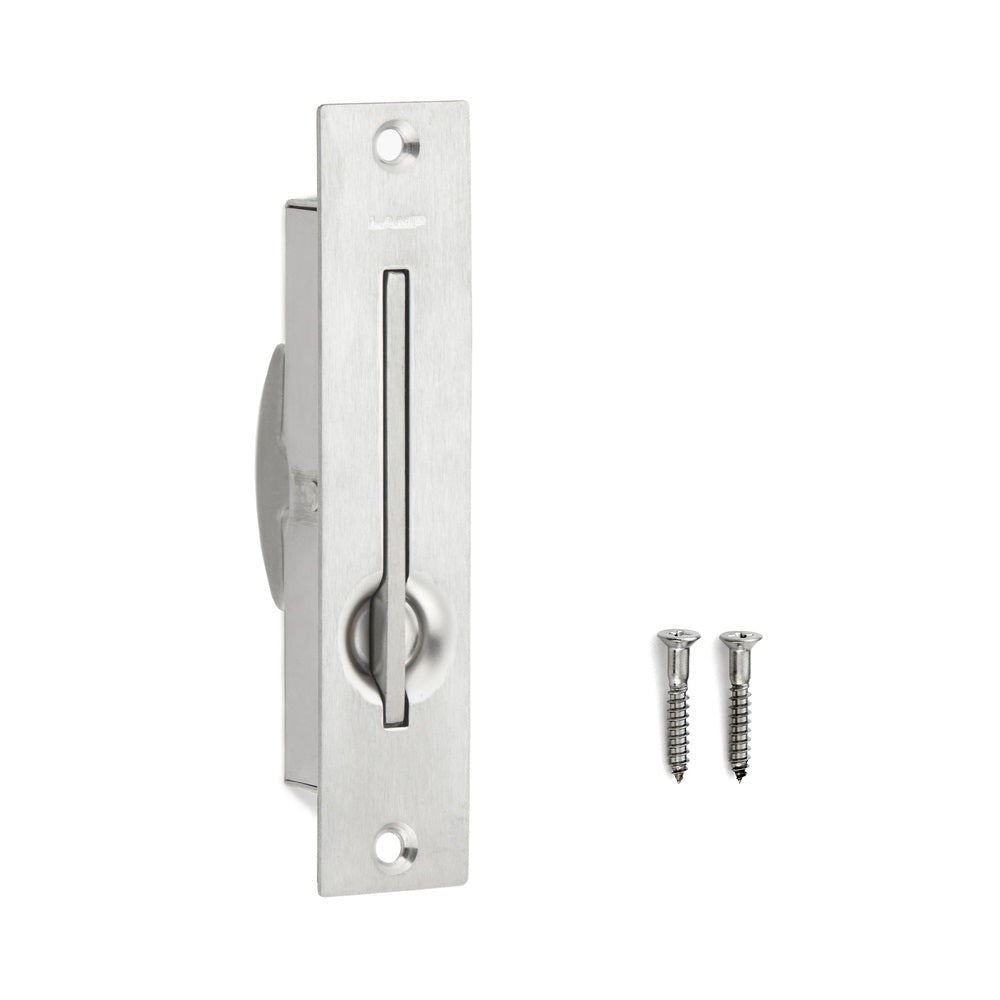

• 1 piece stainless steel folding handle ST-115 made of stainless steel SUS304 (V2A)
• 2 x 3.5 × 25 mm stainless steel fastening screws

Manufacturer reference number:

• Article number: 100-010-241
• Article name: ST-115
• EAN number: 4510932000024

Manufacturer: SUGATSUNE / LAMP® (Japan)
