Edelstahl-Klappgriff SUS304, 100 mm (4″) ST-100. Edelstahl-Klappgriff aus rostfreiem Edelstahl V2A, satiniert matt, für Revisionsklappe, Revisionstür, Wartungstür, Wartungsöffnung, feuchte Umgebung, Schiff, Caravan von Sugatsune / LAMP® (Japan)

Stainless steel folding handle made of stainless steel V2A (SUS304) ST-100

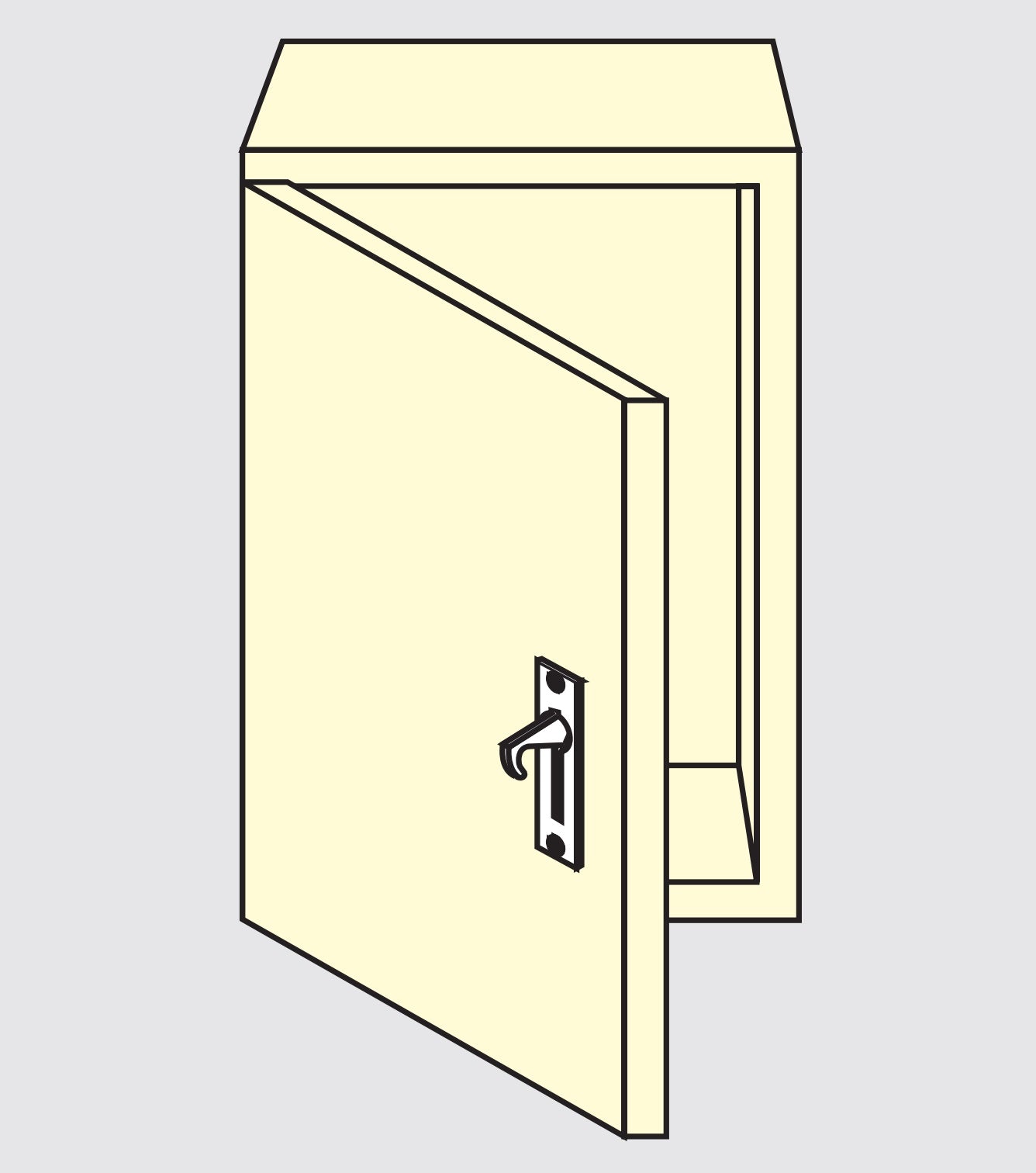

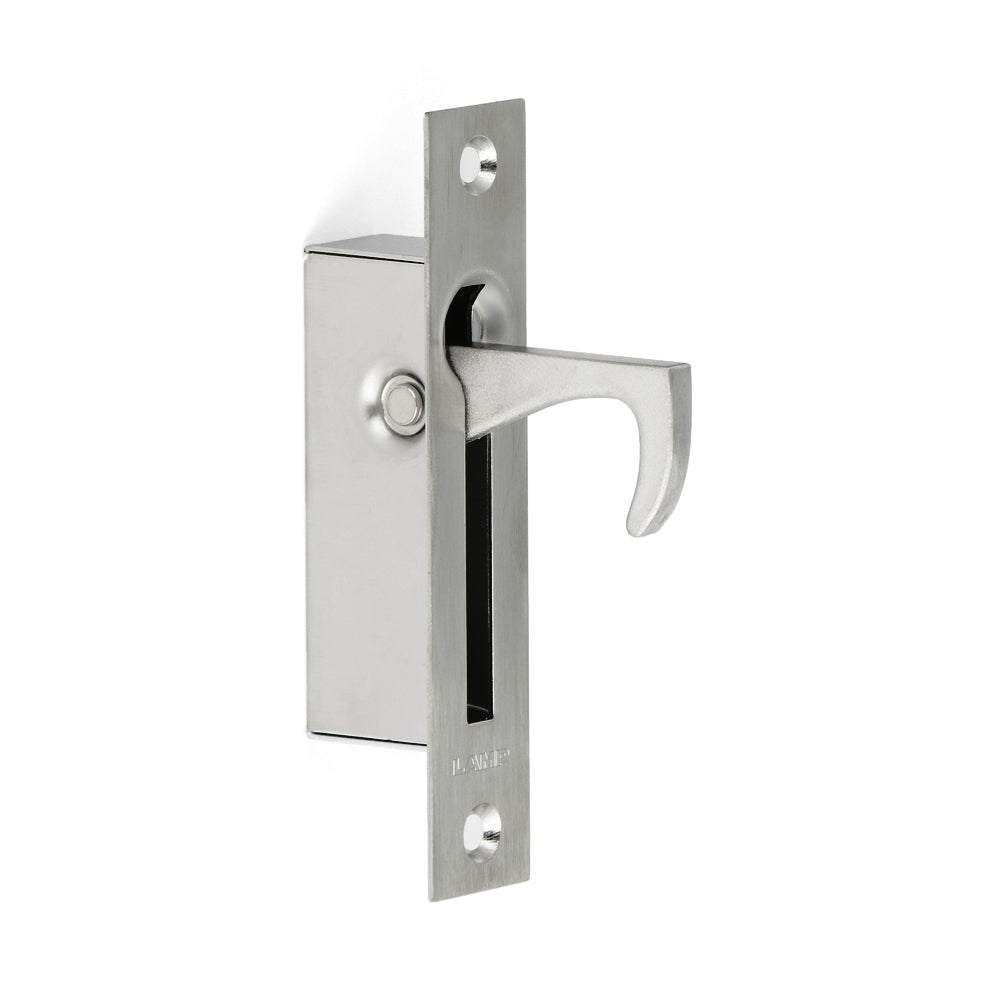

Application: [caption id="attachment_45895" align="alignnone" width="420"] Sugatsune's SUS304 stainless steel folding handle, ST-100 (100 mm), satin finish. Application[/caption] Stainless steel folding handle made of V2A stainless steel, satin matt, for inspection flap, inspection door, maintenance door, maintenance opening, damp environment, ship, caravan. The ST-100 stainless steel folding handles have a simple and elegant design and can be used in a variety of ways. The stainless steel folding handles can only be mounted vertically. They are not suitable for use with floor hatches or ceiling flaps. [caption id="attachment_45908" align="alignnone" width="420"] Sugatsune's ST-100 (100 mm) SUS304 stainless steel folding handle, satin finish. Application on a door.[/caption] The high-quality ST-100 stainless steel folding handles are ideal for:

• Inspection hatch
• inspection door
• Maintenance door
• Maintenance opening
• humid environment
• Ship
• Caravan
• Cleaning flap

Material: The ST-100 stainless steel folding handles are made of high-quality SUS304 stainless steel. They are corrosion-resistant and rust-proof. Surface:

• Satin matt

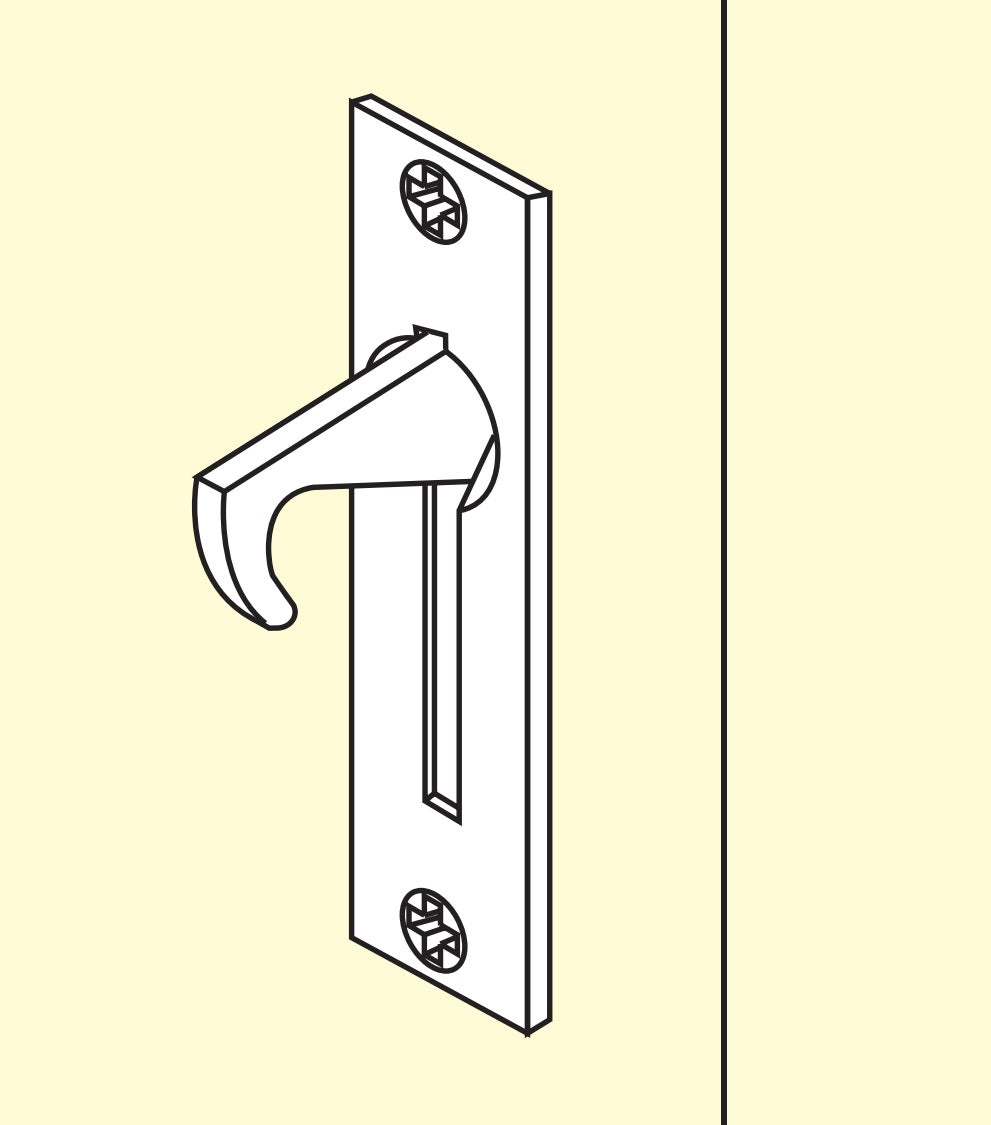

Assembly: [caption id="attachment_45934" align="alignnone" width="420"] Sugatsune ST-100 (100 mm) SUS304 stainless steel folding handle, satin finish. Assembly[/caption]

• The stainless steel folding handles ST-100 are designed for
• The mounting is done using the screws included in delivery (3.5 × 20 mm)
• The fastening screws are also made of stainless steel
• For installation, a cutout measuring 63.5 x 21.5 mm and a depth of at least 15.5 mm must be made on the door
• Please ensure that the upper and lower sides are correctly positioned during assembly (for further details see assembly drawing ).

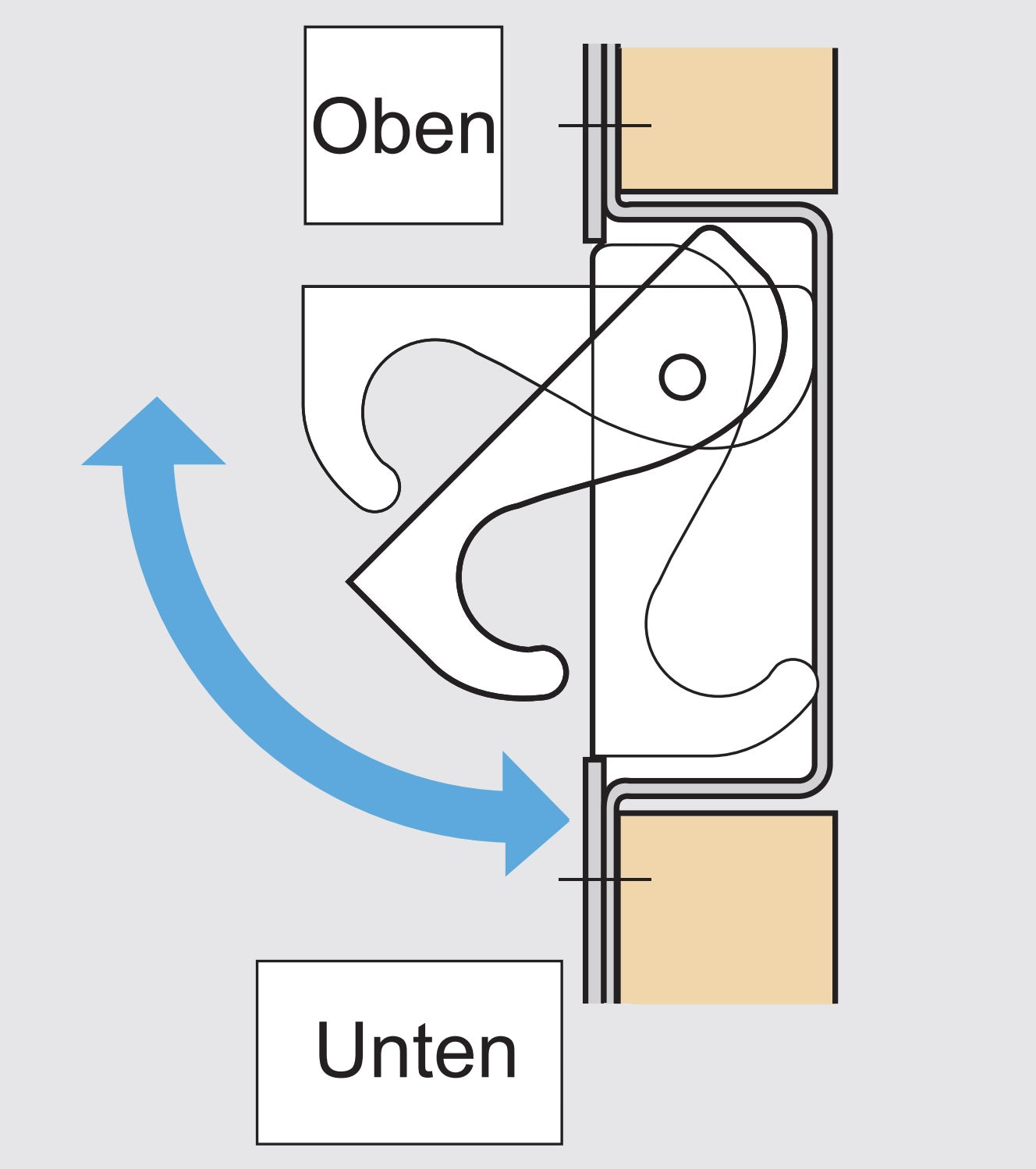

[caption id="attachment_45921" align="alignnone" width="420"] Sugatsune's SUS304 stainless steel folding handle, ST-100 (100 mm), satin finish. Assembly drawing[/caption] Characteristics:

• Weight: 66 g
• Size: 100 mm (4″)
• Shape: rectangular
• Unique design
• Made of stainless steel
• Stainless steel
• Corrosion-resistant
• High quality
• Handle material thickness: 5 mm
• Case material thickness: 2 mm

Dimensions: For further dimensions and details see technical drawing .

• Height of the stainless steel folding handle: 100 mm (3-30/32″)
• Width: 20 mm (25/32″)
• Distance between mounting holes: 85 mm (3-11/32″)
• Grip area size: 32 mm (1-8/32″)

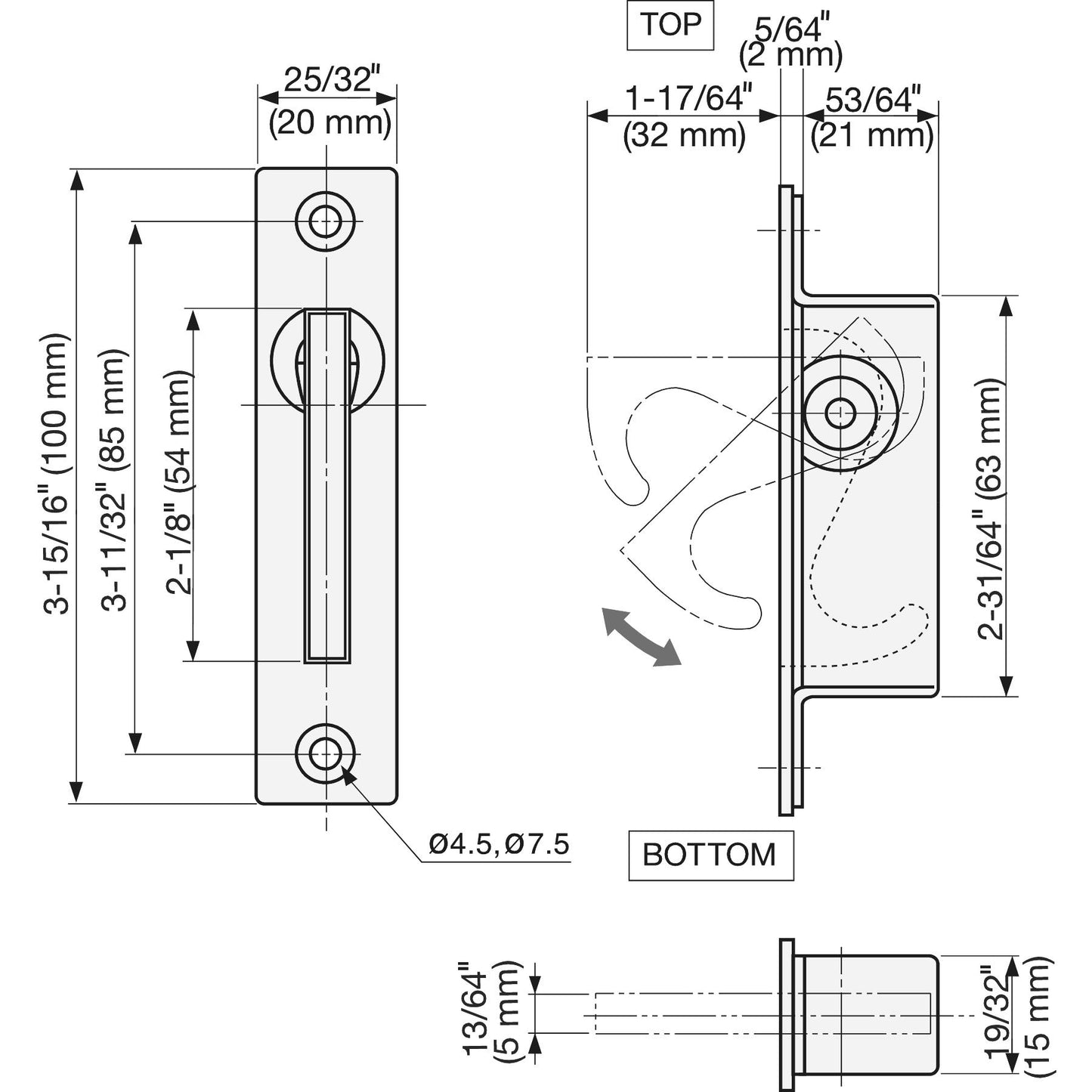

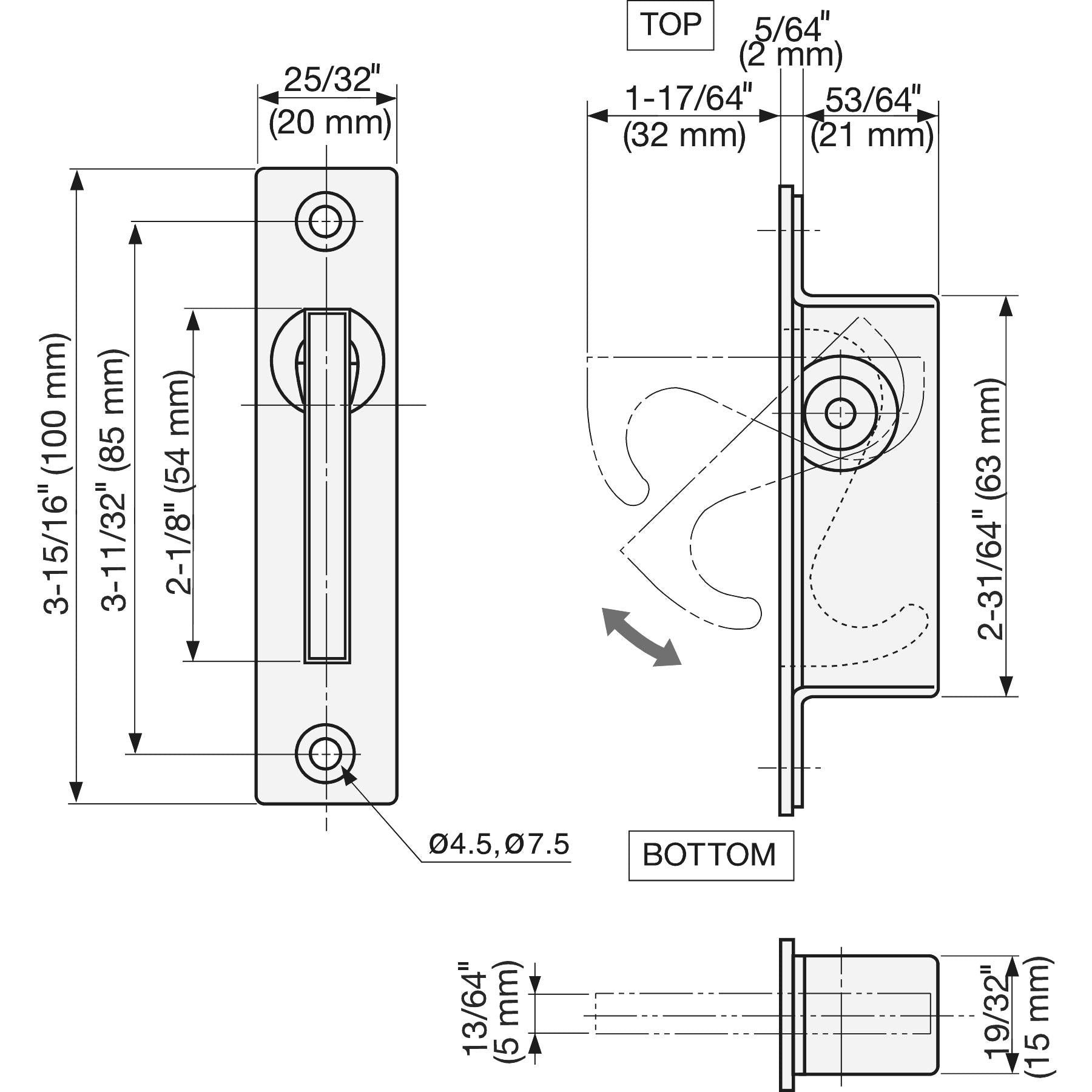

[caption id="attachment_45947" align="alignnone" width="420"] Sugatsune's SUS304 stainless steel folding handle, ST-100 (100 mm), satin finish. Technical drawing[/caption] Included in delivery:

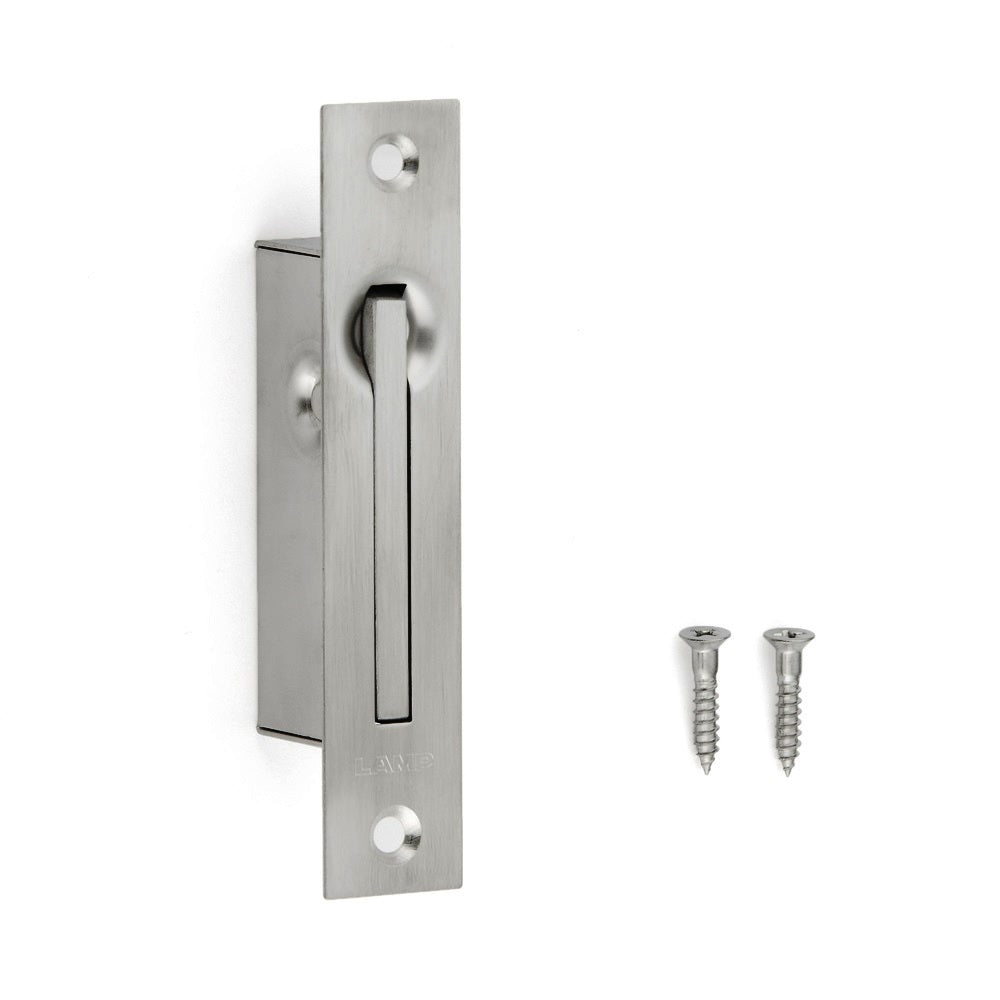

• 1 piece stainless steel folding handle ST-100 made of stainless steel SUS304 (V2A)
• 2 x 3.5 × 20 mm stainless steel fastening screws

Manufacturer reference number:

• Article number: 100-010-245
• Article name: ST-100
• EAN number: 4510932000048

Manufacturer: SUGATSUNE / LAMP® (Japan)
