Edelstahl-Griffmuschel V4A, 114 mm (4,5″) HH-D. Hochwertige Griffmuschel aus feinstem Edelstahl V4A (SUS316) für exklusive Raumgestaltung, hochwertige Einrichtungen sowie für feuchte, raue und hochkorrosive Umgebungen von Sugatsune / LAMP® (Japan)

Handle shell made of stainless steel SUS316 HH-D

Application: High-quality handle shell made of the finest stainless steel V4A (SUS316) for exclusive interior design, high-quality furnishings as well as for humid, harsh and highly corrosive environments. The stainless steel SUS316 gives the HH-D handle shells unique properties. The HH-D handle shells are ideal for:

• Cruise ships
• yachts
• boats
• Outdoor area
• coastal facilities
• exclusive bathrooms
• public bath
• beach hotel
• laboratory
• Medical field

Material: The HH-D handle shells are made of solid, high-quality SUS316 stainless steel. SUS316 stainless steel (also known as V4A) is a stainless steel with excellent corrosion resistance. Due to their resistance to chlorine-containing substances, fittings made of SUS316 stainless steel are used and expressly recommended for use near the coast. HH-D handle shells made of SUS316 stainless steel are also ideal for use in swimming pools, shipbuilding, the chemical industry, etc. Surface:

• Shiny polished
• Interior: black
• The HH-D handle shells appear solid and extremely high quality

Assembly:

• The mounting is done using the screws included in delivery (M4 × 15 mm and M4 × 10 mm)
• The fastening screws are also made of stainless steel
• The handle is recessed into the door
• For installation in wood, a milling with a minimum depth of 15 mm (0.6″) must be carried out
• For mounting in the sheet metal, a cutout must be made (see drawing )

[caption id="attachment_40792" align="alignnone" width="420"] Sugatsune V4A stainless steel handle, HH-D (114 mm). Installation[/caption] Characteristics:

• Weight: 85 g
• Size: 114 mm (4.5″)
• Elaborately finished surface
• Corrosion-resistant
• Exclusive high-quality optics

Dimensions: For further dimensions and details see technical drawing .

• Length of the grip shell: 114 mm (4.49″)
• Height: 41 mm (1.62″)
• Depth of the grip shell: 15 mm (0.6″)
• Width of the inner area: 83 mm (3.27″)
• Distance between holes: 96 mm (3.78″)

[caption id="attachment_40805" align="alignnone" width="420"] Sugatsune V4A stainless steel handle, HH-D (114 mm). Technical drawing[/caption] Included in delivery:

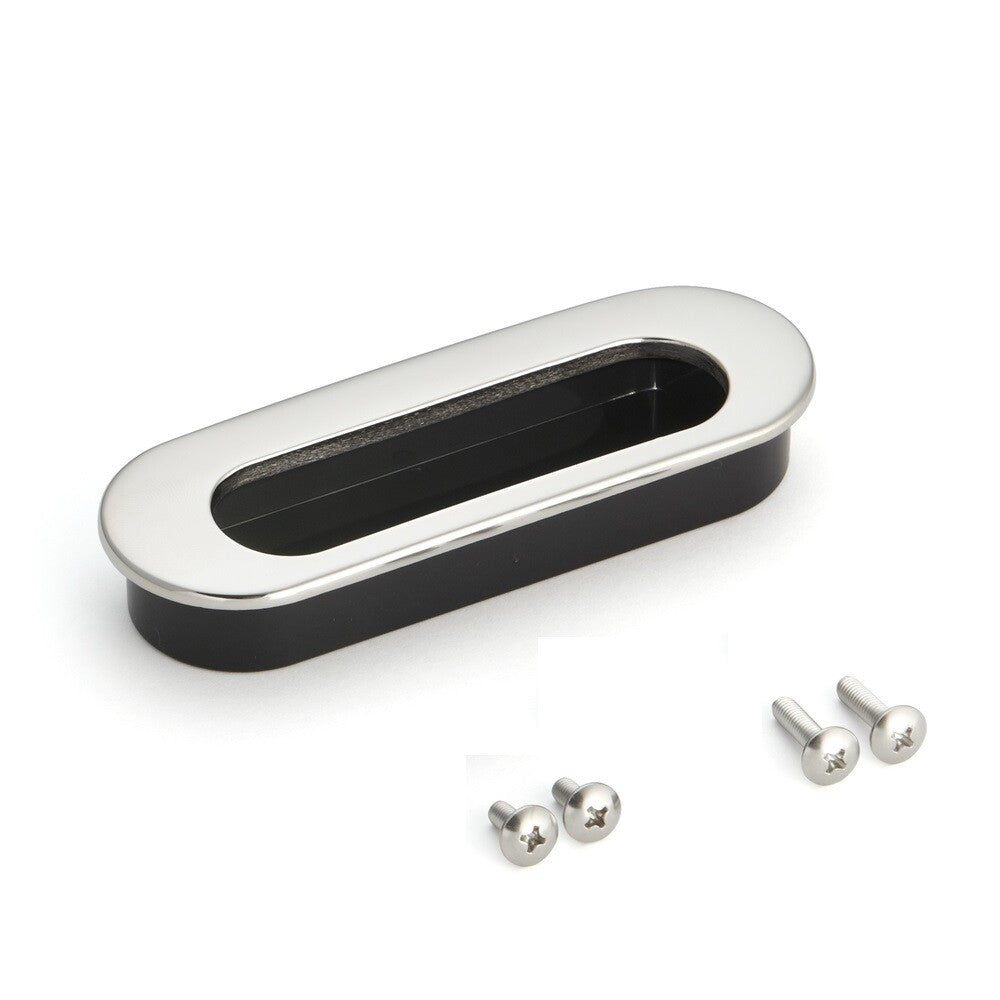

• 1 piece handle shell HH-D made of stainless steel SUS316 (V4A)
• 2 x M4 × 15 mm fixing screws for mounting in wood
• 2 x M4 × 10 mm mounting screws for mounting in sheet metal

Manufacturer reference number:

• Article number: 100-012-951
• Article name: HH-D
• EAN number: 4510932009881

Manufacturer: SUGATSUNE / LAMP® (Japan)
