Espagnolette lock, keyed alike, right-hand locking, nickel-plated finish, right-hand version, 14.05.234-0. Espagnolette lock for padlocks, for furniture, cabinets, wardrobes, office cabinets, and much more, from SISO Denmark

Espagnolette lock, set for one cabinet door (without espagnolette), made of solid die-cast zinc, surface: nickel-plated, 14.05.234-0, version: right

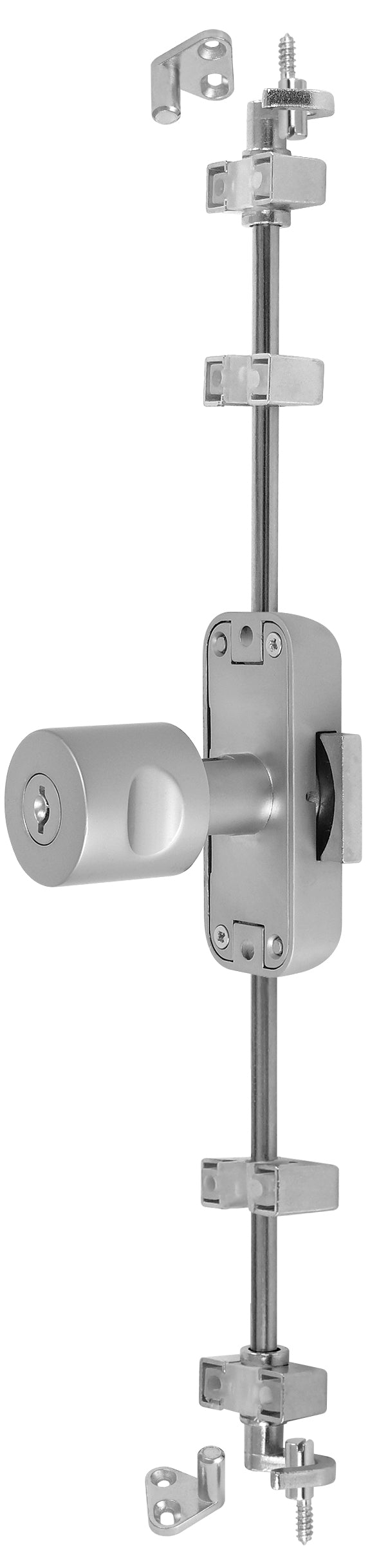

Application: Espagnolette lock for padlock, for furniture, cabinet, wardrobe, office cabinet and much more. The RBL.924.KA espagnolette locks, also called Espagnolette, are designed for the simple and secure locking of cabinets and furniture. [caption id="attachment_133360" align="alignnone" width="150"] Espagnolette lock, keyed alike, right-hand locking, from SISO, nickel-plated, right-hand version. Application[/caption] The RBL.924.KA bar locks are used for particularly high doors. The locking bolt on the screw-on lock and the two locking hooks at the ends of the bars ensure a secure hold. When closing by turning the knob, the door is locked at three points. The Espagnolette Lock fits wood thicknesses from 19 to 20 mm When the key is turned, the espagnolette rotates. The locking hooks enclose the locking bolts, thus providing a secure and tight closure for the furniture door. The locking cam moves from the lock into the strike plate and, together with the two locking hooks, ensures that the door is locked in three places. Solid and high-quality workmanship ensures long and smooth operation of these espagnolette locks. The high-quality espagnolette locks RBL.924.KA are suitable for:

• School furniture
• Medical practice furniture
• Hospital furniture
• Shopfitting
• Furniture
• Wardrobe
• Wardrobe
• office cabinet

Material:

• The espagnolette locks 14.05.234-0 are made of solid die-cast zinc

Surface:

• Nickel-plated
• The nickel-plated surface protects against rust and corrosion

Assembly:

• For screwing on
• To mount the espagnolette lock, a hole with a diameter of ⌀16.5 mm (21/32″) must be drilled in the furniture front
• Then the cylinder (cylinder length 22 mm) is pushed through from the inside and the lock is screwed on
• The bolt handle is inserted and secured into the lock using the mounting pin (included in delivery) (for further details see assembly drawing ).

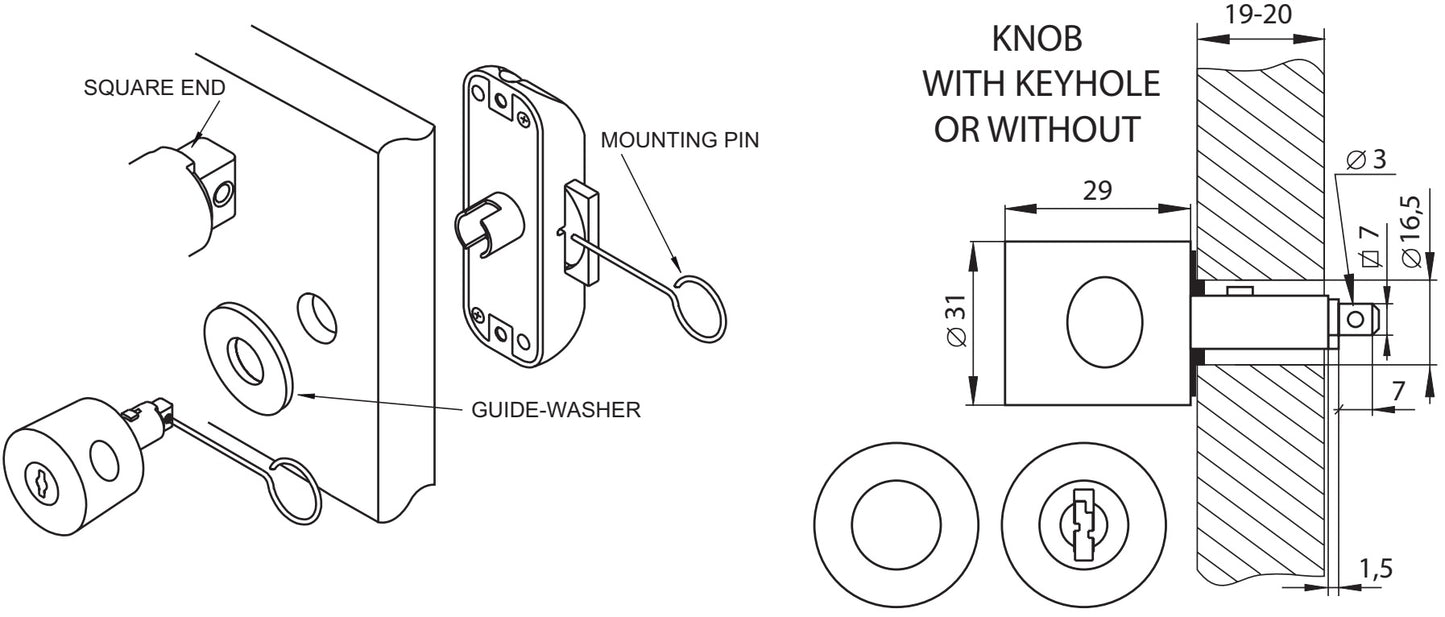

[caption id="attachment_133372" align="alignnone" width="420"] Espagnolette lock, keyed alike, right-hand locking, from SISO, nickel-plated, right-hand version. Installation drawing[/caption] Characteristics:

• Version: right
• Weight: 288 g
• Size: 16.5 mm (0.7″)
• Lock: right-hand closing
• Lock: keyed alike (all keys fit all locks)
• Complete set (without pivot rod) for one furniture door for cabinets and boxes
• Easy and quick installation, for screwing
• For wooden doors with a thickness of 19 to 20 mm
• nickel-plated
• Zamac
• zinc die-casting
• high brand quality from UMAXO®

For further dimensions and details see technical drawing . The dimensions:

• Lock cylinder diameter: Φ16.5 mm (21/32″)
• Height of the espagnolette lock: 74 mm (2-29/32″)
• Width: 30 mm (1-3/16″)
• Depth: 13.8 mm (35/64″)
• Distance between mounting holes: 64 mm (2-33/64″)
• Lock cylinder length: 16 mm (5/8″)

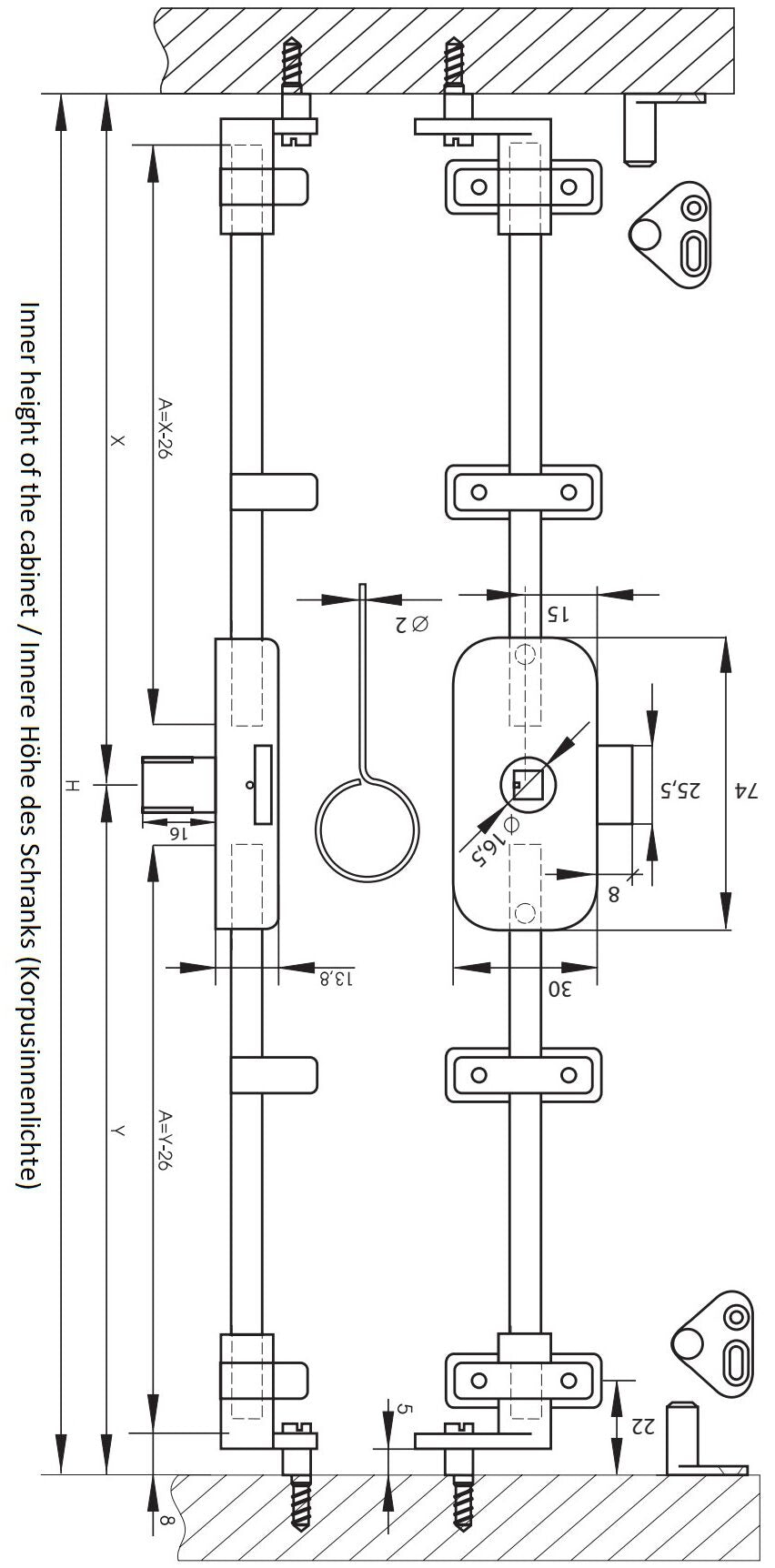

[caption id="attachment_133384" align="alignnone" width="208"] Espagnolette lock, keyed alike, right-hand locking, from SISO, nickel-plated, right-hand version. Technical drawing[/caption] Included in delivery:

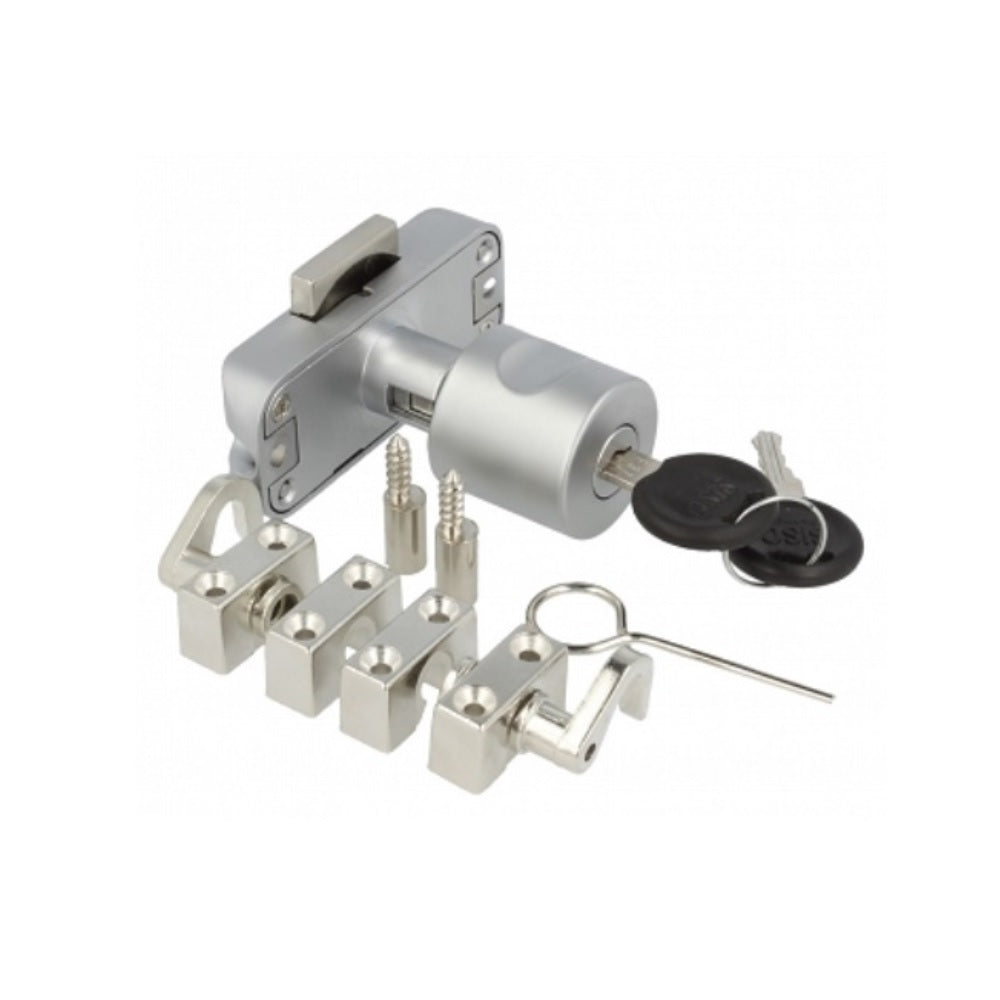

• 1 piece espagnolette lock 14.05.234-0 made of solid die-cast zinc, nickel-plated
• 1 piece locking handle, lockable
• 1 piece plastic washer (seal)

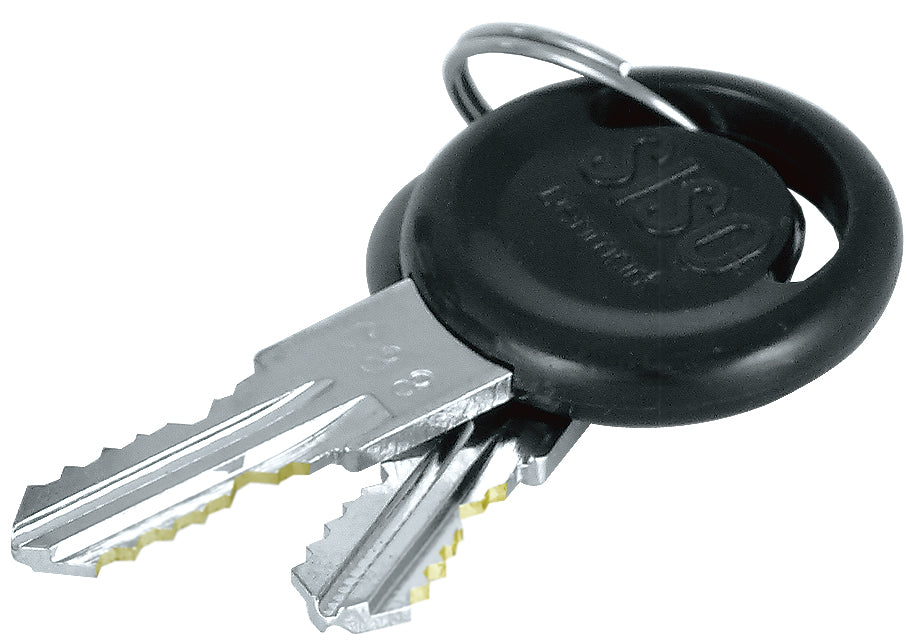

• 2 keys
• 1 piece pin for mounting the locking handle
• 2 asymmetric locking bolts (top and bottom)
• 2 locking hooks (top and bottom)
• 2 rod guides
• The pivot rod must be ordered separately. Available in lengths of 1000, 1200, 1500, and 2000 mm and in nickel, bronze, or brass.

Additional Information:

• Download assembly instructions
• Download the Reach Declaration

Manufacturer reference number:

• Article number: 14.05.234-0
• EAN number: 5704866042734

Manufacturer: SISO Denmark
