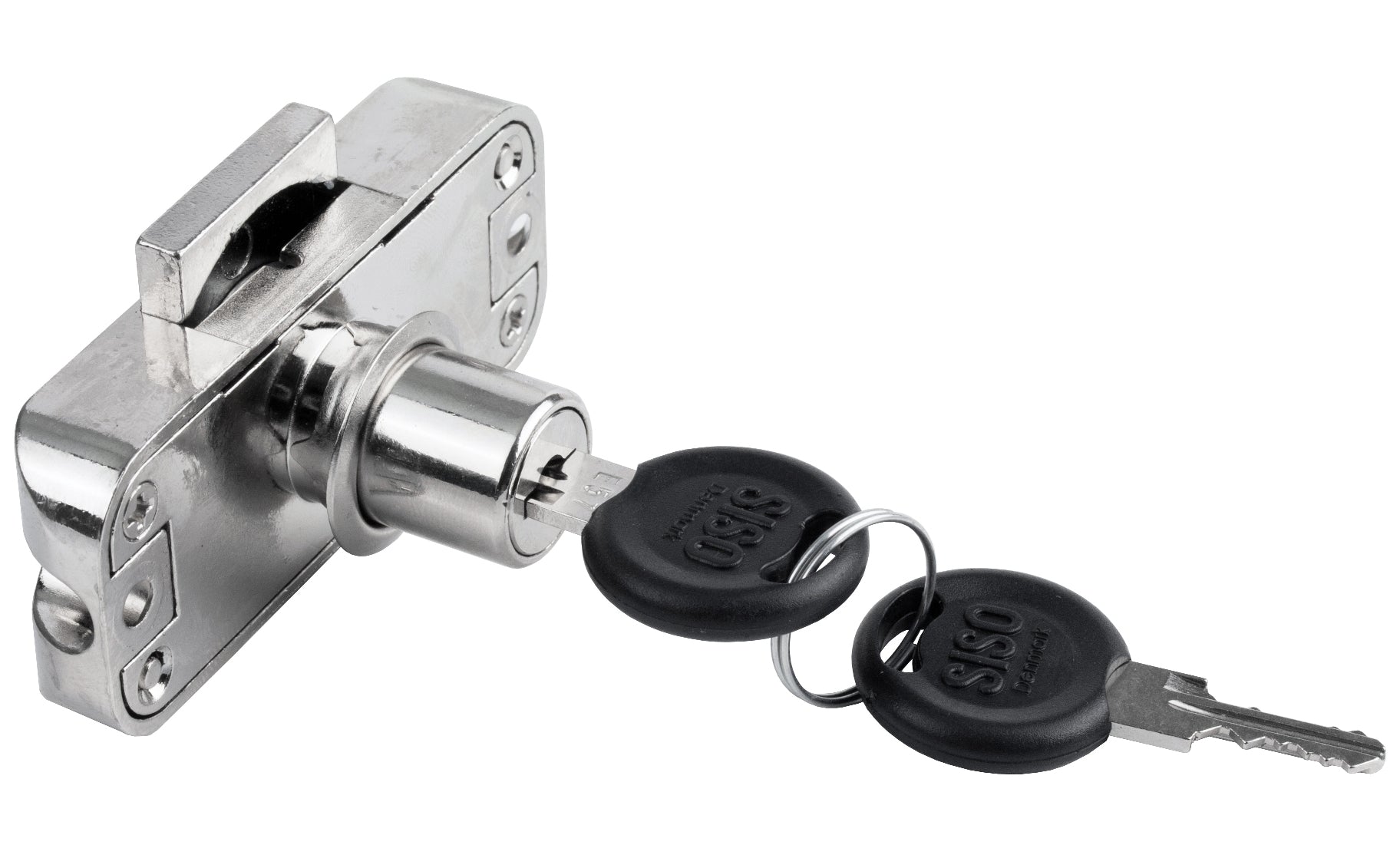

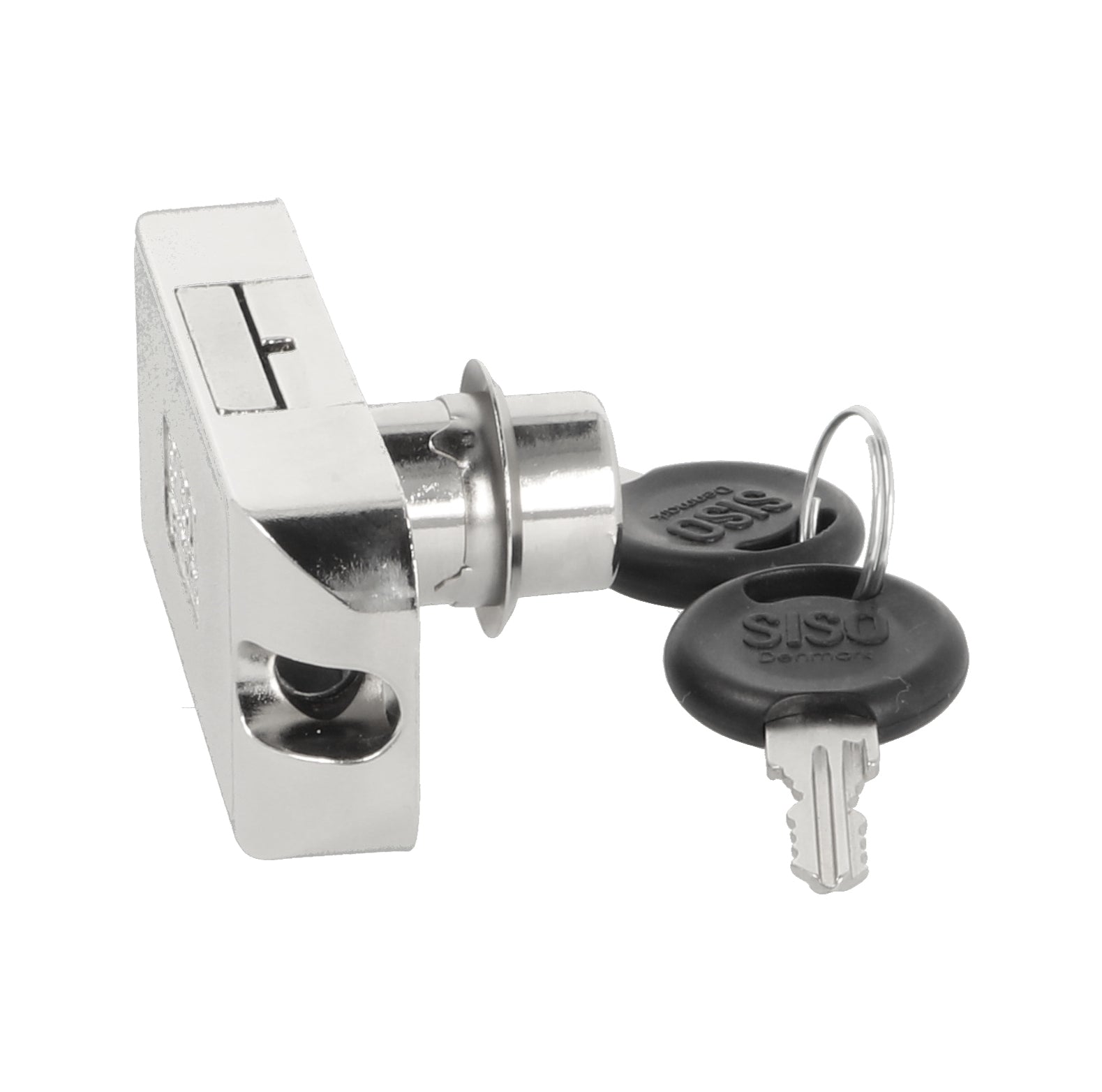

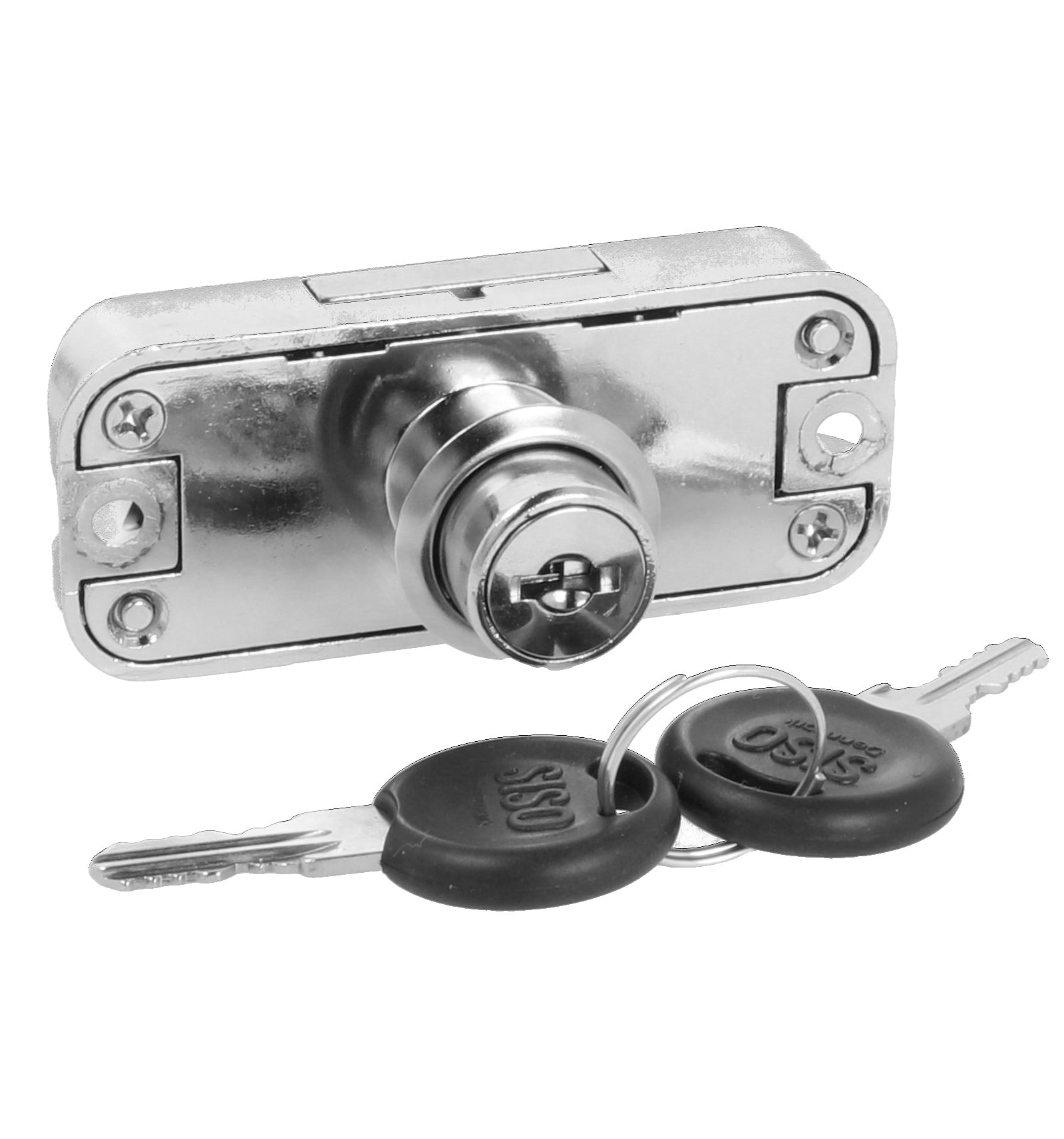

Surface-mounted espagnolette lock, keyed alike, right-hand locking, 16.5 mm (0.7"). Nickel-plated zamac espagnolette lock for furniture, cabinets, wardrobes, and office cabinets. Set for one cabinet door, by SISO Denmark

Espagnolette lock set for one cabinet door 14.05.268-5

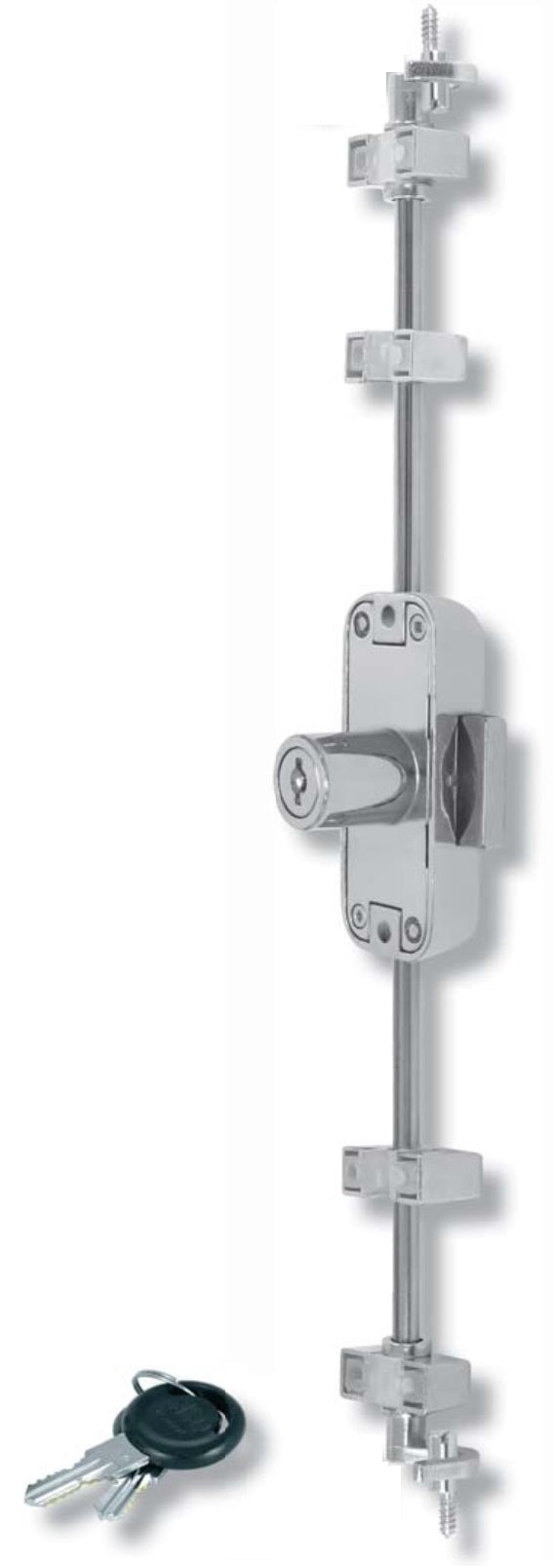

Application: [caption id="attachment_55040" align="alignnone" width="200"] Surface-mounted espagnolette lock, keyed alike, right-hand locking, 16.5 mm, from SISO, nickel-plated. Application[/caption] Nickel-plated Zamak espagnolette lock for furniture, cabinet, wardrobe, office cabinet, set for one cabinet door. The espagnolette locks 14.05.268, also called Espagnolette, are designed for the simple and secure locking of cabinets and furniture. The 14.05.268 bar locks are used for particularly high doors. The locking bolt on the screw-on lock and the two locking hooks at the ends of the bars ensure a secure hold. When the key is turned, the espagnolette rotates. The locking hooks enclose the locking bolts, thus providing a secure and tight closure for the furniture door. The locking cam moves from the lock into the strike plate and, together with the two locking hooks, ensures that the door is locked in three places. Solid and high-quality workmanship ensures long and smooth operation of these espagnolette locks. The high-quality espagnolette locks 14.05.268 are suitable for:

• Furniture
• Wardrobe
• Wardrobe
• office cabinet
• School furniture
• Medical practice furniture
• Hospital furniture
• Shopfitting

Material:

• The high-quality espagnolette locks 14.05.268 are made of Zamak
• The espagnolette guide is made of plastic

Surface:

• Nickel-plated
• Espagnolette guides: transparent matt

Assembly:

• For screwing on
• To install the espagnolette lock, a hole with a diameter of 17 mm must be drilled in the furniture front
• Then the cylinder (cylinder length 22 mm) is pushed through from the inside and the lock is screwed on
• Then the cover rosette is inserted from the outside (for further details see assembly drawing )

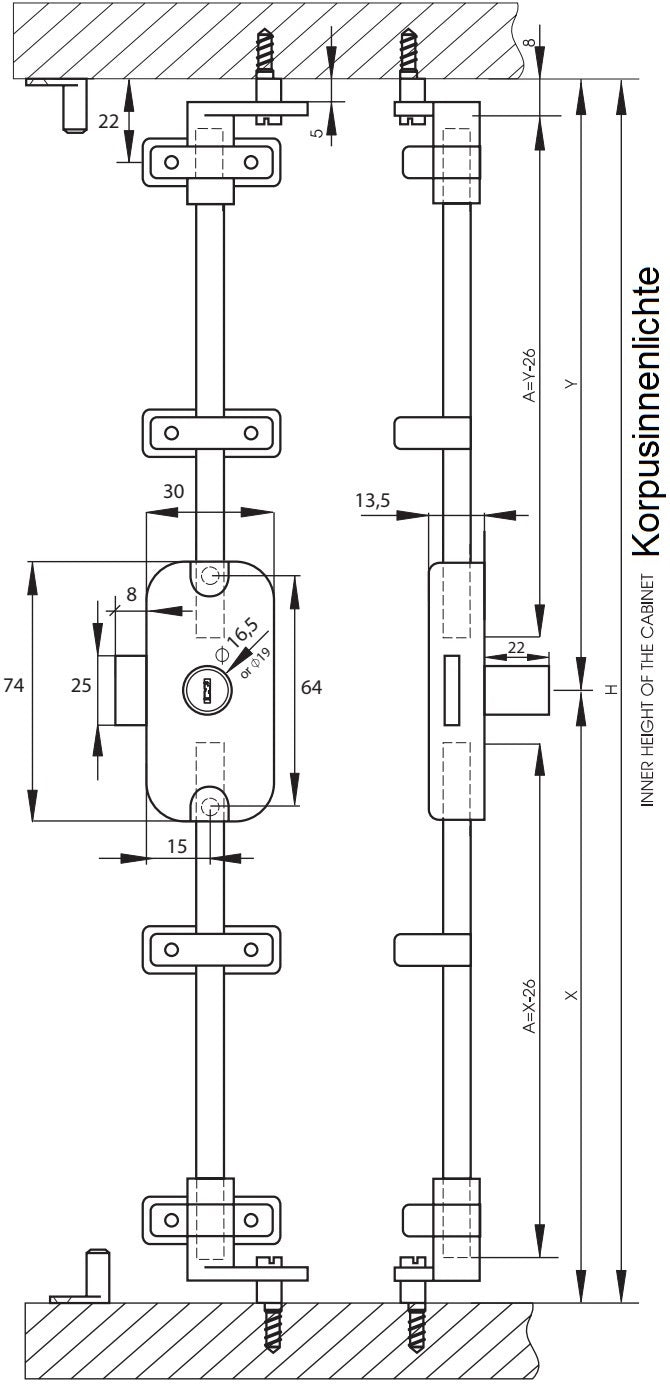

[caption id="attachment_55054" align="alignnone" width="200"] Surface-mounted espagnolette lock, keyed alike, right-hand locking, 16.5 mm, from SISO, nickel-plated. Assembly drawing[/caption] Characteristics:

• Weight: 210 g
• Size: 16.5 mm (0.7″)
• Lock: right-hand closing
• Lock: keyed alike (all keys fit all locks)
• Complete set (without pivot rod) for one furniture door for cabinets and boxes
• Easy and quick installation, for screwing
• For espagnolette profiles 6 mm
• For wooden doors with a thickness of 14 to 19 mm
• Robust
• Made of Zamak
• Nickel-plated
• High brand quality from UMAXO®

Dimensions: For further dimensions and details see technical drawing .

• Lock cylinder diameter: Φ16.5 mm (21/32″)
• Height of the espagnolette lock: 74 mm (2-29/32″)
• Width: 30 mm (1-6/32″)
• Depth: 13.5 mm (17/32″)
• Distance between mounting holes: 64 mm (2-17/32″)
• Lock cylinder length: 22 mm (28/32″)

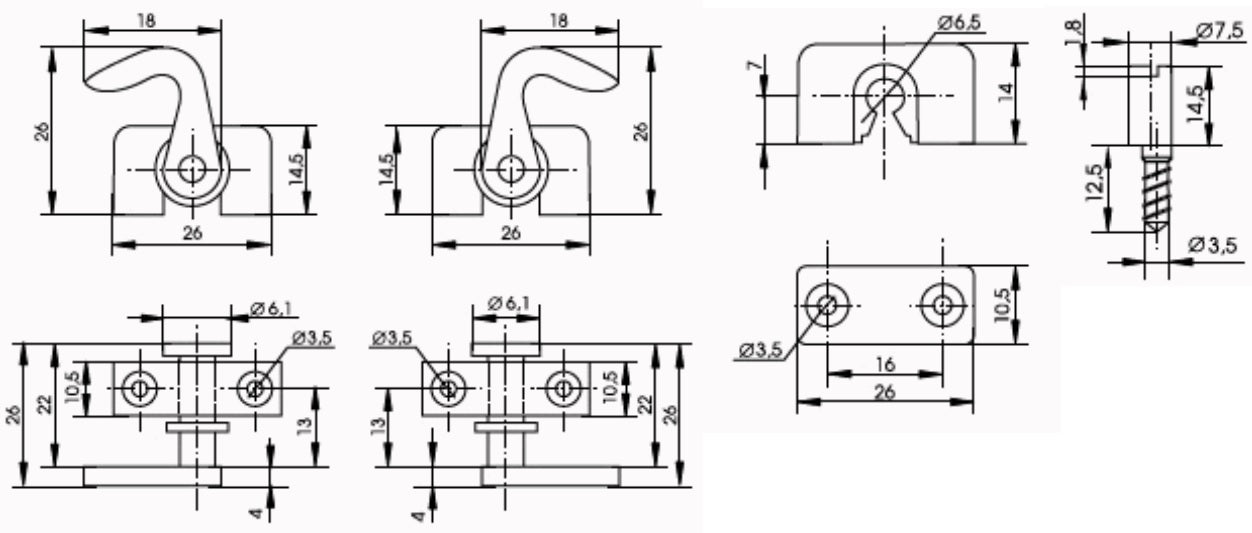

[caption id="attachment_55068" align="alignnone" width="420"] Surface-mounted espagnolette lock, keyed alike, right-hand locking, 16.5 mm, from SISO, nickel-plated. Technical drawing[/caption] Included in delivery:

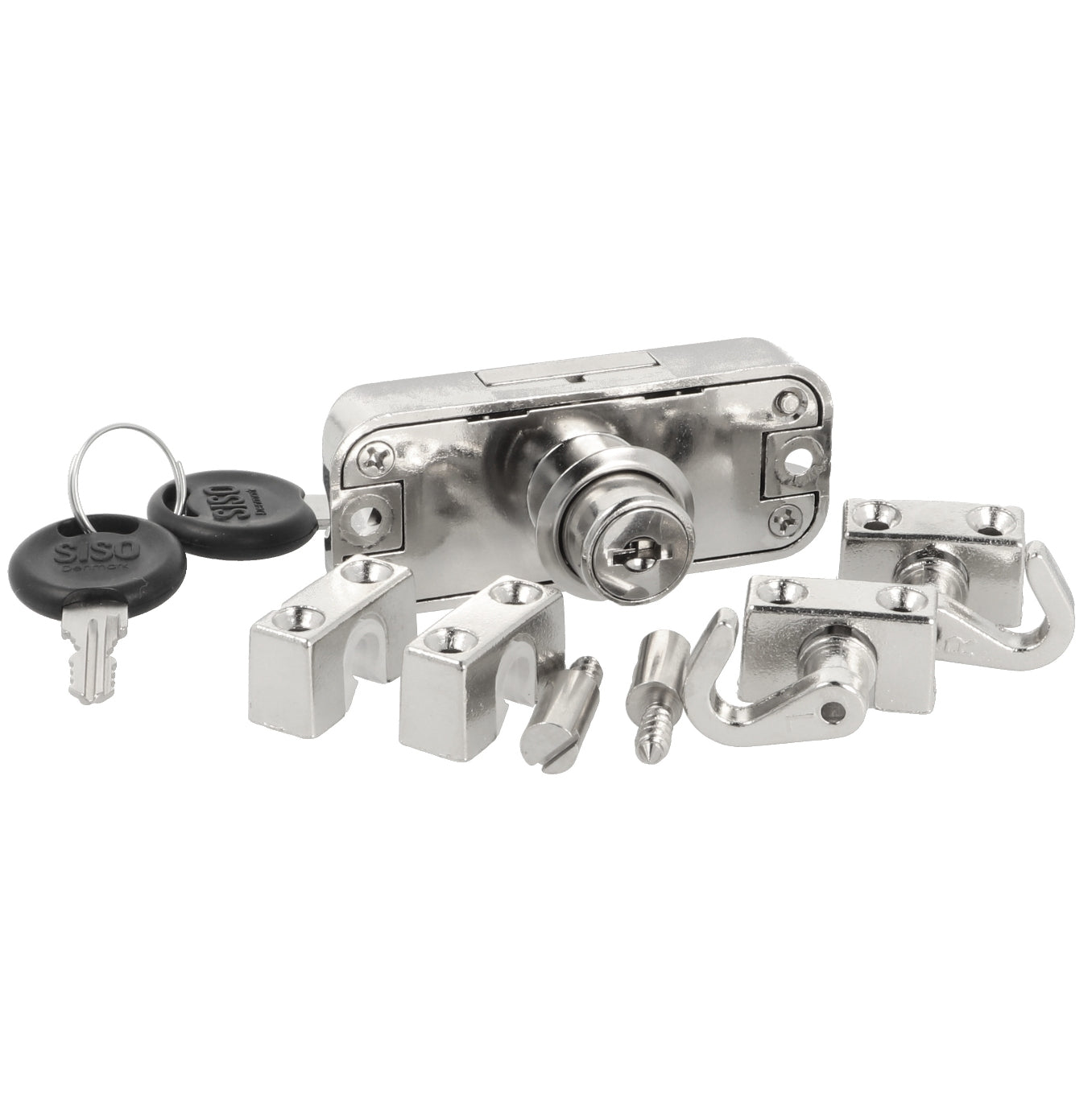

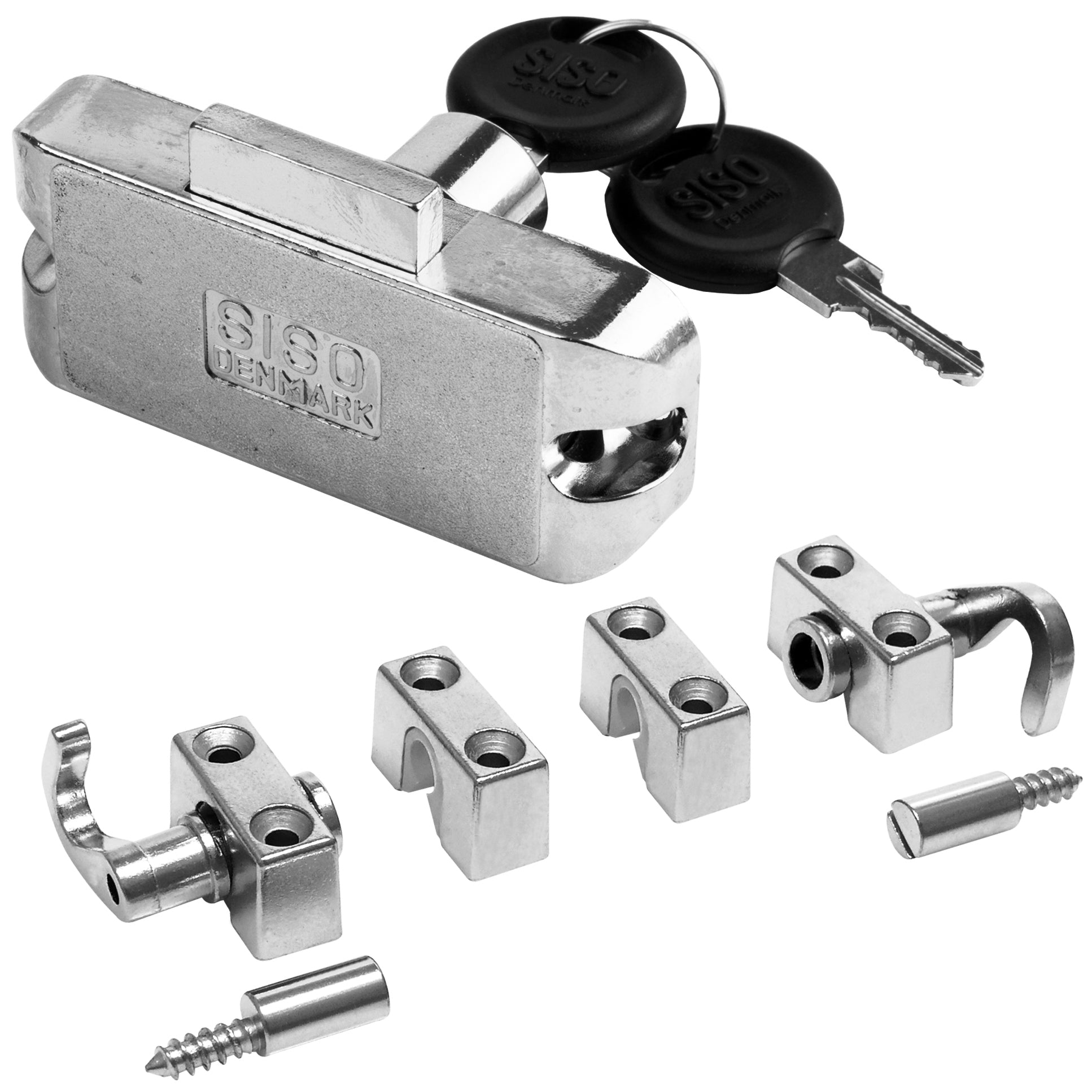

• 1 espagnolette lock including profile cylinder
• 2 keys
• 1 piece cylinder rosette
• 2 asymmetric locking bolts (top and bottom)
• 2 locking hooks (top and bottom)
• 2 rod guides

Additional Information:

• Download the Reach Declaration

Manufacturer reference number:

• Article number: 14.05.268-5
• EAN number: 5704866454056

Manufacturer: SISO Denmark
