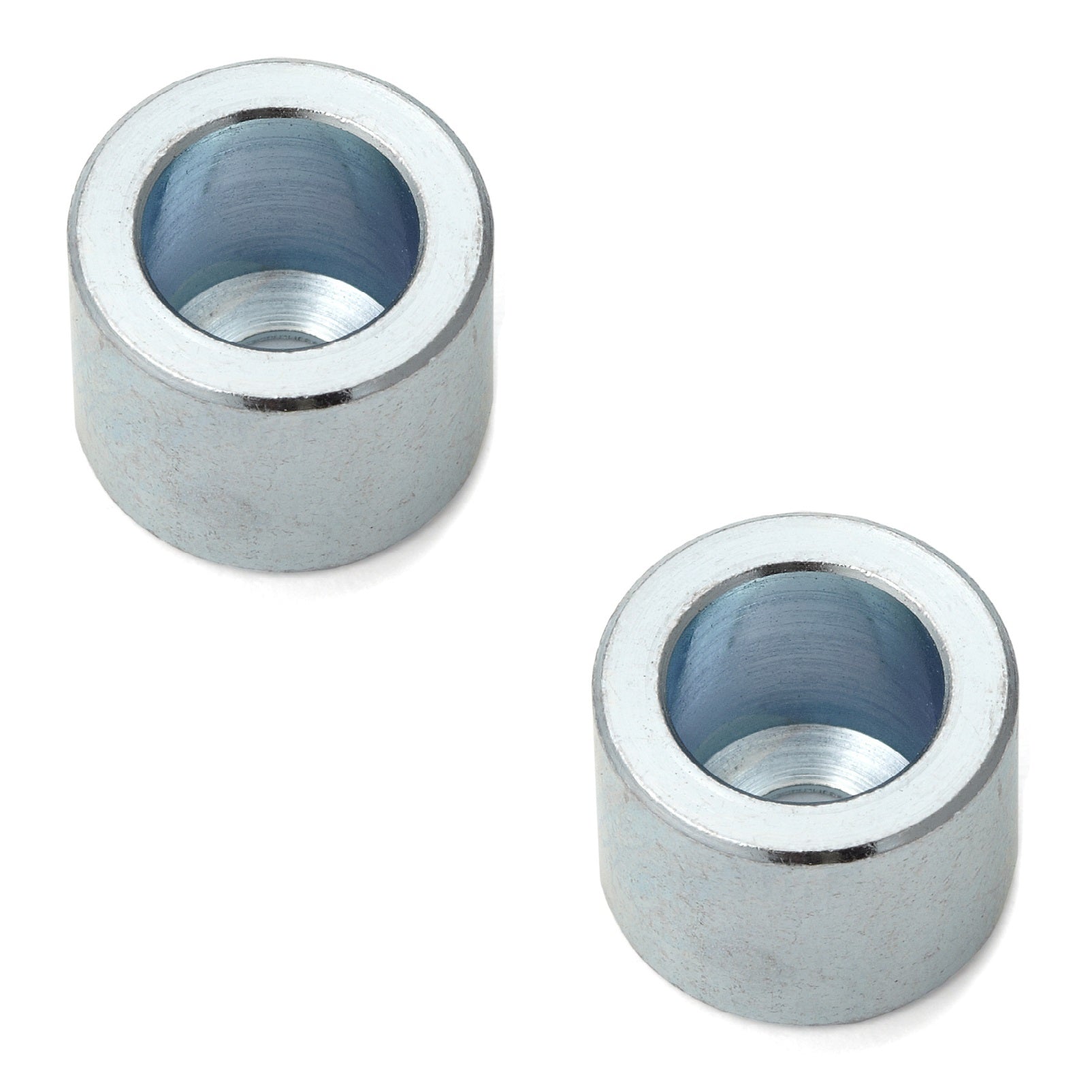

2 steel spacers, galvanized finish, 10.5 mm (0.5") BSP-8. BSP-8 sheet metal fastener for Sugatsune SD-160WB and Sugatsune SD-160CR handles, from Sugatsune / LAMP® (Japan).

2 pieces of spacer made of robust steel, surface: galvanized BSP-8

Application: Sheet metal fastening BSP-8 for handle shell Sugatsune SD-160WB, handle shell Sugatsune SD-160CR. The BSP-8 spacers are ideal for:

• Grip shell Sugatsune SD-160WB
• Grip shell Sugatsune SD-160CR

Material:

• The high-quality BSP-8 spacers are made of robust steel

Surface:

• Galvanized

Assembly:

• The spacer is required for mounting the handle shell in the sheet metal (for further details see assembly drawing )

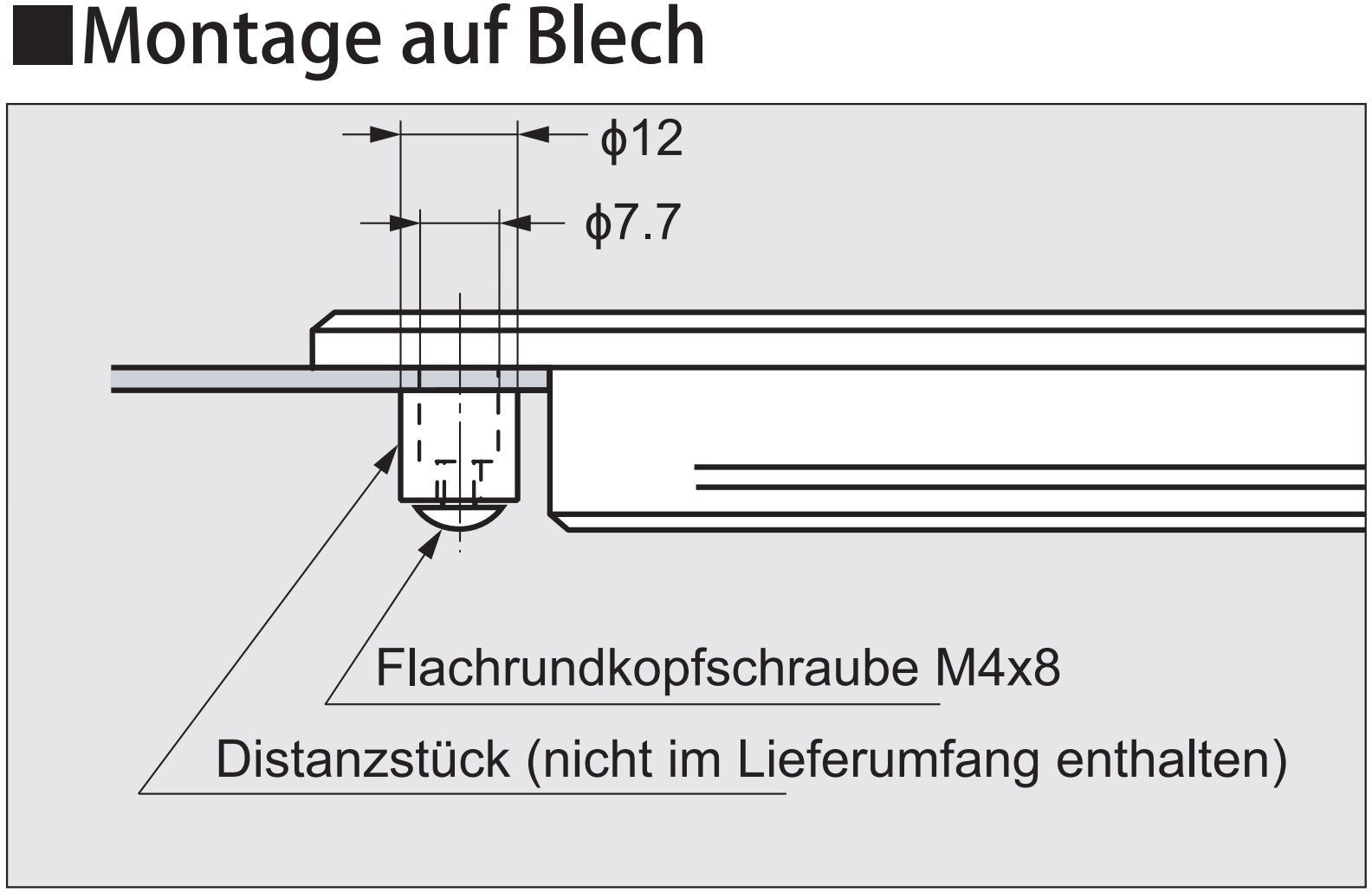

[caption id="attachment_107234" align="alignnone" width="420"] Steel spacer, surface: galvanized, BSP-8, 10.5 mm, from Sugatsune, galvanized. Assembly drawing[/caption] Characteristics:

• Weight: 6 g
• Size: 10.5 mm (0.5″)
• Robust
• Galvanized
• High brand quality from Sugatsune / LAMP®

Dimensions: For further dimensions and details see technical drawing .

• Height of spacer (L): 10.5 mm (13/32″)
• Diameter: Φ12 mm (15/32″)

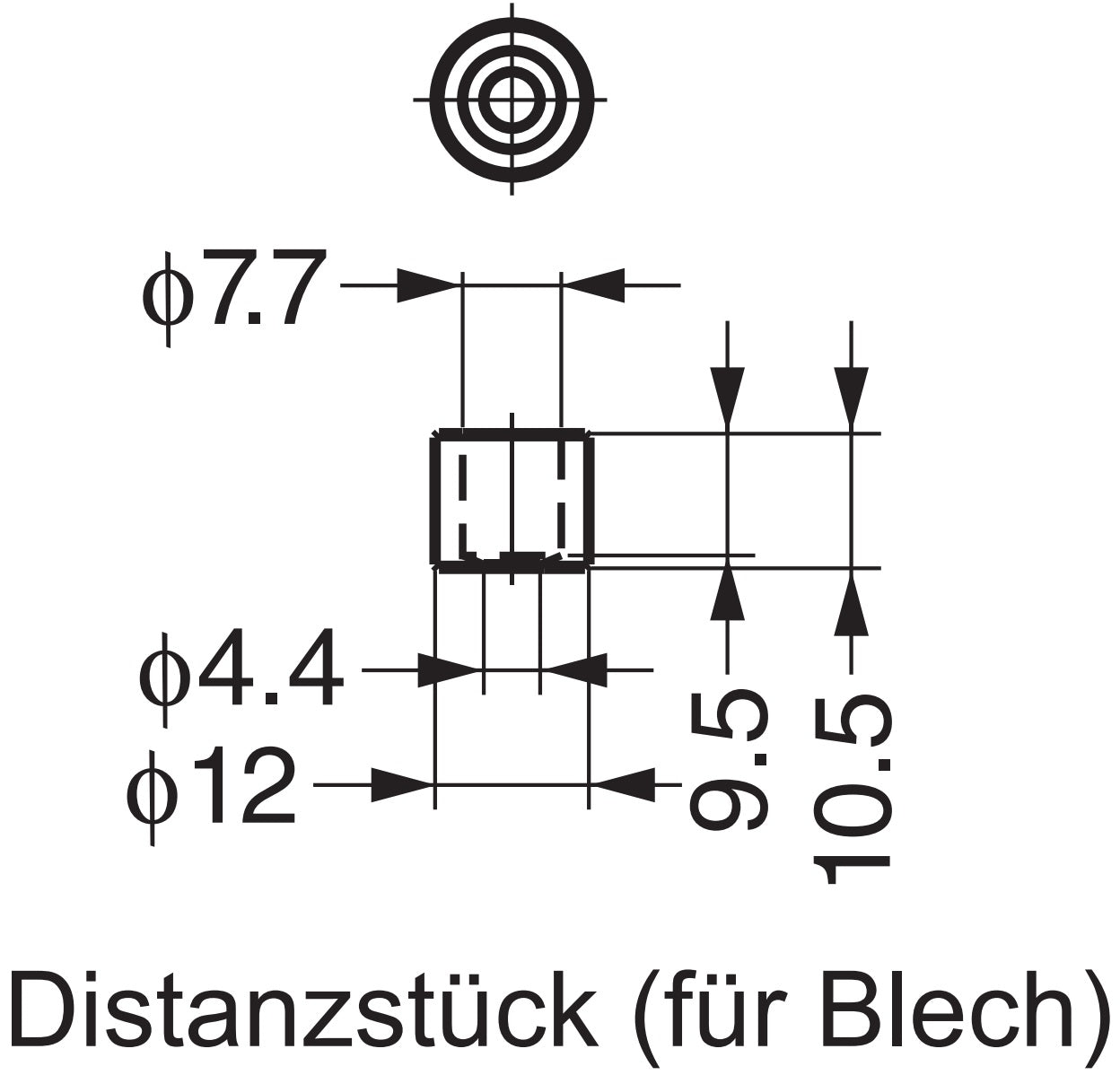

[caption id="attachment_107252" align="alignnone" width="420"] Steel spacer, surface: galvanized, BSP-8, 10.5 mm, from Sugatsune, galvanized. Technical drawing[/caption] Included in delivery:

• 2 pieces BSP-8 spacer made of robust steel, galvanized

Manufacturer reference number:

• Article number: 100-019-635
• Item number: BSP-8
• EAN number: 4510932042352

Manufacturer: Sugatsune / LAMP® (Japan)
