4 adjustable SUS304 (V2A) extendable table clamps, with two position locks, 70 mm (2.8") 24.03.000-1. Catch #22 clamp made of SUS304 (V2A), glossy polished, for extendable tables, boxes, instrument cases, and worktops, from SISO Denmark

4 unique extendable table clamps made of stainless steel with adjustment and two position locks 24.03.000-1

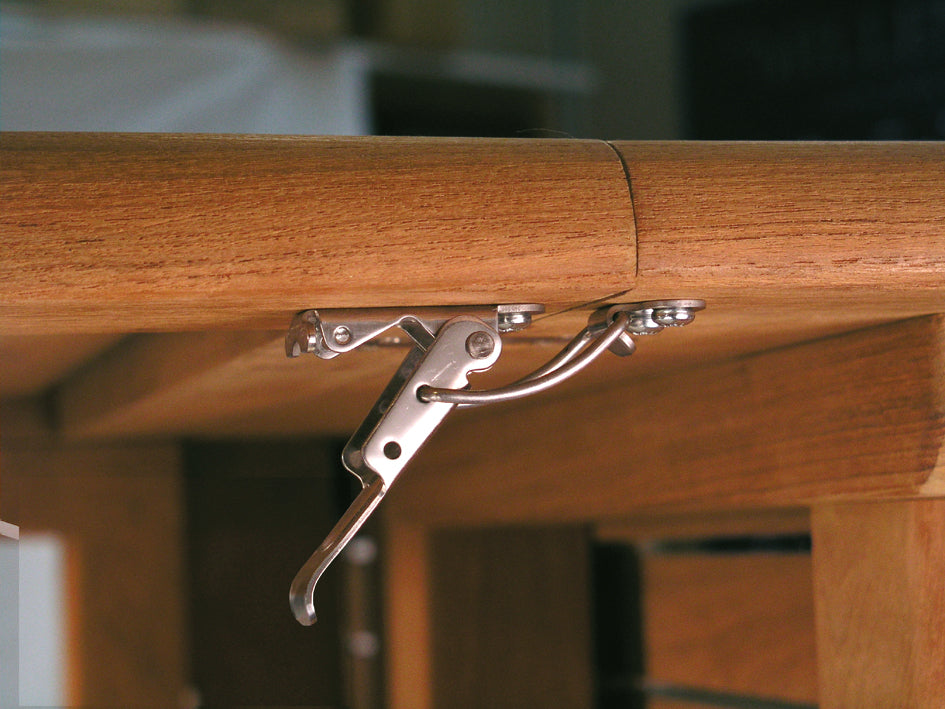

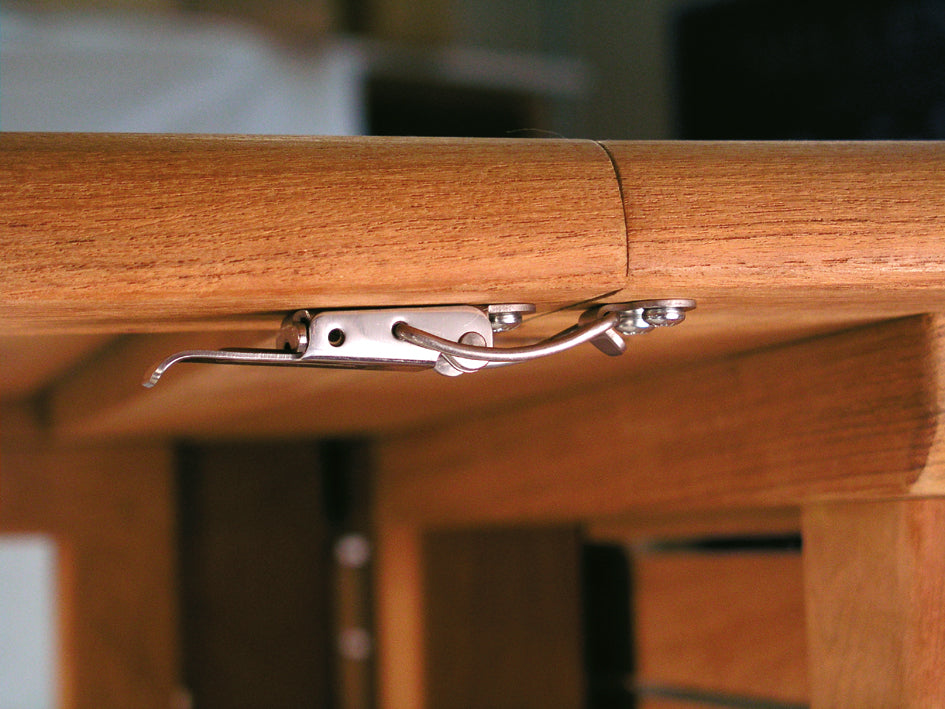

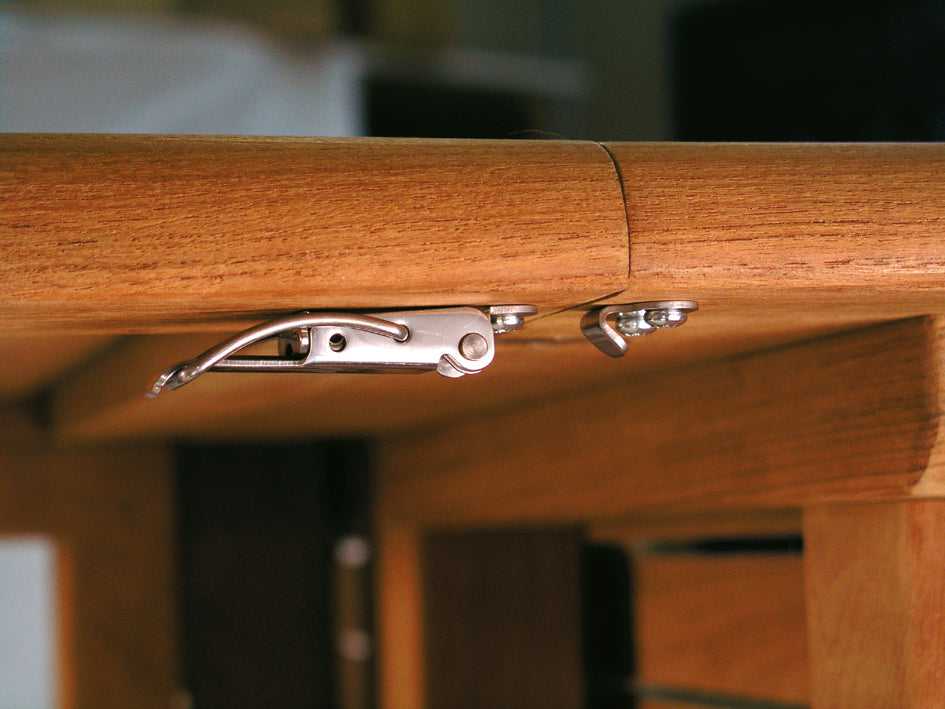

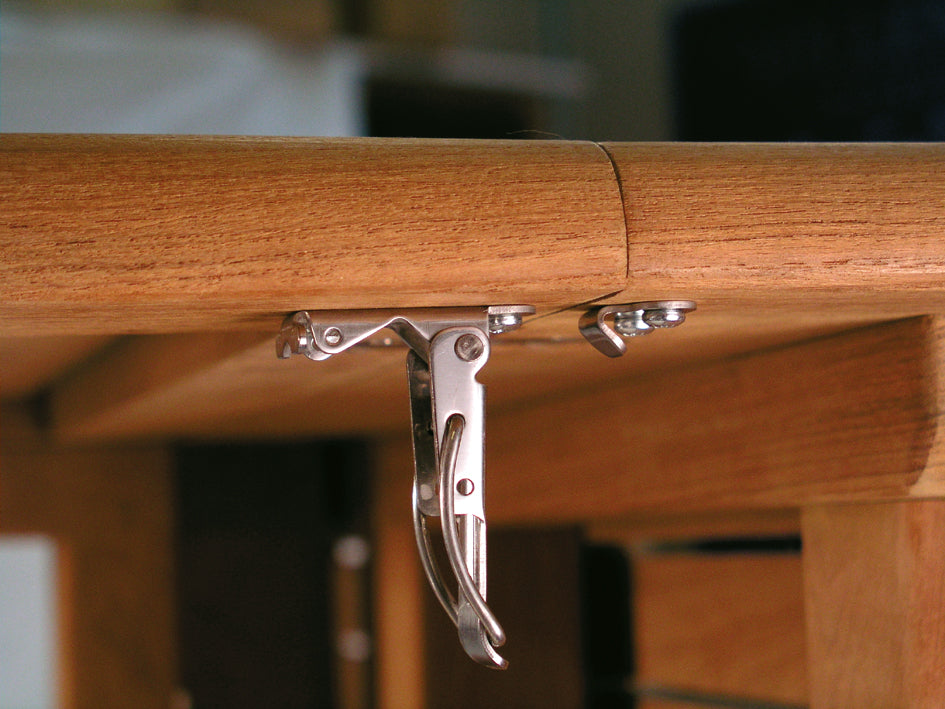

Application: [caption id="attachment_55385" align="alignnone" width="420"] Adjustable SUS304 (V2A) extendable table clamp with two position locks, 70 mm, from SISO, glossy polished. Application[/caption] Catch #22 tension lock made of SUS304 (V2A), glossy polished, for extending table, box, instrument case, worktop. The 24.03.000-1 extendable table clamps, also known as "CATCH #22 clamps," can be used to connect extendable table tops. Their over-center design makes them vibration-resistant. The special feature of the 24.03.000-1 extending table clamps is that the locking hooks can be secured under the table when opened, thus ensuring they are safely stowed away. This prevents scratches on the furniture surface and injuries. It also makes the extending table look more tidy. [caption id="attachment_55399" align="alignnone" width="420"] The pull-out table lock can be fixed in the upper position.[/caption] [caption id="attachment_55469" align="alignnone" width="420"] Extendable table clamp, not fixed at the top.[/caption] To compensate for tolerances, the clamp has a movable clamping hook. The CATCH #22 tension lock for extendable tables also offers the option of being secured when closed. The countertop tension lock has four holes on the sides through which a securing element, such as a cotter pin, can be inserted when closed. The clamping hook can be adjusted via a slotted hole to build up sufficient tension or to compensate for tolerances. The high-quality extendable table clamps 24.03.000-1 are ideal for connecting split table tops and for locking furniture, such as:

• Extendable table
• Box
• instrument case
• worktop

Material:

• The high-quality pull-out table clamps 24.03.000-1 are made of SUS304 (V2A)

Surface:

• Shiny polished

Assembly:

• The fastening is done with lens head wood screws Ø4 x 16 mm (not included in delivery) (for further details see assembly drawing )

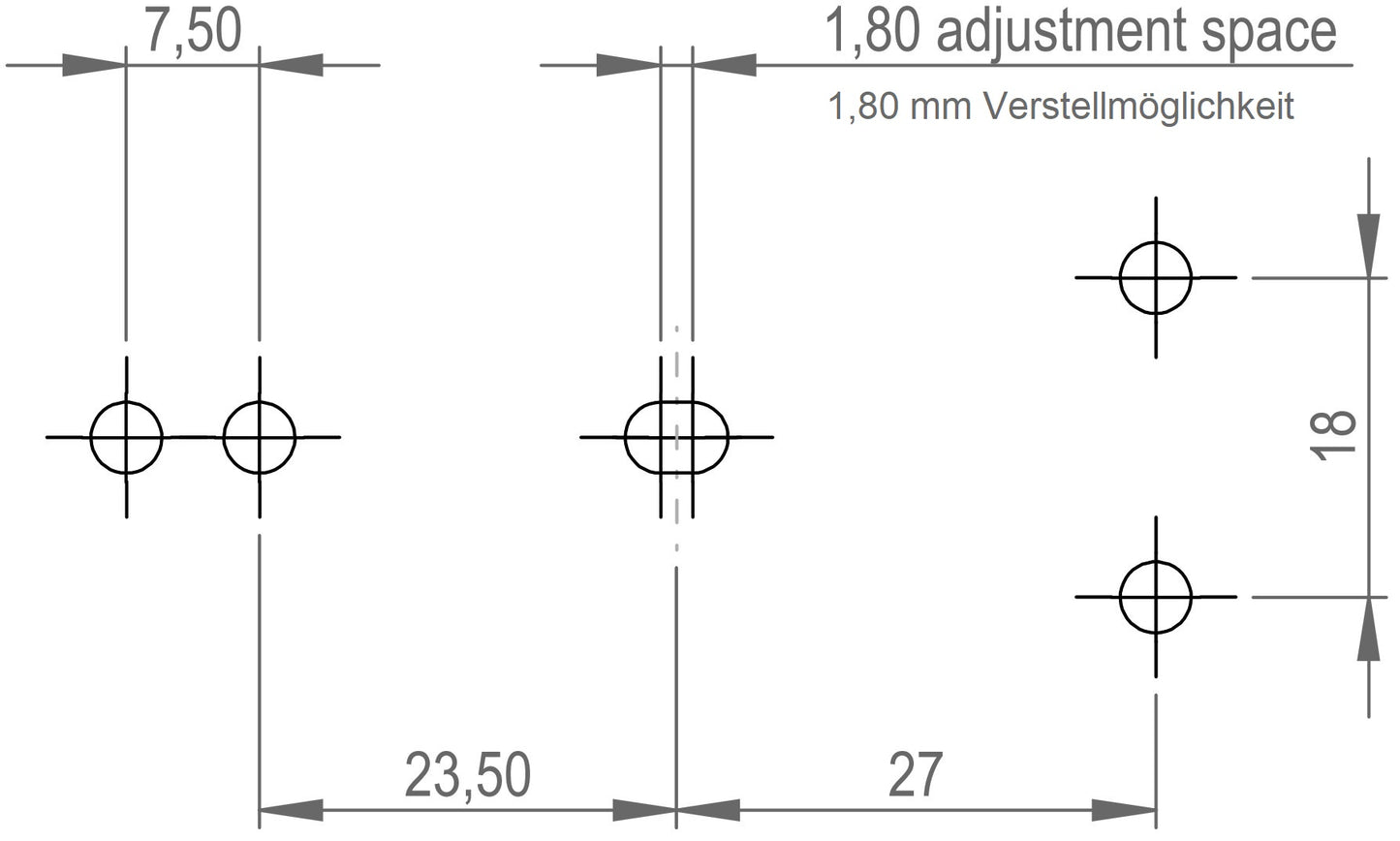

[caption id="attachment_55413" align="alignnone" width="420"] Adjustable SUS304 (V2A) extendable table clamp with two position locks, 70 mm, from SISO, glossy polished. Assembly drawing[/caption] Characteristics:

• Weight: 36 g
• Size: 70 mm (2.8″)
• Positional security in the closed state
• Position securing in the open state
• Adjustable
• Ergonomic
• Robust
• Made of SUS304 (V2A)
• Shiny polished
• High brand quality from UMAXO®

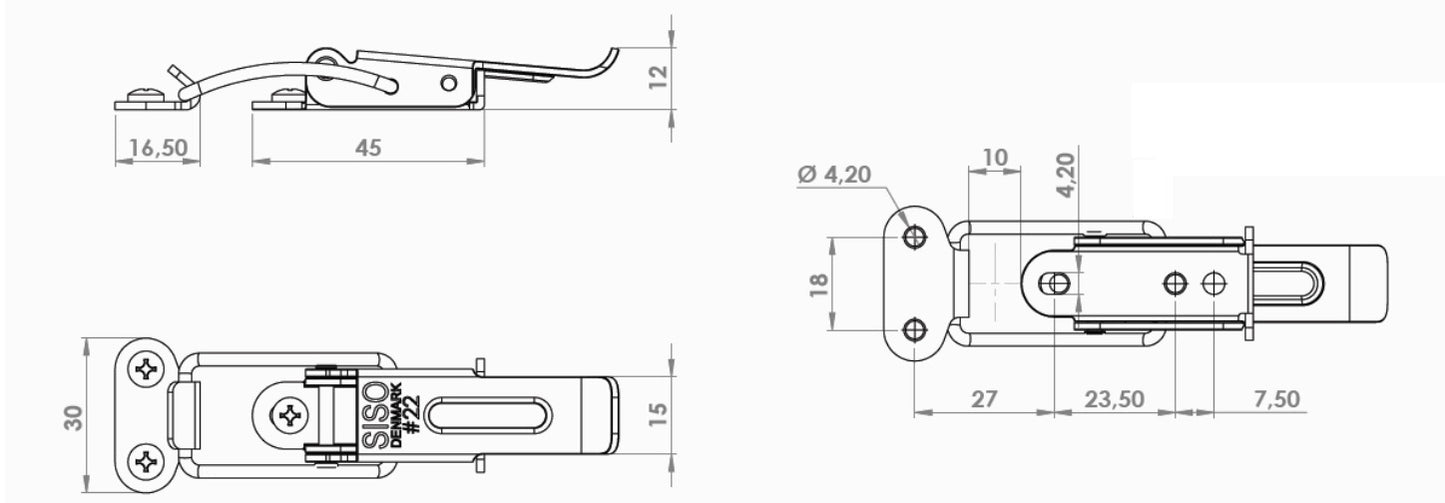

Dimensions: For further dimensions and details see technical drawing .

• Length of the extension table clamp lock: 70 mm (2-24/32″)
• Width: 30 mm (1-6/32″)
• Height: 12 mm (15/32″)
• Width of the locking lever: 15 mm (19/32″)
• Mounting plate length: 45 mm (1-25/32″)
• Length of the counter hook: 16.5 mm (21/32″)
• Distance between mounting holes: 18 mm (23/32″)

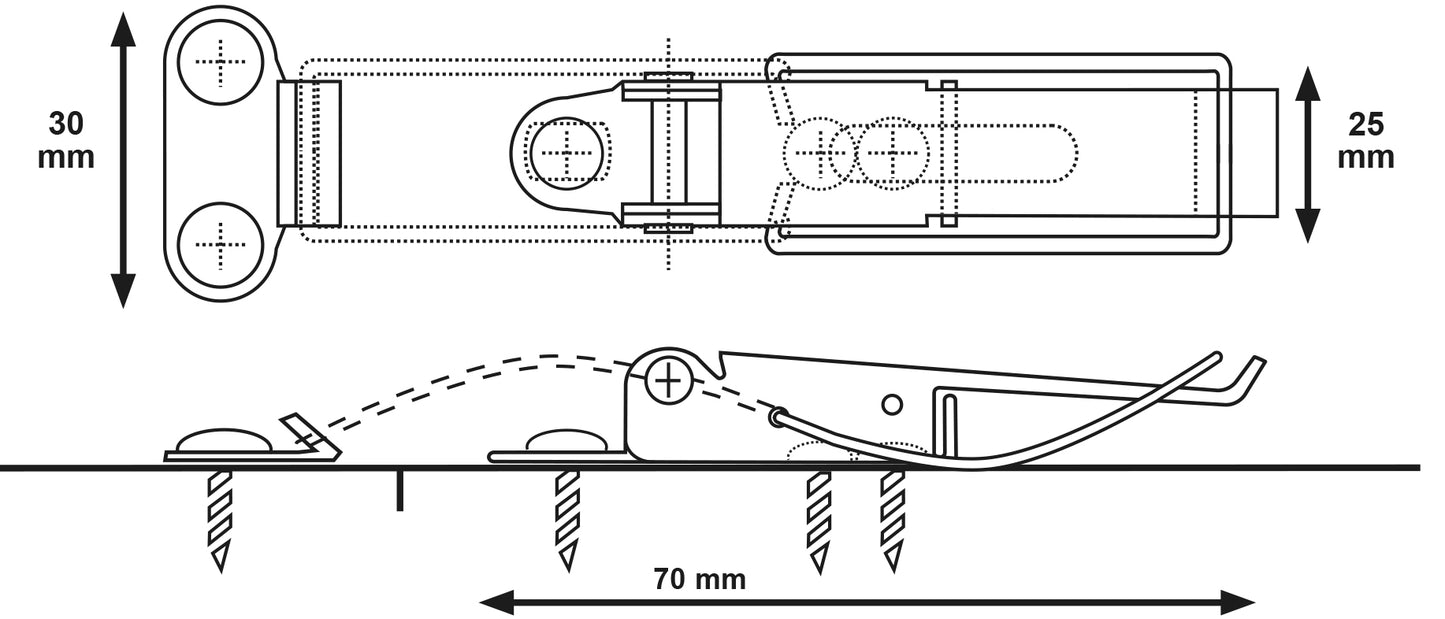

[caption id="attachment_55427" align="alignnone" width="420"] Adjustable SUS304 (V2A) extendable table clamp, with two position locks, 70 mm, from SISO, glossy polished. Technical drawing[/caption] [caption id="attachment_55357" align="alignnone" width="420"] Adjustable SUS304 (V2A) extendable table clamp, with two position locks, 70 mm, from SISO, glossy polished. Mounted drawing.[/caption] Included in delivery:

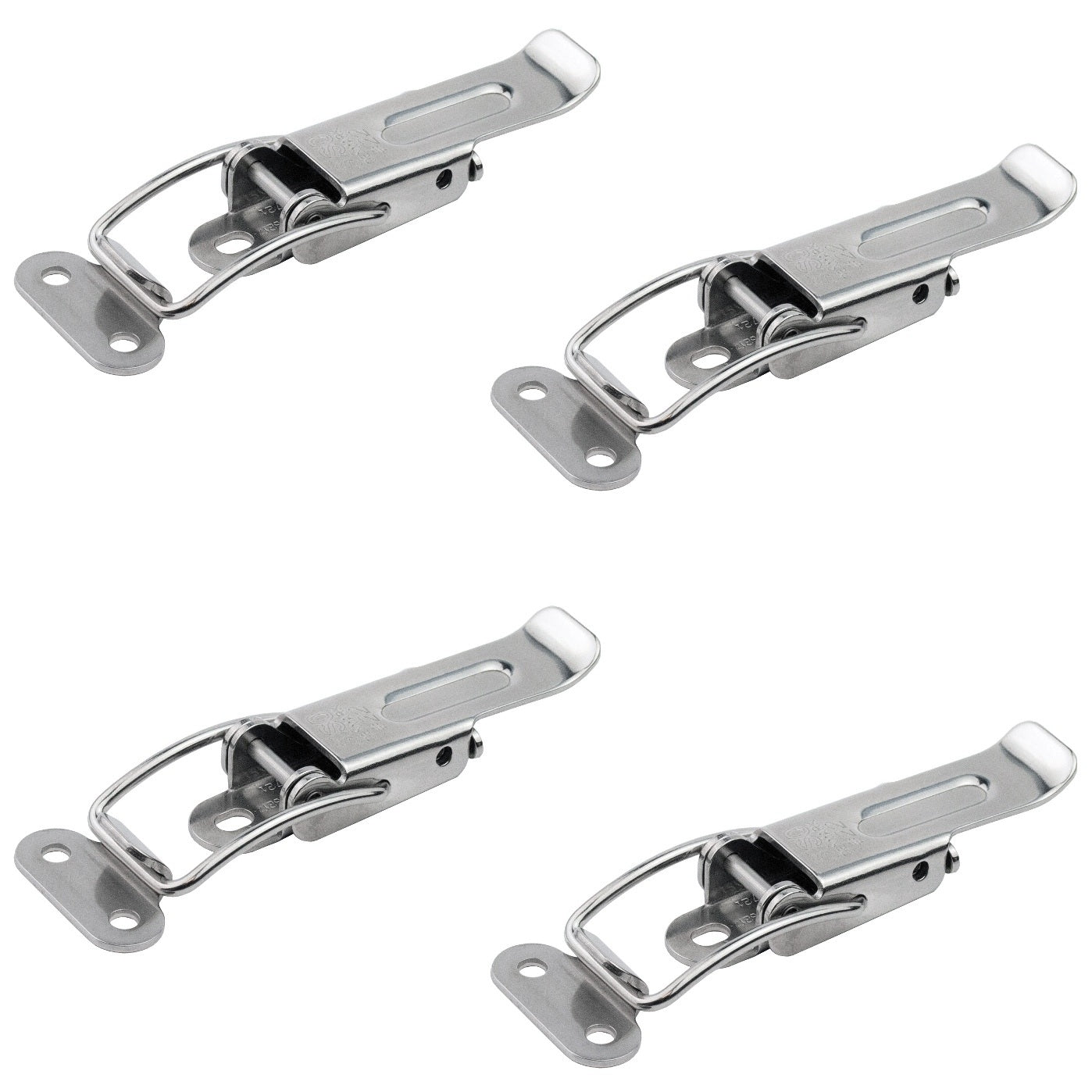

• 4 pieces of SISO extendable table clamp 24.03.000-1 (CATCH #22 clamp) made of SUS304 (V2A)
• 1 piece counter hook made of SUS304 (V2A)

Watch product video: Additional Information:

• • Download assembly instructions

Manufacturer reference number:

• • • Article identification number: 24.03.000-1
    • EAN number: 5704866087407

Manufacturer: SISO Denmark
