Hochwertiger abschließbarer Schaltschrankgriff mit Schließzylinder, aus Zamak, mit 8 mm Vierkant und zwei Schlüsseln, Ausführung: verschiedenschließend, 14.08.056-0. T-Griff aus Zamak für Schaltschrank, Spind, Fahrzeug und viel mehr, von SISO Denmark

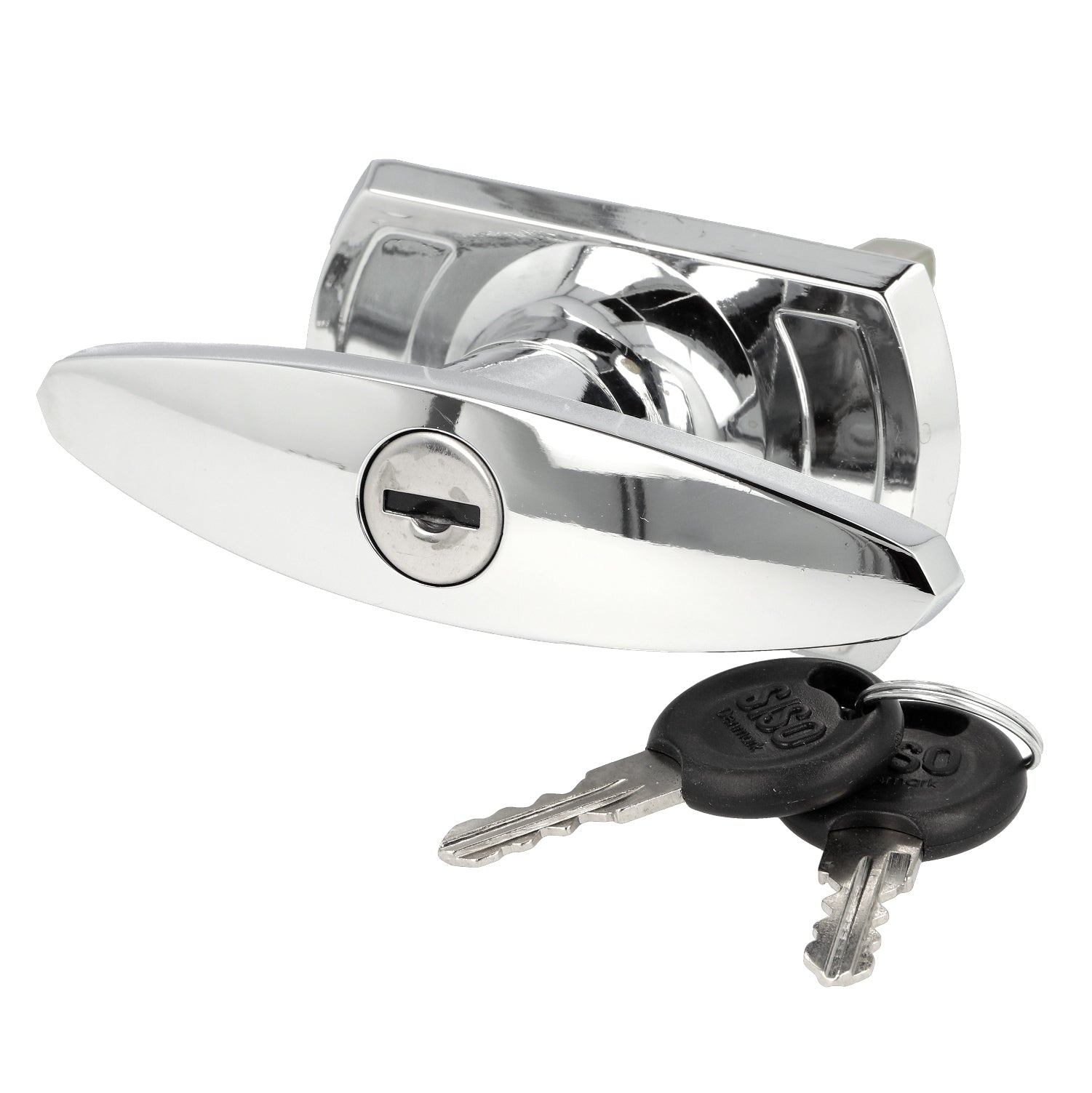

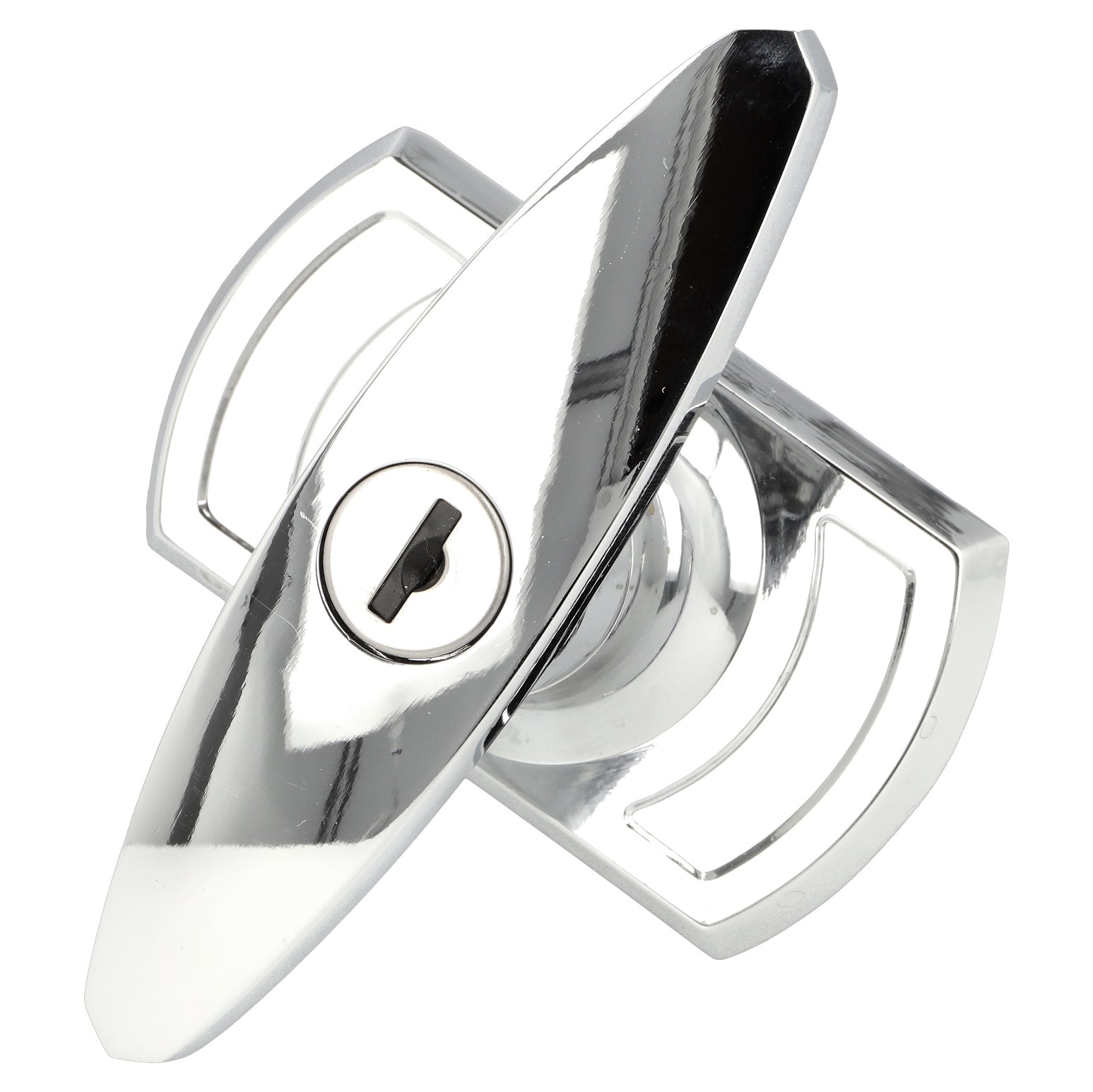

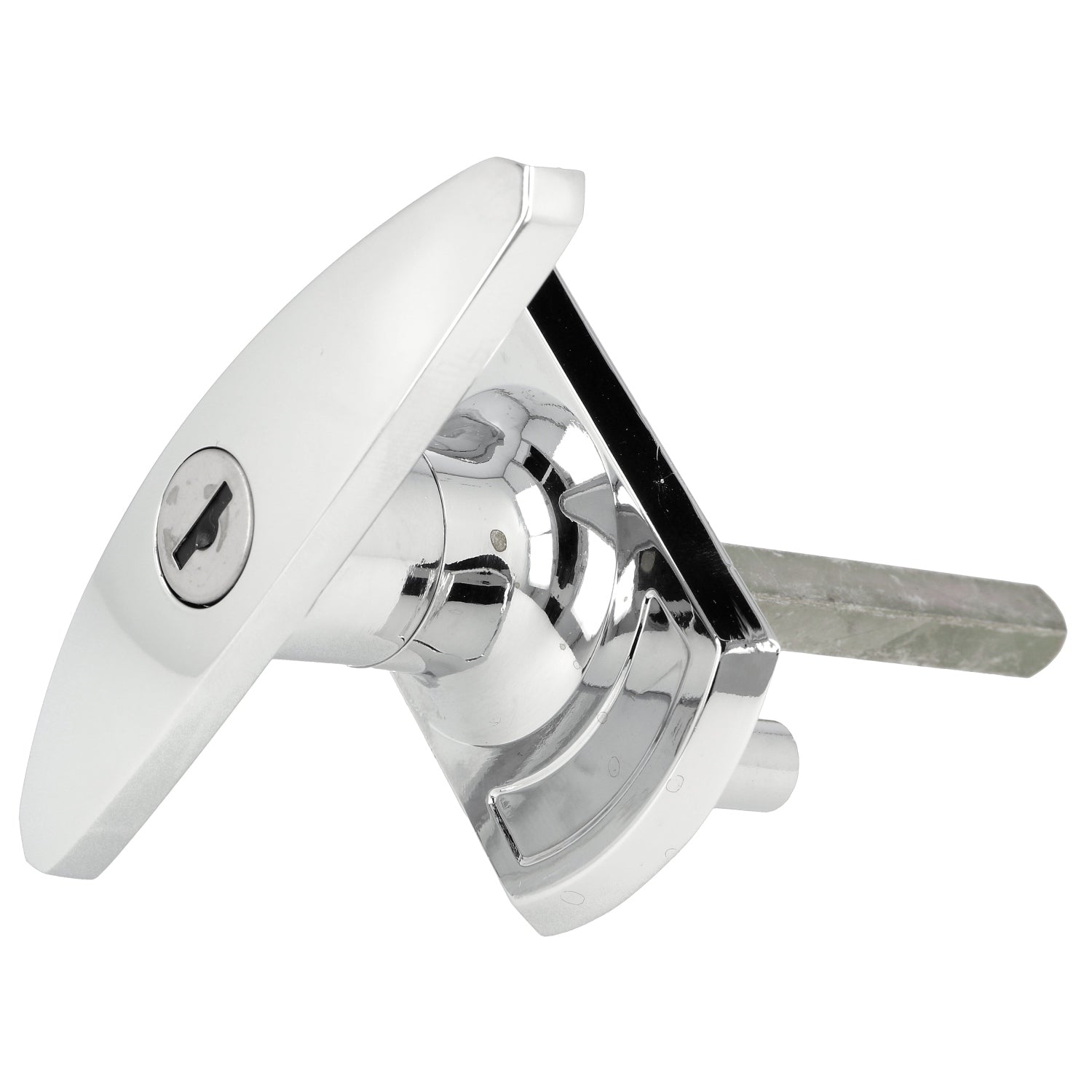

High-quality control cabinet handle, with permanently mounted cylinder and two keys, made of solid die-cast zinc, surface: chrome-plated, for internal mounting, 14.08.056-0, design: individually keyed

Application: T-handle made of Zamak for control cabinets, lockers, vehicles and much more. The T-handle 14.08.056-0 is suitable for locking metal cabinets, equipment, machines, special vehicles, housings and containers. To close the control cabinet handle 14.08.056-0, the handle must be turned 90 degrees and then the key must be turned 180 degrees. If necessary, the T-handle 14.08.056-0 can also be locked in the open position with the key, for example to prevent the door from being accidentally locked. The T-handle has a permanently mounted pin cylinder. No locking force: the key can be removed in the open and closed position. The high-quality control cabinet locks 14.08.056-0 have a simple and robust design and are ideal for, among other things:

• locker
• metal cabinet
• Sheet metal housing
• cabinet door
• ash box
• container
• Motorhome
• control cabinet
• locker
• vehicle

Material:

• The control cabinet locks 14.08.056-0 are made of solid die-cast zinc

Surface:

• Chrome-plated

Assembly:

• The mounting is done with M6 x 10 mm screws (not included)
• The T-handle 14.08.056-0 is for screwing

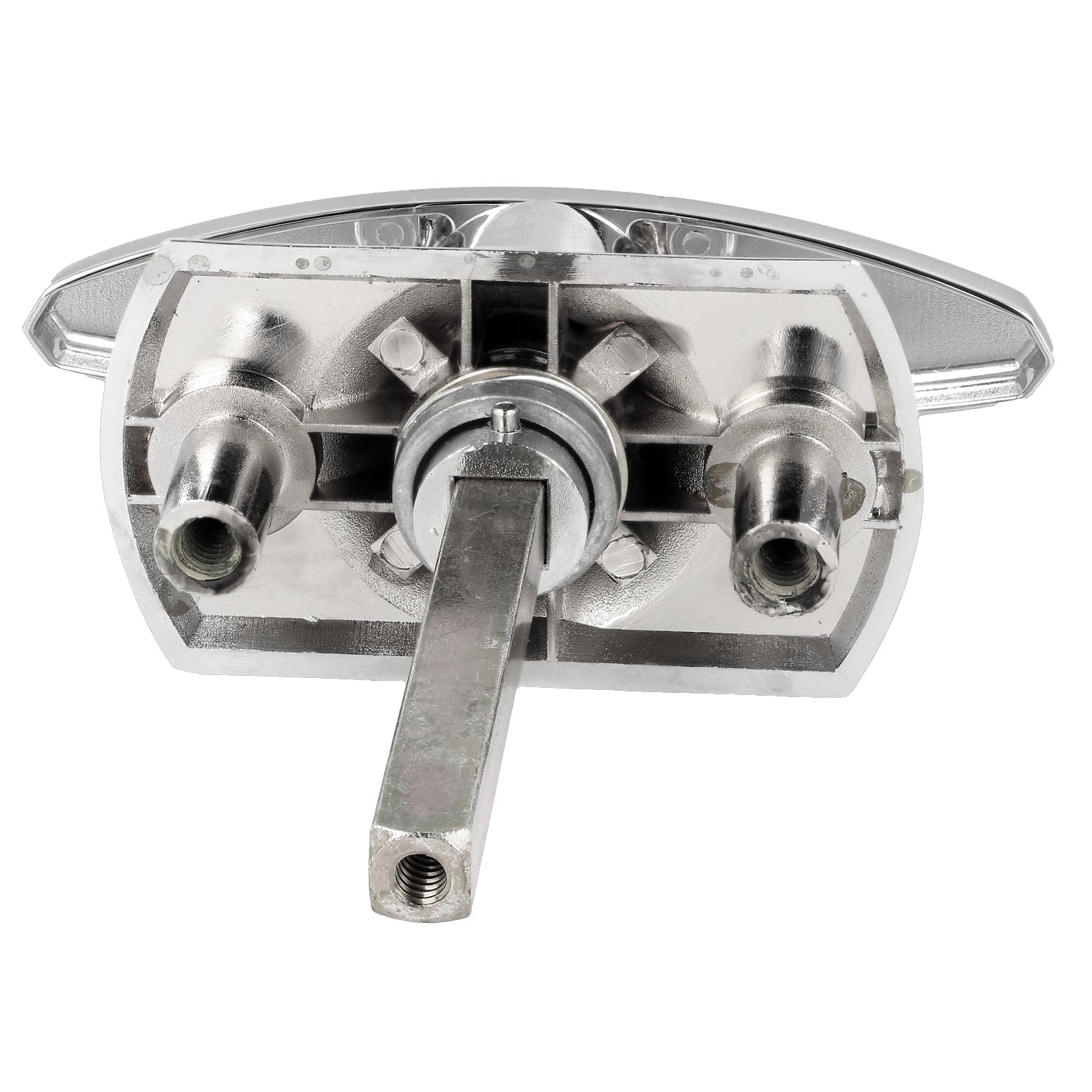

• The mounting plate of the control cabinet lock 14.08.056-0 has two mounting holes with the hole spacing: 51 mm (2-1/64″) (for further details see assembly drawing )

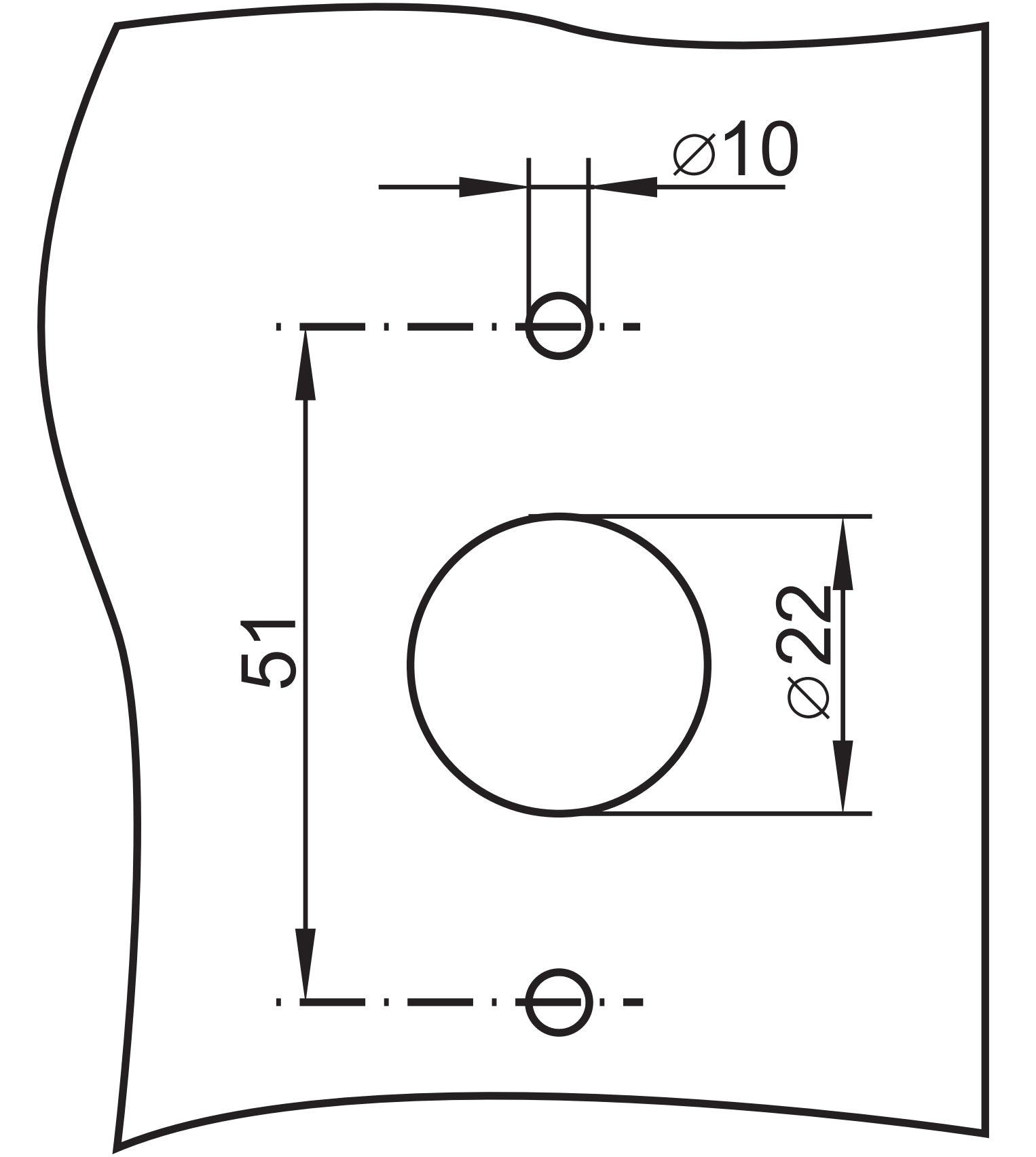

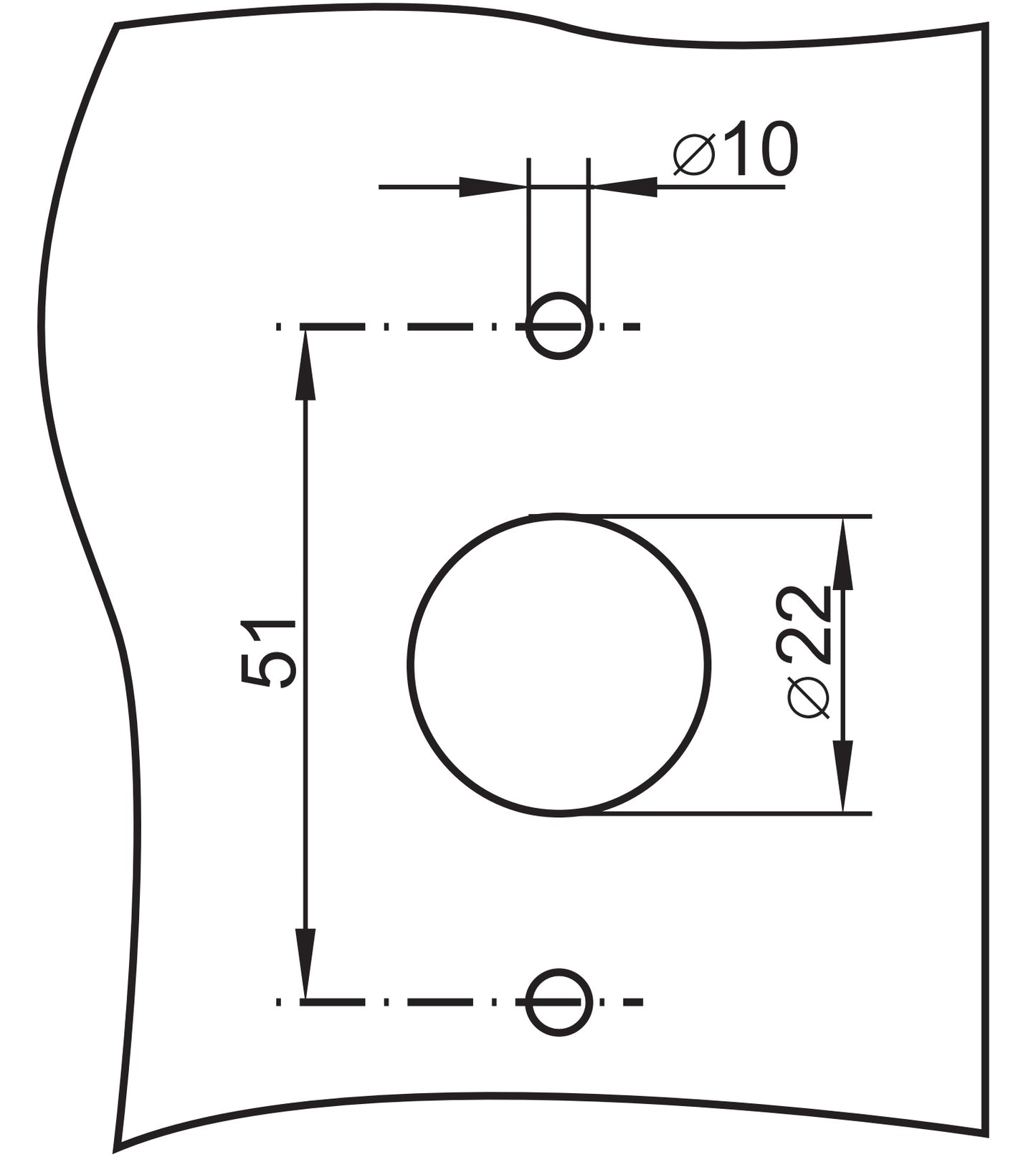

[caption id="attachment_128312" align="alignnone" width="376"] High-quality lockable control cabinet handle with locking cylinder, made of Zamak, with 8 mm square drive and two keys, from SISO, design: individually keyed. Assembly drawing[/caption] Characteristics:

• Design: individually keyed
• Weight: 241 g
• Size: 99 mm (3.9″)
• high quality
• with square: 8 x 8 mm (5/16″)
• without locking force
• Mounting type: internal mounting
• Reversible key (key fits into the lock on both sides)
• Hole spacing: 51 mm (2-1/64″)
• with permanently mounted pin cylinder
• Cylinder shape: round cylinder
• Closing movement: 90 degrees
• 400 different key variants
• Chrome-plated
• Zamac
• zinc die-casting
• high brand quality from UMAXO®

For further dimensions and details see technical drawing . The dimensions:

• Length of the control cabinet lock: 99 mm (3-57/64″)
• Mounting plate length: 75 mm (2-61/64″)
• Mounting plate width: 43 mm (1-11/16″)
• Hole spacing: 51 mm (2-1/64″)
• Square dimensions: 8 x 8 mm (5/16″)
• Length of square: 78 mm (3-5/64″)

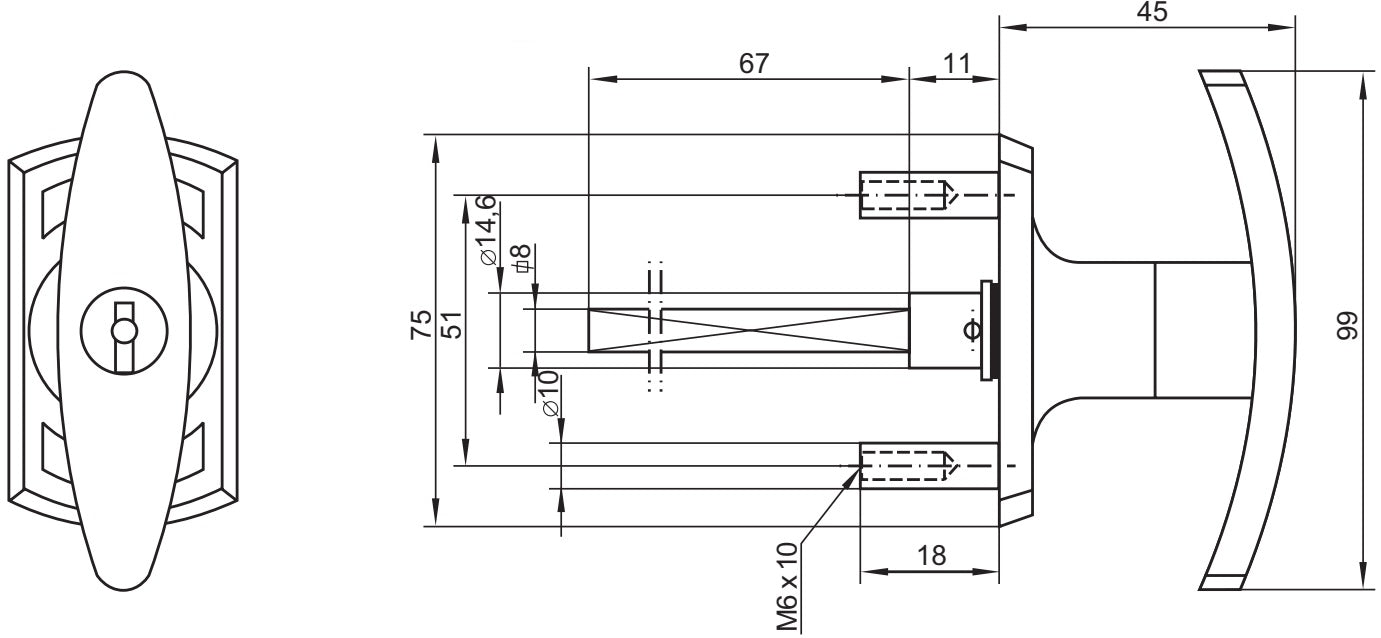

[caption id="attachment_128324" align="alignnone" width="420"] High-quality lockable control cabinet handle with locking cylinder, made of Zamak, with 8 mm square drive and two keys, from SISO. Design: individually keyed. Technical drawing[/caption] Included in delivery:

• 1 piece control cabinet handle 14.08.056-0 made of solid die-cast zinc, chrome-plated, with permanently mounted locking cylinder
• 2 keys (reversible key)

Additional Information:

• Download the Reach Declaration

Manufacturer reference number:

• Article number: 14.08.056-0
• EAN number: 5704866044929

Manufacturer: SISO Denmark
