8 pieces long oval magnetic counterplate with 2 countersunk holes, nickel-plated, 35 mm (1-3/8″), MC-YN001U for magnetic catch, magnetic closure, cabinet door

8 high-quality oval magnetic counterplates with 2 countersunk holes, made of robust steel, surface: nickel-plated, MC-YN001U (140-059-555), size: 35 mm (1-3/8″)

Application:

Magnetic counterpart for magnetic catches, magnetic closures, cabinet doors and much more.

The magnetic counter plate MC-YN001U (140-059-555) made of robust steel serves as a counterpart to magnetic catches and push-to-open magnetic closures.

The magnetic counterpart MC-YN001U is suitable for all magnetic closures and push-magnet closures.

Thanks to its compact size of only 35 mm (1-3/8″) x 15 mm (19/32″), it can be discreetly mounted on wooden or metal doors.

The 1.2 mm (3/64″) thin design of the MC-YN001U magnetic counterpart prevents gaps and makes it easier to adjust the front.

Thanks to the galvanized surface, the MC-YN001U magnetic counter plate is corrosion-resistant.

This ensures safe closing and opening without handles.

The high-quality magnetic counter plates MC-YN001U (140-059-555) are ideal for, among other things:

• Furniture doors
• Push-to-open magnetic closures
• Magnetic catch
• Magnetic closure
• cabinet door

Material:

• The magnetic counter plates 140-059-555 are made of robust steel
• Steel is ideal for furniture fittings as it is both robust and durable, ensuring high load-bearing capacity and a long service life of the fittings

Surface:

• Nickel-plated
• Nickel-plated surfaces are characterized by their high corrosion resistance and durability, making them ideal for use in damp rooms such as kitchens and bathrooms
• They offer an elegant, shiny look that is modern yet timeless
• They are also easy to maintain as they make dirt and fingerprints less visible and are easy to clean

Assembly:

• Fastening is done with 4 x 16 mm countersunk chipboard screws, self-tapping (not included)
• The magnetic counter plate MC-YN001U is aligned on the inside of the door so that it sits exactly opposite the magnetic lock
• The counter plate has 2 mounting holes with a diameter of ⌀4.6 mm (3/16″)
• The distance between the mounting holes (hole spacing) is 25 mm (63/64″)
• Two 2 mm centering holes are drilled and the magnet counterpart 140-059-555 is then screwed tight with 2 chipboard screws, with the screw head flush in the countersink
• The function should then be tested by closing the door and operating the push-to-open mechanism
• If necessary, the screw is loosened slightly and the magnetic counter plate 140-059-555 is moved slightly

Characteristics:

• Weight: 4 g
• Size: 35 mm (1-3/8″)

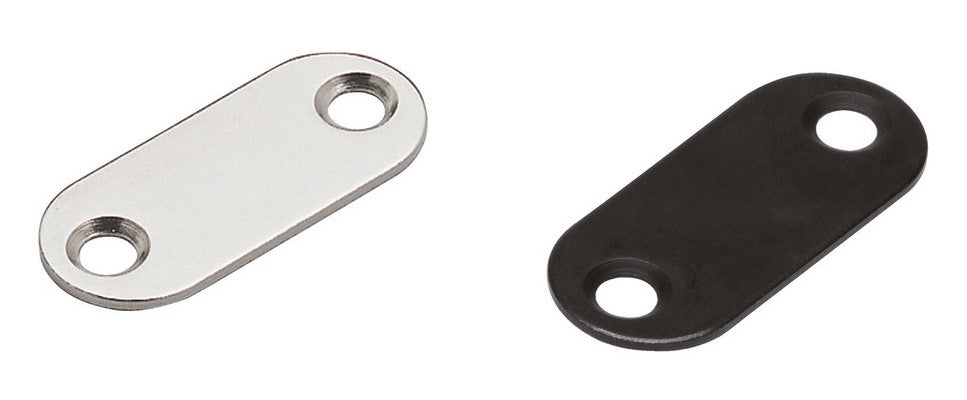

• Available in 2 surface colors: nickel-plated and black
• easy to assemble
• practical
• stable
• Material thickness: 1.2 mm (3/64″)
• Langoval
• High corrosion resistance
• Suitable for wood, MDF and metal
• nickel-plated
• Steel
• robust
• high brand quality from Sugatsune / LAMP®

The dimensions:

• Length of the magnet counterpart: 35 mm (1-3/8″)
• Width: 15 mm (19/32″)
• Mounting hole diameter ⌀4.6 mm (3/16″)
• Thickness of the magnet counterpart (material thickness): 1.2 mm (3/64″)

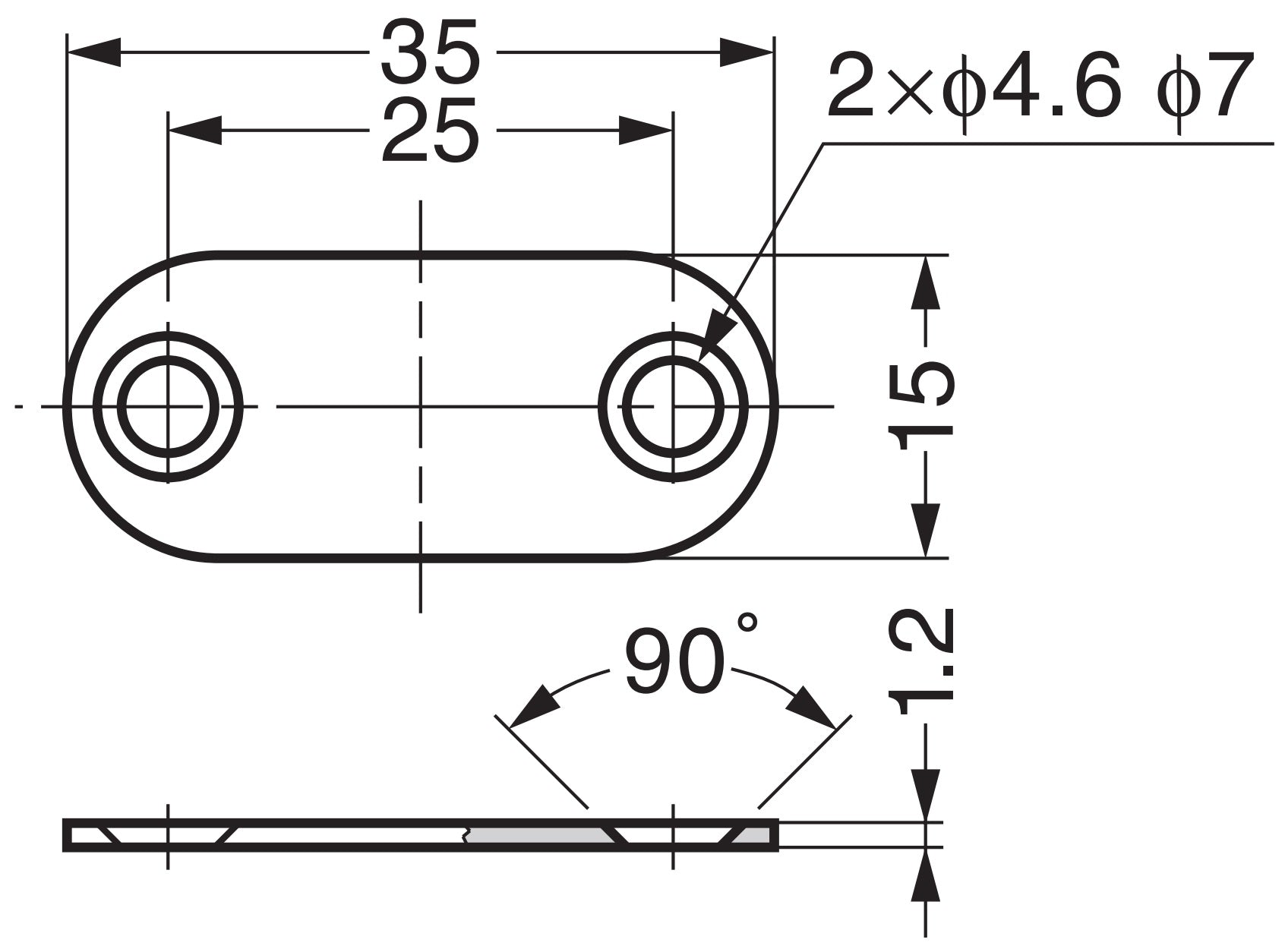

For further dimensions and details see technical drawing .

Included in delivery:

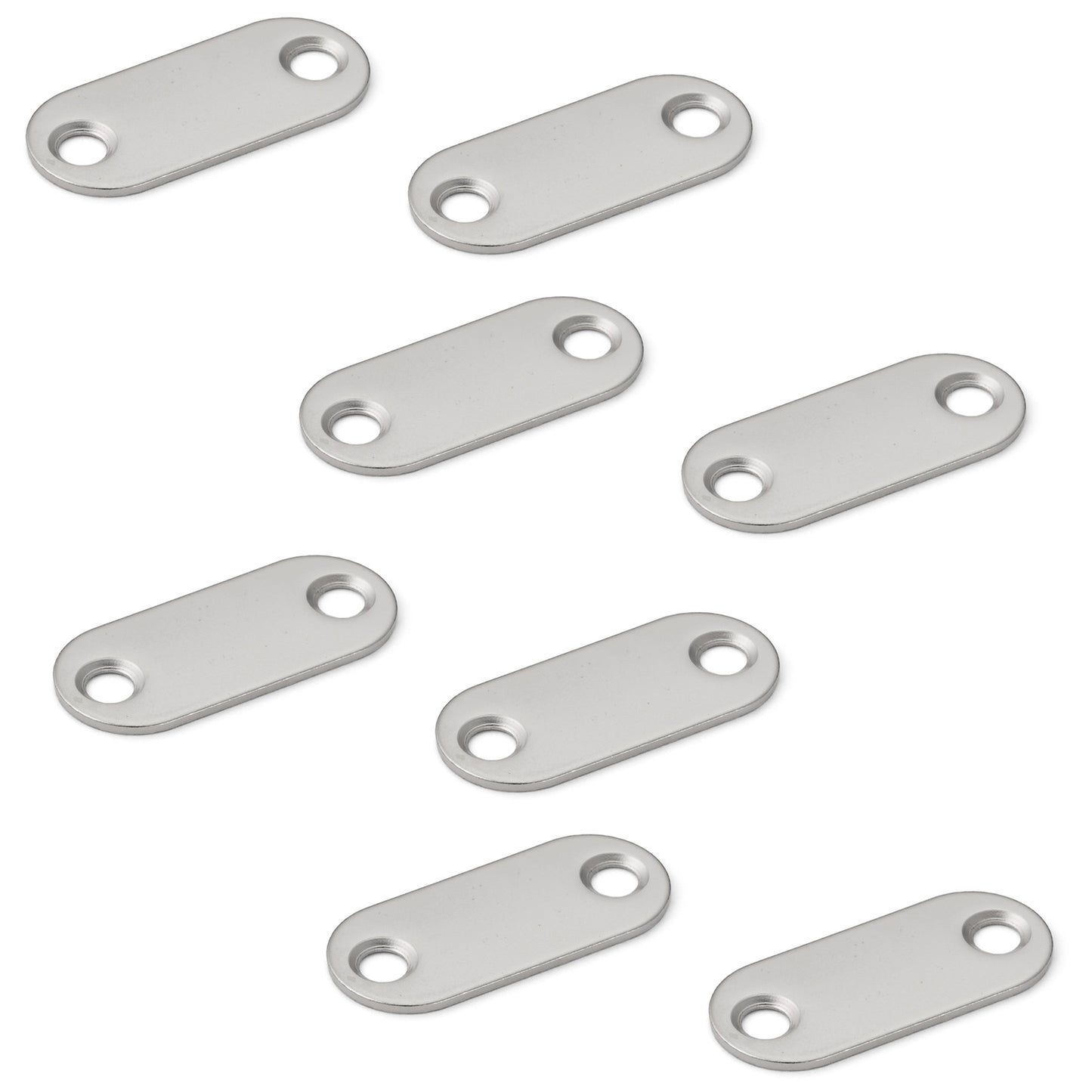

• 8 pieces magnetic counter plate 140-059-555 made of robust steel, nickel-plated
• Please note that the mounting screws are not included in delivery

Manufacturer reference number:

• Article number: 140-059-555
• Item number: MC-YN001U
• EAN number: 4510932017077

Manufacturer:Sugatsune / LAMP® (Japan)
