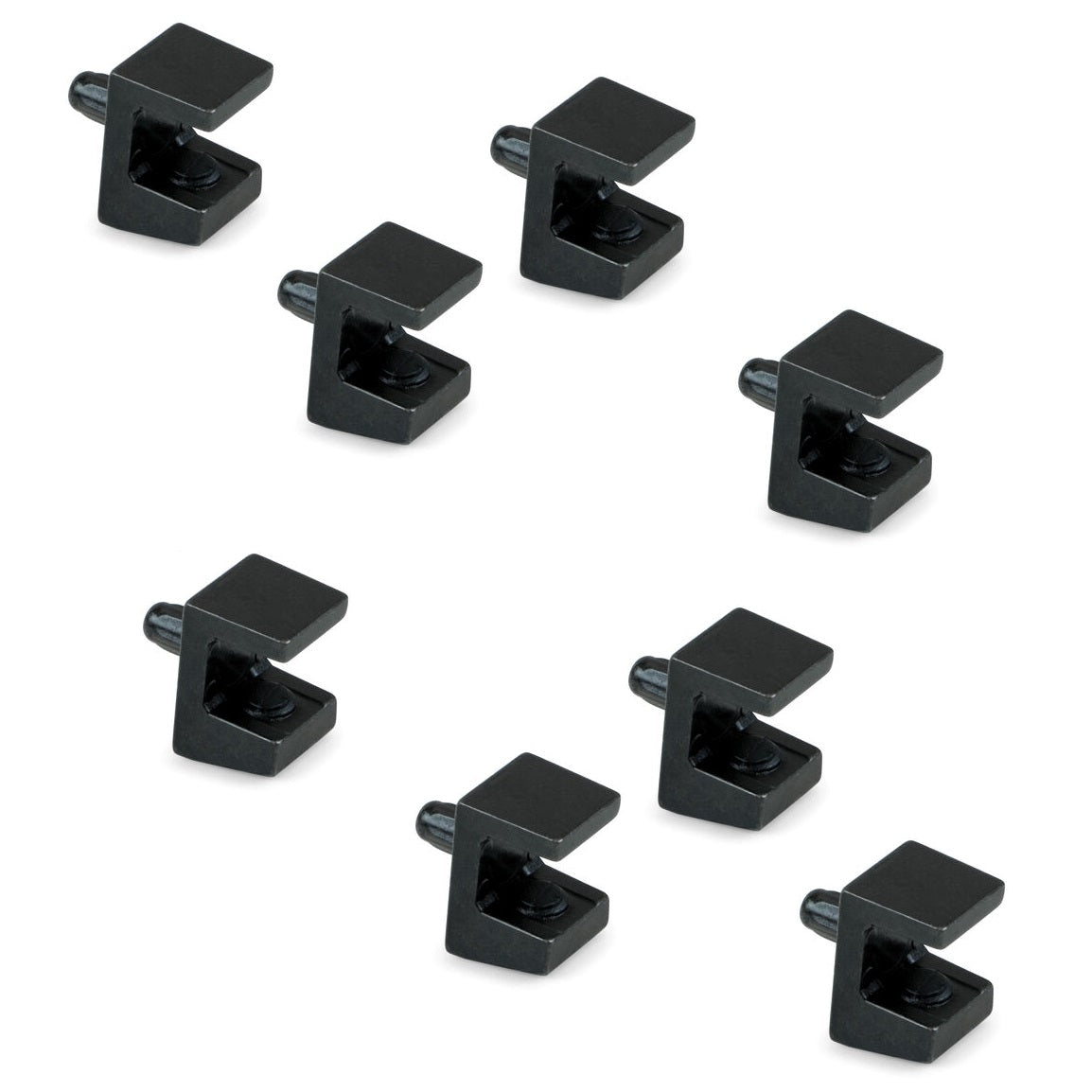

8 pieces of high-quality glass shelf supports, surface: black, 5 mm (13/64″), 4007953 for glass shelves, glass cabinet shelves, bathroom cabinets

Eight high-quality glass shelf supports, made of solid die-cast zinc, surface: black, 4007953, size: 5 mm (13/64″)

Application:

Glass shelf holders for glass shelves, glass cabinet shelves, bathroom cabinets and much more.

This glass shelf support 4007953 is suitable for the secure and stylish attachment of glass shelves.

Suitable for glass thickness from 6 mm (15/64″) to 8 mm (5/16″).

The glass shelf holder 4007953 is made of Zamak with a transparent plastic insert to protect the glass from scratches.

The integrated plastic support fixes the glass in place and dampens vibrations, so that sensitive floors remain permanently protected.

The 5 mm (13/64″) insert bolt makes it compatible with standardized furniture holes.

The system is particularly suitable for display cabinets, living room walls or bathrooms.

The combination of metal and plastic of the glass shelf support 4007953 offers both stability and protection for sensitive glass surfaces.

The high-quality glass shelf supports 4007953 are ideal for, among others:

• shelves
• kitchen cabinets
• Display cases
• bathroom furniture
• Home furniture
• Glass shelves
• Glass cabinet shelves
• Bathroom cabinets

Material:

• The glass shelf supports 4007953 are made of solid die-cast zinc
• Industrial and furniture fittings made of Zamak offer a high-quality look and feel that is durable and valuable
• Due to their high stability and corrosion resistance, they remain reliable and rust-free even with daily use
• In addition, they are often cheaper than solid brass or stainless steel fittings without compromising on quality

Surface:

• Black
• Black surfaces exude a timeless elegance and can help make a room appear more luxurious and stylish
• While interior design styles may change, black always remains a safe choice that can easily be adapted to new trends
• Black surfaces can be used in different rooms, be it the kitchen, living room or office

Assembly:

• The glass shelf holder 4007953 is inserted into the pre-drilled mounting hole with a diameter of ⌀5 mm (13/64″) and a depth of at least 8 mm (5/16″) in the cabinet wall
• At least four glass shelf supports 4007953 are required to attach a shelf
• The shelf is placed on the glass shelf holder 4007953
• The center of the mounting hole on the cabinet wall must be positioned 4 mm below the desired position of the shelf
• Then the clamping screw of the glass shelf support is tightened so that the glass shelf is firmly attached (for further details see assembly drawing ).

Characteristics:

• Weight: 8.35 g
• Size: 5 mm (13/64″)
• For glass thickness from 6 mm (15/64″) to 8 mm (5/16″)
• easy to assemble
• practical
• stable
• black
• Zamac
• zinc die-casting
• high brand quality from UMAXO®

The dimensions:

• Shelf support height: 18.5 mm (47/64″)
• Width: 13.2 mm (33/64″)
• Depth: 12 mm (15/32″)
• Length of the fixing pin: 8 mm (5/16″)
• Diameter of the fixing pin: ⌀5 mm (13/64″)

For further dimensions and details see technical drawing .

Included in delivery:

• Eight pieces of glass shelf supports 4007953 made of solid die-cast zinc, black

Manufacturer reference number:

• Article number: 4007953
• EAN number: 8432393133140

Manufacturer: EMUCA
