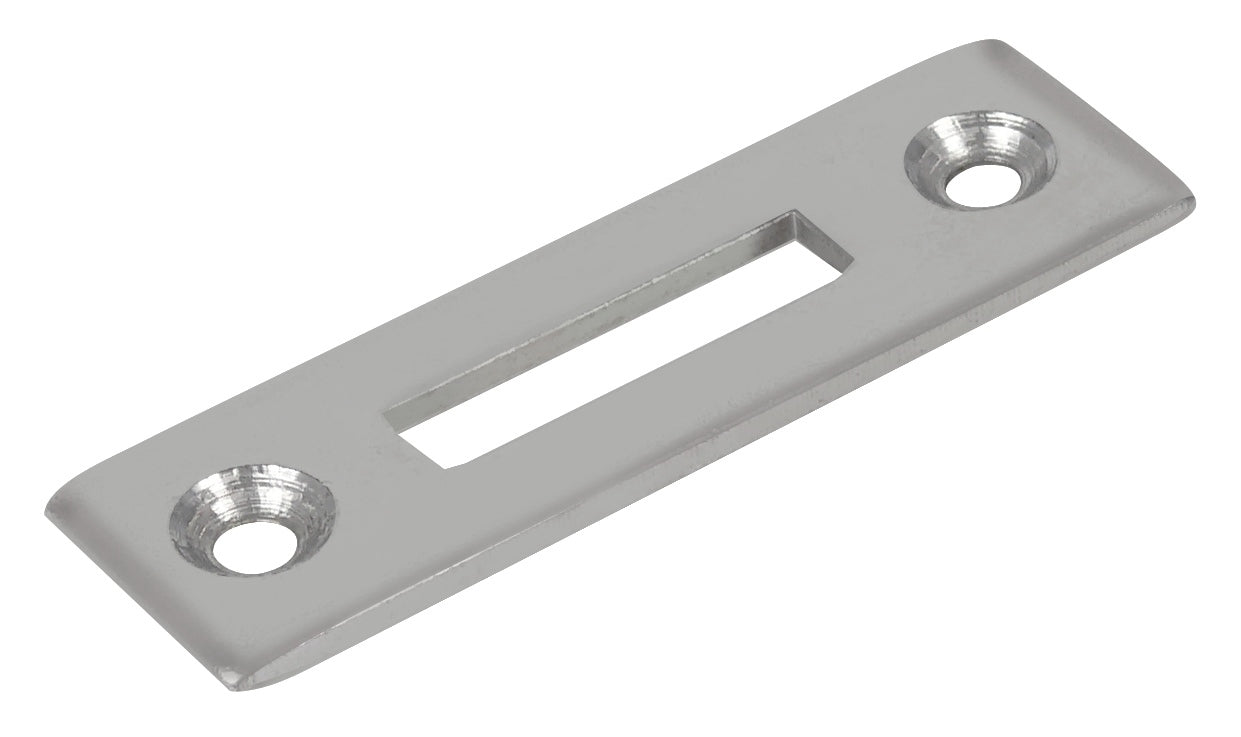

6 pieces of robust screw-on strike plate, made of steel, surface: nickel-plated, 50 mm (1-31/32″), 14.01.510-1 for roller shutter lock, sliding door lock, furniture lock

Six pieces of solid screw-on strike plate 14.01.510-1, made of robust steel, surface: nickel-plated, size: 50 mm (1-31/32″)

Application:

Screw-on counter plate for roller shutter locks, sliding door locks, furniture locks and much more.

The practical screw-on counterplate 14.01.510-1 is used for locking roller shutters and sliding furniture doors. It accommodates a bolt or latch and secures the closed position.

The two locking hooks spread out in the strike plate after closing, thus ensuring stable locking of roller blinds or sliding doors.

The 14.01.510-1 strike plates are suitable for installation in new furniture as well as for repairing existing cabinets.

The high-quality strike plates 14.01.510-1 are ideal for, among others:

• roller shutter lock
• Sliding door lock
• Furniture lock

Material:

• The striking plates 14.01.510-1 are made of robust steel
• Material thickness: 2 mm (5/64″)
• Steel is ideal for furniture fittings as it is both robust and durable, ensuring high load-bearing capacity and a long service life of the fittings

Surface:

• Nickel-plated
• Nickel-plated surfaces are characterized by their high corrosion resistance and durability, making them ideal for use in damp rooms such as kitchens and bathrooms
• They offer an elegant, shiny look that is modern yet timeless
• They are also easy to maintain, as they make dirt and fingerprints less visible and are easy to clean

Assembly:

• The attachment is done with 2.5 mm to 2.9 mm screws (not included)
• Screw-on strike plate 14.01.510-1 is for screwing
• The screw-on counter plate 14.01.510-1 has two mounting holes with a diameter of ⌀3 mm
• The distance between the mounting holes is 38 mm (1-1/2″)

Characteristics:

• Weight: 11 g
• Size: 50 mm (1-31/32″)
• easy to assemble
• practical
• stable
• can be used left or right
• nickel-plated
• Steel
• robust
• high brand quality from UMAXO®

The dimensions:

• Strike plate height: 50 mm (1-31/32″)
• Width: 15 mm (19/32″)
• Width of the bolt cutout: 22 mm (55/64″)
• Height of the bolt cutout: 7 mm (9/32″)

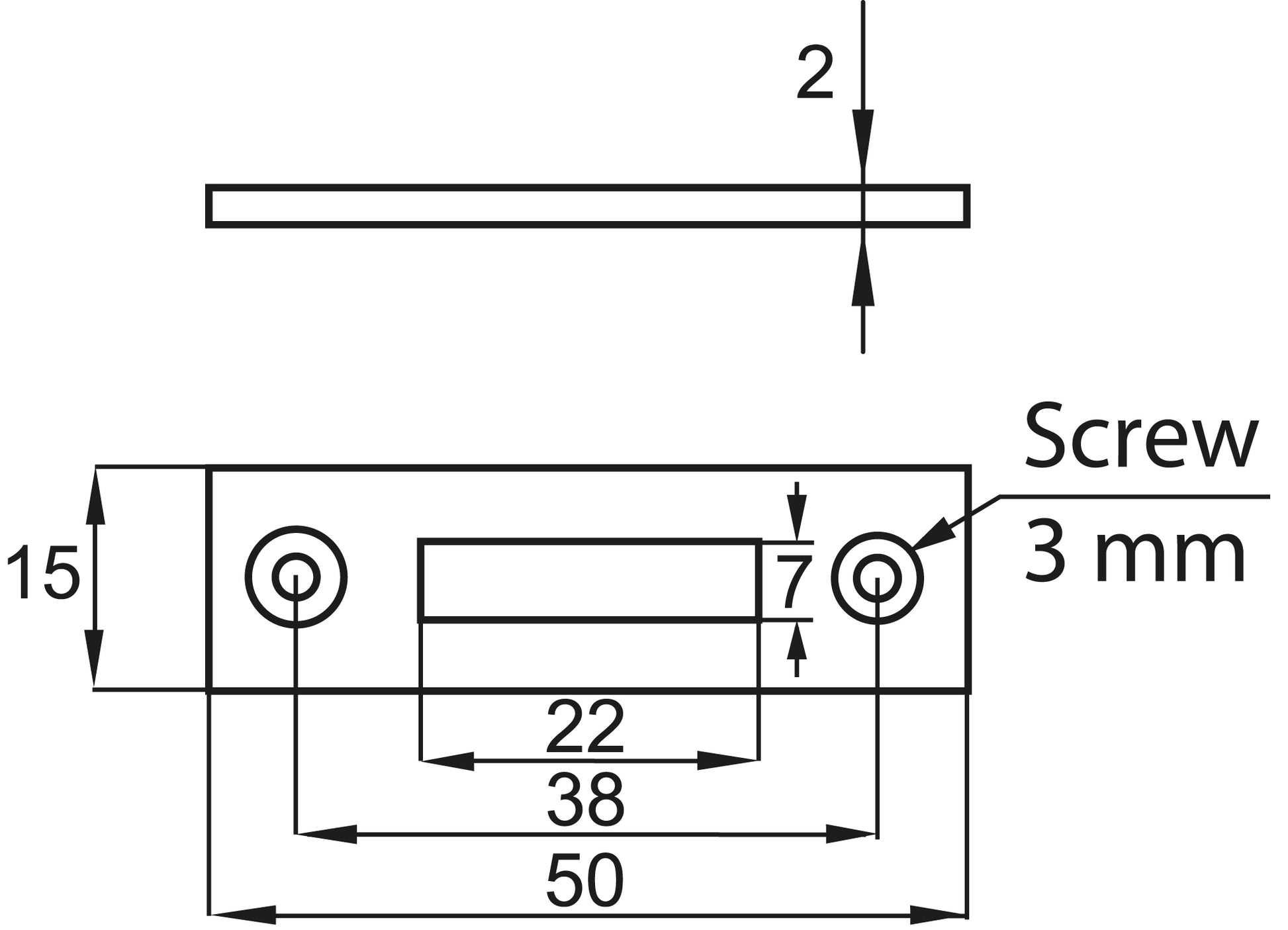

For further dimensions and details see technical drawing .

Included in delivery:

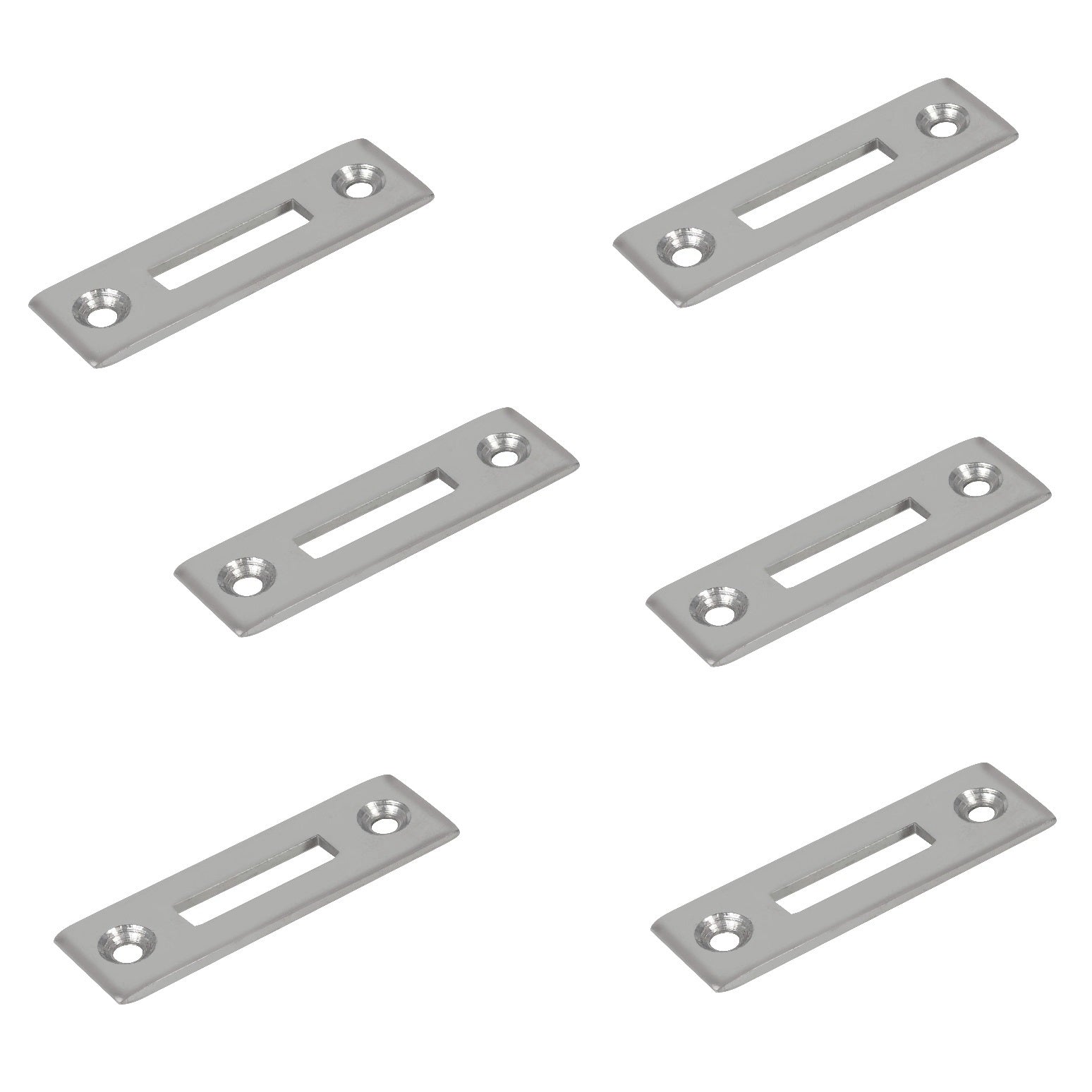

• Six pieces of screw-on strike plate 14.01.510-1 made of robust steel, nickel-plated

Additional Information:

• Download the Reach Declaration

Manufacturer reference number:

• Article number: 14.01.510-1
• EAN number: 5704866033732

Manufacturer: SISO Denmark
