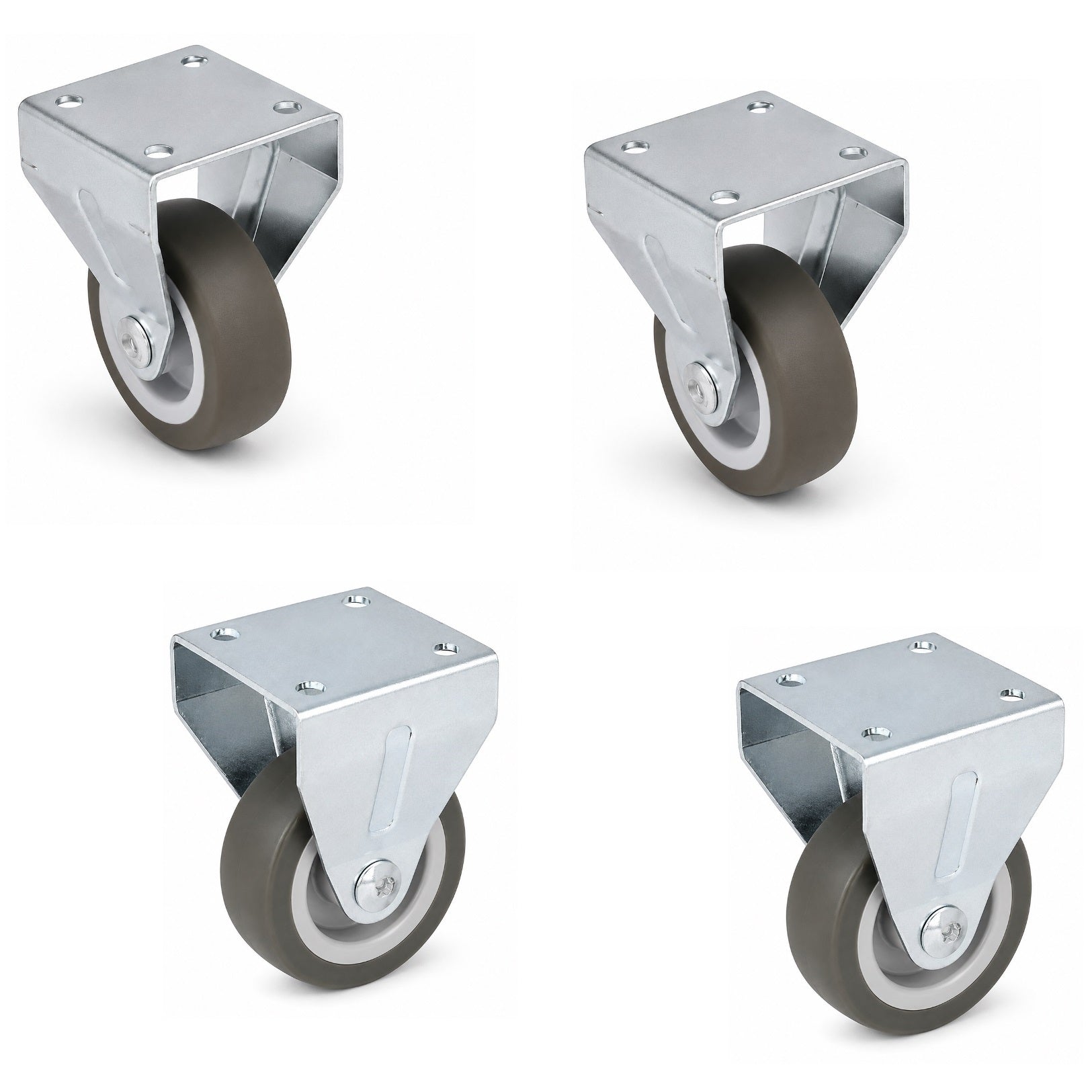

4 pieces of soft furniture caster, made of robust steel, surface: galvanized, 08.12.150-1, diameter: ⌀50 mm (1-31/32″), load capacity: 120 kg (265 lbs)

Application:

Soft fixed caster for furniture, cabinets, rolling containers, shelves, side tables and much more.

The fixed caster 08.12.150-1 from SISO serves as a robust running wheel for mobile furniture, equipment and smaller transport constructions.

The ⌀50 mm (1-31/32″) wheel with a gray soft rubber tread allows for a quiet and floor-friendly run and is particularly recommended for hard floor surfaces.

Due to the fixed caster fork, the wheel moves specifically in one direction, providing stable tracking.

The 45 x 45 mm (1-49/64″) screw-on plate allows for compact and resilient attachment to furniture bases and substructures.

With a dynamic load capacity of 30 kg per caster, the fixed caster is also suitable for comparatively heavy furniture and mobile installations.

The combination of galvanized steel and a soft rubber tread combines a robust construction with pleasant running properties and is particularly suitable for furniture, shop and interior design.

The high-quality furniture casters 08.12.150-1 are ideally suited for, among other things:

• Serving trolleys
• Devices
• Transport trolleys
• Sales displays
• Mobile furniture
• Furniture
• Cabinets
• Rolling containers
• Shelves
• Side tables

Material:

• The furniture casters 08.12.150-1 are made of robust steel
• Fork and screw-on plate: sheet steel, 1.5 mm
• Surface of metal parts: bright galvanized
• Tread: soft rubber
• Steel is ideal for furniture fittings and industrial fittings, as it is both robust and durable, which ensures high load capacity and long service life of the fittings

Surface:

• Galvanized
• The galvanized surface protects against rust and corrosion
• Wheel core: black
• Tread: grey

Assembly:

• Fastening is done with wood screws ⌀4.5 to 5 mm (not included in delivery)
• First, the desired position of the fixed caster on the underside of the furniture piece must be determined
• Then, the 45 x 45 mm (1-49/64″) screw-on plate is aligned and the position of the four mounting holes with a hole spacing of 30 x 30 mm (1-3/16″) is marked
• For wood and wood-based materials, the screw holes should be pre-drilled if necessary, depending on the material used
• The fixed caster is then firmly screwed to the furniture base with four suitable wood screws through the ⌀5.5 mm (7/32″) mounting holes
• For multiple casters, the fixed casters must be aligned parallel to each other so that the furniture piece runs cleanly straight

Features:

• Weight: 102.5 g (for 4 pieces: 410 g)
• Load capacity: 120 kg (265 lbs) - for 4 pieces
• Diameter: ⌀50 mm (1-31/32″)
• Easy to assemble
• Practical
• Stable
• Dynamic load capacity 30 kg
• Static load capacity 45 kg
• Fixed, non-swiveling caster fork
• Metal parts made of 1.5 mm thick steel
• Metal parts brightly galvanized
• Gray tread made of soft rubber
• Suitable for hard floor surfaces
• Without brake
• Galvanized
• Steel
• Robust
• High brand quality from UMAXO®

The dimensions:

• Wheel diameter: ⌀50 mm (1-31/32″)
• Wheel width: 20 mm (25/32″)
• Overall height: 73 mm (2-7/8″)
• Screw-on plate: 45 x 45 mm (1-49/64″)
• Plate thickness: 1.5 mm (1/16″)
• Hole spacing: 30 x 30 mm (1-3/16″)
• Diameter of mounting holes: ⌀5.5 mm (7/32″)

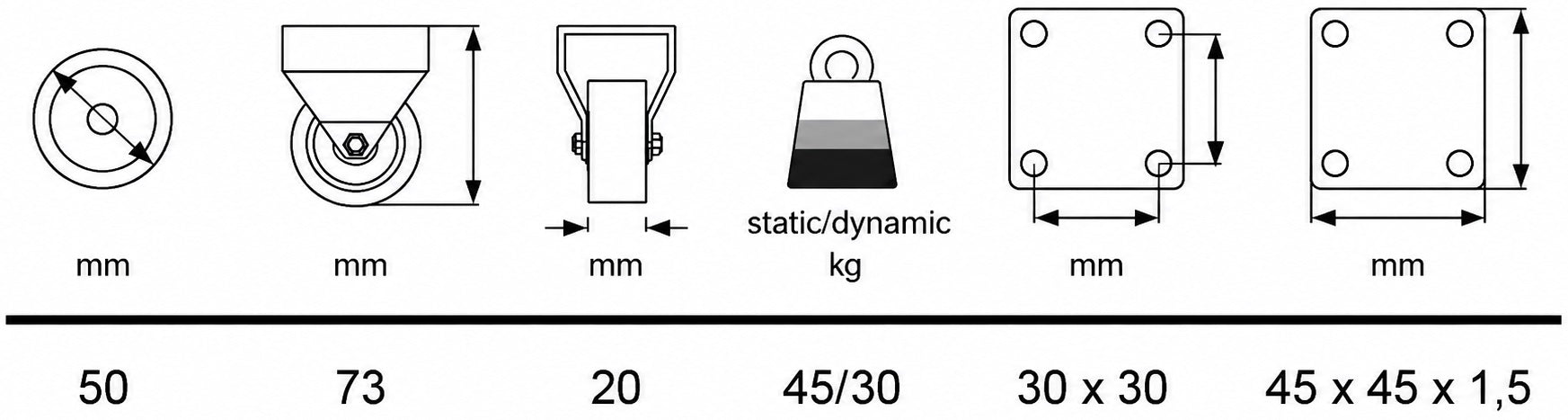

For further dimensions and details see technical drawing.

Included in delivery:

• 4 pieces of fixed caster 08.12.150-1 made of robust steel, galvanized
• Please note that mounting screws are not included in the delivery

Additional information:

• Download Reach Declaration

Manufacturer's reference numbers:

• Article identification number: 08.12.150-1
• GTIN number (EAN, UPS): 5704866457538

Manufacturer: SISO Denmark
