Set of 2 (1 pair) drawer runners with 17mm groove, drawer slides. Partial extension drawer slides, high-quality drawer slides, drawer slide system from UMAXO®

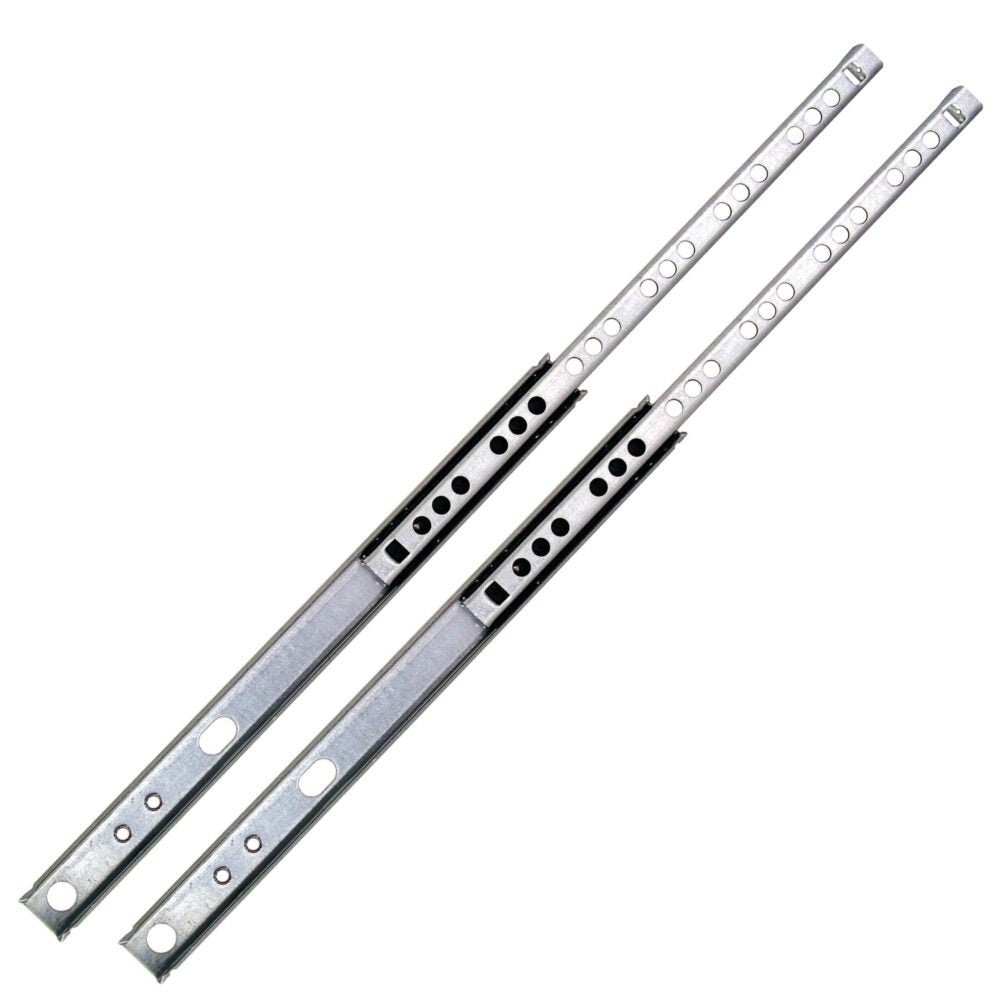

Set of 2 (one pair) high-quality drawer runners from UMAXO® for wooden drawers

Application: Guide system for wooden drawers with a groove width of 17 mm can be used in a variety of ways. 17 mm ball bearing guide with high-quality running properties, perfect for installation in living room walls, kitchen cabinets, living room, bathroom and office furniture. Maximum drawer opening allows convenient access to the items stored in the drawers. Precise ball guidance in the raceways ensures high stability. The guide rail can be extended in both directions and forms a complete, non-separable unit with the ball cage. The ball bearing rail is made of high-quality steel and then galvanized. Characteristics:

• Smooth running for comfortable drawer insertion and removal
• Precision extension with extension stop for a tactile stop
• Integrated roll-out protection prevents the balls from rolling out
• Easy assembly of the drawer rails by conveniently screwing in from the side
• Load capacity up to 10 kg!

Material:

• Ball guide and ball made of high-quality steel
• Surface: galvanized

The perfect drawer extension in the tracks ensures optimal running behavior and very high stability. The ball bearing guides are suitable for all wooden drawers with a groove of 17 mm. The drawer rails are perfect as replacement or spare items, e.g. for Ikea drawers or other wooden drawers with a 17 mm groove. High-quality brand quality from UMAXO® Assembly:

• The guide rails are attached to both sides of the drawer to be pulled out (side mounting, upright).
• When installing the telescopic rails, please note that they must be installed in pairs.
• The load carried must ideally be distributed over the entire surface of the entire inner rail (so-called runner).
• The mounting surface must be flat for optimal movement.
• We recommend using all provided mounting holes for secure attachment.
• The two pull-out rails must be installed exactly parallel

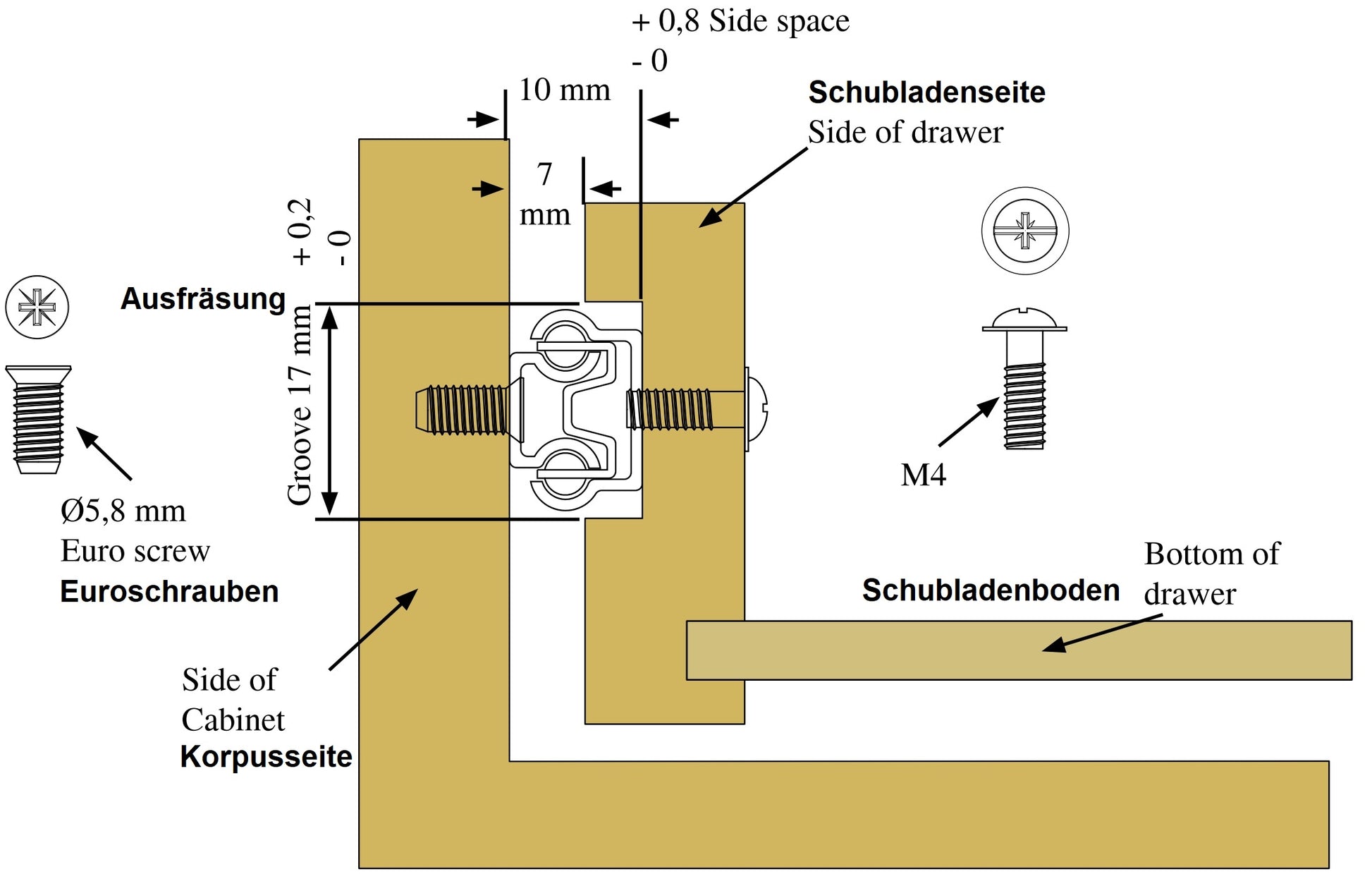

For further information, see figure : Scope of delivery:

• Two guide rails for drawer set of 2 (1 left and 1 right)

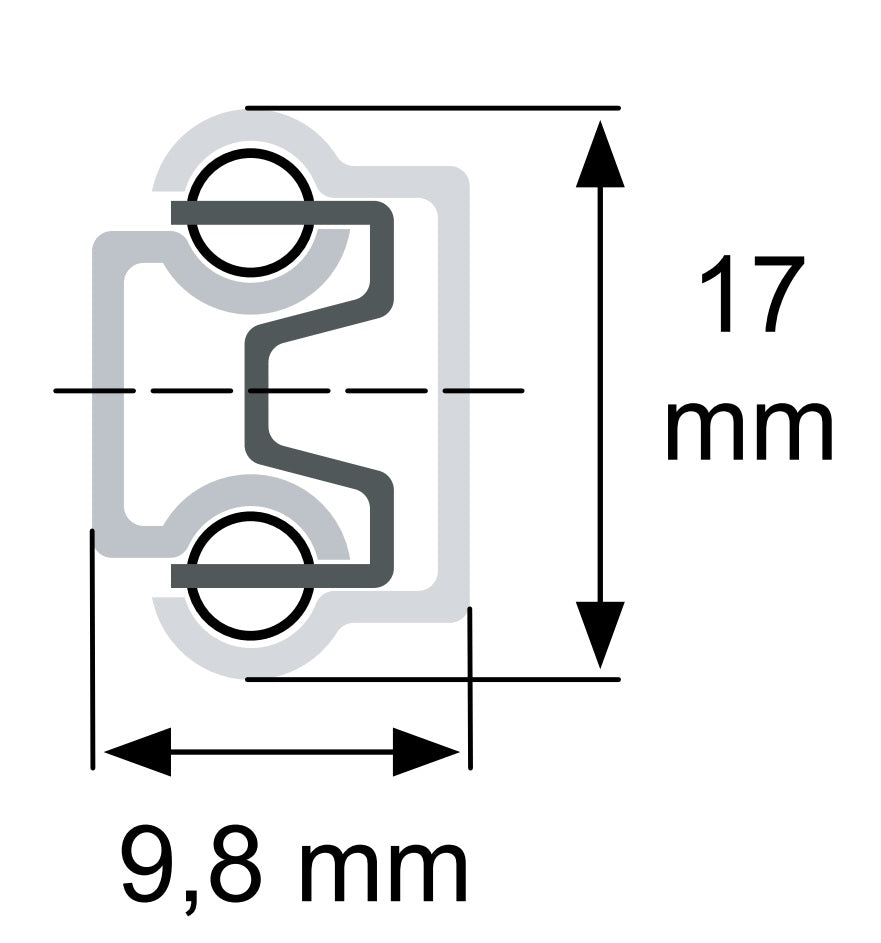

Dimensions:

• Groove width: 17 mm

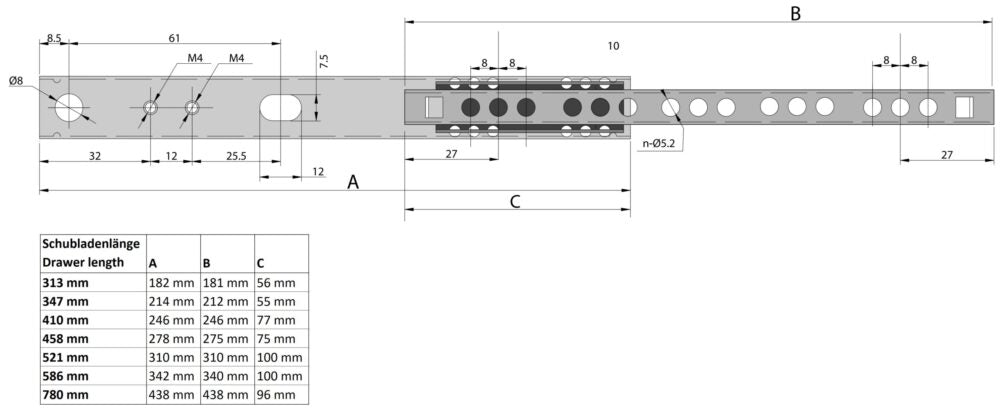

See technical drawing : Manufacturer reference number:

• Article numbers: 16.10.260, 16.10.261, 16.10.266, 16.10.276, 16.10.277, 16.10.279

Manufacturer: SISO Denmark
