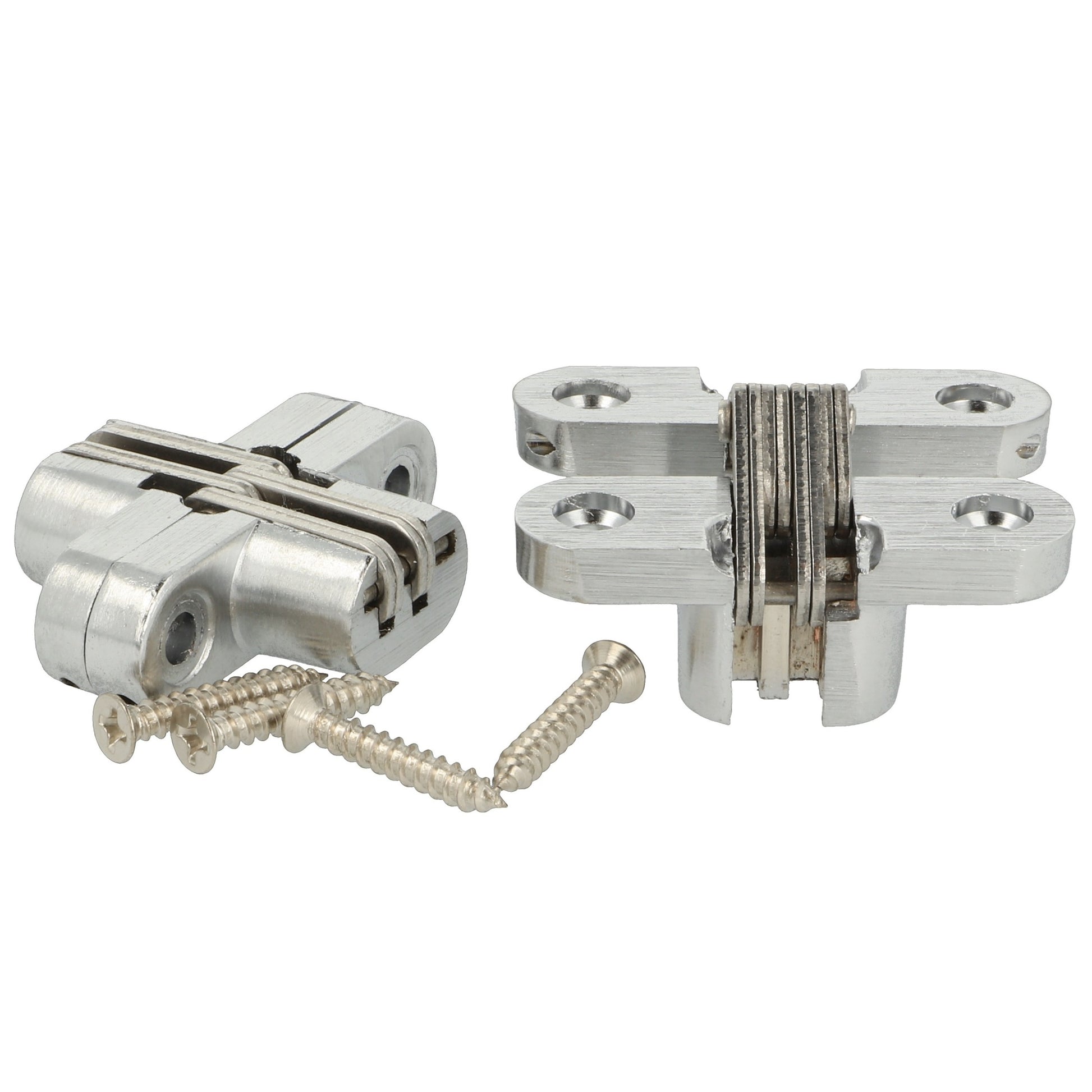

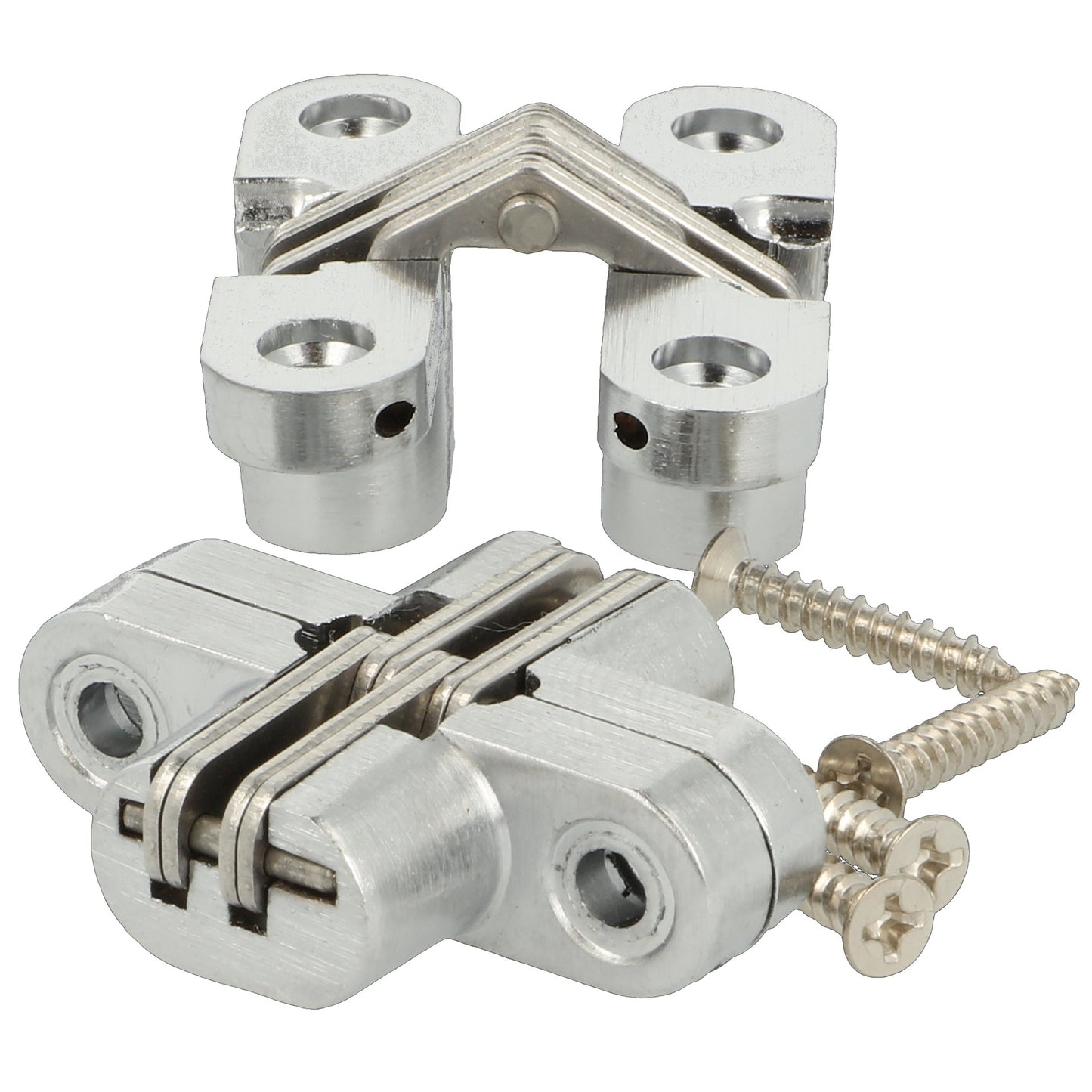

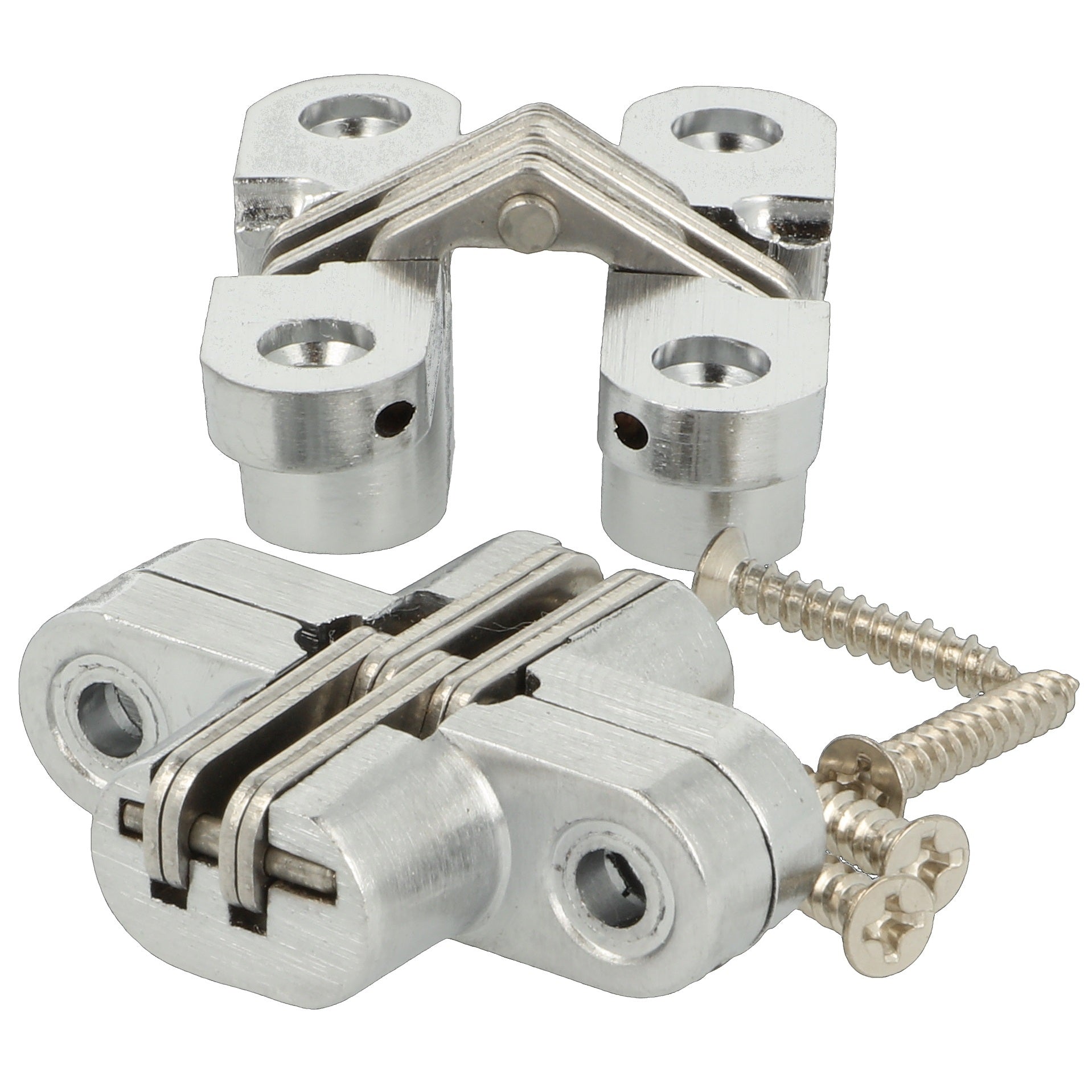

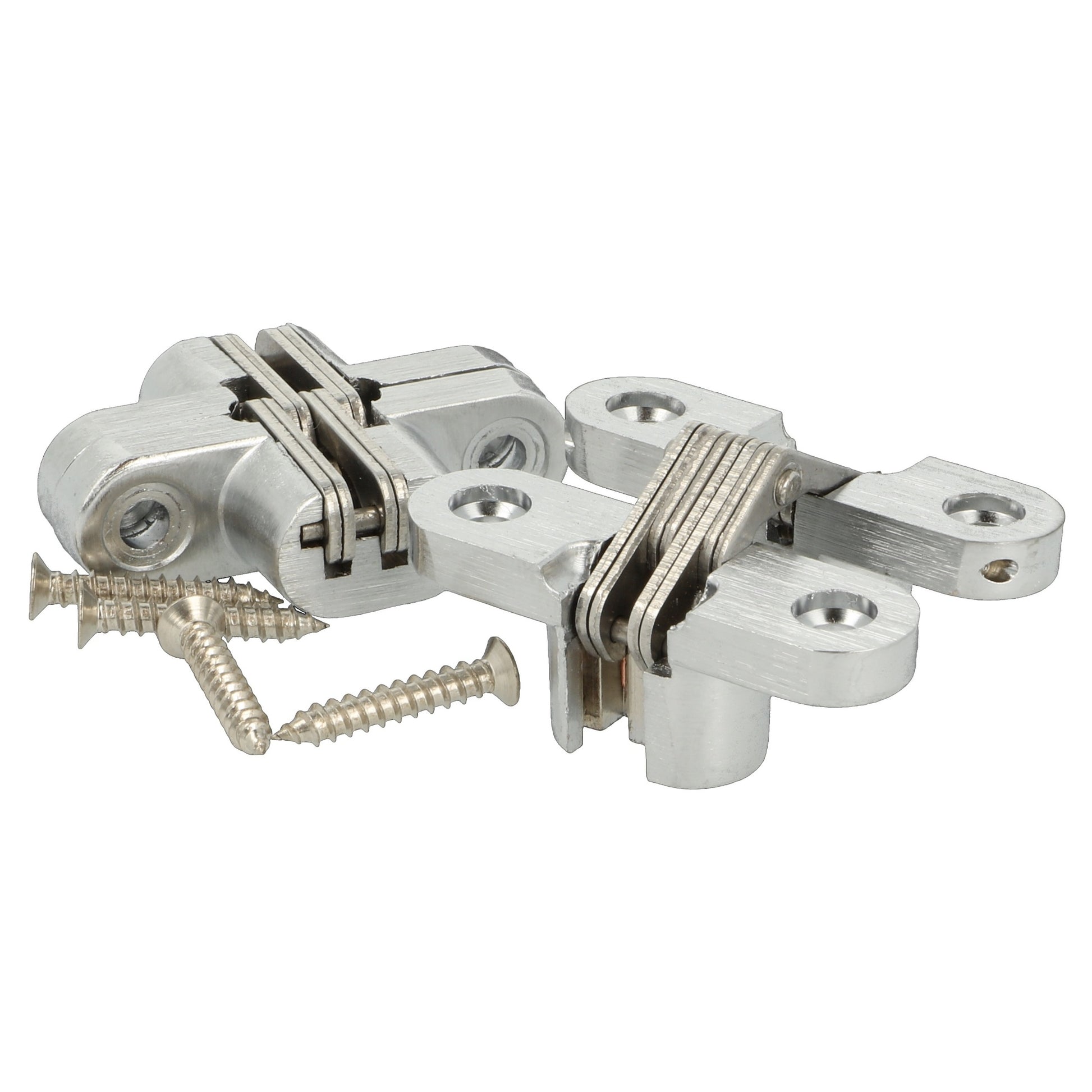

Two high-quality invisible cross hinges, 45 x 13 mm, made of Zamak, with a stainless steel look, including screws. Concealed furniture hinge from UMAXO®, folds 180°. Hidden furniture hinge (vici hinge) for recessed installation.

Set consisting of 2 pieces invisible furniture hinge 45 x 13mm made of Zamak, vici hinge with stainless steel look surface

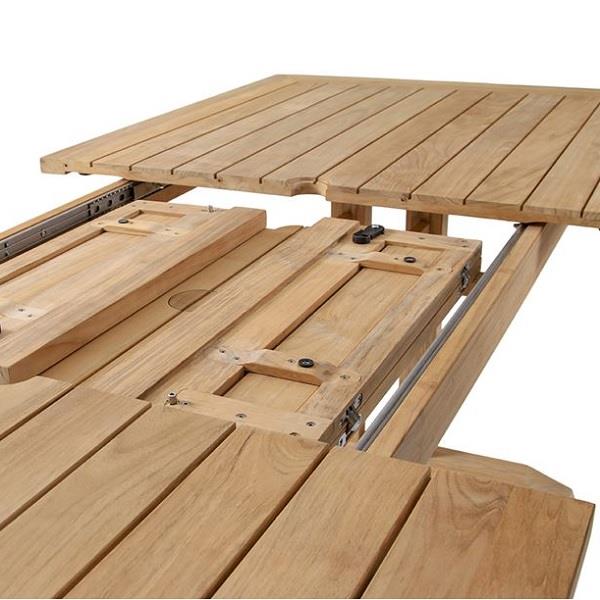

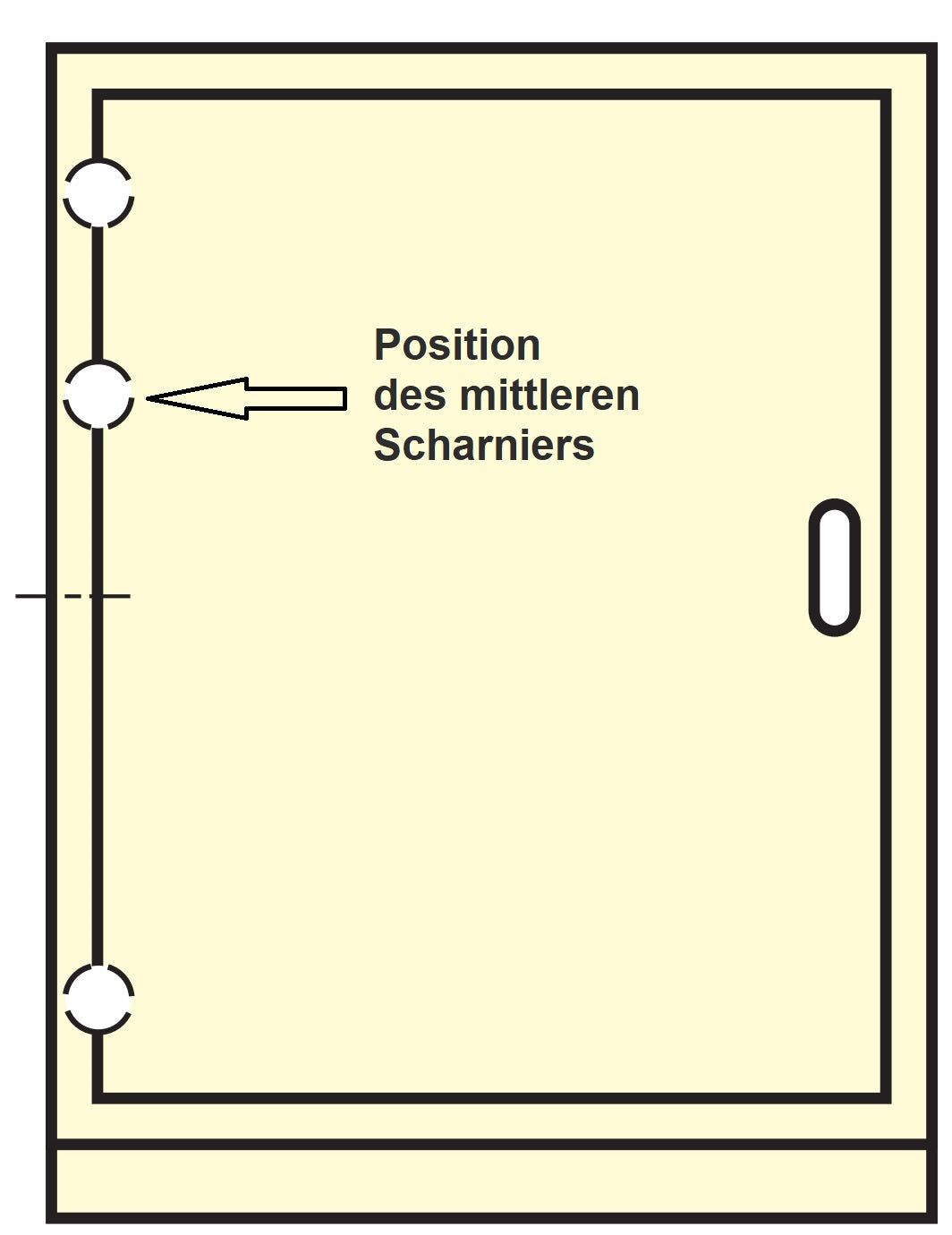

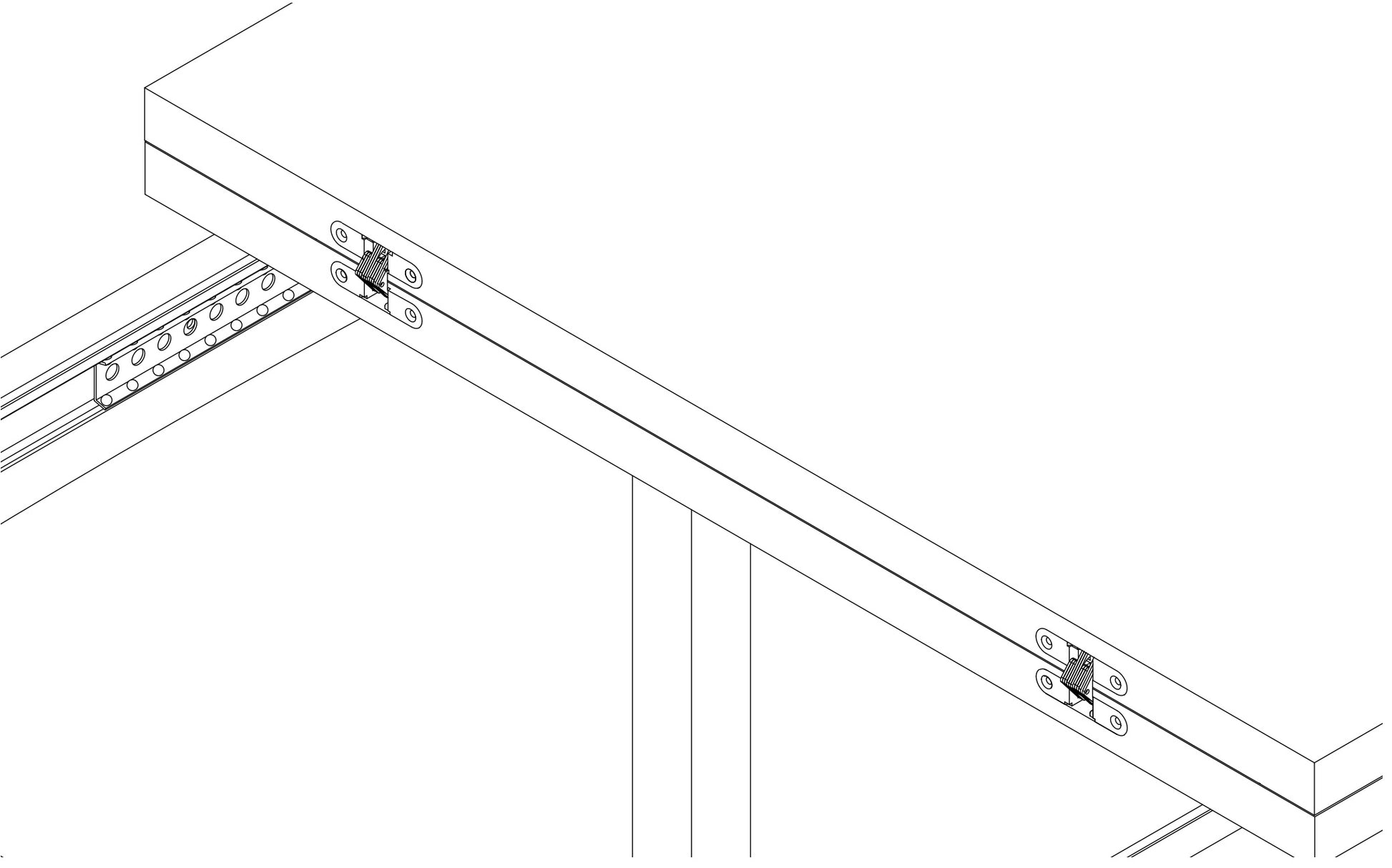

Application: The concealed furniture hinges can be folded 180° and can be used, for example, for folding tables or furniture flaps. Can be used for door thicknesses of 19 - 24 mm. [caption id="attachment_29042" align="alignnone" width="420"] Concealed furniture hinge from UMAXO®, 45 x 13 mm made of Zamak, with a stainless steel finish. Application[/caption] Assembly: The furniture hinges offer easy installation for recessed installation. [caption id="attachment_28855" align="alignnone" width="424"] Concealed furniture hinge from UMAXO®, 45 x 13 mm made of Zamak, with a stainless steel finish. Application[/caption] If there are three hinges and the unit is used vertically, the middle hinge should be positioned slightly higher ( see illustration ). If there are three hinges and they are used horizontally, the middle hinge should be positioned as precisely as possible in the middle. Characteristics:

• Opening angle: 180°
• Door thickness: 19 - 24 mm
• Durable and stable

Included in delivery:

• 2 pieces of furniture hinges 45 x 13mm (Vici Hinge)
• 2 x 4 screws

Material:

• Hinge: Zamak
• Hinge joint: stainless steel

Surface:

• stainless steel look

Dimensions:

• Length: 45 mm
• Width: 13 mm
• Depth: 12 mm
• Screw diameter: 4 mm

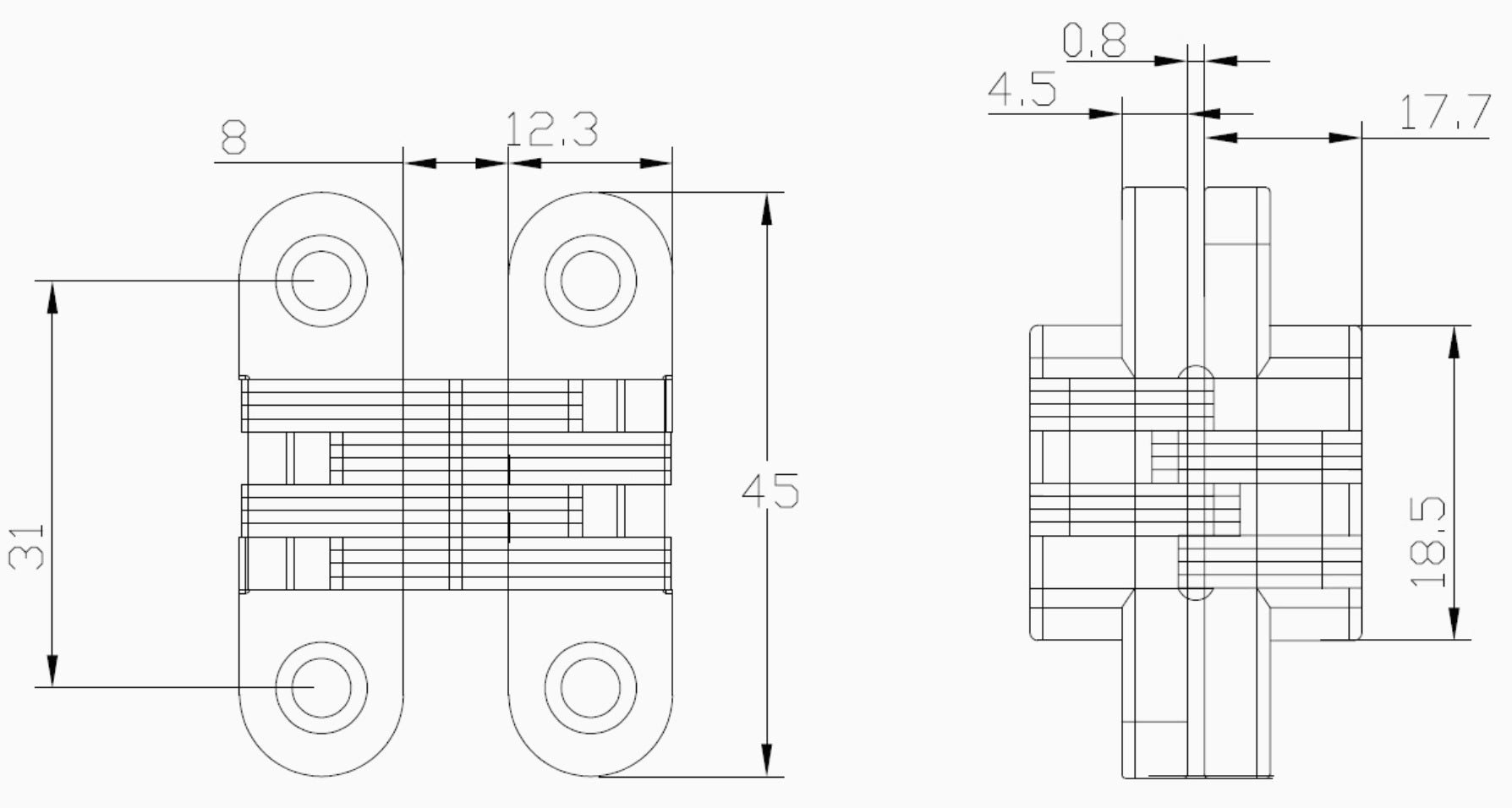

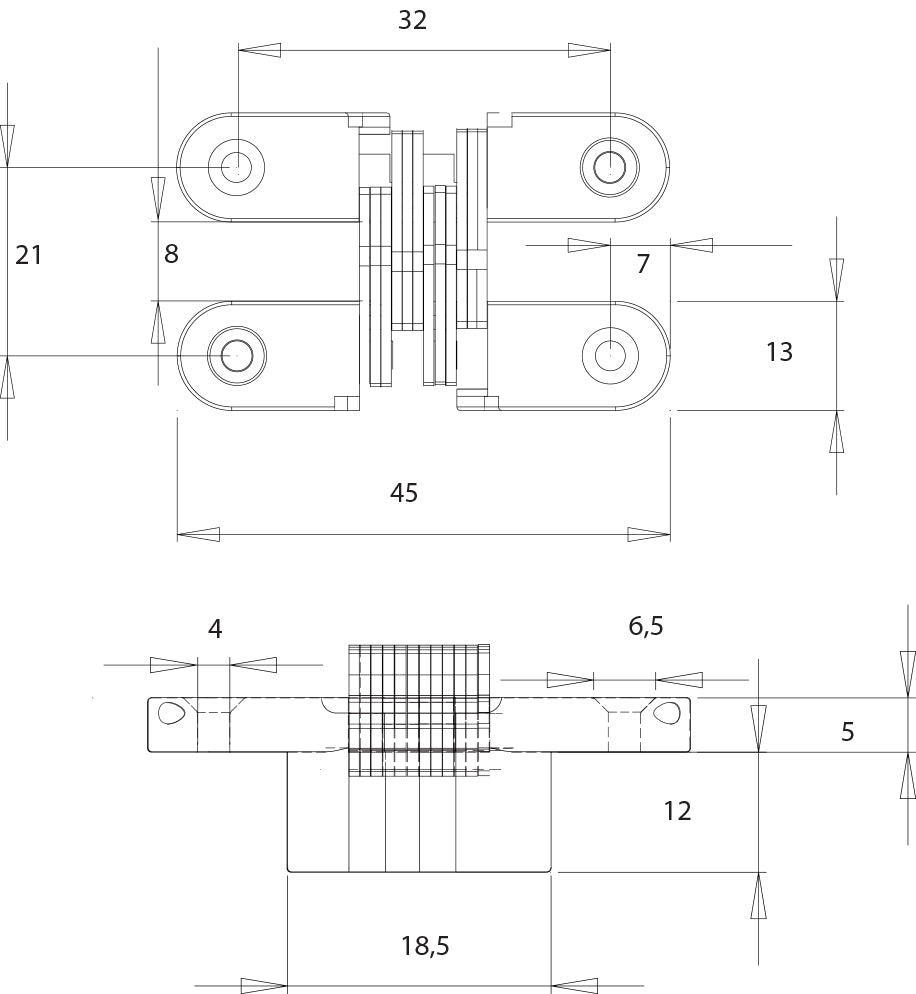

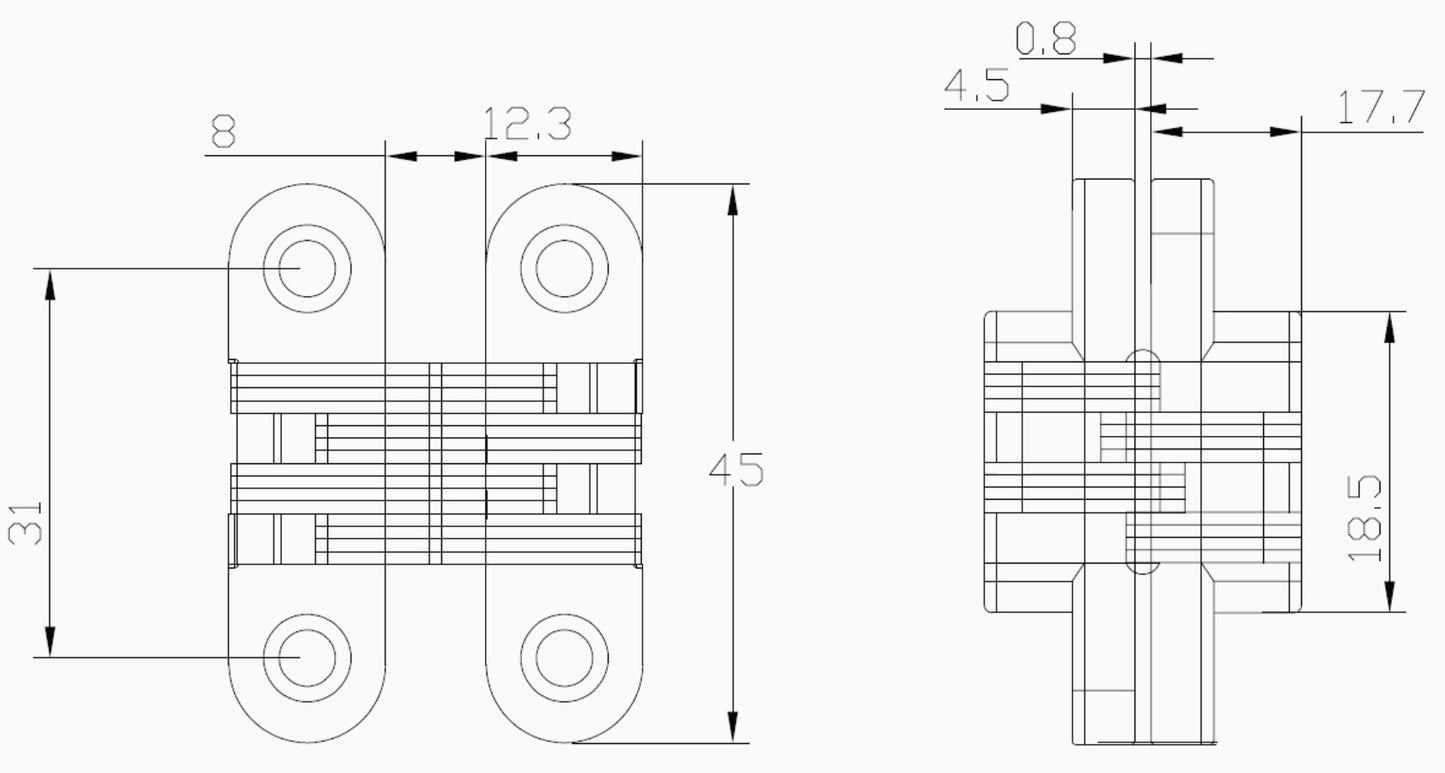

For dimensions see technical drawing (mm) : [caption id="attachment_29054" align="alignnone" width="422"] Concealed furniture hinge from UMAXO®, 45 x 13 mm made of Zamak, with stainless steel finish. Technical drawing[/caption] Manufacturer reference number:

• Article number: 15.07.120
• Article number: 15.07.120-1

Manufacturer: SISO Denmark
