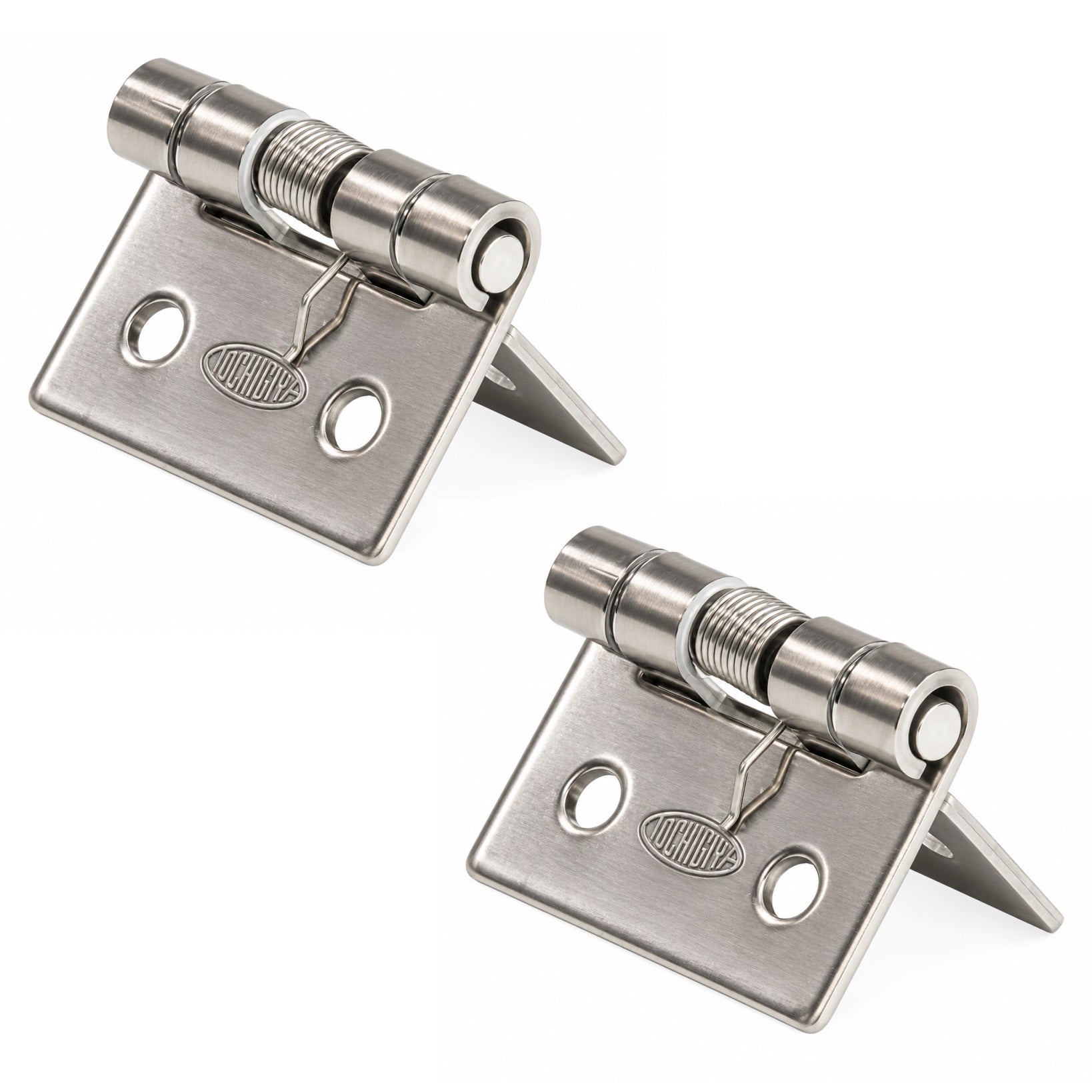

2 pieces of high-quality spring strap, made of solid stainless steel SUS 304 (V2A or 1.4301), surface: natural (untreated), TH-61SUS-1, size: 32 mm (1-17/64″)

Application:

Robust spring hinge for equipment flaps, housing doors, covers and much more.

The spring hinge TH-61SUS-1-0.8 connects light doors, flaps or covers with the respective housing and simultaneously generates a defined spring force in the opening direction.

The spring integrated in the area of the hinge pin supports opening and ensures that the movable component moves towards the open position.

With a reference spring force of 3.9 N, the TH-61SUS-1 spring hinge is particularly suitable for medium-sized flaps.

The compact size of 32 mm (1-17/64″) x 25 mm (63/64″) allows for use even in limited installation space.

The construction made entirely of SUS304 offers good corrosion resistance and is therefore also suitable for more demanding technical applications.

Four mounting holes allow for stable and easy screw-on mounting on housings, devices and covers.

The high-quality spring straps TH-61SUS-1 are ideally suited for, among other things:

• Measuring devices
• Operating devices
• Machine covers
• Communication devices
• Office equipment
• Equipment flaps
• Housing doors
• Covers

Material:

• The spring straps TH-61SUS-1 are made of solid stainless steel SUS304 (V2A or 1.4301)
• Stainless steel SUS304 is characterized by its high corrosion resistance and durability, making it ideal for use in demanding environments
• In addition, it offers an attractive surface that is both modern and easy to clean

Surface:

• Natural (untreated)
• The material surface remains visible and is not covered by an additional coating

Mounting:

• Mounting is done with 4 x M2.5 to M3 pan head screws (not included)
• The TH-61SUS-1 spring strap has four mounting holes
• The spring hinge is first positioned in the intended installation position between the fixed housing part and the movable door, flap or cover
• The installation direction must be chosen so that the spring force acts in the desired opening direction
• Then, the four mounting holes are aligned with the mounting points or pre-drilled accordingly
• The hinge is then fastened with four suitable pan head or cylinder head screws
• After tightening, the flap must be moved several times to check the freedom of movement and the direction of action of the spring

Features:

• Weight: 10 g (for 2 pieces: 20 g)
• Size: 32 mm (1-17/64″)
• Spring force. Position A: 0.8 N, Position B: 1.4 N, Position C: 1.9 N
• easy to install
• practical
• stable
• Spring force in opening direction
• Integrated spring on the hinge pin
• Made entirely of SUS304 stainless steel
• Corrosion-resistant design
• Compact dimensions
• Four mounting holes
• Suitable for screw-on mounting
• Free position at 90°
• RoHS-compliant design
• natural (untreated)
• weather-resistant
• rust-free (corrosion-resistant)
• high brand quality from TOCHIGIYA®

The dimensions:

• Overall width: 32 mm (1-17/64″)
• Overall height: 25 mm (63/64″)
• Material thickness: 1.2 mm (3/64″)
• Horizontal hole spacing: 20 mm (25/32″)
• Edge distance of mounting holes: 5.5 mm (7/32″)
• Vertical hole spacing: 14 mm (35/64″)
• Mounting holes: 4x ⌀3.2 mm (1/8″)

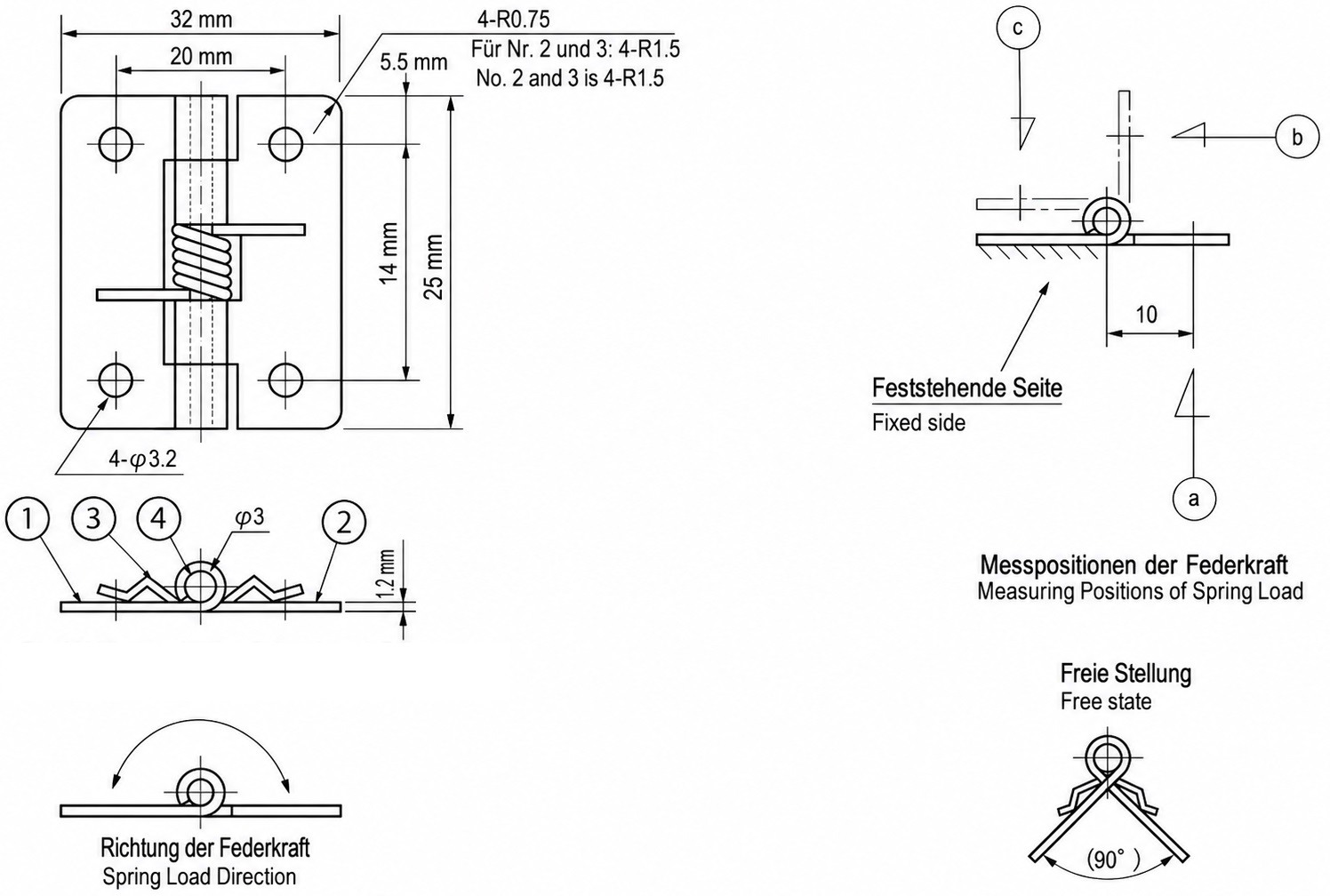

For further dimensions and details see technical drawing.

Included in delivery:

• 2 pieces of spring hinge TH-61SUS-1 made of solid stainless steel SUS304, natural (untreated)
• Please note that no fastening screws are included in the delivery

Manufacturer's reference numbers:

• Article identification number: TH-61SUS-1

Manufacturer: TOCHIGIYA (Japan)
