2 pieces magnetic push-to-closet catches, including counterplate, surface: white, 70 mm (2-3/4″), with long plunger, ML-120W for furniture doors, cabinet doors

2 pieces of high-quality magnetic pressure catch, made of metal and robust plastic (metal and plastic), surface: white, ML-120W, size: 70 mm (2-3/4″), design: with long plunger

Application:

Push-to-open door opener for furniture doors, cupboard doors and much more.

The long plunger increases the stroke, allowing the door to open further.

The ML-120W magnetic push-button catch enables convenient opening and closing of handleless furniture doors by pressing.

The Push-To-Open door opener ML-120W has a plunger extension travel of 40 mm (1-37/64″).

Thanks to its compact plastic housing, the ML-120W magnetic push-button latch can be discreetly screwed onto the body side.

The high-quality magnetic snap fasteners 140-050-337 are ideal for, among others:

• Cabinet flaps
• Kitchen cabinet doors
• Bathroom furniture doors
• Furniture doors
• Cabinet doors

Material:

• The magnetic snap fasteners 140-050-337 are made of metal and robust plastic (metal and plastic)
• The combination of metal and plastic offers an optimal balance of strength and flexibility, making the fittings robust yet adaptable
• In addition, this material combination enables improved aesthetics and functionality, as it offers both stability and a variety of design options

Surface:

• White
• White surfaces convey a clean and modern aesthetic
• The color white reflects light effectively, making rooms appear brighter and visually larger
• In addition, white objects are inconspicuous and easy to clean, which makes them particularly practical for everyday use

Assembly:

• The fastening is carried out using the six screws included in the delivery (countersunk head self-tapping screw 4 x 16 mm)
• The magnetic pressure catch ML-120W has 2 mounting holes
• The distance between the mounting holes is 34 mm (1-11/32″)
• The catch is screwed onto the side of the body

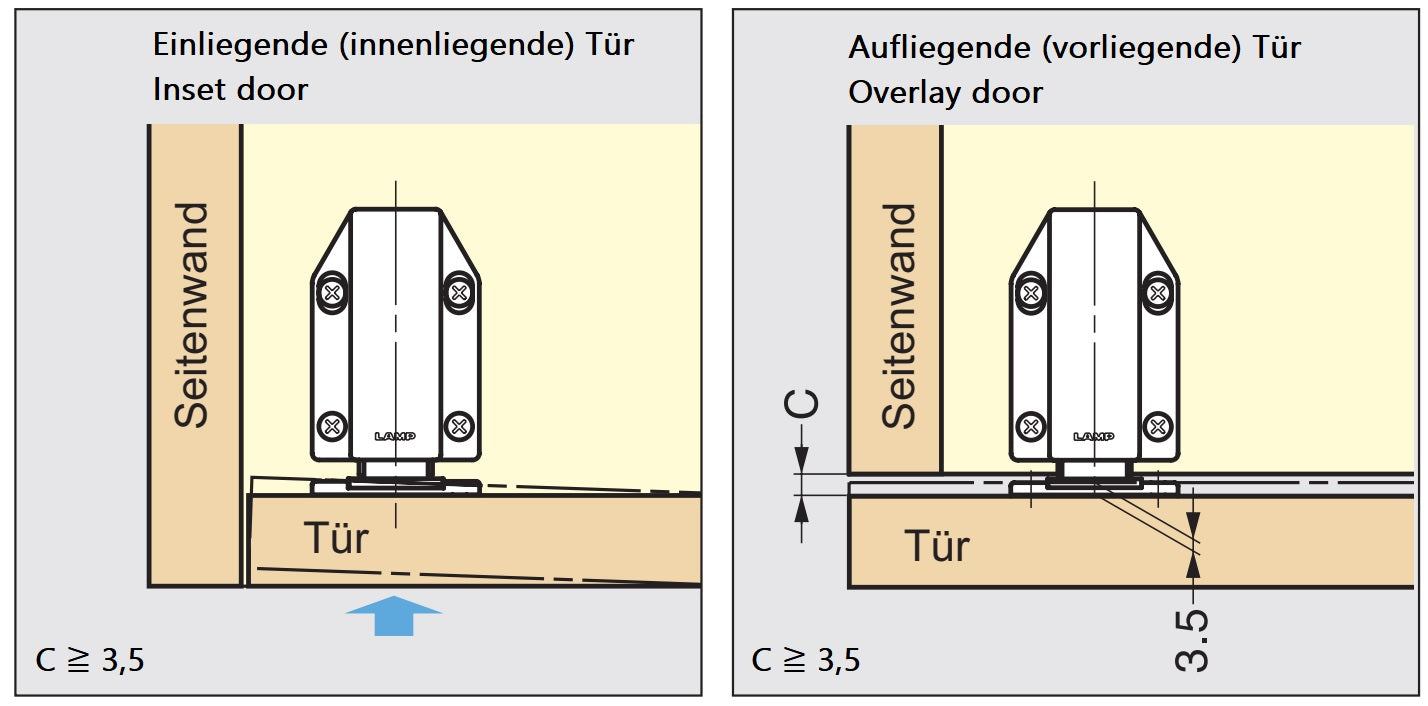

• The minimum distance between the door and the furniture body is 3.5 mm (for further details see assembly drawing )

Characteristics:

• Version: with long plunger
• Weight: 53 g
• Load capacity: 23.5 N (2.4 kp)
• Size: 70 mm (2-3/4″)

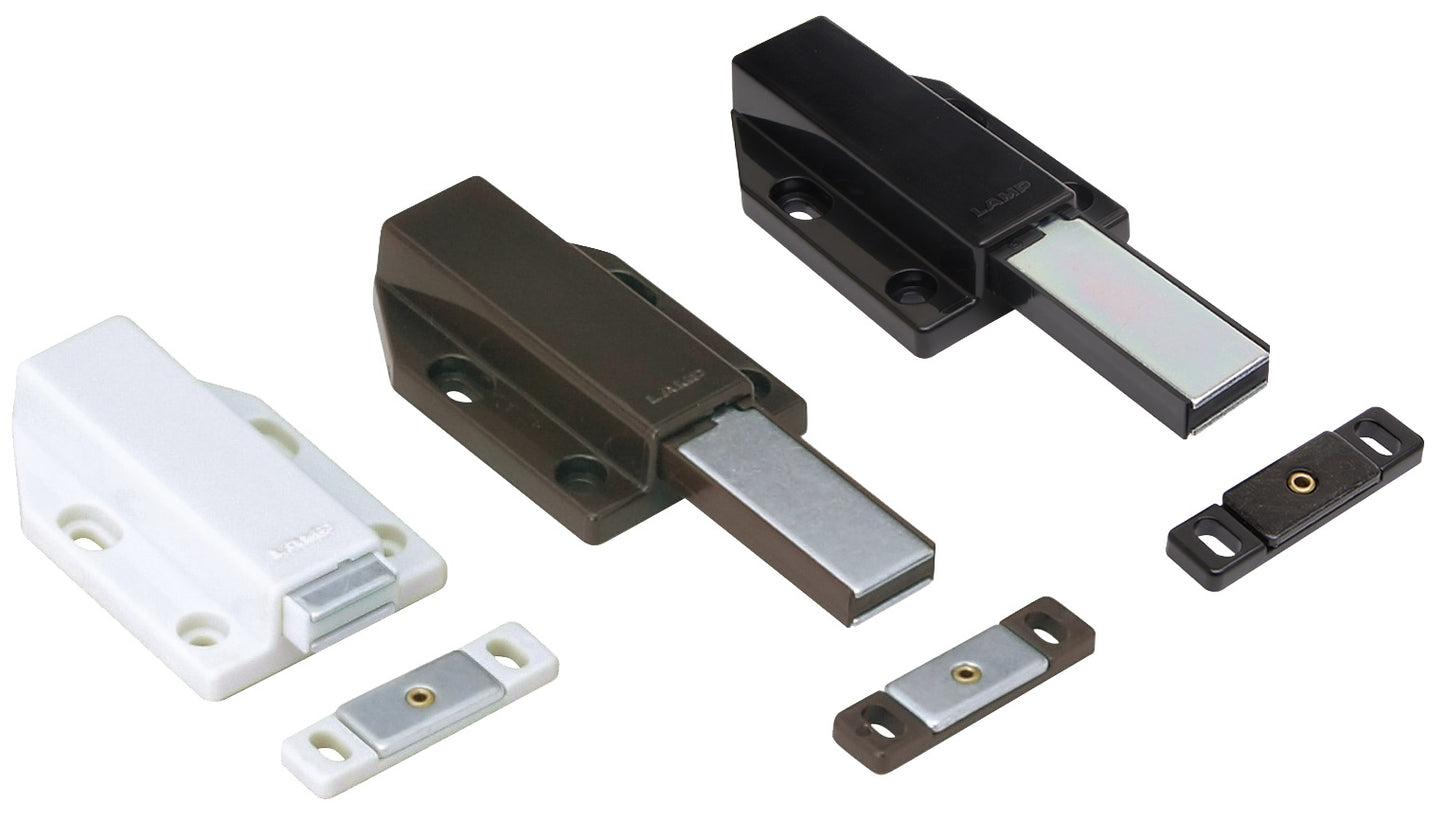

• Available in 3 colors: black, white and brown
• easy to assemble
• practical
• stable
• Ram travel: 40 mm (1-37/64″)
• Minimum door gap: 3.5 mm
• white
• robust
• high brand quality from Sugatsune / LAMP®

The dimensions:

• Magnetic snap fastener width: 46 mm (1-13/16″)
• Depth of the magnetic snap fastener: 70 mm (2-3/4″)
• Height: 15 mm (19/32″)
• Mounting plate width: 46 mm (1-13/16″)
• Mounting plate depth: 12 mm (15/32″)

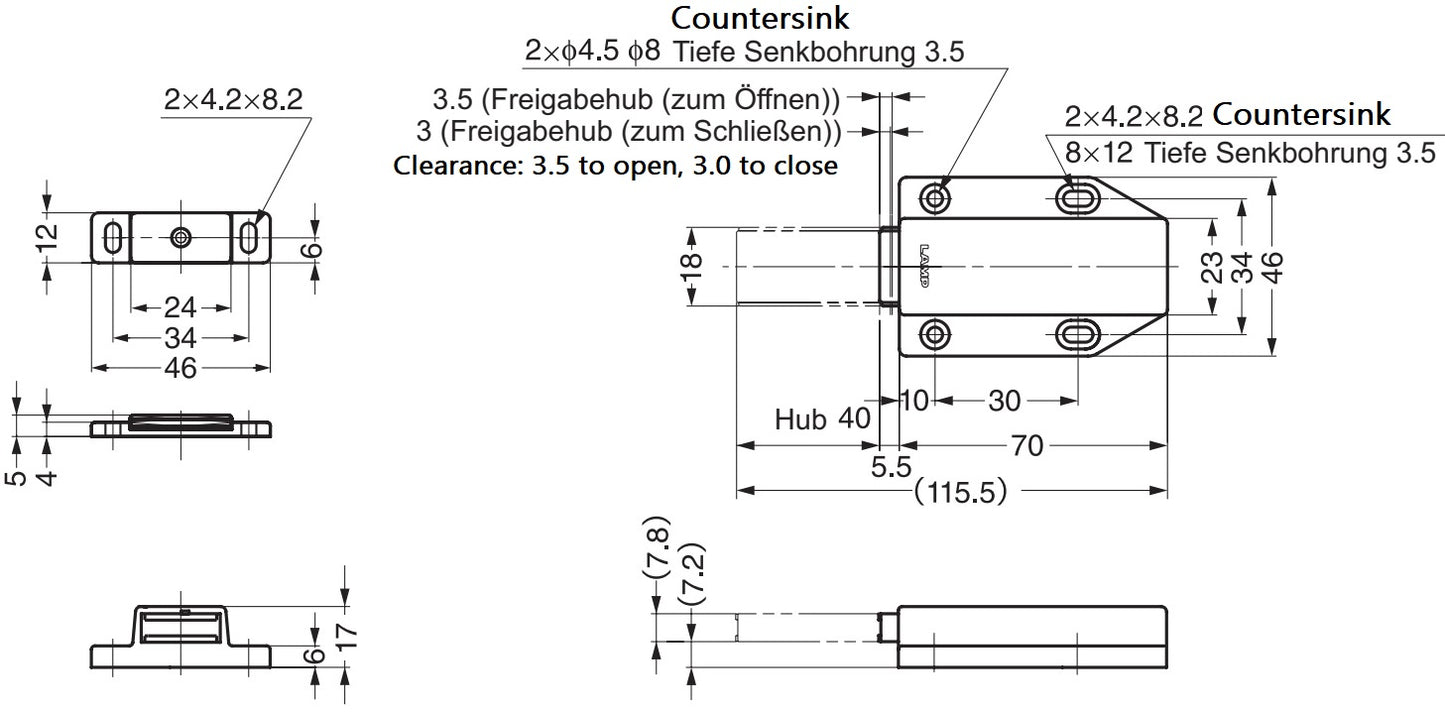

For further dimensions and details see technical drawing .

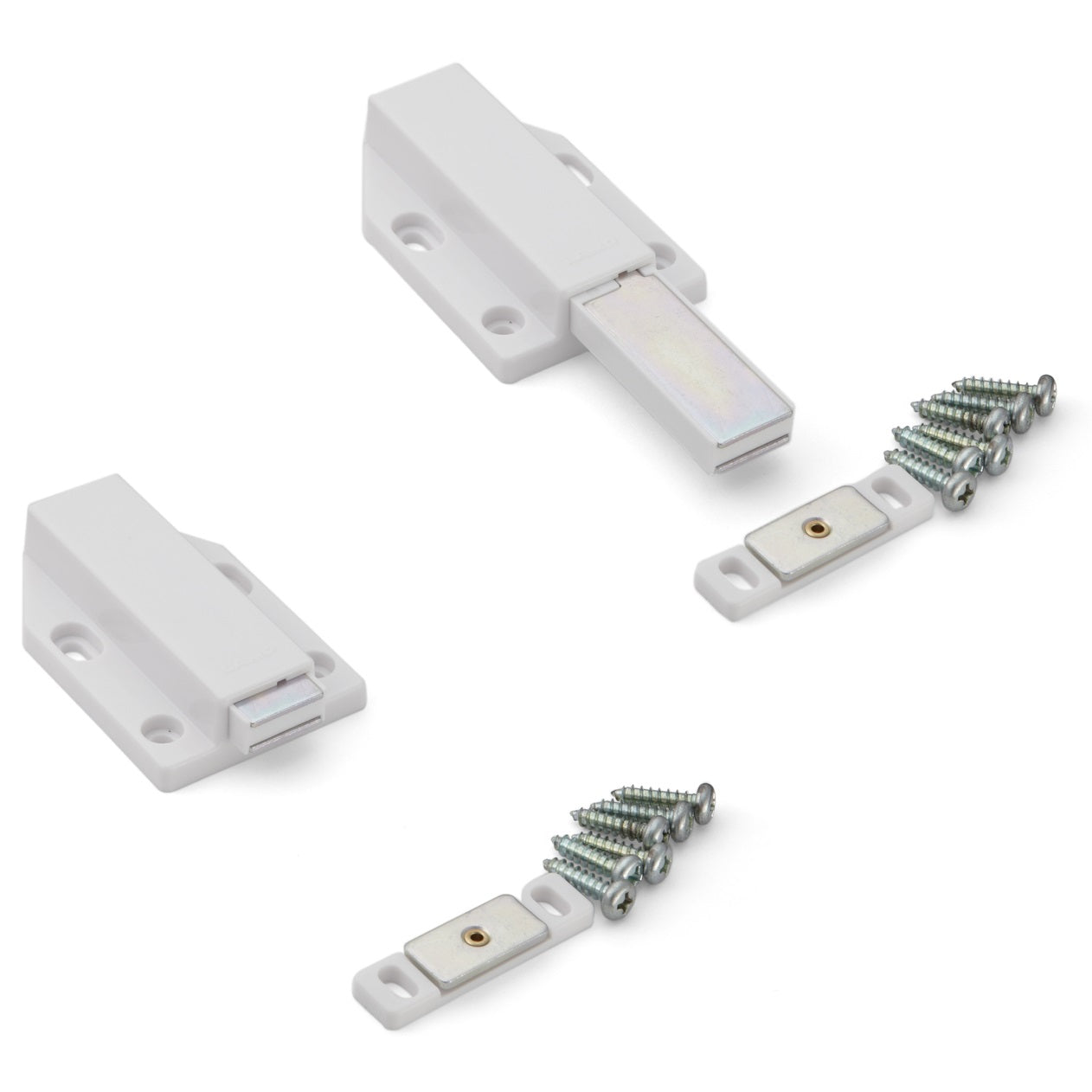

Included in delivery:

• 2 pieces magnetic pressure catch 140-050-337 made of metal and robust plastic, white, design: with long plunger
• 2 pieces counter plate made of steel, nickel-plated
• Two times: 6 countersunk head sheet screws 4 x 16 mm

Manufacturer reference number:

• Article number: 140-050-337
• Item number: ML-120W
• EAN number: 4510932004602

Manufacturer:Sugatsune / LAMP® (Japan)
