2 pieces magnetic push-button catches, including counterplate, surface: brown, 38 mm (1-1/2″), with long plunger, ML-120BR for furniture doors, cabinet doors

2 pieces of high-quality magnetic snap fasteners, made of metal and robust plastic (metal and plastic), surface: brown, ML-120BR, size: 38 mm (1-1/2″), design: with long plunger

Application:

Push-to-open door opener for furniture doors, cupboard doors and much more.

The long plunger increases the stroke, allowing the door to open further.

The ML-120BR magnetic push-button catch enables convenient opening and closing of handleless furniture doors by pressing.

The ML-120BR push-to-open door opener has a plunger extension travel of 15 mm (19/32″).

Thanks to its compact plastic housing, the ML-120BR magnetic push-button latch can be discreetly screwed onto the body side.

The counterplate of the ML-120BR magnetic push-to-close latch has four pointed tenons at the corners that engage the wood surface. This allows the counterplate to be securely attached with just one screw.

The high-quality magnetic snap fasteners 140-050-338 are ideal for, among others:

• Cabinet flaps
• Kitchen cabinet doors
• Bathroom furniture doors
• Furniture doors
• Cabinet doors

Material:

• The magnetic snap fasteners 140-050-338 are made of metal and robust plastic (metal and plastic)
• The combination of metal and plastic offers an optimal balance of strength and flexibility, making the fittings robust yet adaptable
• In addition, this material combination enables improved aesthetics and functionality, as it offers both stability and a variety of design options

Surface:

• Brown
• Brown conveys a feeling of warmth and comfort, creating a cozy and inviting atmosphere, ideal for living and dining areas
• Brown goes well with wood and is a versatile, neutral color that combines well with other colors and materials and exudes timeless elegance

Assembly:

• The fastening is carried out using the six screws included in the delivery (countersunk head self-tapping screw 4 x 16 mm)
• The magnetic pressure catch ML-120BR has 2 mounting holes
• The distance between the mounting holes is 28 mm (1-7/64″)
• The catch is screwed onto the side of the body

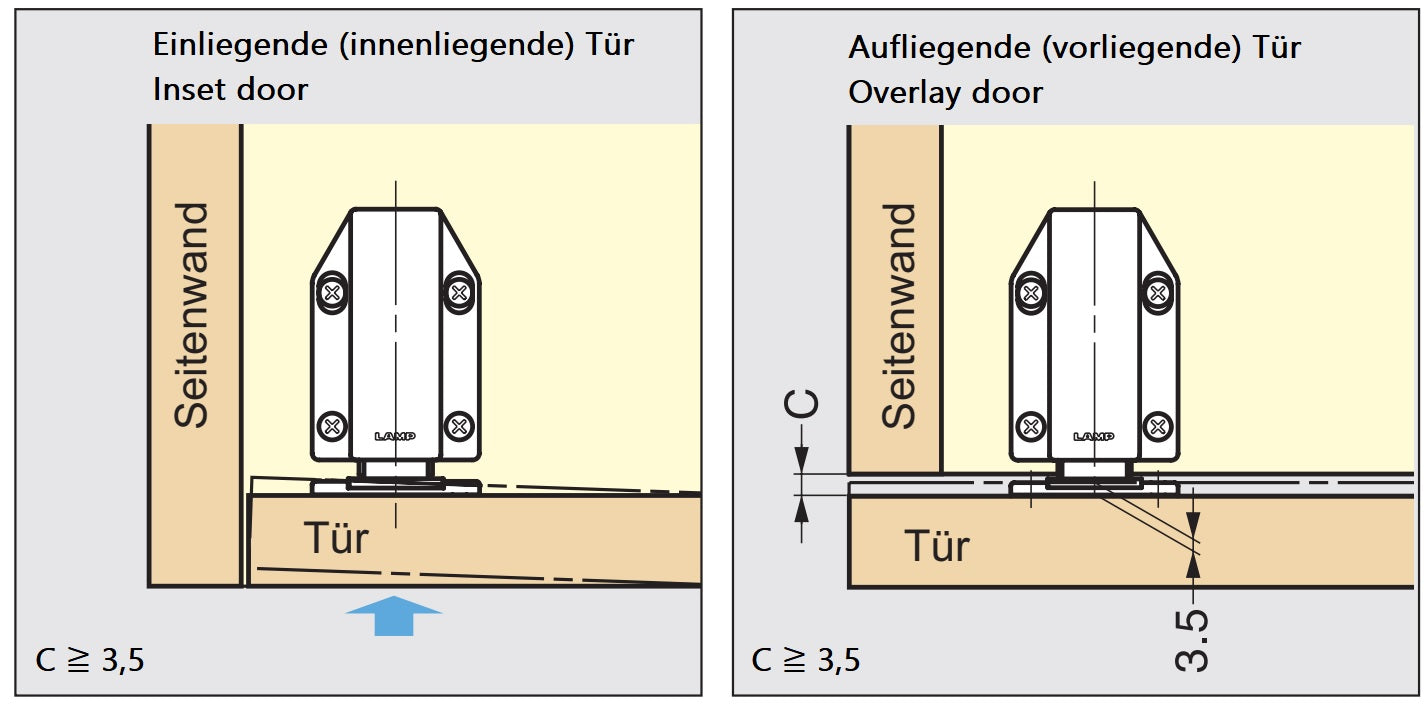

• The minimum distance between the door and the furniture body is 3.5 mm (for further details see assembly drawing )

Characteristics:

• Version: with long plunger
• Weight: 53 g
• Load capacity: 23.5 N (2.4 kp)
• Size: 38 mm (1-1/2″)

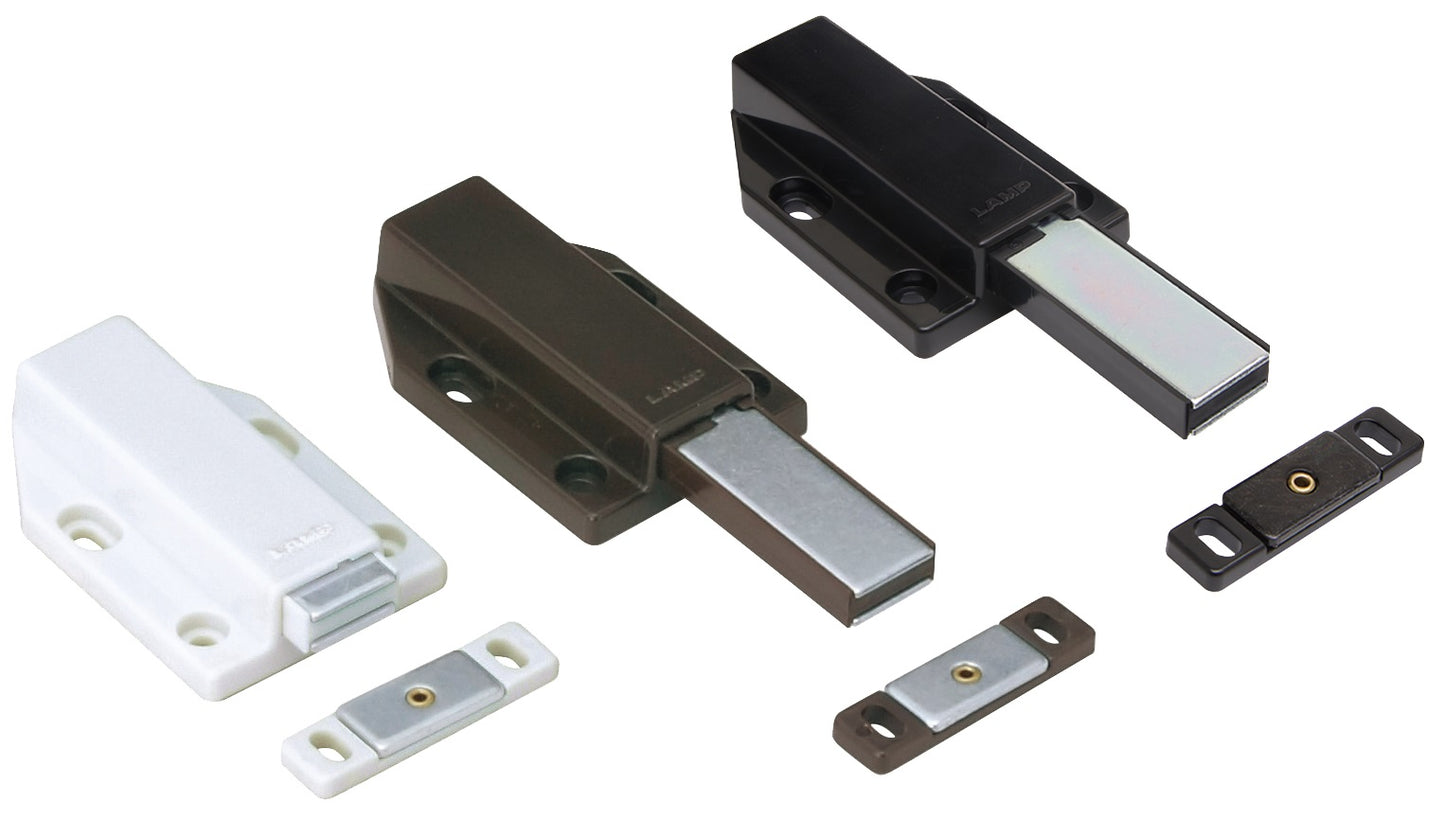

• Available in 3 colors: black, white and brown
• easy to assemble
• practical
• stable
• Ram travel: 15 mm (19/32″)
• Minimum door gap: 3.5 mm
• brown
• robust
• high brand quality from Sugatsune / LAMP®

The dimensions:

• Magnetic snap width: 36 mm (1-27/64″)
• Depth of the magnetic snap fastener: 38 mm (1-1/2″)
• Height: 15 mm (19/32″)
• Mounting plate width: 23 mm (29/32″)
• Mounting plate depth: 12 mm (15/32″)

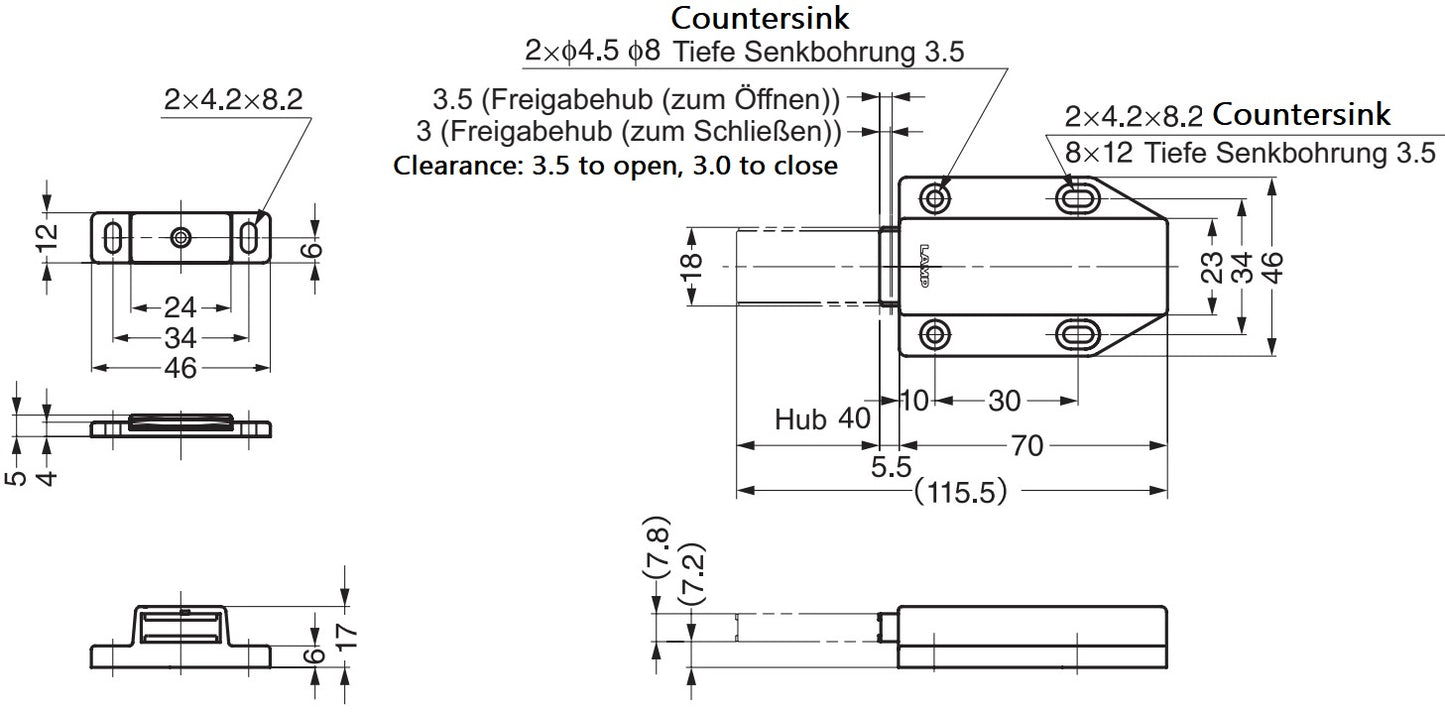

For further dimensions and details see technical drawing .

Included in delivery:

• 2 pieces magnetic pressure catch 140-050-338 made of metal and robust plastic, brown, design: with long plunger
• 2 pieces counter plate made of steel, nickel-plated
• Two times: 6 pieces countersunk head sheet screws 4 x 16 mm

Manufacturer reference number:

• Article number: 140-050-338
• Item number: ML-120BR
• EAN number: 4510932004619

Manufacturer:Sugatsune / LAMP® (Japan)
