2 compact magnetic push-to-close catches, including counterplate, surface: white, 25 mm (63/64″), ML-30SW for furniture doors, cabinet doors

2 compact, space-saving magnetic push-button catches, made of metal and robust plastic (metal and plastic), surface: white, ML-30SW, size: 25 mm (63/64")

Application:

Space-saving push-to-open door opener for furniture doors, cupboard doors and much more.

The ML-30SW magnetic push-button catch enables convenient opening and closing of handleless furniture doors by pressing.

The Push-To-Open door opener ML-30SW has a plunger extension travel of 8.5 mm (21/64″).

Thanks to its compact plastic housing, the ML-30SW magnetic pressure catch can be discreetly screwed onto the body side.

The counterplate of the ML-30SW magnetic push-to-close latch has four pointed pins at the corners that engage the wood surface. This allows the counterplate to be securely attached with just one screw.

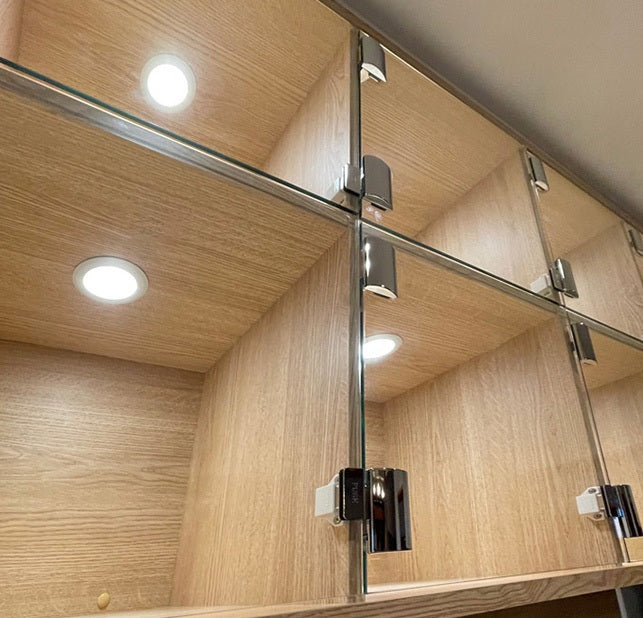

The high-quality magnetic push-button catches 140-050-054 are ideal for, among others:

• Cabinet flaps
• Kitchen cabinet doors
• Bathroom furniture doors
• Furniture doors
• Cabinet doors

Material:

• The magnetic snap fasteners 140-050-054 are made of metal and robust plastic (metal and plastic)
• The combination of metal and plastic offers an optimal balance of strength and flexibility, making the fittings robust yet adaptable
• In addition, this material combination enables improved aesthetics and functionality, as it offers both stability and a variety of design options

Surface:

• White
• White surfaces convey a clean and modern aesthetic
• The color white reflects light effectively, making rooms appear brighter and visually larger
• In addition, white objects are inconspicuous and easy to clean, which makes them particularly practical for everyday use

Assembly:

• The fastening is carried out using the three screws included in the delivery (wood screws 3.1 x 13 mm (2 round-head wood screws and 1 countersunk-head wood screw))
• The magnetic pressure catch ML-30SW has 2 mounting holes
• The distance between the mounting holes is 32 mm (1-17/64″)
• The catch is screwed onto the side of the body
• The minimum distance between the door and the furniture body is 4 mm

Characteristics:

• Weight: 22.5 g
• Load capacity: 11.8 N (1.3 kp)
• Size: 25 mm (63/64″)
• Available in white and brown
• easy to assemble
• practical
• stable
• Ram travel: 8.5 mm (21/64″)
• Minimum door gap: 4 mm
• white
• robust
• high brand quality from Sugatsune / LAMP®

The dimensions:

• Magnetic snap width: 43 mm (1-11/16″)
• Depth of the magnetic snap fastener: 25 mm (63/64″)
• Height: 16 mm (5/8″)
• Mounting plate width: 23 mm (29/32″)
• Mounting plate depth: 12 mm (15/32″)

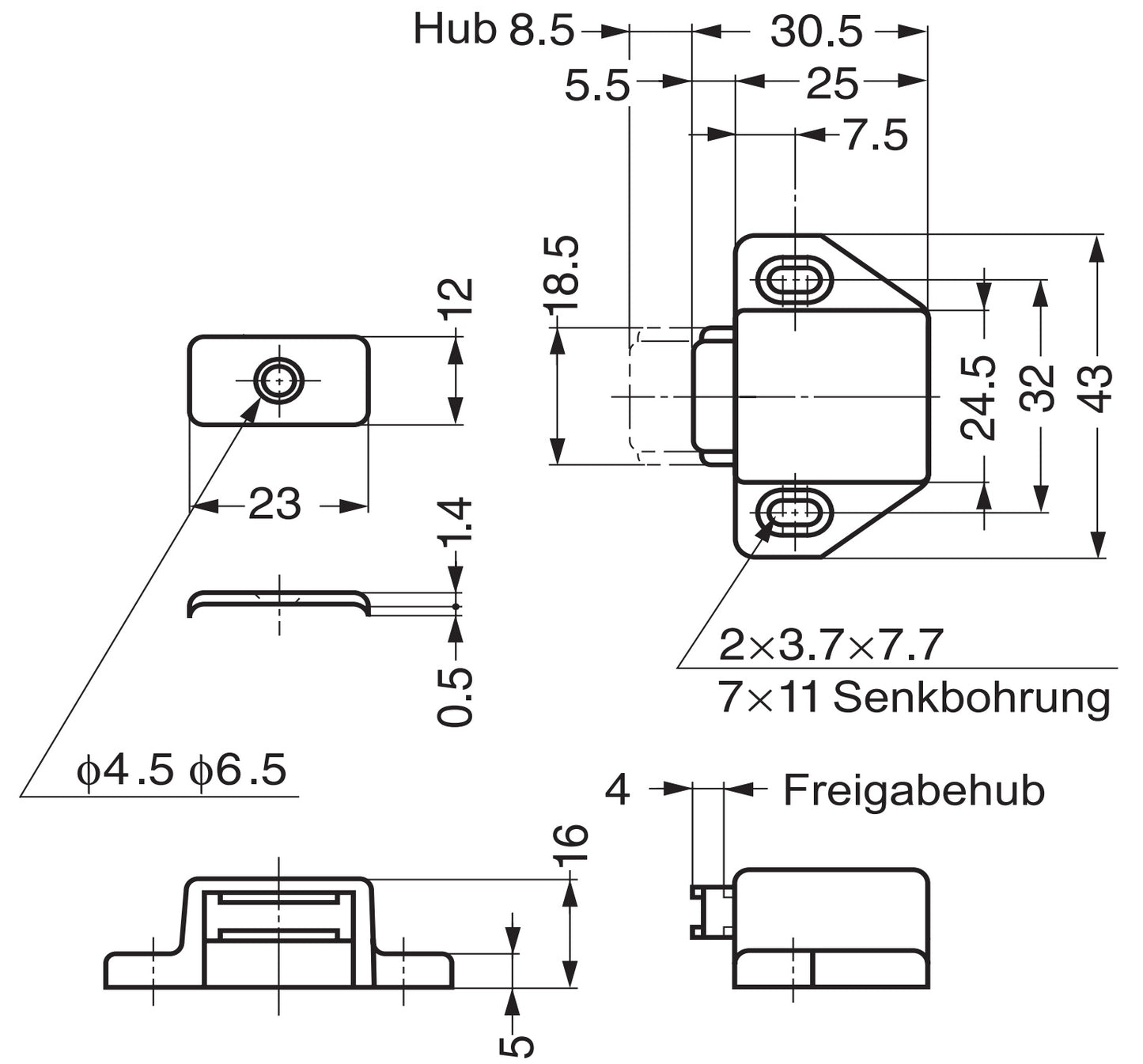

For further dimensions and details see technical drawing .

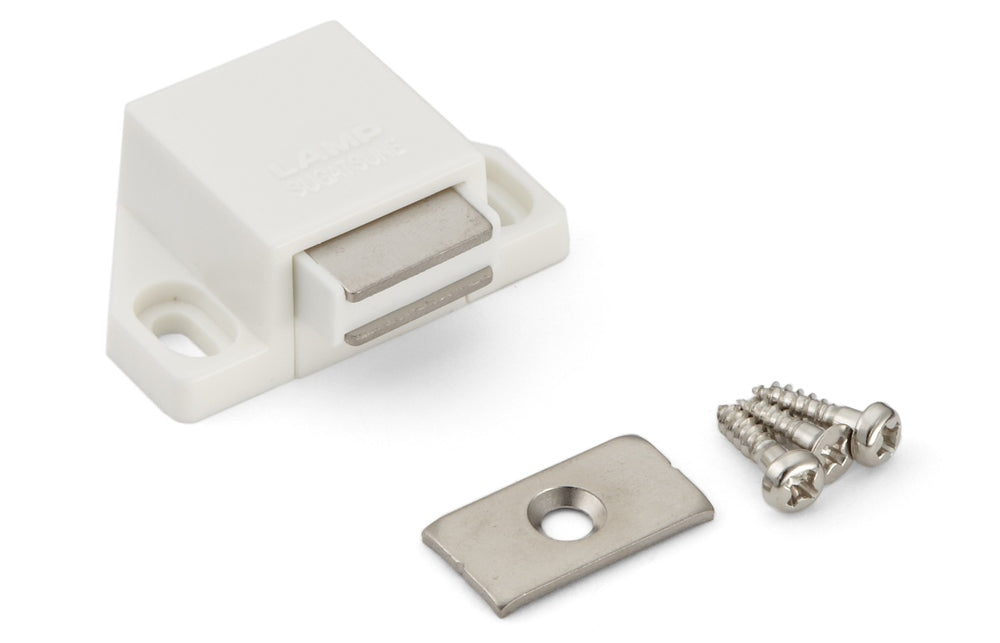

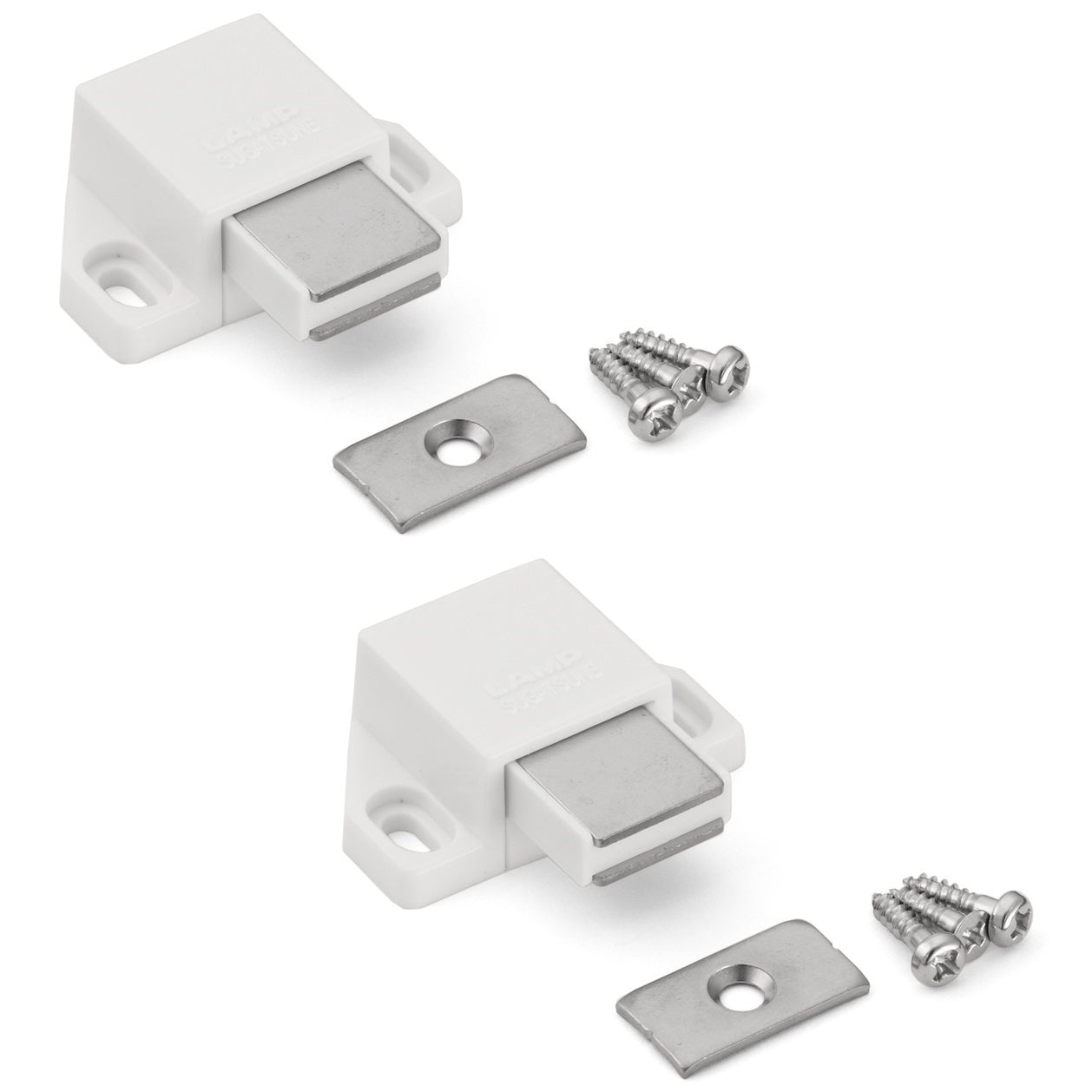

Included in delivery:

• 2 pieces magnetic push-buttons 140-050-054 made of metal and robust plastic, white
• 1 piece counter plate made of steel, nickel-plated
• Two times: 3 wood screws 3.1 x 13 mm (2 round-head wood screws and 1 countersunk-head wood screw)

Manufacturer reference number:

• Article number: 140-050-054
• Item number: ML-30SW
• EAN number: 4510932016940

Manufacturer:Sugatsune / LAMP® (Japan)
