2 compact magnetic push-button catches, including counterplate, surface: brown, 25 mm (63/64″), ML-30SBR for furniture doors, cabinet doors

2 pieces of compact, space-saving magnetic push-button catches, made of metal and robust plastic (metal and plastic), surface: brown, ML-30SBR, size: 25 mm (63/64")

Application:

Space-saving push-to-open door opener for furniture doors, cupboard doors and much more.

The ML-30SBR magnetic push-button catch enables convenient opening and closing of handleless furniture doors by pressing.

The Push-To-Open door opener ML-30SBR has a plunger extension travel of 8.5 mm (21/64″).

Thanks to its compact plastic housing, the ML-30SBR magnetic pressure catch can be discreetly screwed onto the body side.

The counterplate of the ML-30SBR magnetic push-to-close latch has four pointed pins at the corners that engage the wood surface. This allows the counterplate to be securely attached with just one screw.

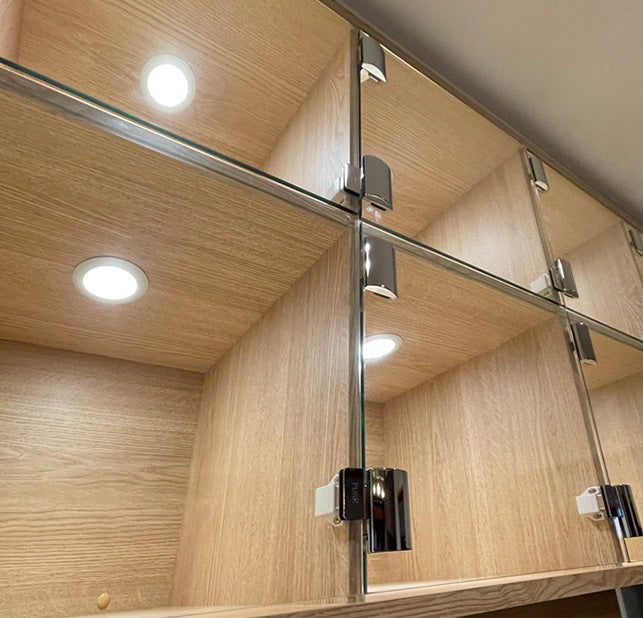

The high-quality magnetic snap fasteners 140-050-055 are ideal for, among others:

• Cabinet flaps
• Kitchen cabinet doors
• Bathroom furniture doors
• Furniture doors
• Cabinet doors

Material:

• The magnetic pressure catches 140-050-055 are made of metal and robust plastic (metal and plastic)
• The combination of metal and plastic offers an optimal balance of strength and flexibility, making the fittings robust yet adaptable
• In addition, this material combination enables improved aesthetics and functionality, as it offers both stability and a variety of design options

Surface:

• Brown
• Brown conveys a feeling of warmth and comfort, creating a cozy and inviting atmosphere, ideal for living and dining areas
• Brown goes well with wood and is a versatile, neutral color that combines well with other colors and materials and exudes timeless elegance

Assembly:

• The fastening is carried out using the three screws included in the delivery (wood screws 3.1 x 13 mm (2 round-head wood screws and 1 countersunk-head wood screw))
• The magnetic pressure catch ML-30SBR has 2 mounting holes
• The distance between the mounting holes is 32 mm (1-17/64″)
• The catch is screwed onto the side of the body
• The minimum distance between the door and the furniture body is 4 mm

Characteristics:

• Weight: 22.5 g
• Load capacity: 11.8 N (1.3 kp)
• Size: 25 mm (63/64″)

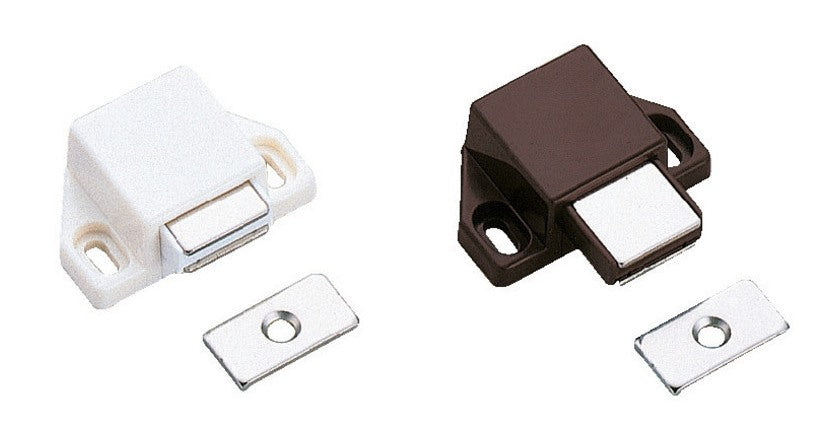

• Available in 2 colors: white and brown
• easy to assemble
• practical
• stable
• Ram travel: 8.5 mm (21/64″)
• Minimum door gap: 4 mm
• brown
• robust
• high brand quality from Sugatsune / LAMP®

The dimensions:

• Magnetic snap width: 43 mm (1-11/16″)
• Depth of the magnetic snap fastener: 25 mm (63/64″)
• Height: 16 mm (5/8″)
• Mounting plate width: 23 mm (29/32″)
• Mounting plate depth: 12 mm (15/32″)

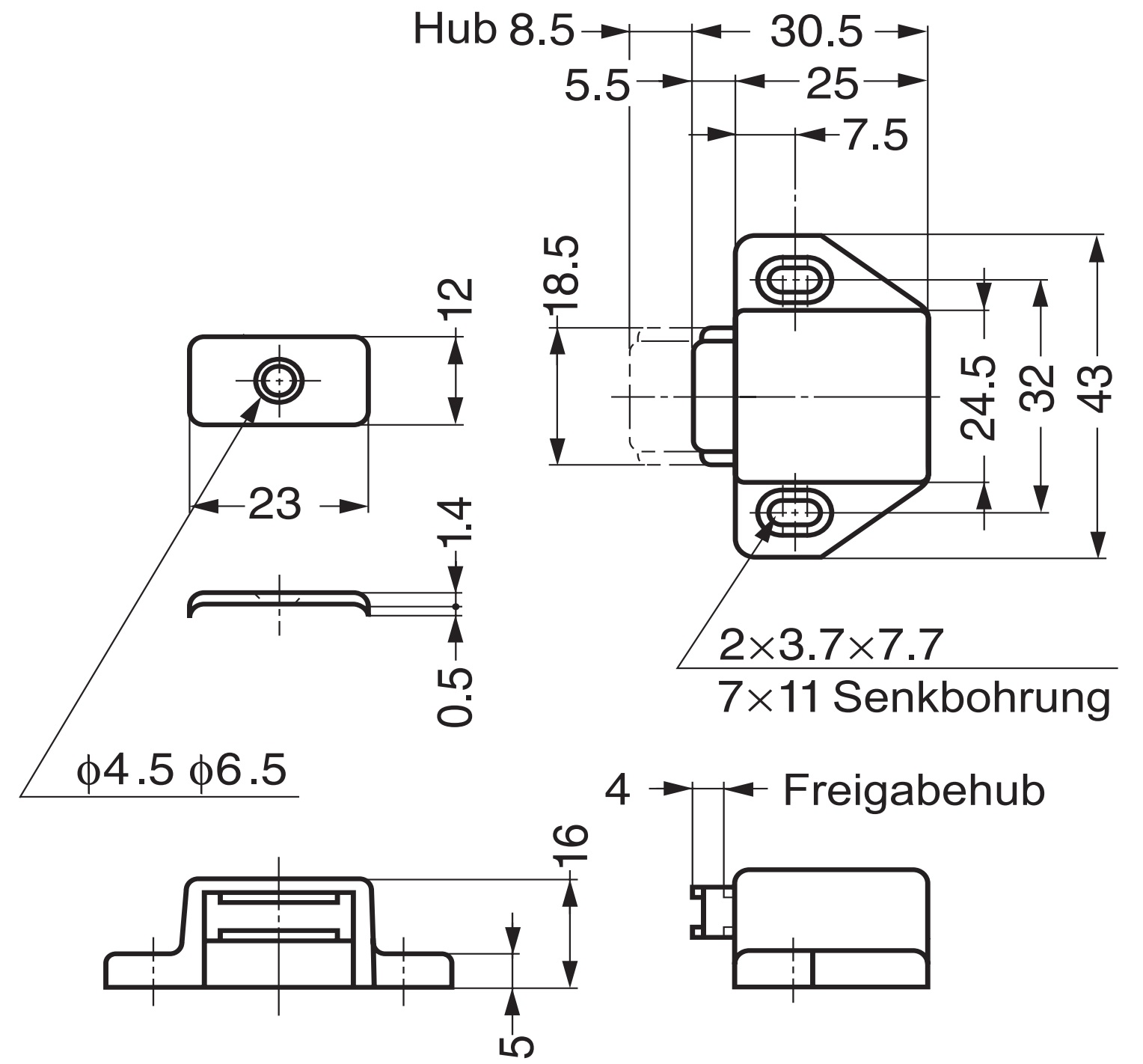

For further dimensions and details see technical drawing .

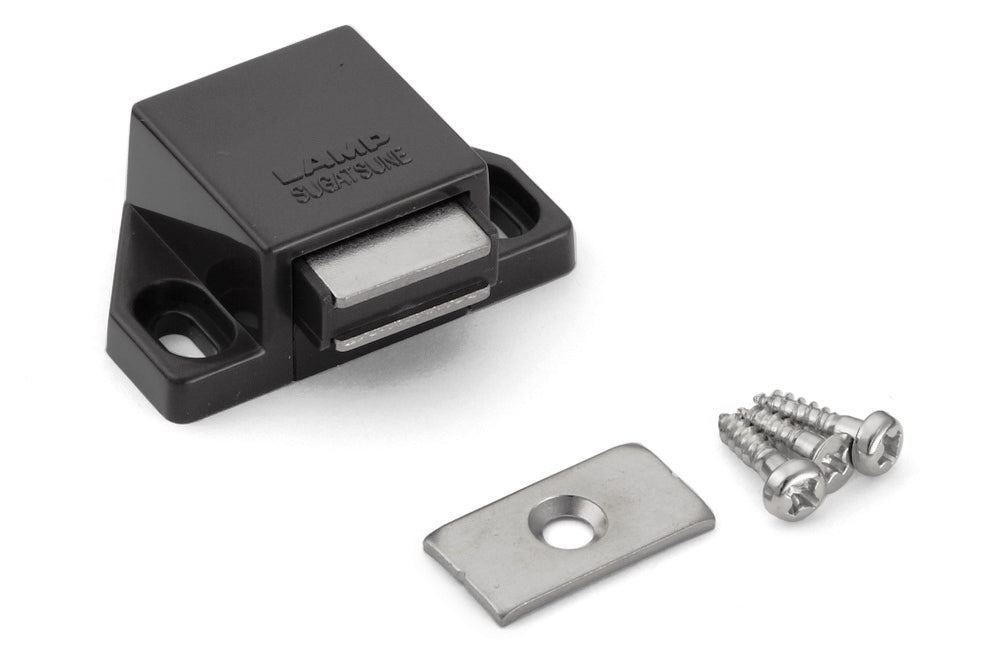

Included in delivery:

• 2 pieces magnetic snap fasteners 140-050-055 made of metal and robust plastic, brown
• 1 piece counter plate made of steel, nickel-plated
• Two times: 3 wood screws 3.1 x 13 mm (2 round-head wood screws and 1 countersunk-head wood screw)

Manufacturer reference number:

• Article number: 140-050-055
• Item number: ML-30SBR
• EAN number: 4510932016957

Manufacturer:Sugatsune / LAMP® (Japan)
