2 pieces of high-quality, robust detachable hinge, made of solid stainless steel SUS304 (V2A or 1.4301), surface: polished glossy, B-1006-2 (10576), height: 50 mm (1-31/32″), load capacity: 6 kg (14 lbs)

Application:

Robust lift-off hinge for ship doors, maintenance flaps and much more.

The detachable hinge B-1006-2 (10576) connects a door or flap to the frame and allows for a smooth rotational movement.

Its centrally split plug-in design allows the movable part to be removed without disassembling the mounting screws when the opening angle is 90° or more.

This makes maintenance, cleaning and replacement of doors or covers quicker.

The material SUS304 offers high corrosion resistance and is particularly suitable for damp, hygienically demanding or outdoor applications.

The glossy barrel polish ensures a clean surface and facilitates cleaning.

When mounted in pairs, vertically, the hinge is designed for a reference door mass of 6 kg (14 lbs).

The high-quality lift-off hinges B-1006-2 (10576) are ideally suited for, among other things:

• Maintenance door
• Machine covers
• Kitchen appliances
• Outdoor units
• Housing doors
• Control cabinets
• Service flaps
• Ship doors
• Maintenance flaps

Material:

• The lift-off hinges 10576 are made of solid stainless steel SUS304 (V2A or 1.4301)
• Stainless steel SUS304 is characterized by its high corrosion resistance and durability, making it ideal for use in demanding environments
• In addition, it offers an attractive surface that is both modern and easy to maintain

Surface:

• Glossy polished
• Glossy polished surfaces on furniture fittings and components improve aesthetics and give them a high-quality, noble appearance
• In addition, the smooth surface facilitates cleaning and ensures less adhesion of dirt and contaminants

Mounting:

• Mounting is done with 6 mm (15/64″) M3 stainless steel countersunk screws, or 6 mm (15/64″) stainless steel countersunk wood screws (not included in the scope of delivery)
• The detachable hinge B-1006-2 (10576) has 6 mounting holes
• The distance between the mounting holes is 20 mm (25/32″)
• First, the mounting positions on the door or flap and frame must be marked, and both hinge halves must be precisely aligned
• The lift-off hinge is then attached to the substrate using M3 countersunk screws through the 6 mounting holes
• For wood or wood-based materials, countersunk wood screws with a diameter of ⌀3 to ⌀3.1 mm can be used instead
• Then the two hinge halves are put together at an opening angle of at least 90°
• Finally, it must be checked whether the door moves easily and both hinge axes are precisely aligned with each other

Features:

• Weight: 30 g (for 2 pieces: 60 g)
• Load capacity: 6 kg (14 lbs) - for 2 pieces
• Height: 50 mm (1-31/32″)
• Available in 5 sizes: 30 mm, 36 mm, 40 mm, 50 mm and 64 mm
• easy to install
• practical
• stable
• Detachable two-piece design
• Material thickness: 1.5 mm (1/16″)
• 6 countersunk holes for M3 screws
• Hinge pin with ⌀3 mm (1/8″)
• Suitable for indoor and outdoor applications
• RoHS10 compliant
• Detachable from an opening angle of 90°
• Centrally separable design
• Suitable for M3 mounting screws
• Suitable for kitchen and food technology
• Suitable for maritime applications
• Compact and flat design
• Door or flap removable without unscrewing
• glossy polished
• weather-resistant
• rustproof (corrosion-resistant)
• high brand quality from TAKIGEN®

The dimensions:

• Overall height of the lift-off hinge: 50 mm (1-31/32″)
• Width: 30 mm (1-3/16″)
• Diameter of the hinge pin: ⌀3 mm (1/8″)

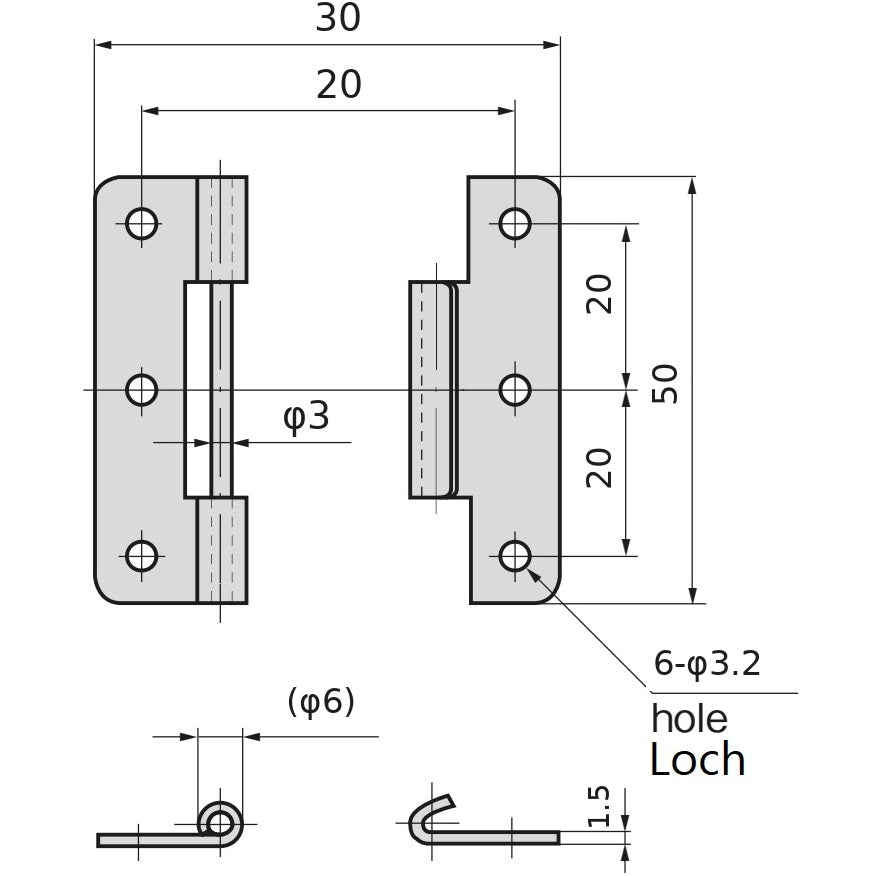

For further dimensions and details, see technical drawing.

Included in the scope of delivery:

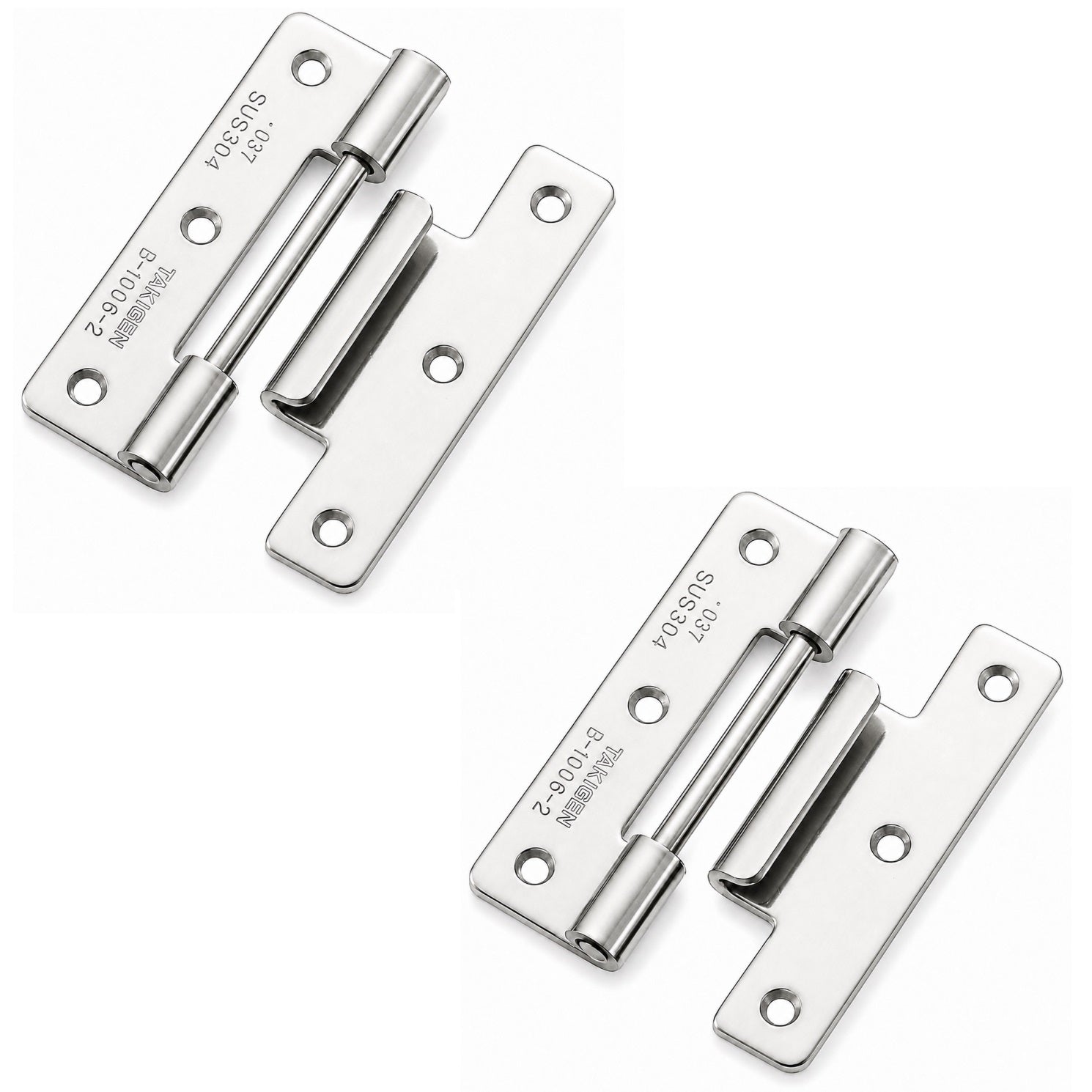

• 2 pieces of lift-off hinge B-1006-2 (10576) made of solid stainless steel SUS304, glossy polished
• Please note that mounting screws are not included in the scope of delivery

Manufacturer's reference numbers:

• Item identification number: 10576
• Item number: B-1006-2

Manufacturer: TAKIGEN (Japan)
