2 Pieces of High-Quality Robust Detachable Hinge, Made of Solid Stainless Steel SUS304 (V2A or 1.4301), Surface: Glossy Polished, B-1006-3 (10577), Height: 40 mm (1-37/64″), Load Capacity: 4 kg (9 lbs)

Application:

Robust lift-off hinge for ship doors, maintenance flaps and much more.

The detachable hinge B-1006-3 (10577) connects a door or flap to the frame and allows for smooth rotational movement.

Its centrally split plug-in design allows the movable part to be removed without disassembling the fastening screws when the opening angle is 90° or more.

This allows for faster maintenance, cleaning, and replacement of doors or covers.

The material SUS304 offers high corrosion resistance and is particularly suitable for humid, hygienically demanding, or outdoor installations.

The glossy barrel polish ensures a clean surface and facilitates cleaning.

When mounted vertically in pairs, the hinge is designed for a reference door weight of 4 kg (9 lbs).

The high-quality detachable hinges B-1006-3 (10577) are ideal for, among other things:

• Maintenance door
• Machine covers
• Kitchen appliances
• Outdoor equipment
• Cabinet doors
• Control cabinets
• Service flaps
• Ship doors
• Maintenance flaps

Material:

• The detachable hinges 10577 are made of solid stainless steel SUS304 (V2A or 1.4301)
• Stainless steel SUS304 is characterized by its high corrosion resistance and durability, making it ideal for use in demanding environments
• In addition, it offers an attractive surface that is both modern and easy to maintain

Surface:

• Glossy polished
• Glossy polished surfaces on furniture fittings and components enhance aesthetics and give them a high-quality, elegant appearance
• Furthermore, the smooth surface facilitates cleaning and ensures less adhesion of dirt and contaminants

Mounting:

• Fastening is done with 0.236220472440945 pieces of M3 stainless steel countersunk screws, or 0.236220472440945 pieces of stainless steel countersunk wood screws (not included in the delivery)
• The detachable hinge B-1006-3 (10577) has 6 mounting holes
• The distance between the mounting holes is 15 mm (19/32″)
• First, the mounting positions on the door or flap and frame must be marked, and both hinge halves precisely aligned
• The detachable hinge is then fastened to the surface with M3 countersunk screws through the 6 mounting holes
• For wood or wood-based materials, countersunk wood screws with a diameter of ⌀3 to ⌀3.1 mm can be used instead
• Afterward, the two hinge halves are joined together at an opening angle of at least 90°
• Finally, it must be checked whether the door moves easily and both hinge axes are precisely aligned with each other

Features:

• Weight: 14 g (for 2 pieces: 28 g)
• Load capacity: 4 kg (9 lbs) - for 2 pieces
• Height: 40 mm (1-37/64″)
• Available in 5 sizes: 30 mm, 36 mm, 40 mm, 50 mm, and 64 mm
• easy to install
• practical
• stable
• Detachable two-piece design
• Material thickness: 1 mm (3/64″)
• 6 countersunk holes for M3 screws
• Hinge pin with ⌀2.5 mm (3/32″)
• Suitable for indoor and outdoor applications
• RoHS10 compliant
• Detachable from an opening angle of 90°
• Centrally separable design
• Suitable for M3 mounting screws
• Suitable for kitchen and food technology
• Suitable for marine applications
• Compact and flat design
• Door or flap can be removed without unscrewing
• glossy polished
• weather-resistant
• rust-free (corrosion-resistant)
• high brand quality from TAKIGEN®

The dimensions:

• Overall height of the lift-off hinge: 40 mm (1-37/64″)
• Width: 36 mm (1-27/64″)
• Diameter of the hinge pin: ⌀2.5 mm (3/32″)

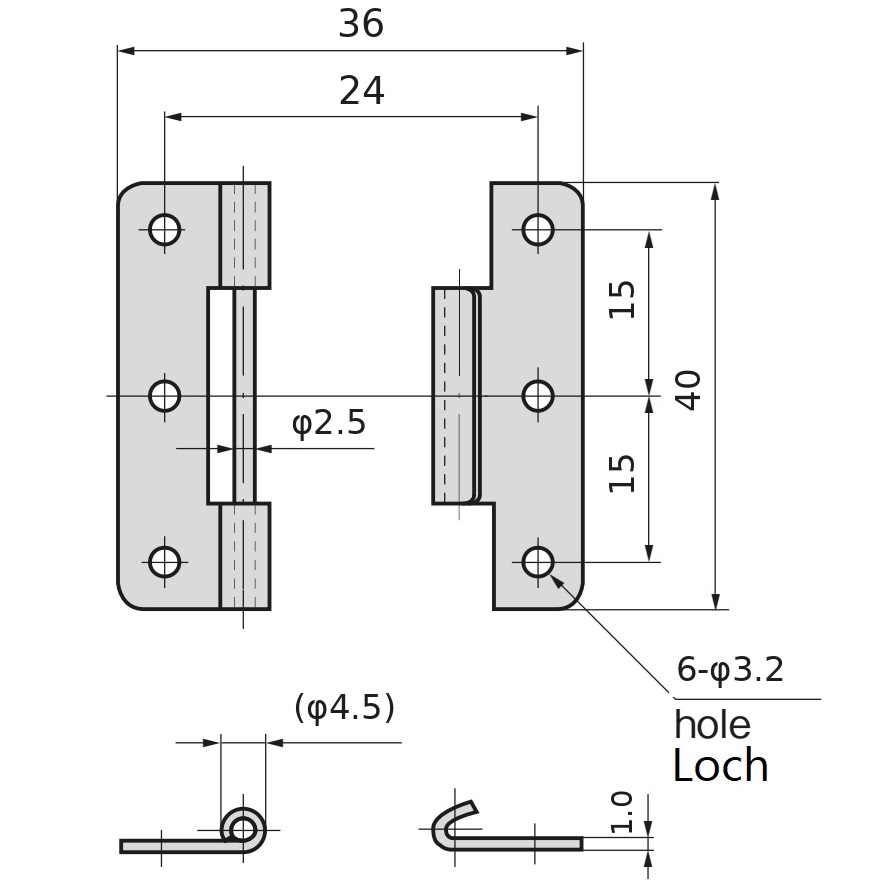

For further dimensions and details, see technical drawing.

Included in delivery:

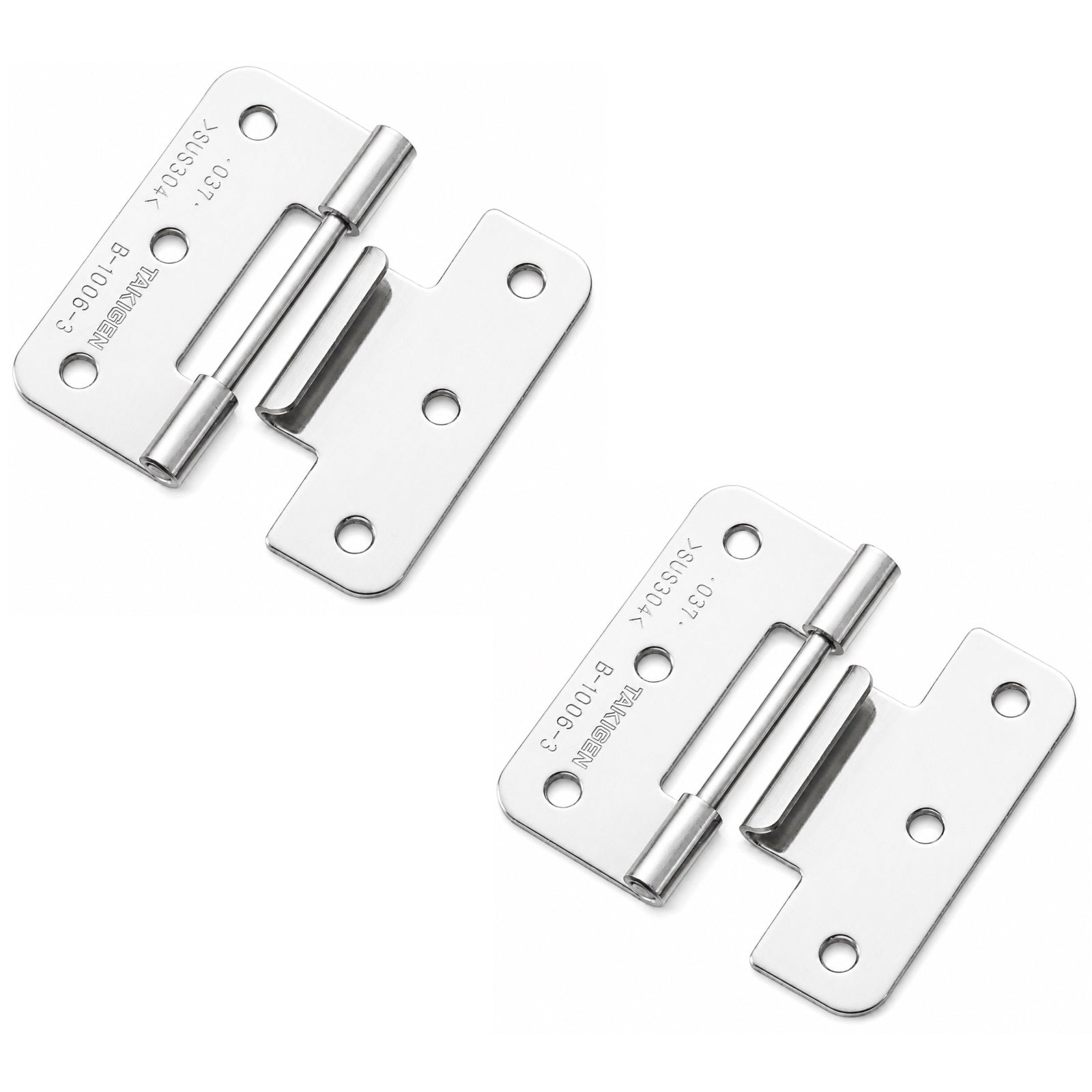

• 2 pieces of lift-off hinge B-1006-3 (10577) made of solid stainless steel SUS304, glossy polished
• Please note that no fastening screws are included in the delivery

Manufacturer's reference numbers:

• Item identification number: 10577
• Item number: B-1006-3

Manufacturer: TAKIGEN (Japan)
