2 Pieces of high-quality, robust lift-off hinge, made of solid stainless steel SUS304 (V2A or 1.4301), surface: polished, B-1004-1-L (10563), height: 75 mm (2-61/64″), version: left, load capacity: 15 kg (34 lbs)

Application:

Robust lift-off hinge for doors, maintenance flaps and much more.

Version: left. For left-hand hinged doors and flaps

The lift-off hinge B-1004-1-L (10563) connects doors or flaps releasably to a housing.

By lifting, the movable component can be separated from the fixed hinge part without loosening the fastening screws.

The left and right versions are designed for correspondingly hinged constructions.

The SUS304 material and the mirror-polished surface offer high corrosion resistance for kitchen, marine and outdoor applications.

Six countersunk holes allow flush and low-interference mounting with M3 countersunk screws.

When using two hinges vertically, TAKIGEN states a door weight of 15 kg as a reference value.

The high-quality lift-off hinges B-1004-1-L (10563) are ideal for, among other things:

• Outdoor enclosures
• Appliance doors
• Machine covers
• Kitchen appliance doors
• Doors
• Maintenance flaps

Material:

• The lift-off hinges 10563 are made of solid stainless steel SUS304 (V2A or 1.4301)
• Stainless steel SUS304 is characterized by its high corrosion resistance and durability, making it ideal for use in demanding environments
• In addition, it offers an attractive, polished or satin finish that is both modern and easy to care for

Surface:

• Polished
• Polished surfaces on furniture fittings and components improve aesthetics and give them a high-quality, noble appearance
• In addition, the smooth surface makes cleaning easier and ensures less adhesion of dirt and contaminants

Assembly:

• Fastening is done with 6 M3 countersunk screws (not included)
• The lift-off hinge B-1004-1-L (10563) has 6 mounting holes
• The distance between the mounting holes is 24 mm (15/16″) horizontally and 30 mm (1-3/16″) vertically
• First, the positions of the two hinge halves must be marked and the six mounting points prepared
• The housing-side hinge half is fastened with three M3 countersunk screws
• The door-side hinge half is also mounted with three M3 countersunk screws
• Both hinge halves must be aligned so that the hinge pin can be inserted without tension
• Then the door or flap is placed on the hinge pin from above
• Finally, smooth operation, full engagement of the pin and tight fit of all screws must be checked

Features:

• Version: left
• Weight: 65 g (for 2 pieces: 130 g)
• Load capacity: 15 kg (34 lbs) - for 2 pieces
• Height: 75 mm (2-61/64″)
• Available in 2 versions: left and right, in 3 materials: Titanium, stainless steel SUS304 and steel, and in 3 lengths: 50 mm, 64 mm and 75 mm
• easy to install
• practical
• stable
• Lift-off two-piece construction
• High corrosion resistance
• Material thickness: 2 mm (5/64″)
• Six countersunk holes for M3 screws
• Hinge pin with ⌀4 mm (5/32″)
• Door removable without loosening screws
• Suitable for indoor and outdoor applications
• RoHS10 compliant
• polished
• weather-resistant
• rust-free (corrosion-resistant)
• high brand quality from TAKIGEN®

The dimensions:

• Overall height of the lift-off hinge: 75 mm (2-61/64″)
• Width: 38 mm (1-1/2″)
• Diameter of the hinge pin: ⌀4 mm (5/32″)

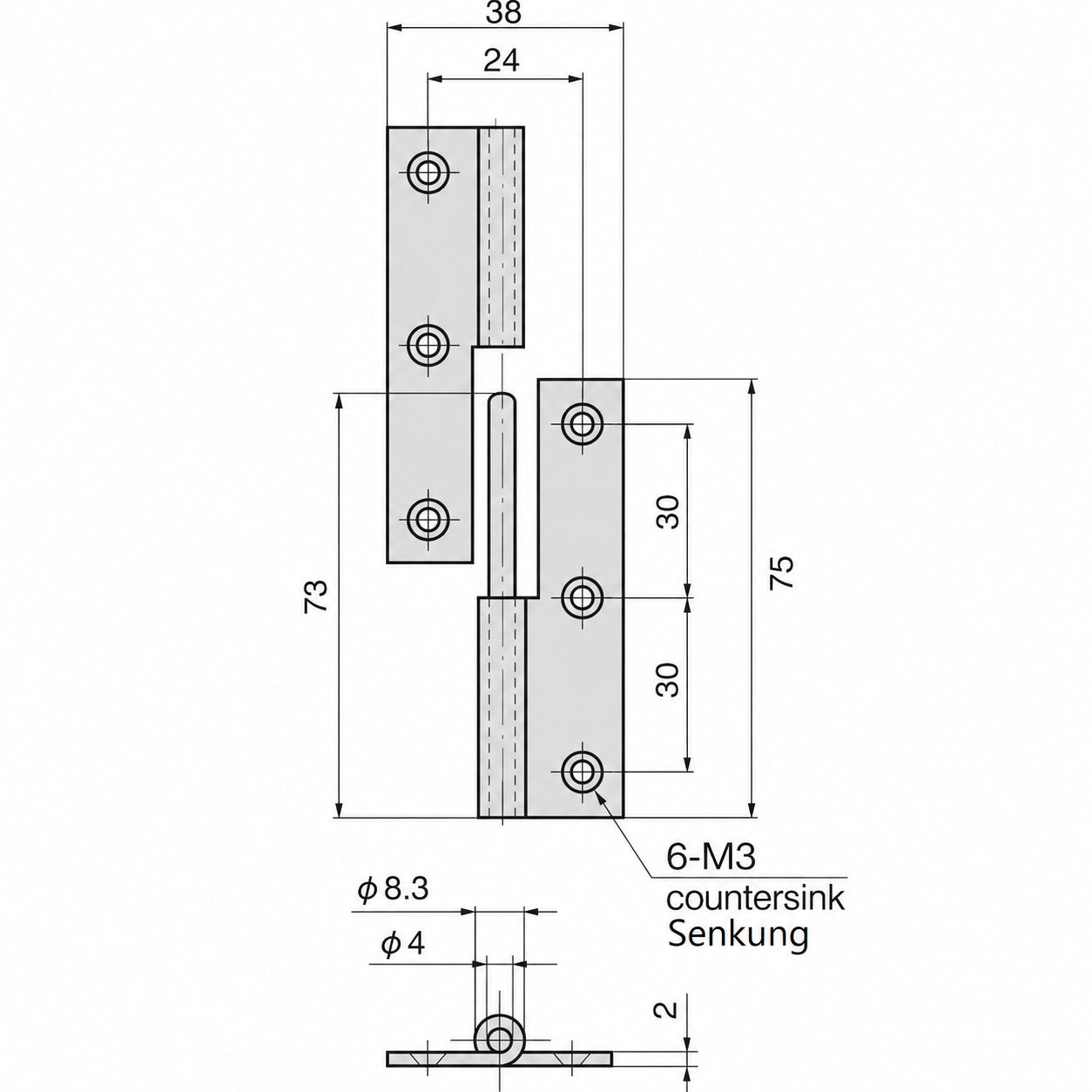

For further dimensions and details, please see technical drawing.

Included in delivery:

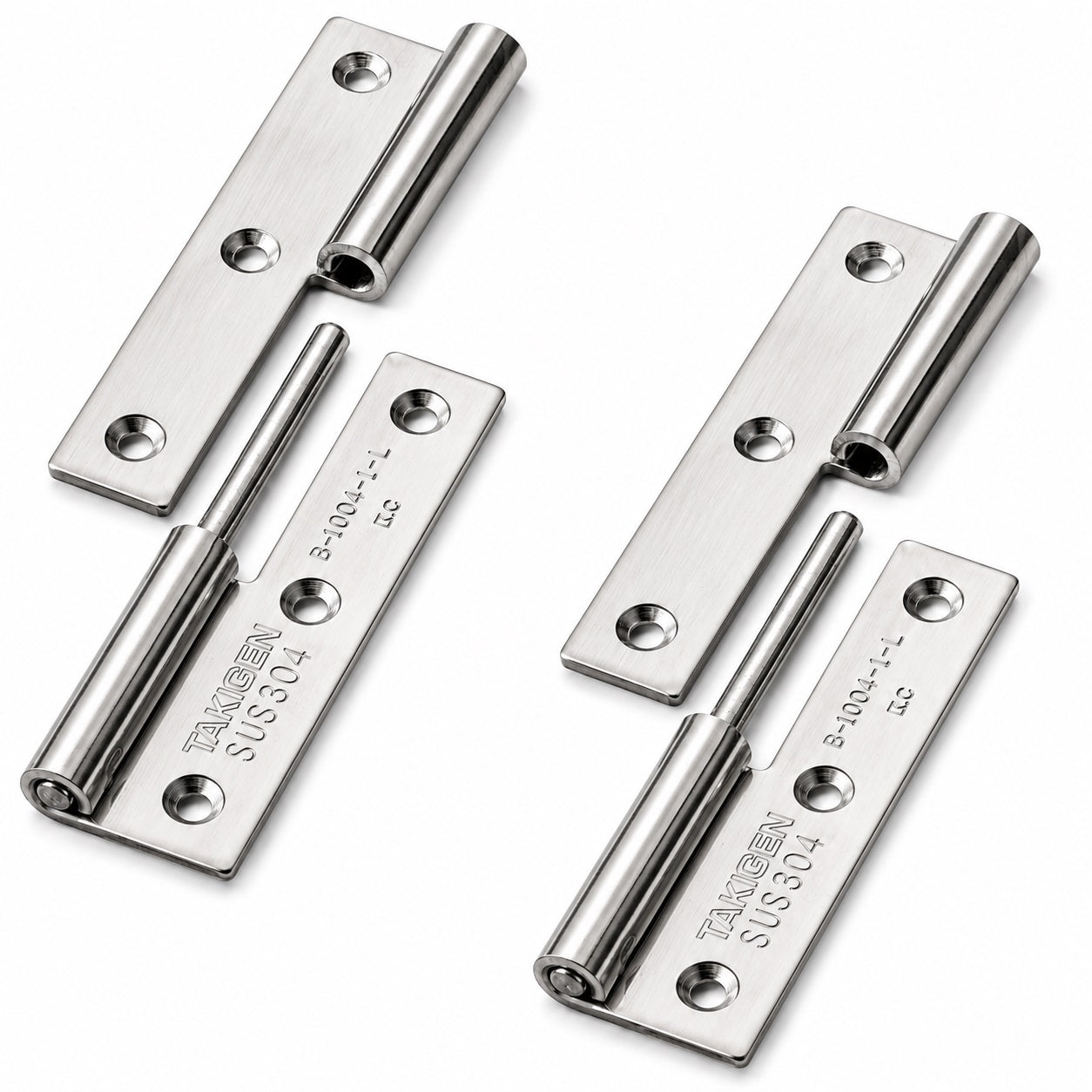

• 2 pieces of lift-off hinge B-1004-1-L (10563) made of solid stainless steel SUS304, polished
• Please note that no fastening screws are included in the delivery

Manufacturer's reference numbers:

• Item ID number: 10563
• Article number: B-1004-1-L

Manufacturer: TAKIGEN (Japan)
