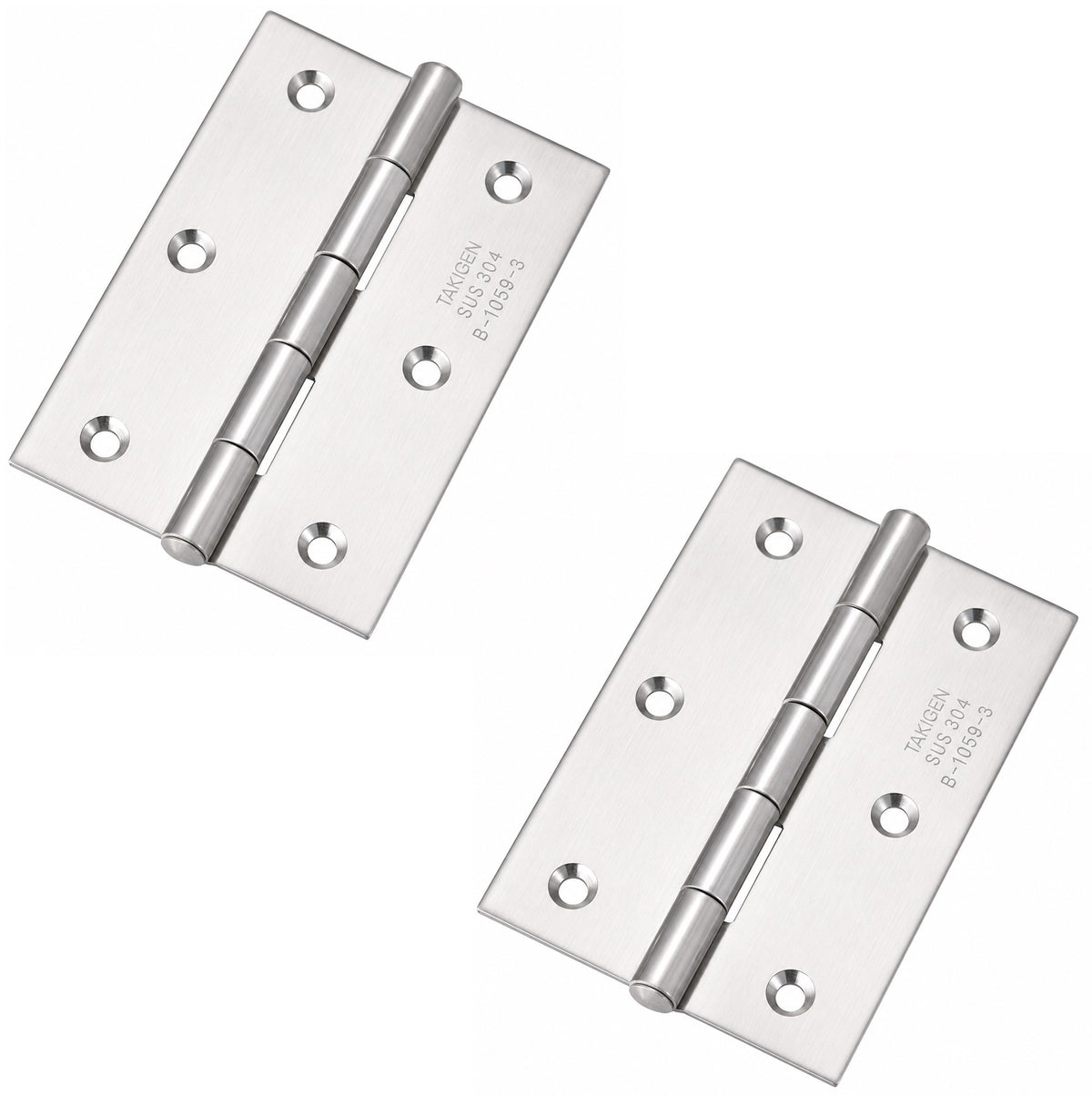

2 pieces of high-quality surface-mounted hinge, made of solid stainless steel SUS304 (V2A or 1.4301), surface: polished glossy, B-1059-3 (10659), size: 64 mm (2-33/64″), load capacity: 9.7 kg (21 lbs)

Application:

Robust flat hinge for machine doors, maintenance flaps and much more.

The surface-mounted hinge B-1059-3 (10659) connects doors or flaps to a body or frame and enables simple, permanent rotary movement.

The flat design is particularly suitable for surface-mounted applications on housings, machine covers and cabinets.

SUS304 stainless steel offers good corrosion resistance and makes the hinge suitable for damp or more demanding environments.

The polished surface ensures a clean, high-quality appearance and facilitates cleaning.

6 countersunk holes allow for stable fastening, with the screw heads largely flush with the hinge leaves.

When two hinges are used vertically, the reference door weight for a door size of 700 mm (27-9/16″) x 350 mm (13-25/32″) is up to 9.7 kg (21 lbs).

The high-quality flat hinges B-1059-3 (10659) are ideal for, among other things:

• Cabinet doors
• Machine covers
• Stainless steel housings
• Control cabinets
• Appliance flaps
• Cabinet doors
• Machine doors
• Maintenance flaps

Material:

• The flat hinges 10659 are made of solid stainless steel SUS304 (V2A or 1.4301)
• Stainless steel SUS304 is characterized by its high corrosion resistance and durability, making it ideal for use in demanding environments
• In addition, it offers an attractive surface that is both modern and easy to care for

Surface:

• Glossy polished
• Glossy polished surfaces on furniture fittings and components enhance the aesthetics and give them a high-quality, elegant appearance
• In addition, the smooth surface facilitates cleaning and ensures less adhesion of dirt and impurities

Assembly:

• Fastening is done with 6 x countersunk screws made of stainless steel V2A, approx. ⌀3.5 mm (not included in delivery)
• The flat hinge has 6 mounting holes with countersinking
• The flat hinge is first aligned in the desired position on the door or flap and frame
• The 6 fastening points are marked according to the hole pattern and pre-drilled or threaded depending on the material used
• Then the hinge is fastened with suitable countersunk screws
• For a visually clean assembly, the screw heads should be as flush as possible with the countersinks
• Before final tightening, it must be checked whether the door or flap can be moved freely and without tension

Features:

• Weight: 21 g (for 2 pieces: 42 g)
• Load capacity: 9.7 kg (21 lbs) - for 2 pieces
• Size: 64 mm (2-33/64″)

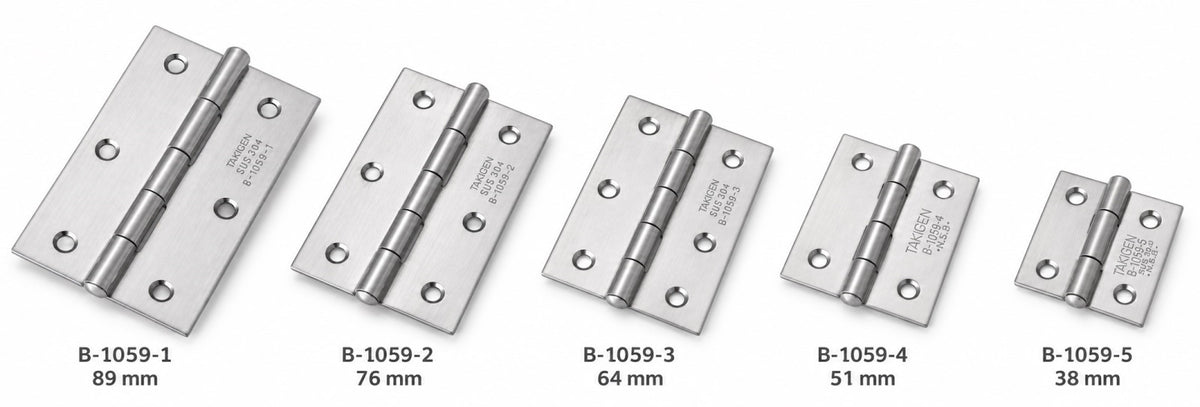

• Available in 5 sizes: 38 mm, 51 mm, 64 mm, 76 mm and 89 mm
• easy to assemble
• practical
• stable
• Material thickness 0.8 mm (1/32″)
• 6 recessed mounting holes
• Mounting holes with ⌀4.5 mm
• Countersink with ⌀6 mm
• Hinge pin with ⌀4.5 mm
• Hinge barrel with ⌀6 mm outer diameter
• Five knuckle segments
• Reference door for weight specification: 700 mm (27-9/16″) x 350 mm (13-25/32″)
• Suitable for various door and flap applications
• glossy polished
• weather resistant
• rustproof (corrosion resistant)
• high brand quality from TAKIGEN®

The dimensions:

• Length: 64 mm (2-33/64″)
• Width: 40 mm (1-37/64″)
• Material thickness: 0.8 mm (1/32″)
• Hole pattern dimension: 48 mm (1-57/64″)
• Number of knuckle segments: 5

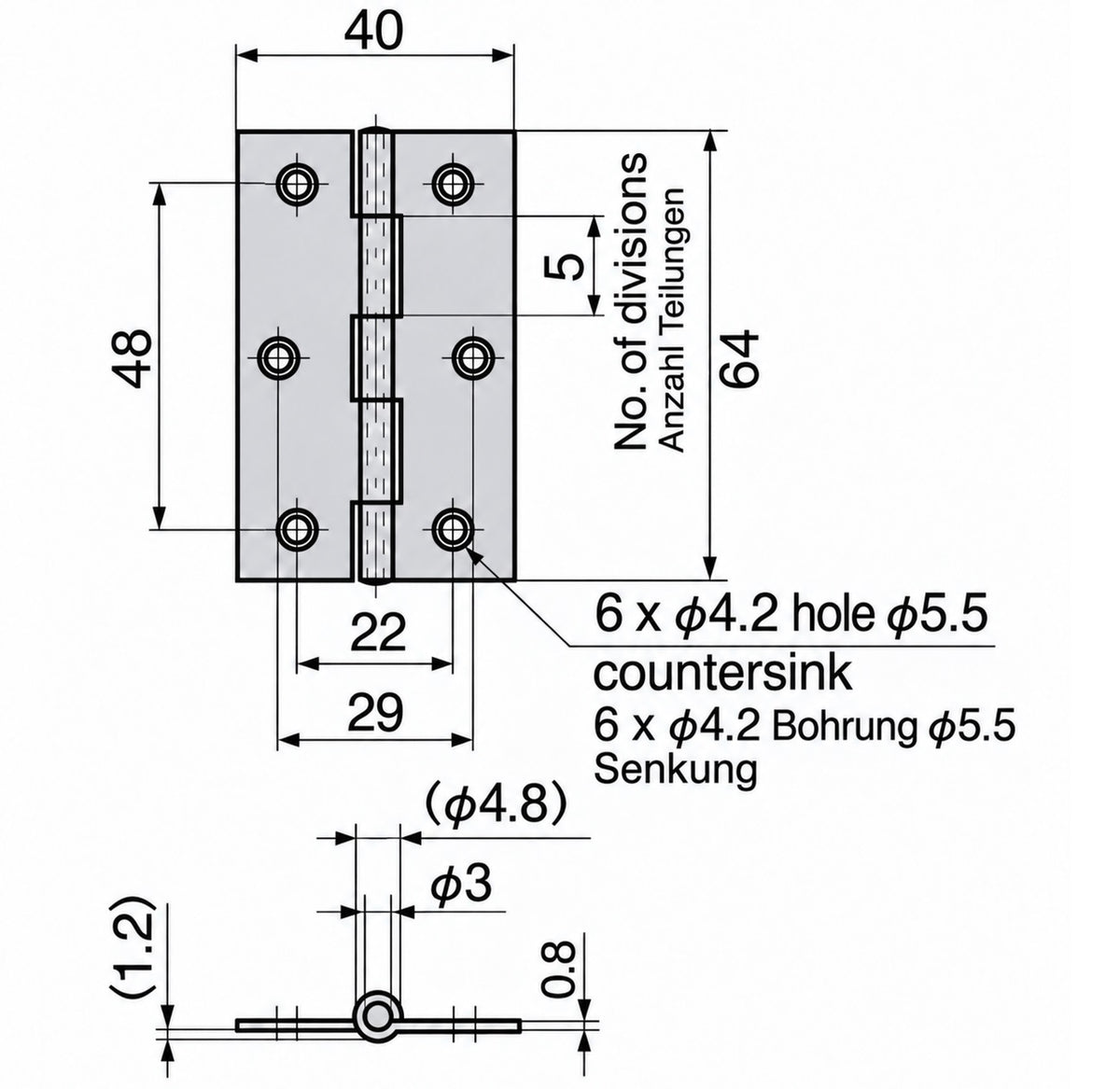

For further dimensions and details, see technical drawing.

Included in delivery:

• 2 pieces of flat hinge B-1059-3 (10659) made of solid stainless steel SUS304, polished glossy
• Please note that no mounting screws are included in the scope of delivery

Manufacturer's reference numbers:

• Item identification number: 10659
• Article number: B-1059-3

Manufacturer: TAKIGEN (Japan)
